Home / Car Parts / Steering & Suspension / Steering Parts / Tie Rod End

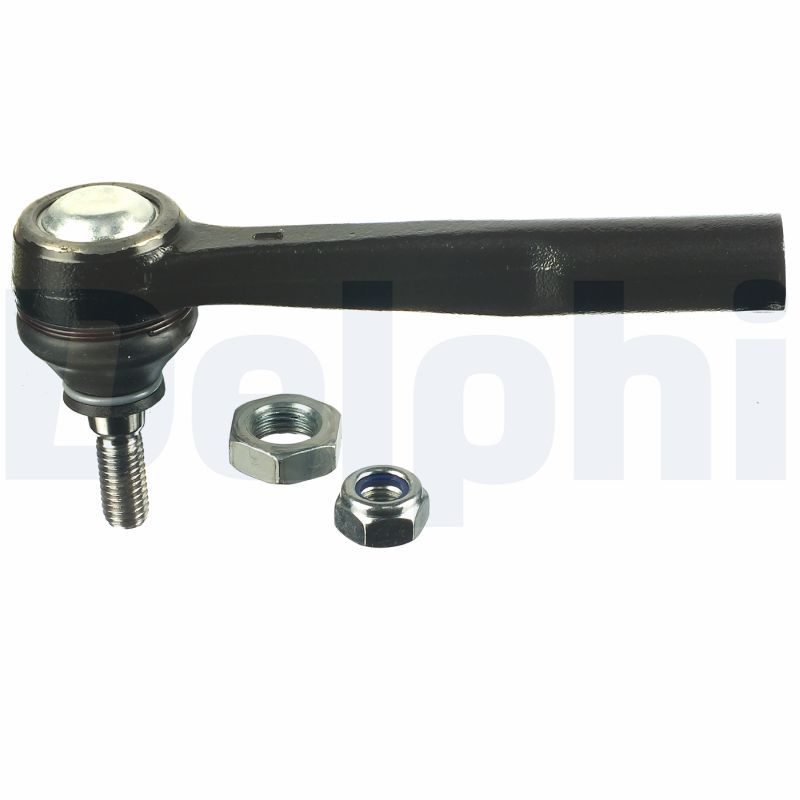

Delphi TA3023 Tie Rod End - 1
Delphi TA3023 Tie Rod End video
Delphi TA3023 Tie Rod End - 1
Delphi TA3023 Tie Rod End video
DELPHI

Delphi TA3023 Tie Rod End

SKU: TA3023
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£12.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FIAT
500L (351_, 352_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet (199LYE1B) 1598 CCM 120 HP From 09/2013
1.4 (199LYB1B) 1368 CCM 95 HP From 09/2012
0.9 (199LYC1B) 875 CCM 105 HP From 09/2012
1.3 D Multijet (199LXY1A, 199LXY11) 1248 CCM 84 HP From 09/2012
1.6 D Multijet (199LYD1B) 1598 CCM 105 HP 09/2012 - 05/2018
0.9 Natural Power (199LYC1B) 875 CCM 86 HP From 03/2013
1.4 (199LYF1B) 1368 CCM 120 HP From 10/2013
1.4 LPG (199LYF1B) 1368 CCM 120 HP From 02/2014
1.3 D Multijet (199.LYM11, 199.LYM1A) 1248 CCM 95 HP From 06/2014
0.9 Natural Power (199LYC1B) 875 CCM 80 HP From 04/2017

The Delphi TA3023 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 154 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 11.6
Paired article number : TA3024
Fitting Position : Front Axle Left
Length [mm] : 154
Width [mm] : 37
Height [mm] : 73
  • Vendor DELPHI
  • SKU TA3023
  • Barcode 5012759524114
  • FIAT : 77366165
  • APEC : AST6630
  • BORG & BECK : BTR5841
  • BORG & BECK : BTR5943
  • CORTECO : 49401870
  • FEBI BILSTEIN : 108799
  • FIRST LINE : FTR5841
  • FIRST LINE : FTR5943
  • LEMFÖRDER : 39279 01
  • MEYLE : 216 020 0013/HD
  • MONROE : L15128
  • MONROE : L15130
  • NAPA : NST6630
  • Schaeffler FAG : 840 1622 10
  • SKF : VKDY 312017
  • TRW : JTE1827
