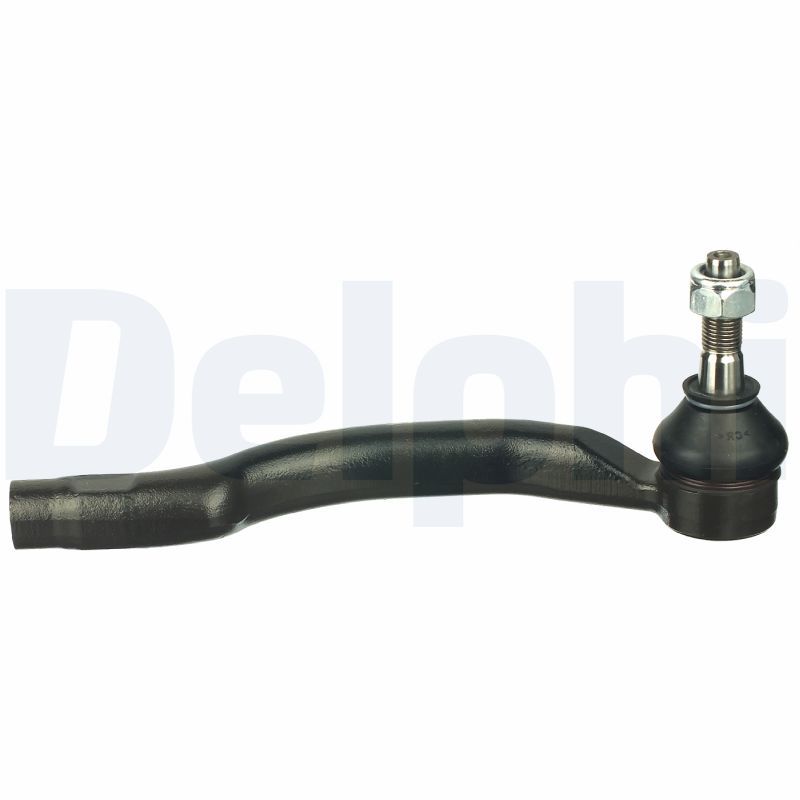

Delphi TA3026 Tie Rod End - 1
Delphi TA3026 Tie Rod End video
Delphi TA3026 Tie Rod End - 1
Delphi TA3026 Tie Rod End video
DELPHI

Delphi TA3026 Tie Rod End

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: TA3026

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£17.80 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MAZDA
6 Saloon (GH)
Description Cylinder Capacity Horse Power Year
1.8 MZR 1798 CCM 120 HP 08/2007 - 07/2013
2.0 MZR (GHEFP, GH10F) 1999 CCM 147 HP 08/2007 - 12/2012
2.5 MZR (GH5FS, GH5FP) 2488 CCM 170 HP 08/2007 - 07/2013
2.0 MZR-CD (GH14) 1998 CCM 140 HP 08/2007 - 10/2010
2.2 MZR-CD (GH10) 2184 CCM 125 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 163 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 185 HP 01/2009 - 12/2012
2.0 MZR (GHEFP) 1999 CCM 155 HP 01/2010 - 12/2012
2.2 D (GH10) 2184 CCM 129 HP 01/2010 - 12/2012
2.2 D (GH10) 2183 CCM 180 HP 01/2010 - 07/2013
6 Hatchback (GH)
Description Cylinder Capacity Horse Power Year
2.2 MZR-CD (GH10) 2184 CCM 180 HP 01/2010 - 12/2012
2.2 D (GH10) 2184 CCM 129 HP 01/2010 - 12/2012
2.0 MZR (GHEFS) 1999 CCM 155 HP 01/2010 - 12/2012
1.8 MZR 1798 CCM 120 HP 08/2007 - 07/2013
2.0 MZR (GHEFS) 1999 CCM 147 HP 08/2007 - 07/2013
2.5 MZR (GH5FS) 2488 CCM 170 HP 08/2007 - 03/2013
2.0 MZR-CD (GH14) 1998 CCM 140 HP 08/2007 - 10/2009
2.2 MZR-CD (GH10) 2184 CCM 185 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 163 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 125 HP 01/2009 - 12/2012
6 Estate (GH)
Description Cylinder Capacity Horse Power Year
2.0 MZR (GHEFW) 1999 CCM 155 HP 01/2010 - 07/2013
2.2 D (GH10) 2184 CCM 129 HP 01/2010 - 07/2013
2.2 MZR-CD (GH10) 2183 CCM 180 HP 01/2010 - 07/2013
1.8 MZR 1798 CCM 120 HP 02/2008 - 07/2013
2.0 MZR (GHEFW, GH10F) 1999 CCM 147 HP 12/2007 - 07/2013
2.0 MZR-CD (GH14) 1998 CCM 140 HP 12/2007 - 12/2010
2.5 MZR (GH5FW) 2488 CCM 170 HP 02/2008 - 07/2013
2.2 MZR-CD (GH10) 2184 CCM 125 HP 01/2009 - 12/2010
2.2 MZR-CD (GH10) 2184 CCM 163 HP 08/2008 - 07/2013
2.2 MZR-CD (GH10) 2184 CCM 185 HP 08/2008 - 12/2011

The Delphi TA3026 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 225 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12.7
Fitting Position : Front Axle Right
Length [mm] : 225
Width [mm] : 48
Height [mm] : 87
  • Vendor DELPHI
  • SKU TA3026
  • Barcode 5012759524169
  • MAZDA : GS1D-32-280
  • APEC : AST6447
  • APEC : AST6448
  • BLUE PRINT : ADM58777
  • BORG & BECK : BTR5723
  • CORTECO : 49401045
  • FEBI BILSTEIN : 42484
  • FIRST LINE : FTR5723
  • KYB : KTR1329
  • LEMFÖRDER : 39231 01
  • MEYLE : 35-16 020 0044
  • MONROE : L50163
  • NAPA : NST6447
  • NAPA : NST6448
  • Schaeffler FAG : 840 1269 10
  • TRW : JTE409
