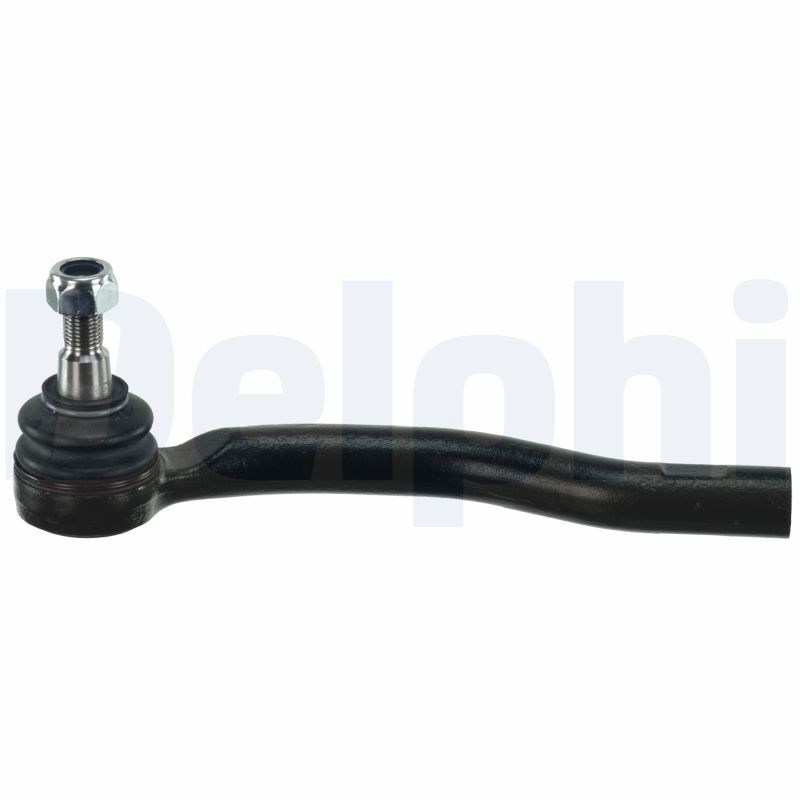

Delphi TA3074 Tie Rod End

SKU: TA3074

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£24.24 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA

CX-7 (ER)

Description	Cylinder Capacity	Horse Power	Year
2.5 MZR (ER10L)	2488 CCM	163 HP	07/2009 - 03/2013
2.2 MZR-CD AWD (ER10A)	2184 CCM	163 HP	01/2012 - 03/2013
2.3 MZR DISI Turbo AWD (ER3P)	2261 CCM	258 HP	10/2007 - 08/2009
2.3 MZR DISI Turbo AWD (ER3P)	2261 CCM	260 HP	06/2009 - 03/2013
2.2 MZR-CD AWD (ER10A)	2184 CCM	173 HP	07/2009 - 03/2013

CX-9 (TB)

Description	Cylinder Capacity	Horse Power	Year
3.7 AWD (TB10A)	3726 CCM	277 HP	From 01/2007
3.7	3726 CCM	277 HP	From 01/2007

The Delphi TA3074 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 228 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End

Thread Size : M14x1.5

Thread Type : with right-hand thread

Cone Size [mm] : 14.9

Paired article number : TA3075

Fitting Position : Front Axle Left

Length [mm] : 228

Width [mm] : 48

Height [mm] : 80

Delphi TA3074 Tie Rod End
