DELPHI

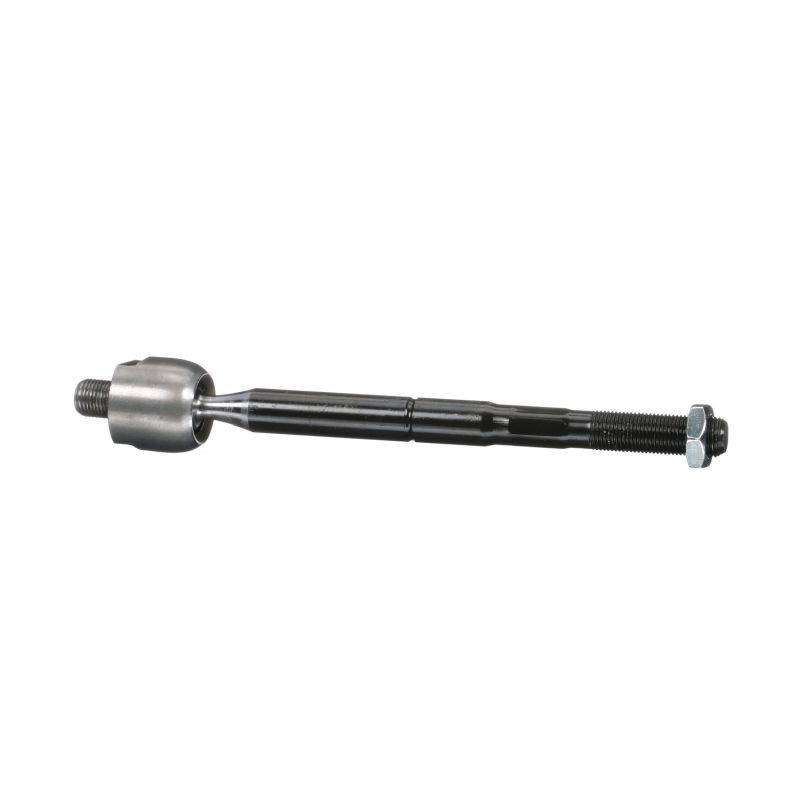

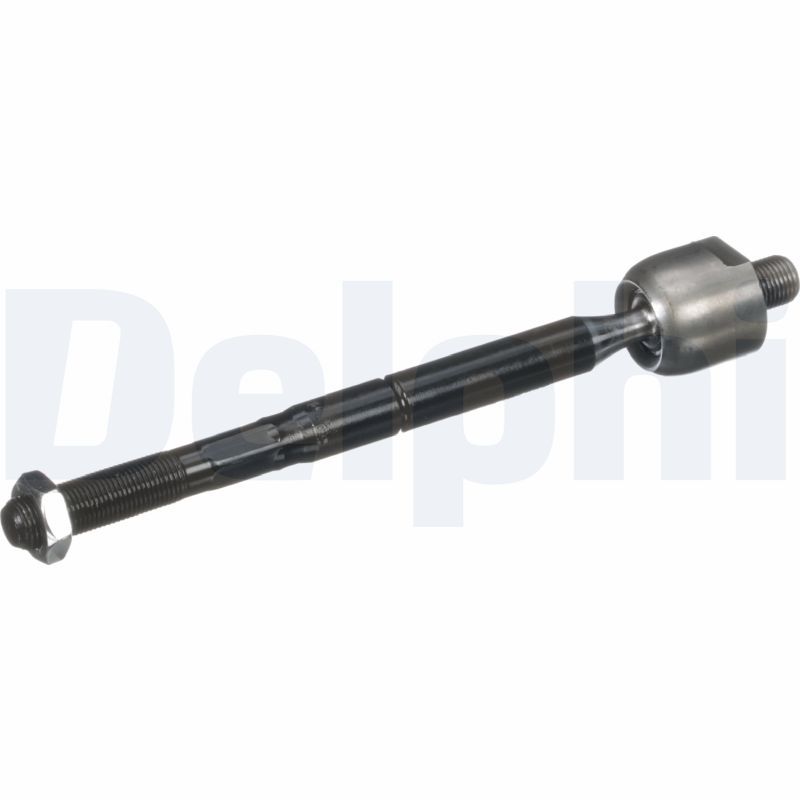

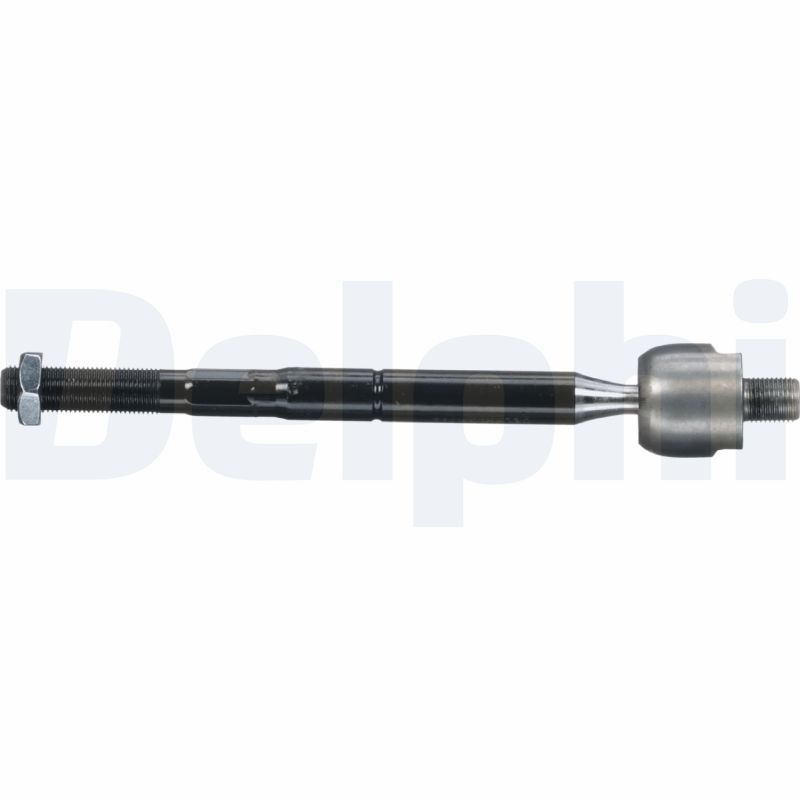

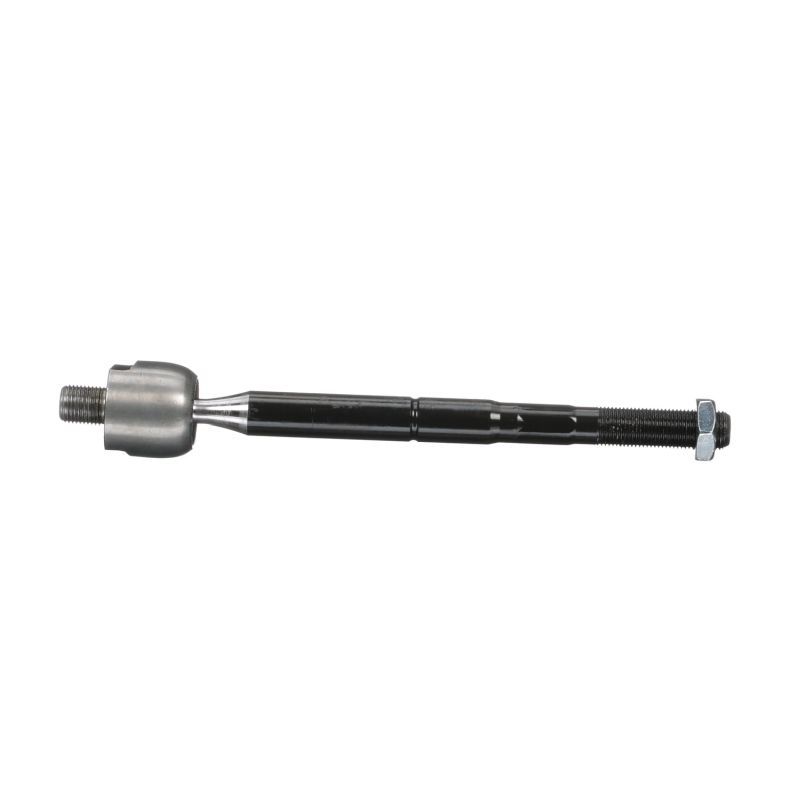

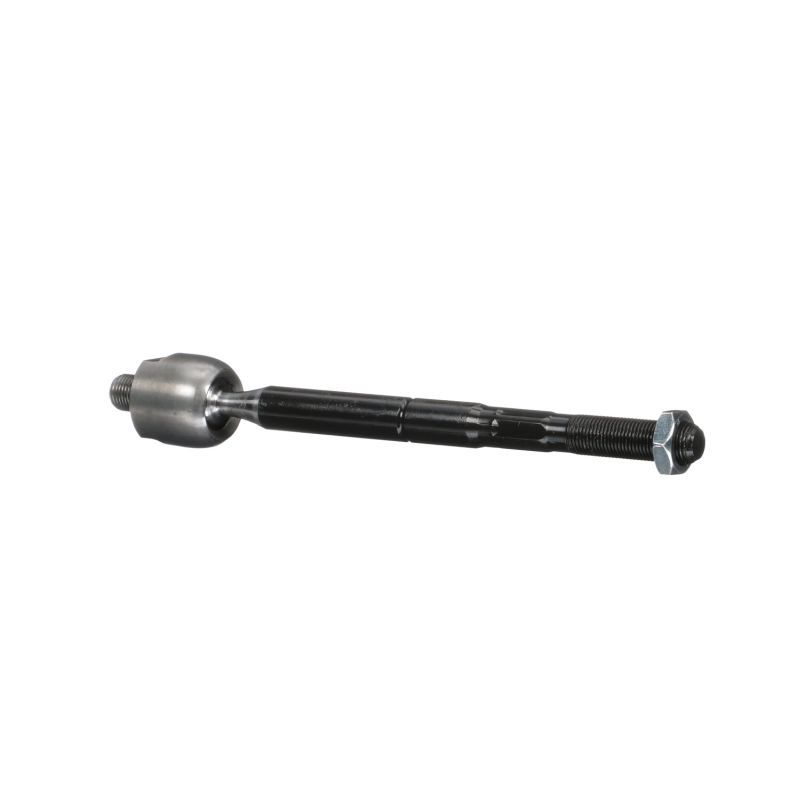

Delphi TA3088 Inner Tie Rod

SKU: TA3088
Your selected vehicle
Out of stock
Out of Stock
£16.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
RAV 4 III (_A3_)
Description Cylinder Capacity Horse Power Year
2.4 4WD (ACA31, ACA33) 2362 CCM 170 HP 11/2005 - 06/2013
2.0 4WD (ACA30_, ACA30R) 1998 CCM 152 HP 02/2006 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 136 HP 02/2006 - 12/2012
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 177 HP 02/2006 - 06/2013
2.4 (ACA36, ACA38) 2362 CCM 170 HP 11/2005 - 12/2013
2.0 (ZSA35_, ZSA35R) 1987 CCM 158 HP 12/2008 - 06/2013
2.0 4WD (ZSA30_, ZSA30R) 1987 CCM 158 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D (ALA35_) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30) 2231 CCM 133 HP 11/2005 - 12/2010
RAV 4 IV (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 4WD (ZSA44) 1987 CCM 146 HP 12/2012 - 09/2019
2.0 D (ALA40_, ALA40R) 1998 CCM 124 HP 12/2012 - 11/2018
2.0 4WD (ZSA44_, ZSA44R) 1987 CCM 151 HP 12/2012 - 10/2018
2.2 D 4WD (ALA49) 2231 CCM 150 HP 12/2012 - 09/2019
2.0 (ZSA42) 1987 CCM 146 HP 12/2012 - 09/2019
2.5 4WD (ASA44) 2494 CCM 180 HP 12/2012 - 10/2018
2.0 D 4WD (ALA41_) 1998 CCM 124 HP 01/2013 - 11/2018
2.0 4WD (ZSA44_) 1987 CCM 151 HP 04/2015 - 10/2018
2.5 Hybrid 4WD (AVA44, AVA44_) 2494 CCM 197 HP 11/2015 - 11/2018
2.0 D (WWA42_) 1995 CCM 143 HP 10/2015 - 11/2018
2.5 (ASA42) 2494 CCM 180 HP 12/2012 - 11/2018
2.5 Hybrid (AVA42_) 2494 CCM 197 HP 11/2015 - 11/2018
2.0 (ZSA42) 1987 CCM 143 HP 12/2012 - 09/2019
RAV 4 IV VAN (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 VVTi 4WD (ZSA44) 1987 CCM 152 HP 12/2012 - 11/2018

The Delphi TA3088 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size 2, front axle fitting position, 264 mm length, and 38 mm width. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 2 : M16x1.5
Fitting Position : Front Axle
Length [mm] : 264
Width [mm] : 38
Height [mm] : 38
Axle Joint Length [mm] : 245
  • Vendor DELPHI
  • SKU TA3088
  • Barcode 5012759977088
  • TOYOTA : 4550342030 4551042030 4551042080 4551042230
  • APEC : AST6560
  • BLUE PRINT : ADBP870080
  • BORG & BECK : BTR5653
  • BOSCH : 0 986 141 216
  • FEBI BILSTEIN : 183762
  • FIRST LINE : FTR5653
  • MONROE : L13269
  • NAPA : NST6560
  • SKF : VKDY 821029
  • User manual
