DELPHI

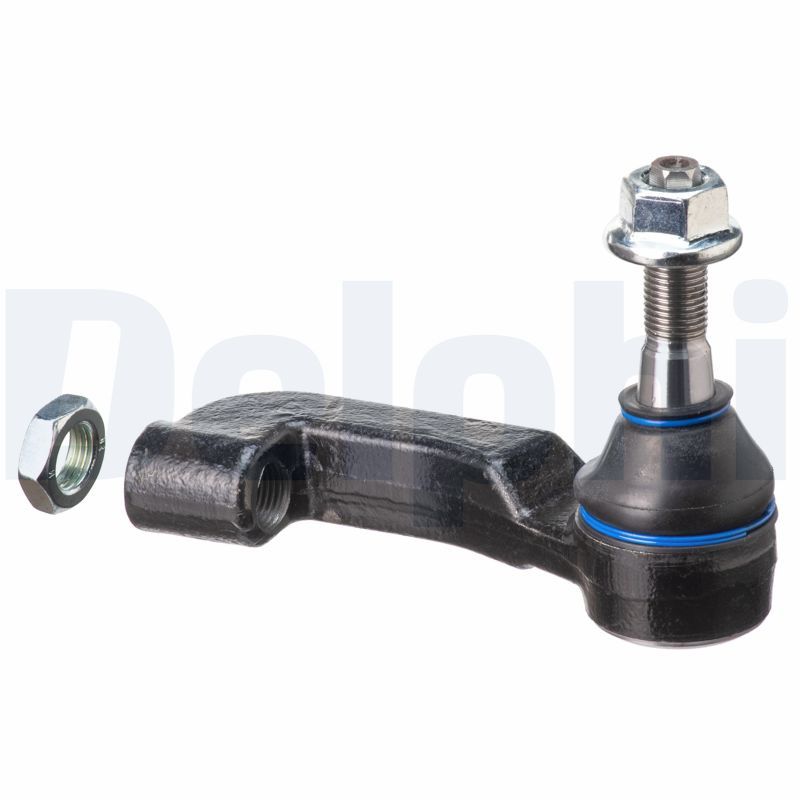

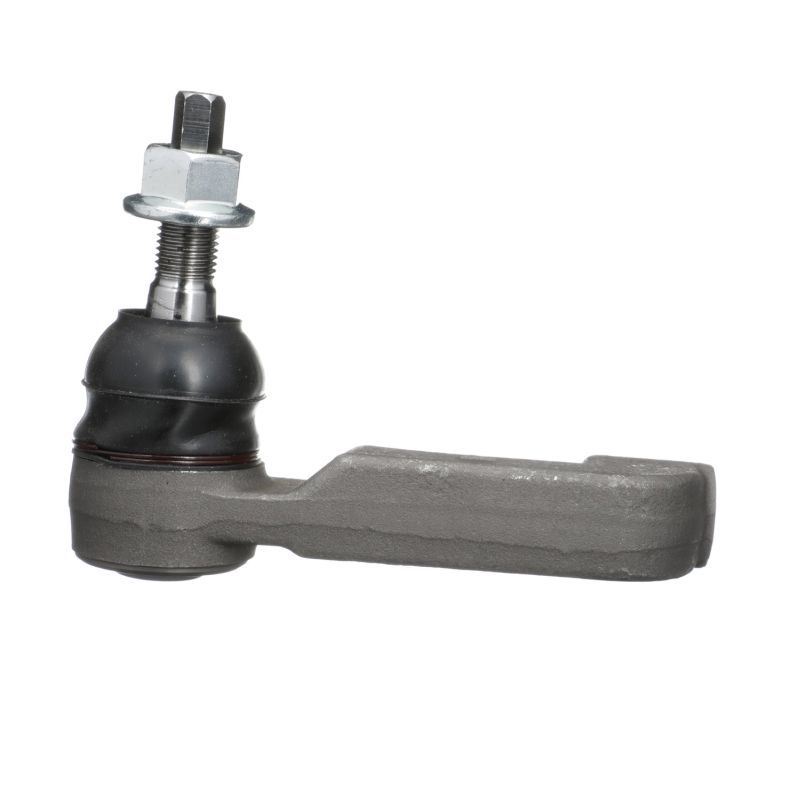

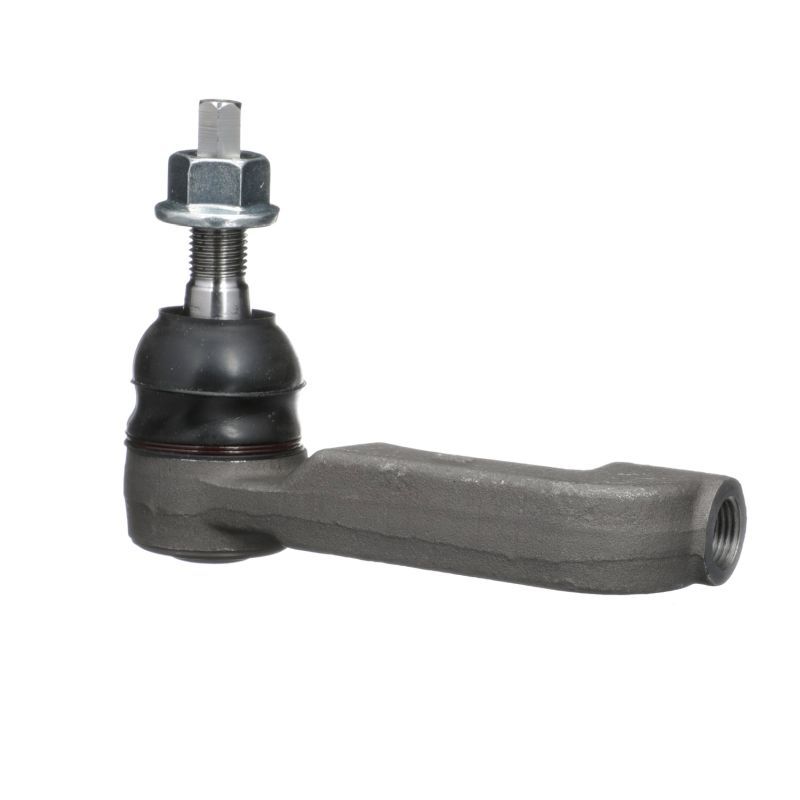

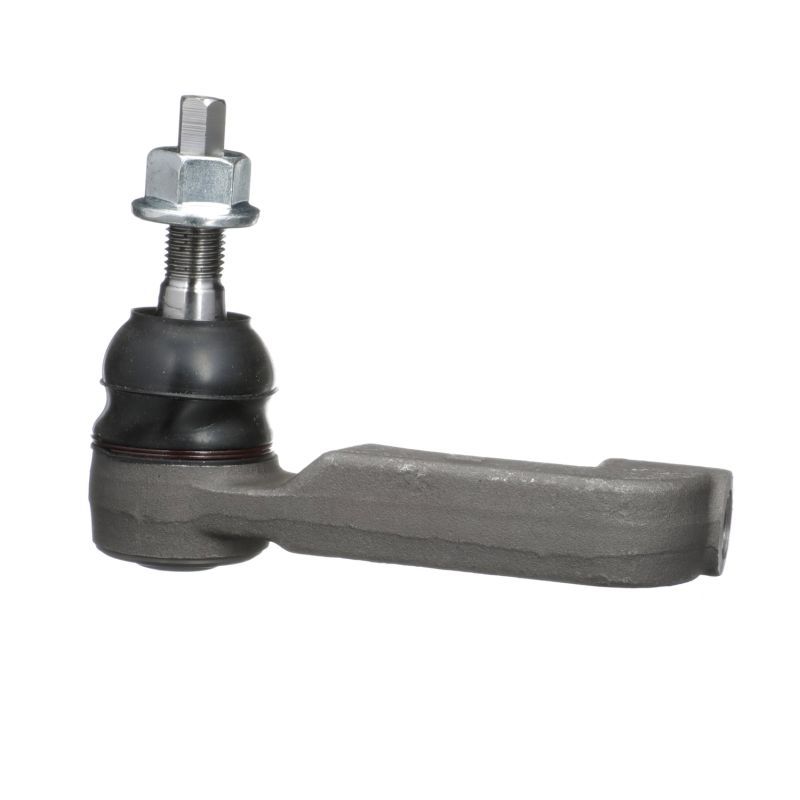

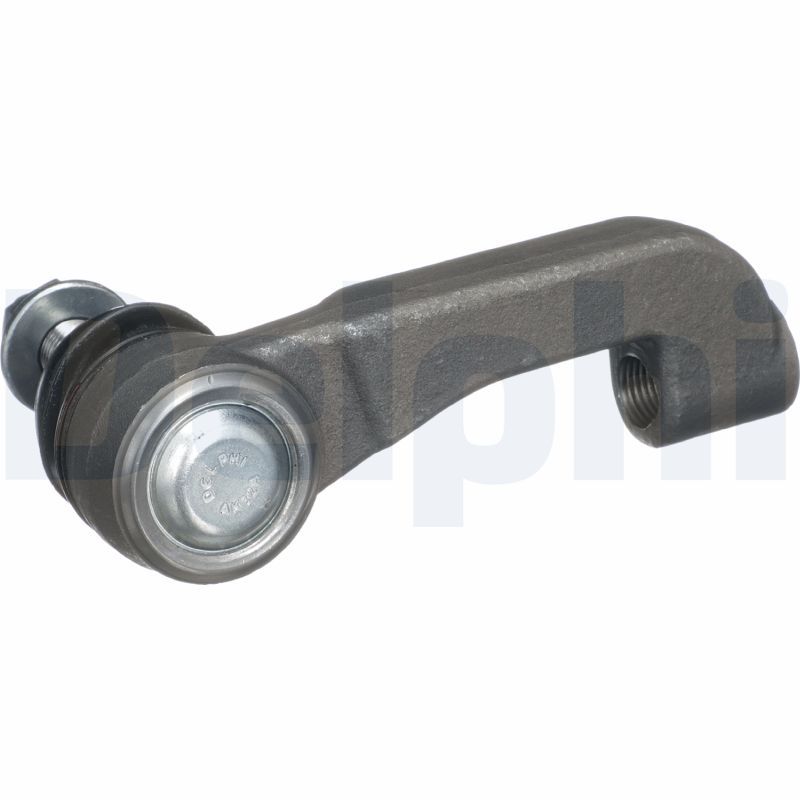

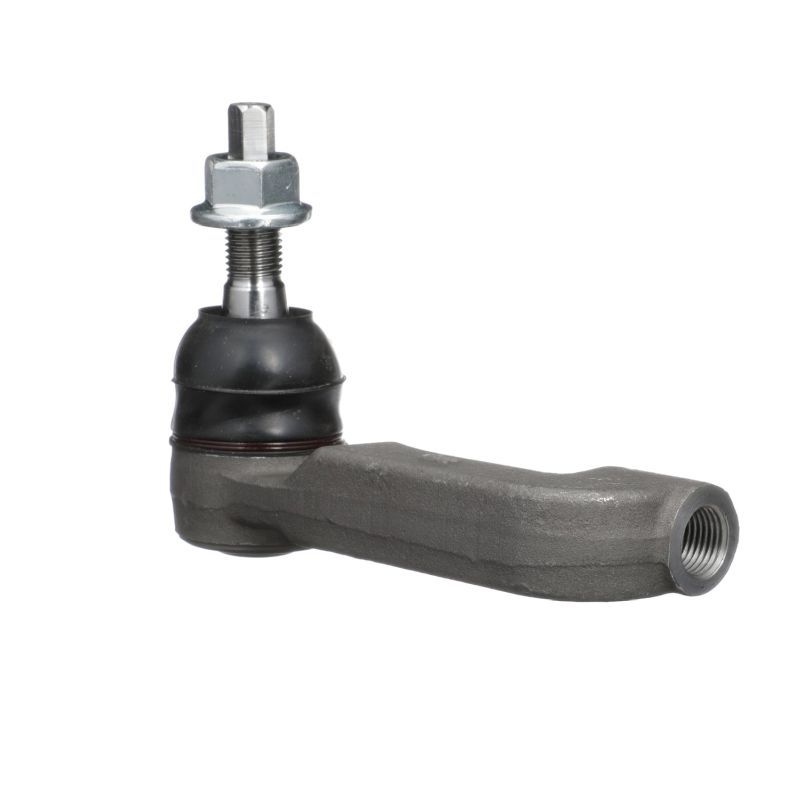

Delphi TA3150 Tie Rod End

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: TA3150

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£22.61 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

JEEP

CHEROKEE (KJ)

Description	Cylinder Capacity	Horse Power	Year
2.4 4x4	2429 CCM	147 HP	09/2001 - 01/2008
3.7 4x4	3698 CCM	211 HP	09/2001 - 01/2008
2.5 CRD 4x4	2499 CCM	143 HP	09/2001 - 01/2008
2.8 CRD 4x4	2776 CCM	150 HP	11/2002 - 01/2008
3.7 4x4	3700 CCM	204 HP	08/2003 - 01/2008
2.8 CRD 4x4	2776 CCM	163 HP	11/2004 - 01/2008
2.4 Laredo	2429 CCM	147 HP	10/2001 - 09/2004
3.7 Laredo	3700 CCM	204 HP	10/2001 - 09/2004
3.7 4x4	3700 CCM	214 HP	09/2001 - 10/2007

The Delphi TA3150 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1,5 thread size, with right-hand thread thread type, front axle right fitting position, and 147 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End

Thread Size : M16 x 1,5

Thread Type : with right-hand thread

Cone Size [mm] : 15.1

Paired article number : TA3149

Fitting Position : Front Axle Right

Length [mm] : 147

Width [mm] : 44

Height [mm] : 107
