DELPHI

Delphi TA3172 Inner Tie Rod

SKU: TA3172

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£23.38 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO

XC60 I SUV (156)

Description	Cylinder Capacity	Horse Power	Year
T5	1999 CCM	241 HP	09/2010 - 02/2017
D5 AWD	2400 CCM	215 HP	04/2011 - 12/2015
T6 AWD	2953 CCM	286 HP	05/2008 - 12/2010
2.4 D / D3 / D4 AWD	2400 CCM	163 HP	05/2008 - 02/2017
D5 AWD	2400 CCM	185 HP	05/2008 - 12/2009
D5 AWD	2400 CCM	205 HP	07/2009 - 06/2011
2.4 D	2400 CCM	175 HP	04/2009 - 12/2010
3.2 AWD	3192 CCM	238 HP	07/2009 - 12/2010
2.0 T	1999 CCM	203 HP	12/2009 - 12/2012
3.2 AWD	3192 CCM	243 HP	03/2010 - 12/2015
T6 AWD	2953 CCM	304 HP	03/2010 - 02/2017
D3 / D4	1984 CCM	163 HP	03/2010 - 12/2014
D3	1984 CCM	136 HP	04/2012 - 12/2015
D4 AWD	2400 CCM	181 HP	10/2013 - 12/2015

XC60 I VAN (156)

Description	Cylinder Capacity	Horse Power	Year
D3	1984 CCM	136 HP	09/2013 - 12/2015
D5 AWD	2400 CCM	215 HP	09/2013 - 02/2017

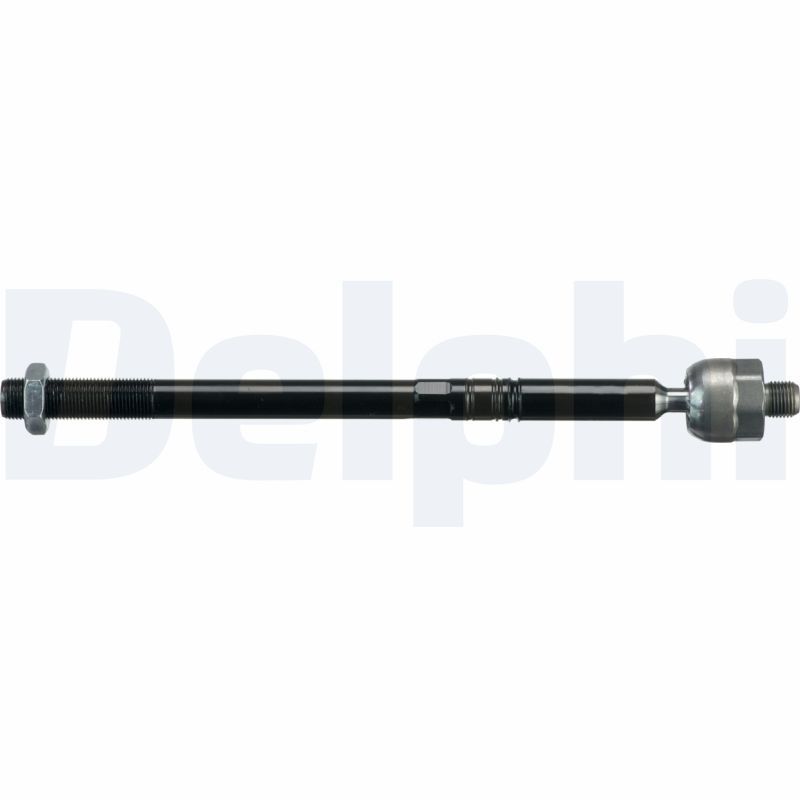

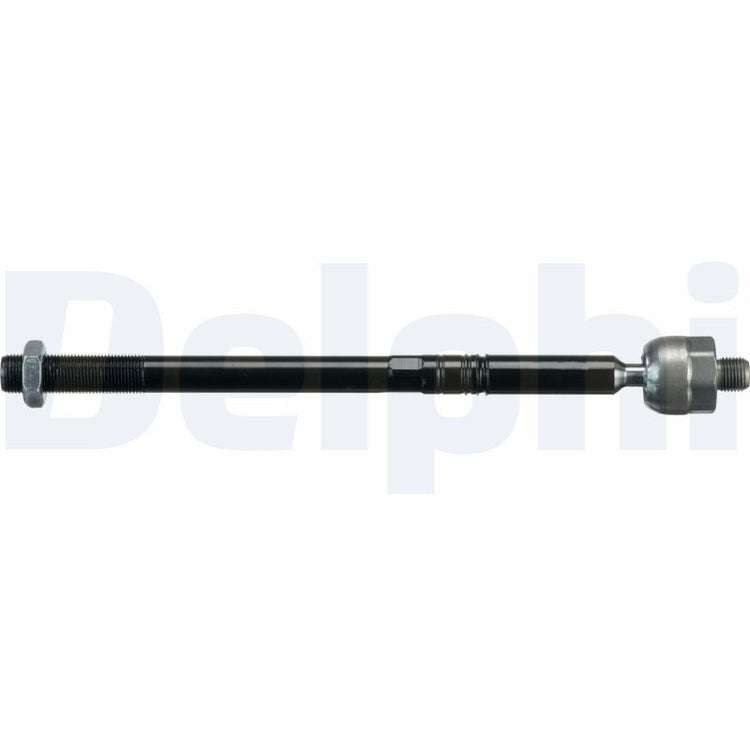

The Delphi TA3172 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M18x1.5 thread size 2, front axle fitting position, 333 mm length, and 36 mm width. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod

Thread Size 2 : M18x1.5

Fitting Position : Front Axle

Length [mm] : 333

Width [mm] : 36

Height [mm] : 36

Axle Joint Length [mm] : 318

Delphi TA3172 Inner Tie Rod
