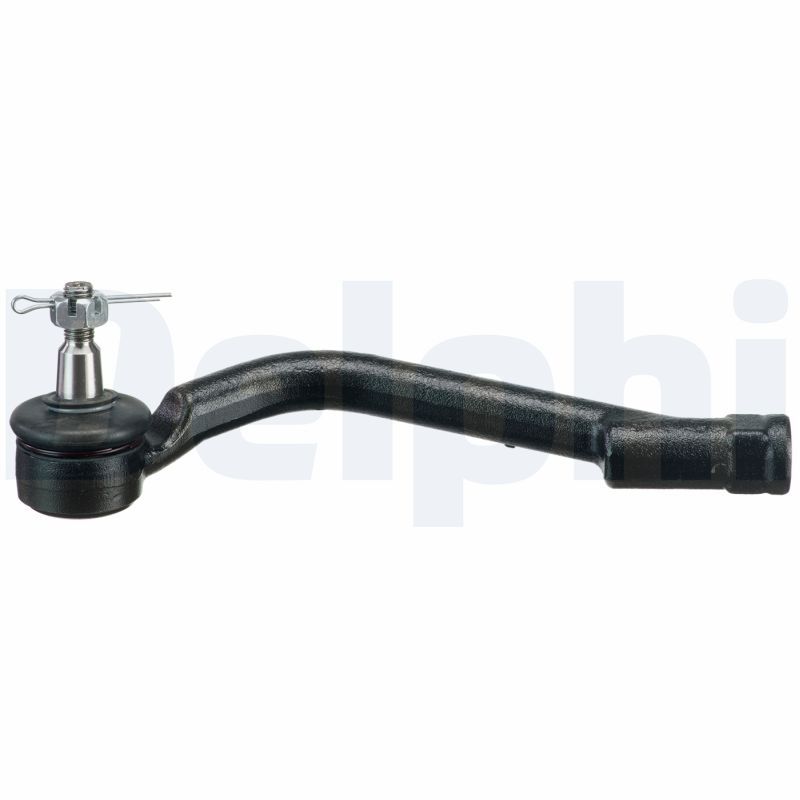

Delphi TA3182 Tie Rod End - 1

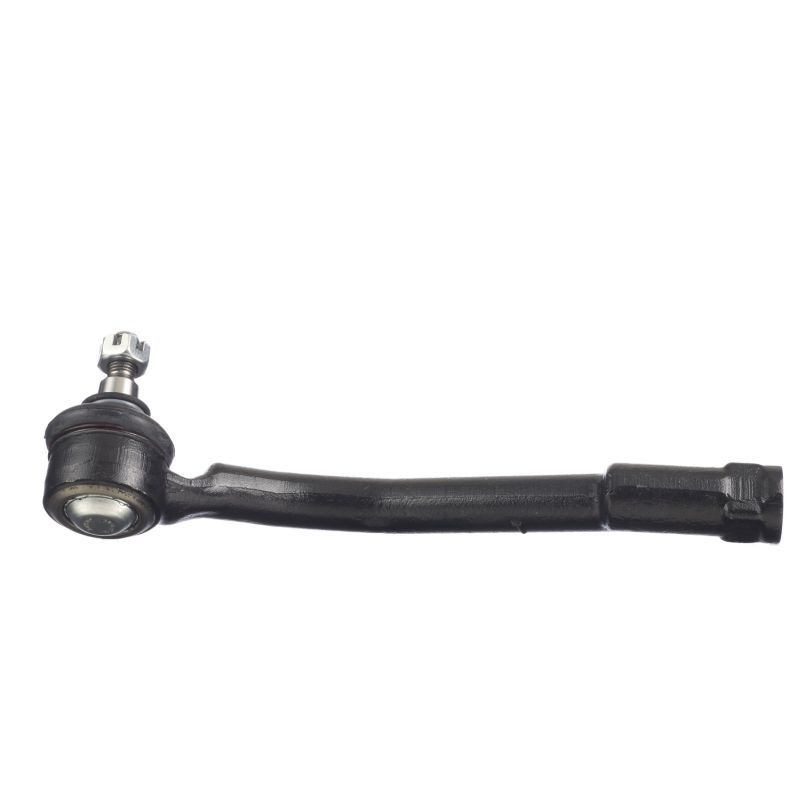

Delphi TA3182 Tie Rod End - 2

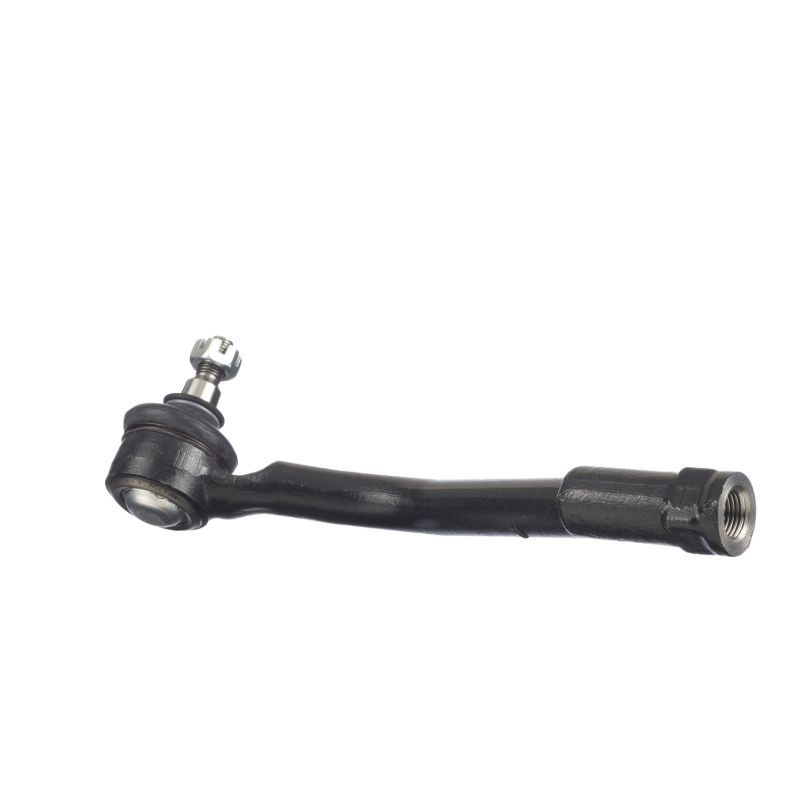

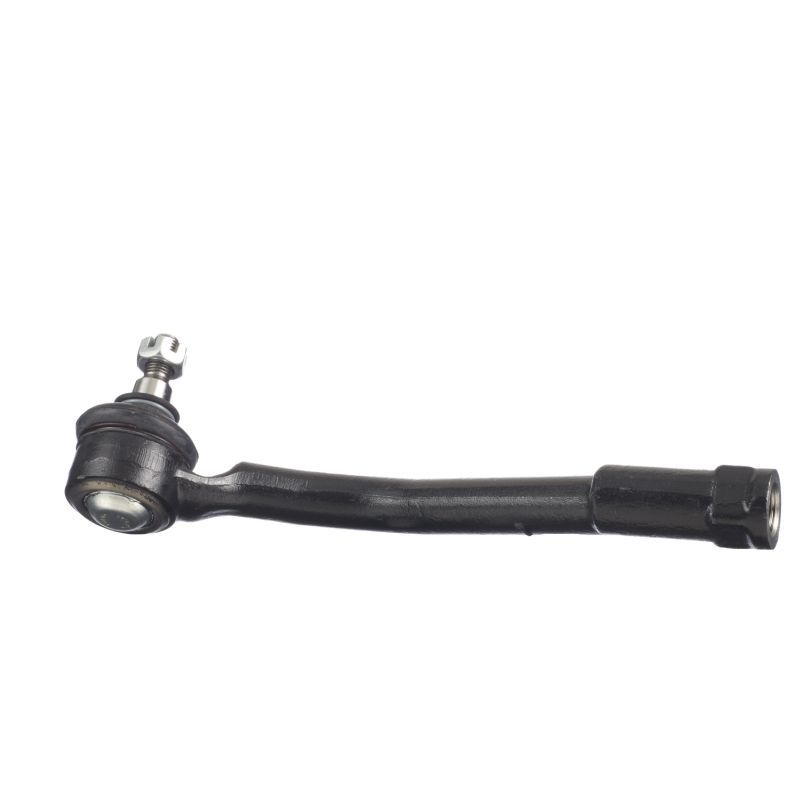

Delphi TA3182 Tie Rod End - 3

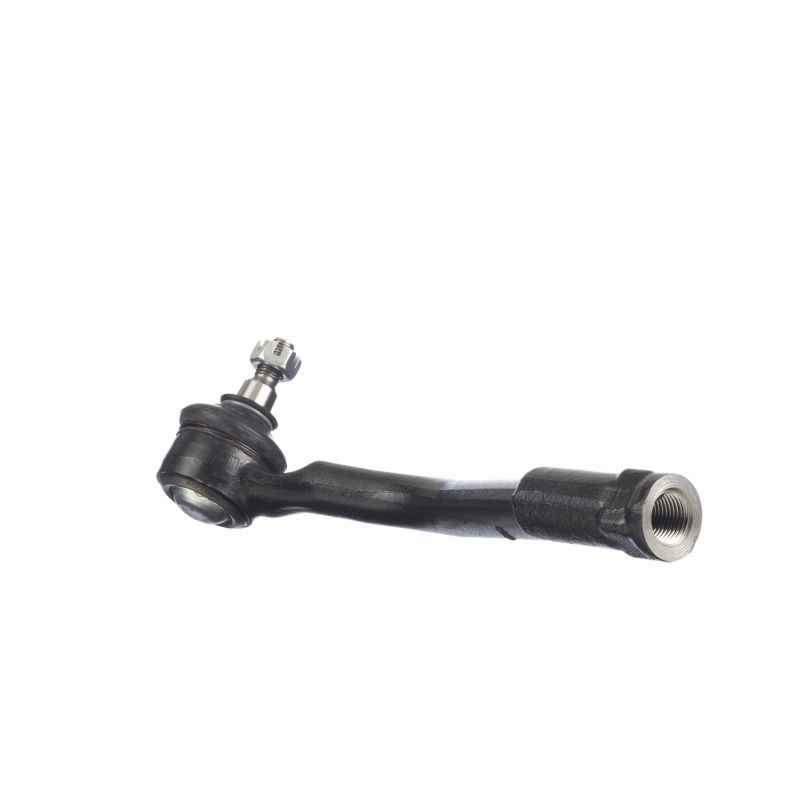

Delphi TA3182 Tie Rod End - 4

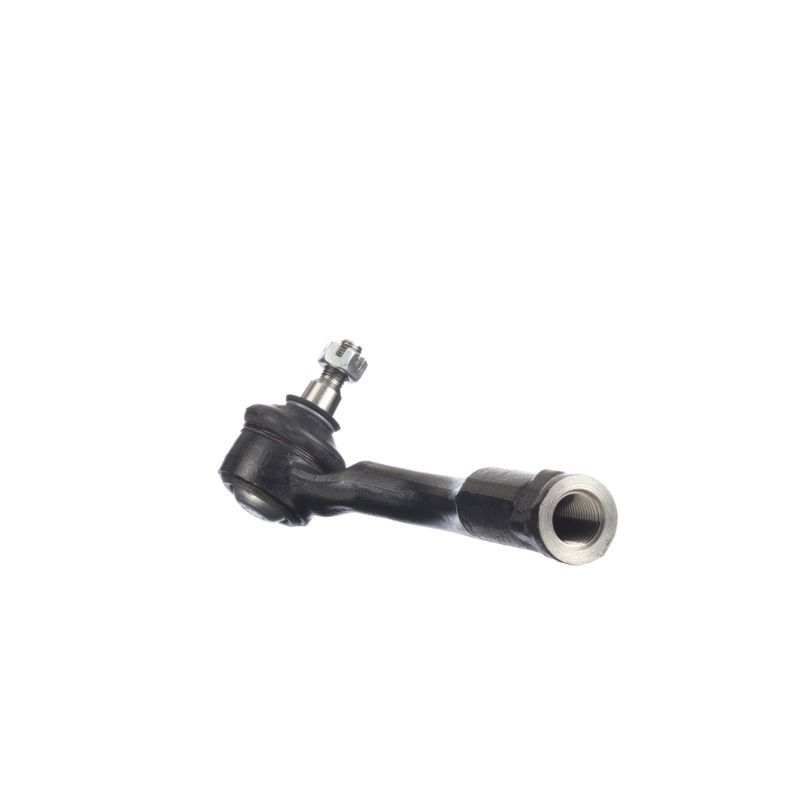

Delphi TA3182 Tie Rod End - 5
Delphi TA3182 Tie Rod End - 6
Delphi TA3182 Tie Rod End video
DELPHI

Delphi TA3182 Tie Rod End

SKU: TA3182
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£19.84 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
GRAND SANTA FÉ
Description Cylinder Capacity Horse Power Year
2.2 CRDi All-wheel Drive 2199 CCM 197 HP 06/2013 - 11/2018
2.2 CRDi All-wheel Drive 2199 CCM 200 HP 09/2013 - 11/2018
3.3 3342 CCM 249 HP 01/2014 - 11/2018
3.0 GDi All-wheel Drive 2999 CCM 249 HP 07/2013 - 11/2018
SANTA FÉ III (DM, DMA)
Description Cylinder Capacity Horse Power Year
2.4 2359 CCM 192 HP 09/2012 - 10/2015
2.0 CRDi 1995 CCM 150 HP 09/2012 - 08/2018
2.2 CRDi 2199 CCM 197 HP 09/2012 - 12/2018
2.2 CRDi 4WD 2199 CCM 197 HP 09/2012 - 12/2018
2.4 4WD 2359 CCM 192 HP 09/2012 - 10/2015
2.0 CRDi 4WD 1995 CCM 150 HP 09/2012 - 08/2018
2.2 CRDi 4WD 2199 CCM 200 HP 10/2015 - 08/2018
2.4 GDI 2359 CCM 188 HP 05/2015 - 08/2018
2.4 GDI 4WD 2359 CCM 188 HP 05/2015 - 08/2018
2.2 CRDi 2199 CCM 200 HP 10/2015 - 08/2018
2.0 CRDi 1995 CCM 185 HP 05/2015 - 08/2018
2.4 CCVT 2359 CCM 175 HP 09/2012 - 12/2018
2.4 CCVT AWD 2359 CCM 175 HP 09/2012 - 12/2018
2.0 CRDi 4WD 1995 CCM 185 HP 09/2012 - 08/2018
2.4 CCVT AWD 2359 CCM 171 HP 06/2015 - 10/2018
KIA
SORENTO II (XM)
Description Cylinder Capacity Horse Power Year
2.4 CVVT 4WD 2359 CCM 174 HP 11/2009 - 12/2015
2.4 CVVT 2359 CCM 192 HP 10/2012 - 12/2015
2.4 CVVT 4WD 2359 CCM 192 HP 10/2012 - 12/2015
2.4 GDI 2359 CCM 192 HP 10/2012 - 12/2015
2.4 GDI 4WD 2359 CCM 192 HP 10/2012 - 12/2015
2.2 CRDi 2199 CCM 200 HP 11/2009 - 12/2015
2.2 CRDi 4WD 2199 CCM 200 HP 11/2009 - 12/2015

The Delphi TA3182 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 245 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13.4
Paired article number : TA3183
Fitting Position : Front Axle Left
Length [mm] : 245
Width [mm] : 65
Height [mm] : 75
  • Vendor DELPHI
  • SKU TA3182
  • Barcode 5012759974353
  • HYUNDAI : 568202W000 56820-2W000
  • KIA : 568202W000
  • APEC : AST6459
  • BLUE PRINT : ADBP870004
  • BORG & BECK : BTR5793
  • BOSCH : 0 986 140 681
  • FEBI BILSTEIN : 170982
  • FIRST LINE : FTR5793
  • KYB : KTR1392
  • MEYLE : 37-16 020 0039/HD
  • MONROE : L43G05
  • NAPA : NST6459
  • Schaeffler FAG : 840 1601 10
  • SKF : VKDY 815025
  • User manual
