Delphi TA3194 Tie Rod End - 1
Delphi TA3194 Tie Rod End video
Delphi TA3194 Tie Rod End - 1
Delphi TA3194 Tie Rod End video
DELPHI

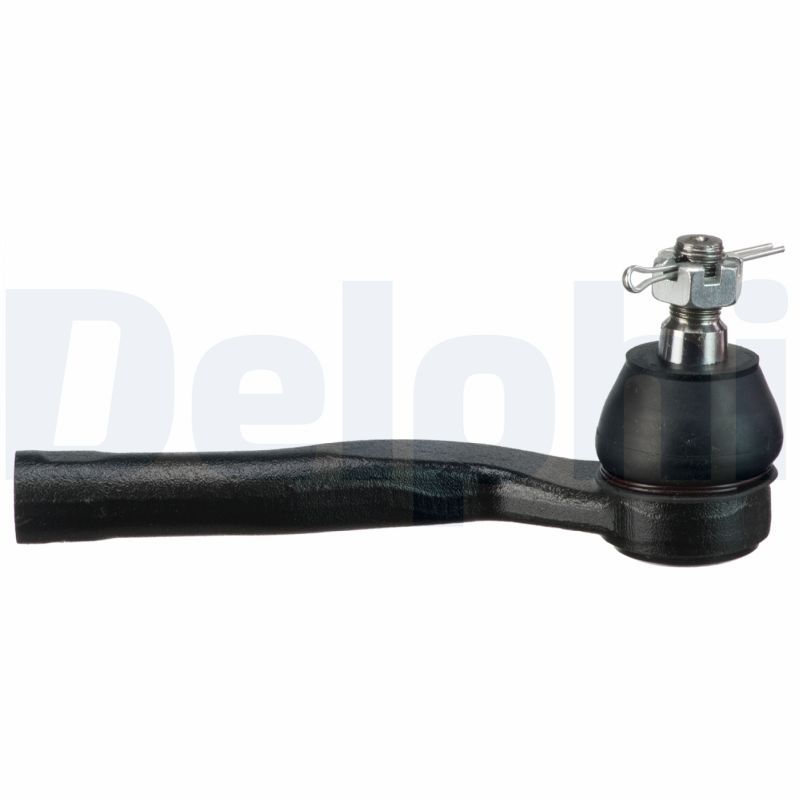

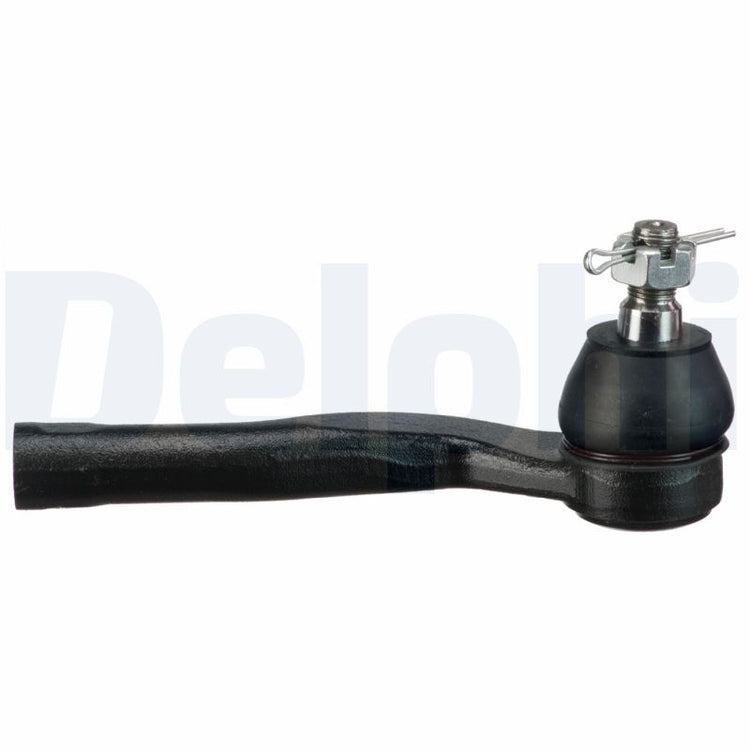

Delphi TA3194 Tie Rod End

SKU: TA3194
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£16.14 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DAIHATSU
TERIOS (J2_, F7__)
Description Cylinder Capacity Horse Power Year
1.5 4x4 1495 CCM 105 HP From 05/2006
1.5 VVT-i RWD 1495 CCM 105 HP From 11/2005
1.3 VVT-i 4x4 1298 CCM 86 HP From 11/2005
1.5 VVT-i 4x4 1495 CCM 102 HP From 09/2010
1.5 VVT-i RWD 1495 CCM 102 HP From 09/2010

The Delphi TA3194 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 169 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 14.7
Paired article number : TA3193
Fitting Position : Front Axle Right
Length [mm] : 169
Width [mm] : 44
Height [mm] : 74
  • Vendor DELPHI
  • SKU TA3194
  • Barcode 5012759974445
  • DAIHATSU : 45046-B9320 45046-B9080
  • APEC : AST6438
  • BLUE PRINT : ADD68738
  • BORG & BECK : BTR5828
  • CORTECO : 49401903
  • FEBI BILSTEIN : 41384
  • FIRST LINE : FTR5828
  • KYB : KTR1350
  • MONROE : L41101
  • MONROE : L41102
  • NAPA : NST6438
  • TRW : JTE749
