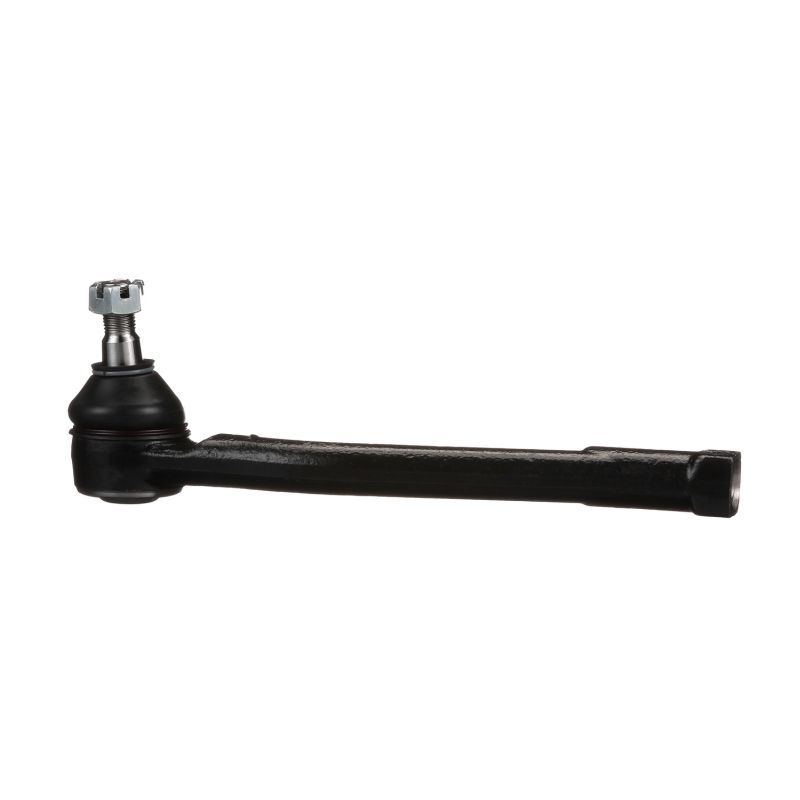

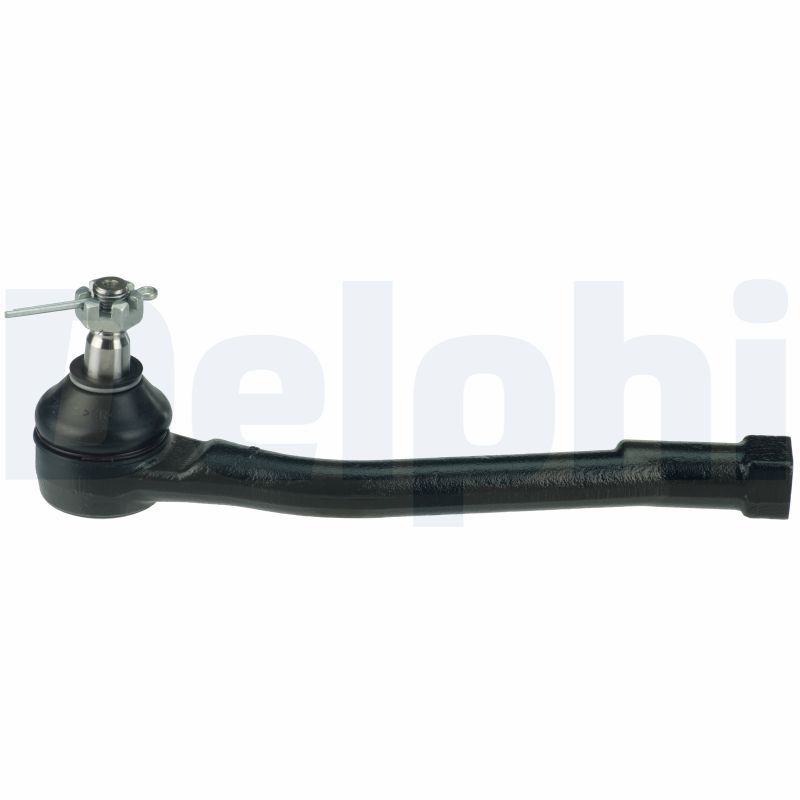

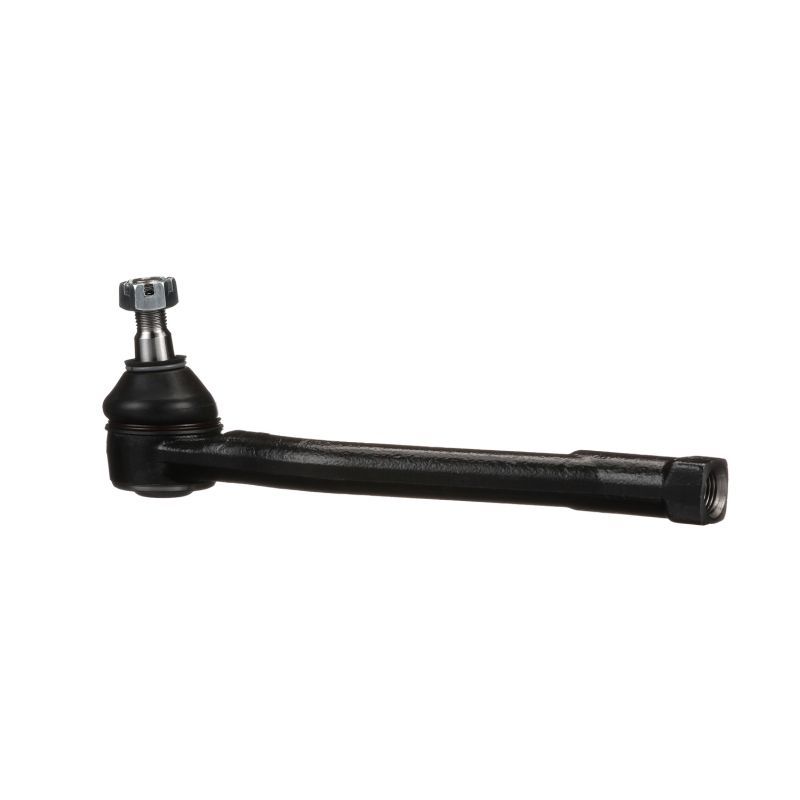

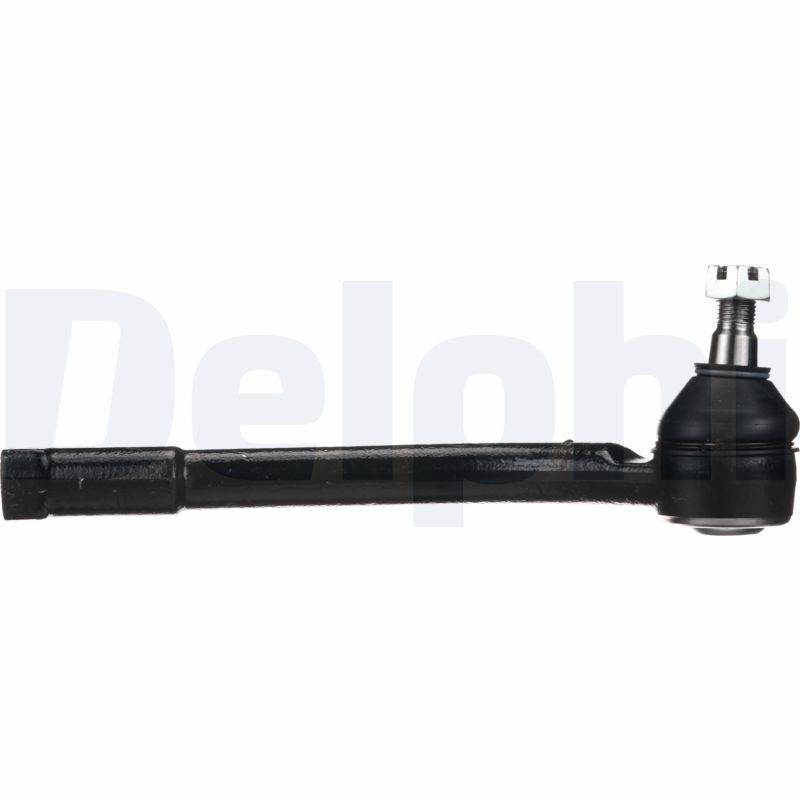

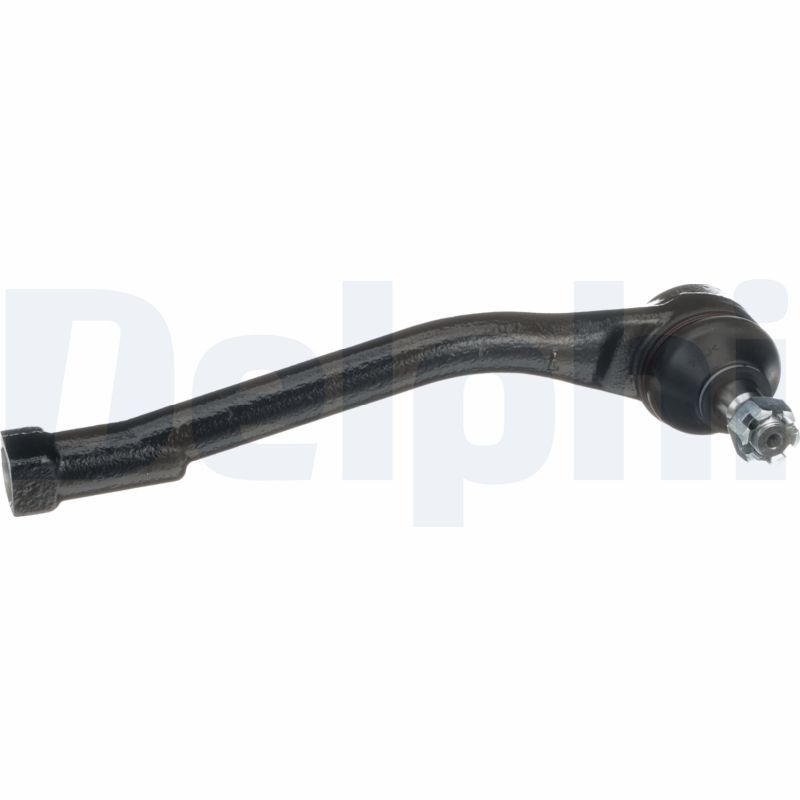

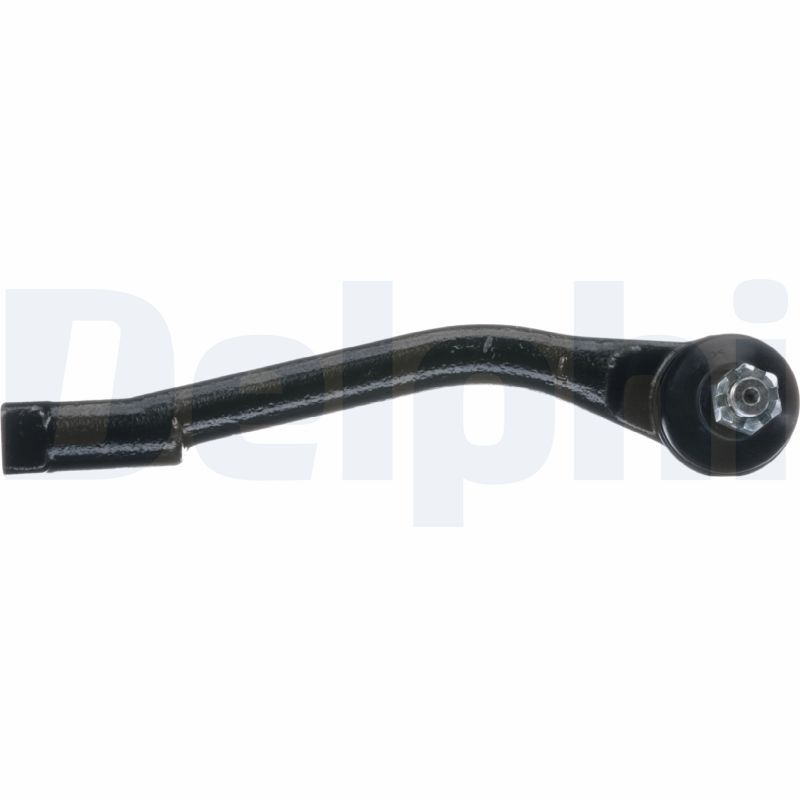

Delphi TA3212 Tie Rod End
Your selected vehicle
Regular price
£19.62
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Delphi TA3212 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 239 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.
Function :
Tie Rod End
Thread Size :
M16x1.5
Thread Type :
with right-hand thread
Cone Size [mm] :
13.8
Paired article number :
TA3213
Fitting Position :
Front Axle Left
Length [mm] :
239
Width [mm] :
40
Height [mm] :
80
- Vendor DELPHI
- SKU TA3212
- HYUNDAI : 568204D001
- KIA : 56820-4D000 56820-4D001
- BLUE PRINT : ADG087121
- BORG & BECK : BTR5829
- FEBI BILSTEIN : 41896
- FIRST LINE : FTR5829
- MONROE : L18118
- SKF : VKDY 815048
- TRW : JTE511
