Delphi TA3234 Tie Rod End - 1
Delphi TA3234 Tie Rod End video
Delphi TA3234 Tie Rod End - 1
Delphi TA3234 Tie Rod End video
DELPHI

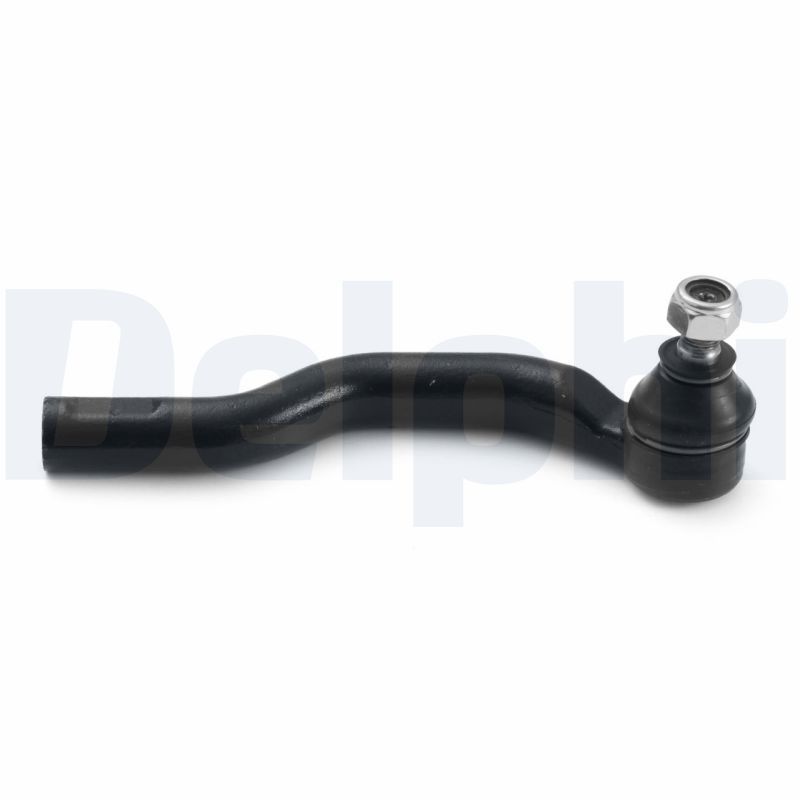

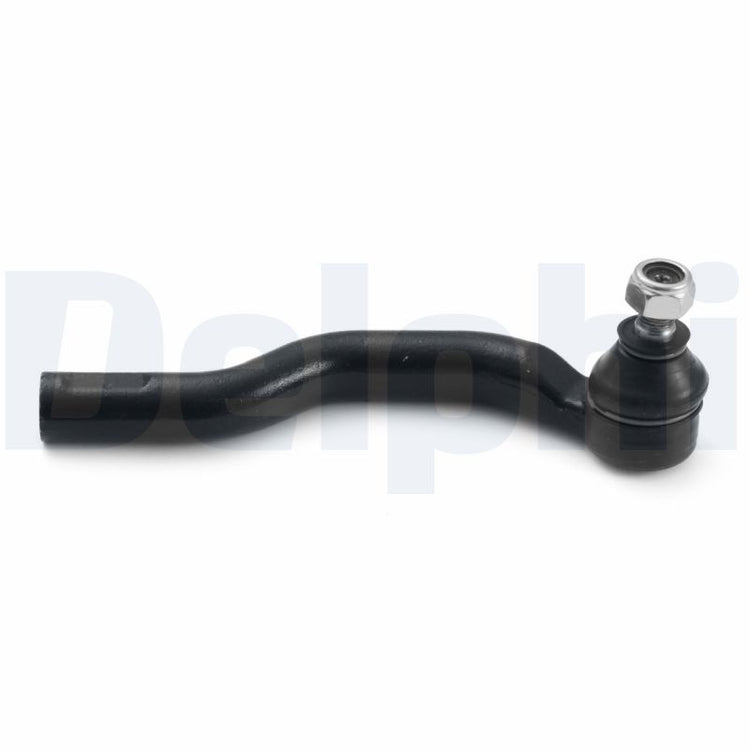

Delphi TA3234 Tie Rod End

SKU: TA3234
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£19.70 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
SWIFT III (FZ, NZ)
Description Cylinder Capacity Horse Power Year
1.2 (AZH412, ZC72S) 1242 CCM 94 HP 10/2010 - 04/2017
1.2 4x4 (AZH412, ZD72S) 1242 CCM 94 HP 10/2010 - 04/2017
1.3 DDiS (AZG413D, ZC02S, ZC92S) 1248 CCM 75 HP 10/2010 - 04/2017
1.2 (AZG412, ZC72S) 1242 CCM 90 HP 10/2010 - 04/2017
1.2 4x4 (AZG412, ZD72S) 1242 CCM 90 HP 10/2010 - 04/2017
1.6 (AZG416, AZH416, RS416, ZC32S, ZA32S) 1586 CCM 136 HP 01/2012 - 04/2017
1.2 (AZH412, AZG412, ZC72S) 1242 CCM 91 HP 08/2012 - 04/2017
1.2 4WD (AZH412, AZG412, ZD72S) 1242 CCM 91 HP 08/2012 - 04/2017

The Delphi TA3234 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 210 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13.1
Paired article number : TA3233
Fitting Position : Front Axle Right
Length [mm] : 210
Width [mm] : 35
Height [mm] : 70
  • Vendor DELPHI
  • SKU TA3234
  • Barcode 5012759979990
  • SUZUKI : 48810-68L00
  • APEC : AST6753
  • BLUE PRINT : ADBP870024
  • BLUE PRINT : ADK88752
  • BORG & BECK : BTR5923
  • BOSCH : 0 986 140 668
  • FEBI BILSTEIN : 177761
  • FEBI BILSTEIN : 48119
  • FIRST LINE : FTR5923
  • KYB : KTR1299
  • MEYLE : 33-16 020 0026
  • MONROE : L69111
  • NAPA : NST6753
  • SKF : VKDY 816010
  • TRW : JTE1867
