Home / Car Parts / Steering & Suspension / Steering Parts / Tie Rod End
Delphi TA3239 Tie Rod End - 1
Delphi TA3239 Tie Rod End video
Delphi TA3239 Tie Rod End - 1
Delphi TA3239 Tie Rod End video
DELPHI

Delphi TA3239 Tie Rod End

SKU: TA3239
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£18.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
QASHQAI II (J11, J11_)
Description Cylinder Capacity Horse Power Year
1.2 DIG-T 1197 CCM 116 HP From 11/2013
1.5 dCi 1461 CCM 110 HP From 11/2013
1.6 dCi 1598 CCM 130 HP From 11/2013
1.6 dCi ALL MODE 4x4-i 1598 CCM 130 HP From 11/2013
2.0 (J11E) 1997 CCM 144 HP From 06/2014
1.6 DIG-T 1618 CCM 163 HP From 02/2014
2.0 ALL MODE 4x4-i (J11R) 1997 CCM 144 HP From 12/2013
1.3 DIG-T 1332 CCM 140 HP From 08/2018
1.3 DIG-T 1332 CCM 160 HP From 08/2018
1.5 dCi 1461 CCM 116 HP From 06/2018
1.7 dCi 1749 CCM 150 HP From 01/2019
1.7 dCi ALL MODE 4x4-i 1749 CCM 150 HP From 01/2019
1.3 DIG-T 1332 CCM 158 HP From 10/2020
QASHQAI II VAN (J11_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 1461 CCM 110 HP From 05/2015
1.5 dCi 1461 CCM 116 HP From 06/2018
RENAULT
KADJAR (HA_, HL_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 110 (HLA3) 1461 CCM 110 HP From 06/2015
1.6 dCi 130 (HLA4) 1598 CCM 130 HP From 06/2015
1.6 dCi 130 4x4 (HLA4) 1598 CCM 130 HP From 06/2015
1.2 TCe 130 (HLMR) 1197 CCM 130 HP From 06/2015
1.6 TCe 165 (HLMH) 1618 CCM 163 HP From 11/2016
1.3 TCe 140 (HLNB, HLN1) 1332 CCM 140 HP From 08/2018
1.5 BLUE dCi 115 (HLA6) 1461 CCM 116 HP From 08/2018
1.3 TCe 160 (HLNC) 1332 CCM 160 HP From 08/2018
1.7 Blue dCi 150 4WD (HLA7) 1749 CCM 150 HP From 08/2018
1.7 Blue dCi 150 (HLA7) 1749 CCM 150 HP From 08/2018
1.3 TCe 160 (HLN2) 1332 CCM 158 HP From 07/2021

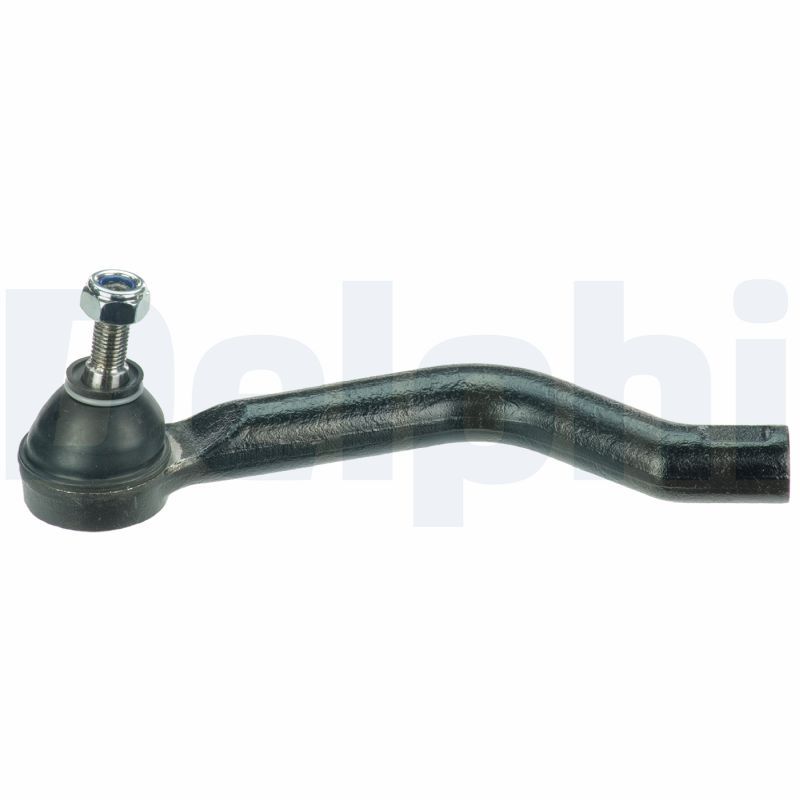

The Delphi TA3239 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 212 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 11.8
Paired article number : TA3240
Fitting Position : Front Axle Left
Length [mm] : 212
Width [mm] : 40
Height [mm] : 74
  • Vendor DELPHI
  • SKU TA3239
  • Barcode 5012759980118
  • NISSAN : D8640-4EA0A
  • RENAULT : 48640-4EA0A
  • APEC : AST6457
  • BLUE PRINT : ADBP870105
  • BLUE PRINT : ADN187248
  • BORG & BECK : BTR5931
  • BOSCH : 0 986 140 677
  • CORTECO : 49102429
  • FEBI BILSTEIN : 103657
  • FIRST LINE : FTR5931
  • KYB : KTR1404
  • MEYLE : 16-16 020 0037/HD
  • MEYLE : 16-16 020 0061
  • MONROE : L14154
  • NAPA : NST6457
  • Schaeffler FAG : 840 1364 10
  • SKF : VKDY 812036
  • TRW : JTE1962
  • User manual
