DELPHI

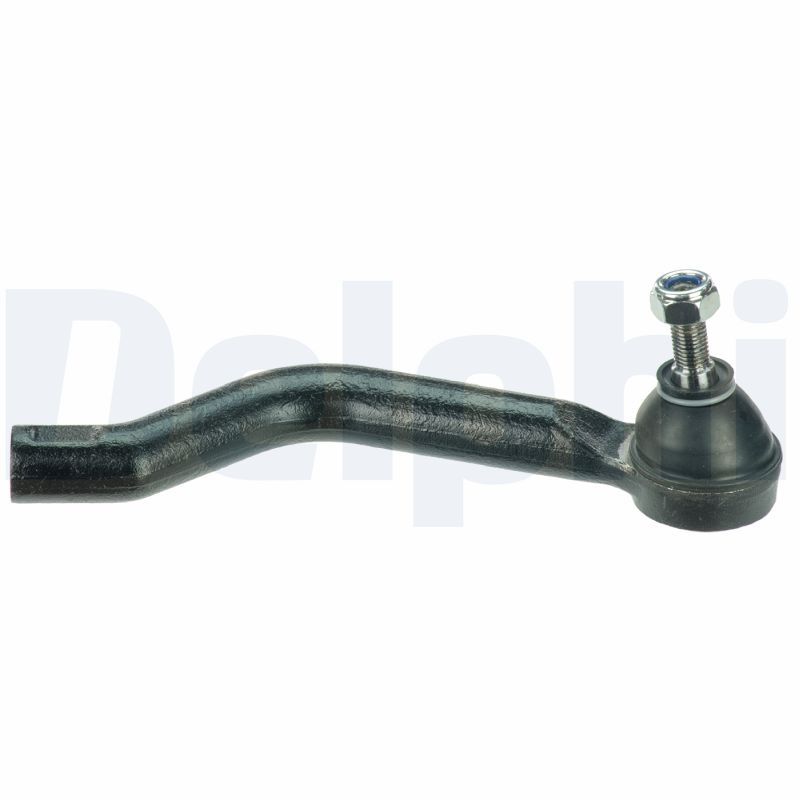

Delphi TA3240 Tie Rod End

SKU: TA3240
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£17.96 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
QASHQAI II (J11, J11_)
Description Cylinder Capacity Horse Power Year
1.2 DIG-T 1197 CCM 116 HP From 11/2013
1.5 dCi 1461 CCM 110 HP From 11/2013
1.6 dCi 1598 CCM 130 HP From 11/2013
1.6 dCi ALL MODE 4x4-i 1598 CCM 130 HP From 11/2013
2.0 (J11E) 1997 CCM 144 HP From 06/2014
1.6 DIG-T 1618 CCM 163 HP From 02/2014
2.0 ALL MODE 4x4-i (J11R) 1997 CCM 144 HP From 12/2013
1.3 DIG-T 1332 CCM 140 HP From 08/2018
1.3 DIG-T 1332 CCM 160 HP From 08/2018
1.5 dCi 1461 CCM 116 HP From 06/2018
1.7 dCi 1749 CCM 150 HP From 01/2019
1.7 dCi ALL MODE 4x4-i 1749 CCM 150 HP From 01/2019
1.3 DIG-T 1332 CCM 158 HP From 10/2020
QASHQAI II VAN (J11_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 1461 CCM 110 HP From 05/2015
1.5 dCi 1461 CCM 116 HP From 06/2018
RENAULT
KADJAR (HA_, HL_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 110 (HLA3) 1461 CCM 110 HP From 06/2015
1.6 dCi 130 (HLA4) 1598 CCM 130 HP From 06/2015
1.6 dCi 130 4x4 (HLA4) 1598 CCM 130 HP From 06/2015
1.2 TCe 130 (HLMR) 1197 CCM 130 HP From 06/2015
1.6 TCe 165 (HLMH) 1618 CCM 163 HP From 11/2016
1.3 TCe 140 (HLNB, HLN1) 1332 CCM 140 HP From 08/2018
1.5 BLUE dCi 115 (HLA6) 1461 CCM 116 HP From 08/2018
1.3 TCe 160 (HLNC) 1332 CCM 160 HP From 08/2018
1.7 Blue dCi 150 4WD (HLA7) 1749 CCM 150 HP From 08/2018
1.7 Blue dCi 150 (HLA7) 1749 CCM 150 HP From 08/2018
1.3 TCe 160 (HLN2) 1332 CCM 158 HP From 07/2021

The Delphi TA3240 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 212 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 11.8
Paired article number : TA3239
Fitting Position : Front Axle Right
Length [mm] : 212
Width [mm] : 40
Height [mm] : 74
  • Vendor DELPHI
  • SKU TA3240
  • Barcode 5012759980125
  • NISSAN : D8520-4EA0A
  • RENAULT : 48520-4EA0A
  • APEC : AST6456
  • BLUE PRINT : ADBP870104
  • BLUE PRINT : ADN187249
  • BORG & BECK : BTR5932
  • BOSCH : 0 986 140 676
  • CORTECO : 49484731
  • FEBI BILSTEIN : 103656
  • FIRST LINE : FTR5932
  • KYB : KTR1403
  • MEYLE : 16-16 020 0038/HD
  • MEYLE : 16-16 020 0062
  • MONROE : L14153
  • NAPA : NST6456
  • Schaeffler FAG : 840 1365 10
  • SKF : VKDY 812035
  • TRW : JTE1963
