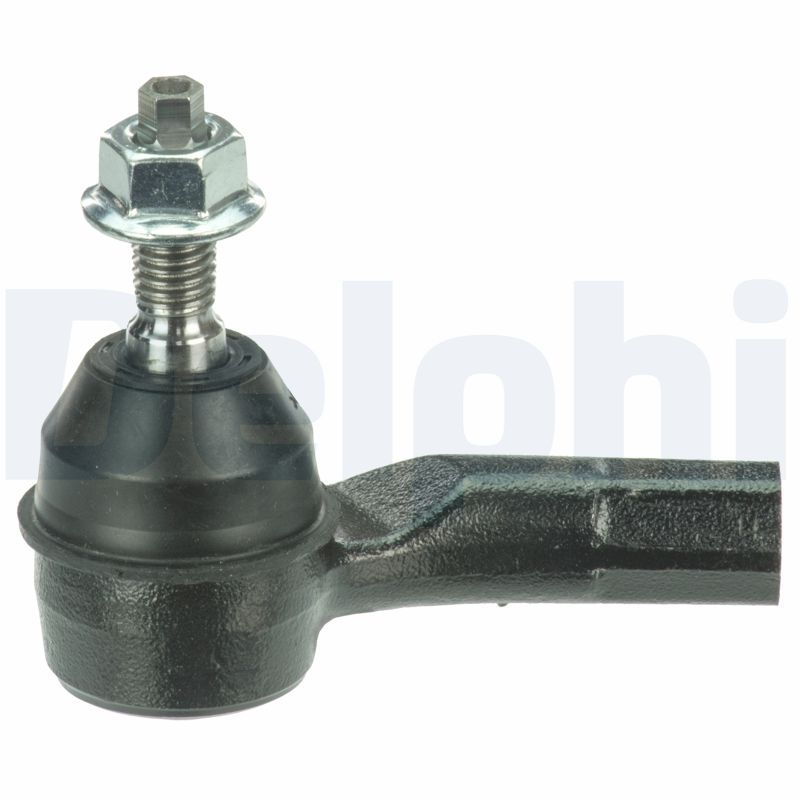

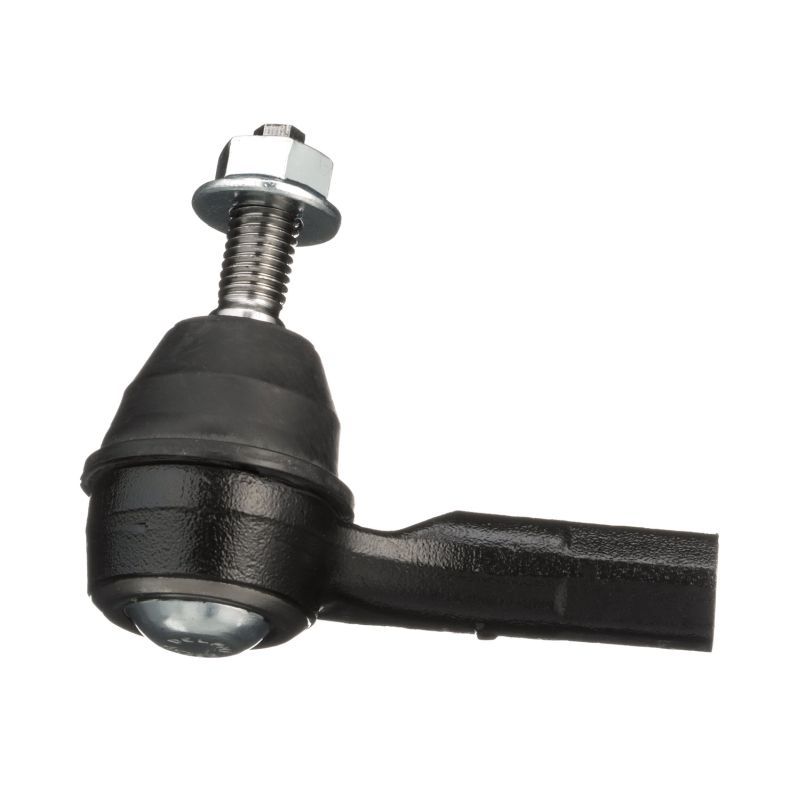

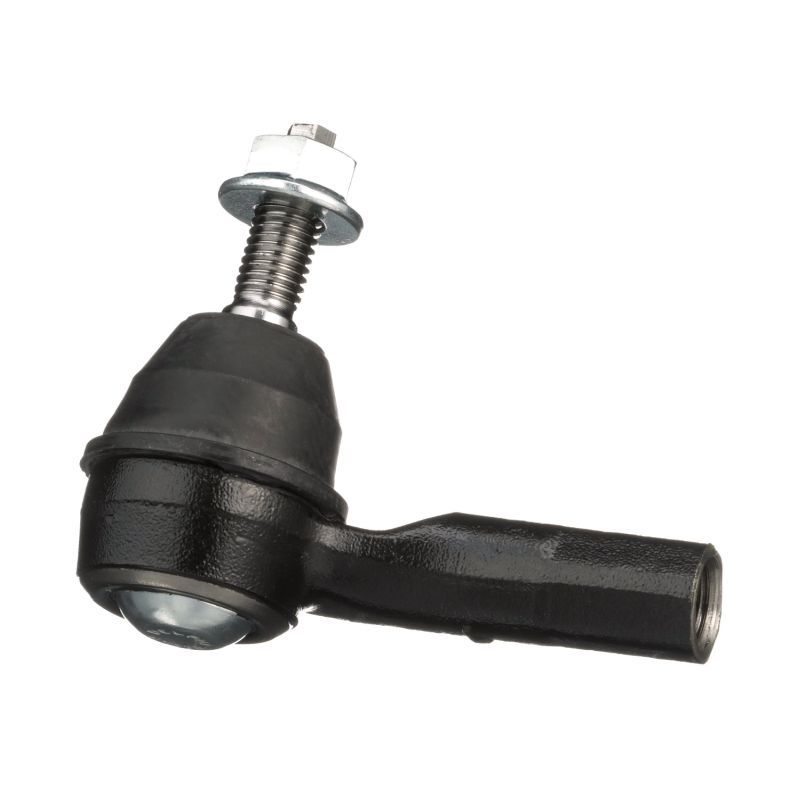

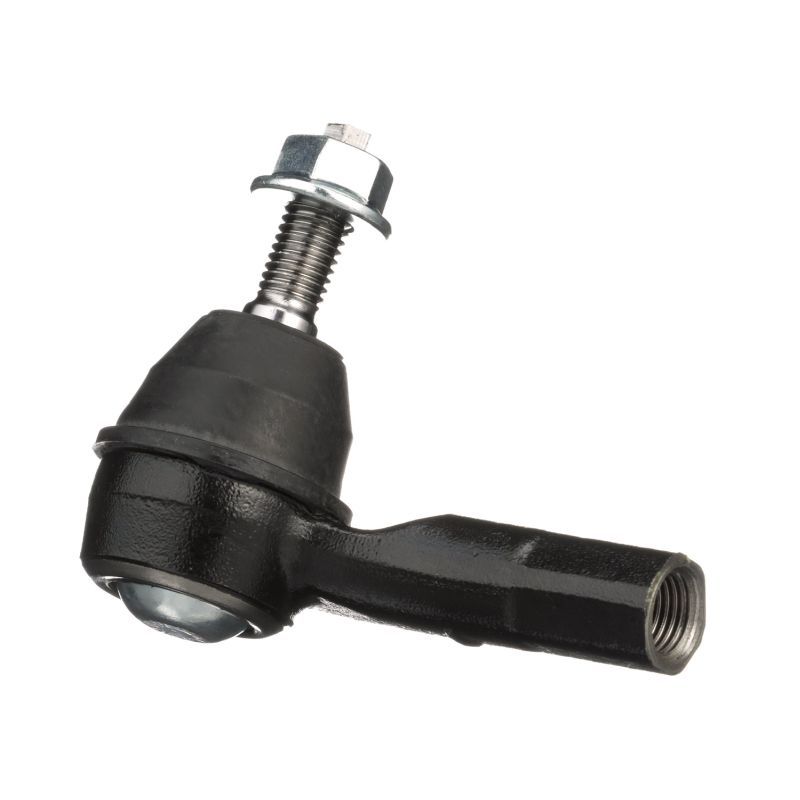

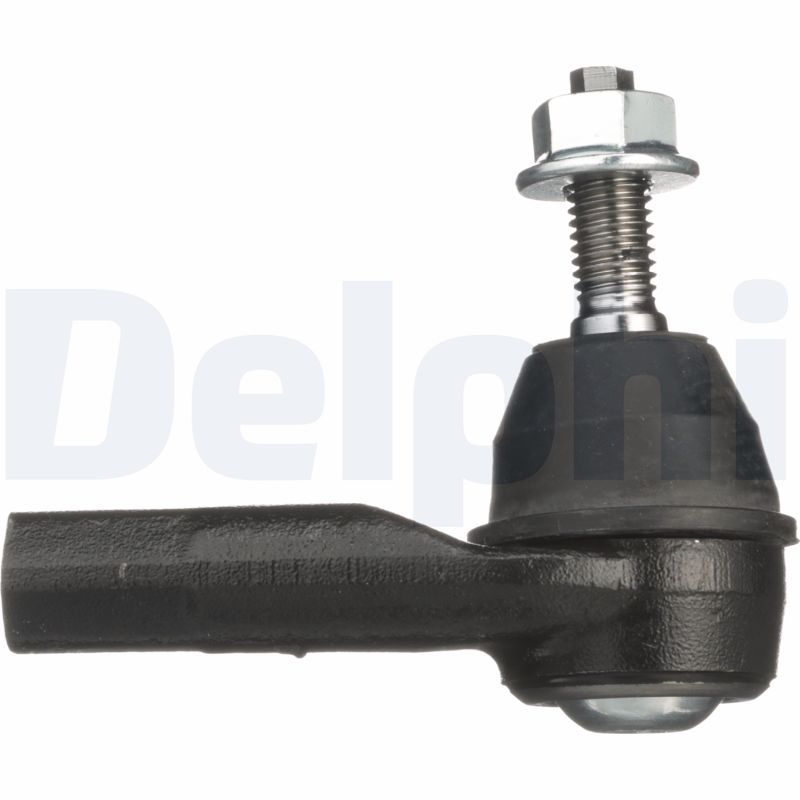

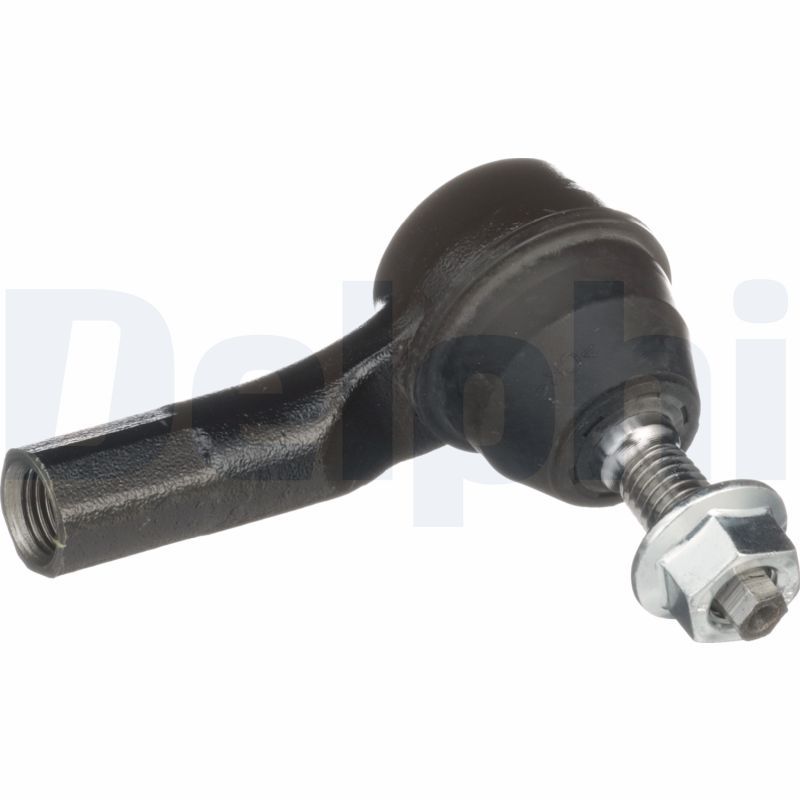

Delphi TA3259 Tie Rod End
Your selected vehicle
Regular price
£15.90
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Delphi TA3259 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 105 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.
Function :
Tie Rod End
Thread Size :
M14x1.5
Thread Type :
with right-hand thread
Cone Size [mm] :
13.6
Paired article number :
TA3260
Fitting Position :
Front Axle Left
Length [mm] :
105
Width [mm] :
42
Height [mm] :
92
- Vendor DELPHI
- SKU TA3259
- APEC : AST7104
- BORG & BECK : BTR6004
- BOSCH : 0 986 140 713
- FEBI BILSTEIN : 175280
- FIRST LINE : FTR6004
- LEMFÖRDER : 39131 01
- MEYLE : 616 020 0025/HD
- MONROE : L24134
- NAPA : NST7104
- Schaeffler FAG : 840 1651 10
- SKF : VKDY 315044
- TRW : JTE1847
