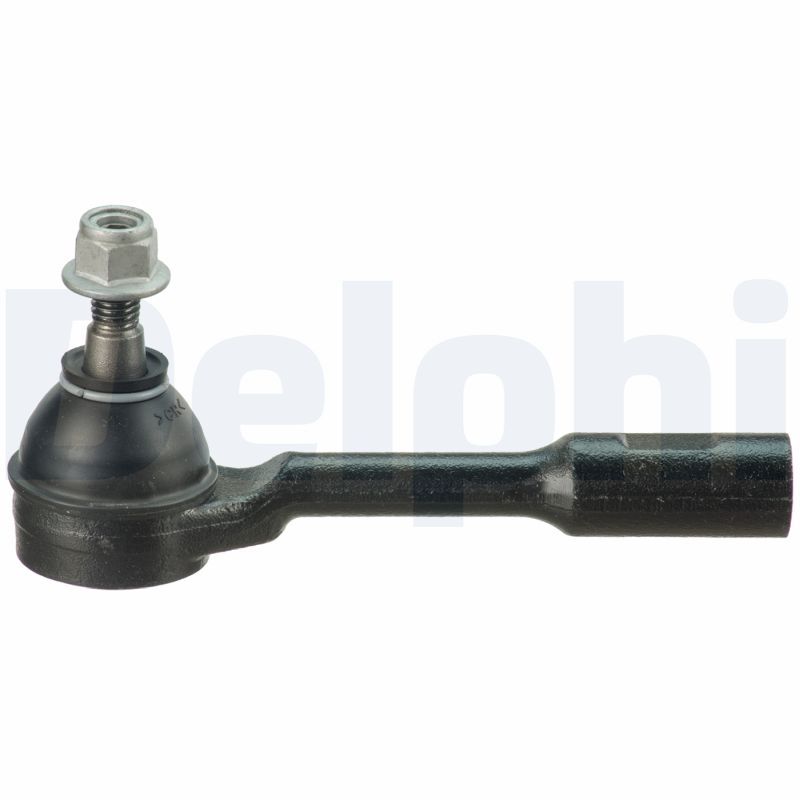

Delphi TA3265 Tie Rod End - 1
Delphi TA3265 Tie Rod End video
Delphi TA3265 Tie Rod End - 1
Delphi TA3265 Tie Rod End video
DELPHI

Delphi TA3265 Tie Rod End

SKU: TA3265
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£16.18 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FIAT
TIPO Saloon (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.4 (356SXA1B) 1368 CCM 95 HP From 10/2015
1.6 (356SXE11) 1598 CCM 110 HP 10/2015 - 10/2020
1.3 D (356SXB1A, 356SXH1A, 356SXD1A) 1248 CCM 95 HP 10/2015 - 10/2020
1.6 D (356SXG1B) 1598 CCM 120 HP 10/2015 - 10/2020
1.4 LPG (356SXF1B) 1368 CCM 120 HP 05/2016 - 10/2020
1.0 (357SXN1A) 999 CCM 101 HP From 11/2020
1.6 Multijet (357SXG1) 1598 CCM 131 HP From 11/2020
TIPO Hatchback (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.4 (356HXA1B, 357) 1368 CCM 95 HP From 03/2016
1.6 D (356HXG1B, 356HXG11) 1598 CCM 120 HP 03/2016 - 10/2020
1.3 D (356HXH1A) 1248 CCM 95 HP From 03/2016
1.4 (356HXF1B) 1368 CCM 120 HP 03/2016 - 10/2020
1.4 LPG (356HXF1B) 1368 CCM 120 HP 05/2016 - 10/2020
1.6 (356HXE11) 1598 CCM 110 HP 07/2016 - 10/2020
1.0 (357HXN1A) 999 CCM 101 HP From 11/2020
1.6 Multijet (357HXG1) 1598 CCM 131 HP From 11/2020
1.5 T4 Hybrid 1469 CCM 131 HP From 03/2022
TIPO Estate (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.4 (356WXA1B) 1368 CCM 95 HP 03/2016 - 10/2020
1.6 D (356WXG1B) 1598 CCM 120 HP 03/2016 - 10/2020
1.3 D (356WXH1A) 1248 CCM 95 HP From 03/2016
1.4 (356WXF1B) 1368 CCM 120 HP 03/2016 - 10/2020
1.4 LPG (356WXF1B) 1368 CCM 120 HP 05/2016 - 10/2020
1.6 (356WXE11) 1598 CCM 110 HP 07/2016 - 10/2020
1.0 (357WXN1A) 999 CCM 101 HP From 11/2020
1.6 Multijet (357WXG1) 1598 CCM 131 HP From 11/2020
1.5 T4 Hybrid 1469 CCM 131 HP From 03/2022

The Delphi TA3265 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,5 thread size, with right-hand thread thread type, front axle fitting position, and 156 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14 x 1,5
Thread Type : with right-hand thread
Cone Size [mm] : 11.2
Fitting Position : Front Axle
Length [mm] : 156
Width [mm] : 40
Height [mm] : 109
  • Vendor DELPHI
  • SKU TA3265
  • Barcode 5012759985243
  • FIAT : 77367379
  • APEC : AST7100
  • BORG & BECK : BTR5966
  • FEBI BILSTEIN : 109569
  • FIRST LINE : FTR5966
  • LEMFÖRDER : 44965 01
  • MEYLE : 216 020 0046
  • MONROE : L15131
  • NAPA : NST7100
  • Schaeffler FAG : 840 1457 10
  • SKF : VKDY 312038
  • TRW : JTE2256
  • User manual
