DELPHI

Delphi TA3271 Inner Tie Rod

SKU: TA3271

Your selected vehicle

In stock

Orders placed by 17:00 are usually dispatched the same working day

£18.80 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MITSUBISHI

PAJERO/SHOGUN IV (V8_W, V9_W)

Description	Cylinder Capacity	Horse Power	Year
3.2 DI-D 4WD (V98W, V88W)	3200 CCM	190 HP	From 02/2007
3.0 4WD (V83W, V93W)	2972 CCM	178 HP	From 02/2007
3.8 V6 (V87W, V97W)	3828 CCM	250 HP	From 02/2007
3.2 DI-D (V88W, V98W)	3200 CCM	160 HP	From 02/2007
3.2 DI-D (V88W, V98W)	3200 CCM	170 HP	From 02/2007
3.2 DI-D 4WD (V98W, V88W)	3200 CCM	200 HP	From 01/2009
3.8 V6 (V87W)	3828 CCM	248 HP	From 10/2006

PAJERO/SHOGUN IV Van (V9_, V8_, V8_V)

Description	Cylinder Capacity	Horse Power	Year
3.2 DI-D	3200 CCM	160 HP	From 11/2006
3.2 TD 4WD (V88V, V98V)	3200 CCM	200 HP	From 01/2010
3.2 DI-D 4WD (V88W, V98W)	3200 CCM	190 HP	From 02/2007

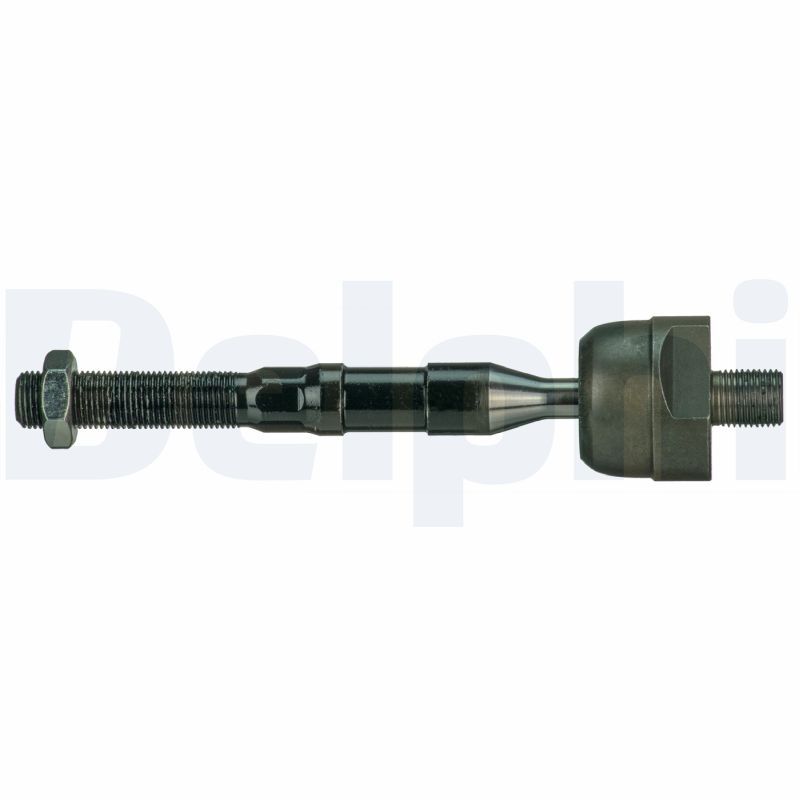

The Delphi TA3271 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1,5 thread size 1, M16 x 1,5 thread size 2, front axle fitting position, and 208 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod

Thread Size 1 : M16 x 1,5

Thread Size 2 : M16 x 1,5

Fitting Position : Front Axle

Length [mm] : 208

Width [mm] : 45

Height [mm] : 45

Axle Joint Length [mm] : 189

Delphi TA3271 Inner Tie Rod
