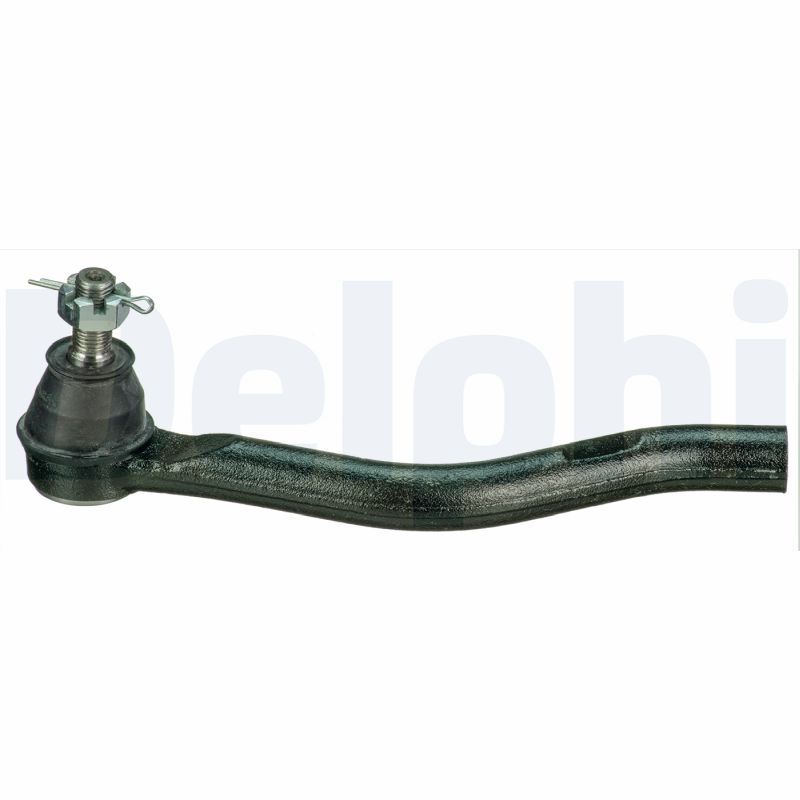

Delphi TA3276 Tie Rod End
Your selected vehicle
Regular price
£23.87
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Delphi TA3276 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,5 thread size, with right-hand thread thread type, front axle left fitting position, and 230 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.
Function :
Tie Rod End
Thread Size :
M14 x 1,5
Thread Type :
with right-hand thread
Cone Size [mm] :
14.1
Paired article number :
TA3277
Fitting Position :
Front Axle Left
Length [mm] :
230
Width [mm] :
59
Height [mm] :
75
- Vendor DELPHI
- SKU TA3276
- HONDA : 53560TV0G01 53560TV0G02
- APEC : AST6693
- BLUE PRINT : ADBP870050
- BORG & BECK : BTR5974
- FEBI BILSTEIN : 180520
- FIRST LINE : FTR5974
- MEYLE : 31-16 020 0045/HD
- MONROE : L40132
- NAPA : NST6693
