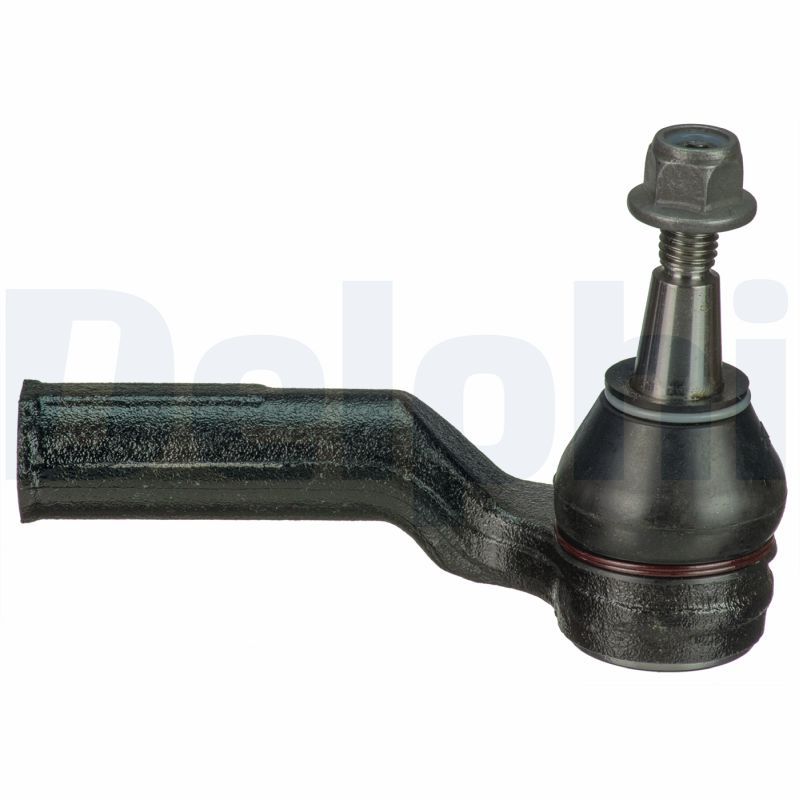

Delphi TA3291 Tie Rod End - 1
Delphi TA3291 Tie Rod End video
Delphi TA3291 Tie Rod End - 1
Delphi TA3291 Tie Rod End video
DELPHI

Delphi TA3291 Tie Rod End

SKU: TA3291
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£16.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
V40 Hatchback (525)
Description Cylinder Capacity Horse Power Year
T4 1984 CCM 180 HP 07/2013 - 12/2015
T3 GTDi 1596 CCM 150 HP 03/2012 - 12/2016
T4 GTDi 1596 CCM 180 HP 03/2012 - 12/2016
D2 1560 CCM 114 HP 03/2012 - 12/2016
D3 1984 CCM 150 HP 03/2012 - 03/2015
D4 1984 CCM 177 HP 03/2012 - 12/2014
T5 2497 CCM 254 HP 12/2012 - 12/2014
T5 1984 CCM 214 HP 03/2013 - 12/2015
T2 GTDi 1596 CCM 120 HP 04/2013 - 12/2016
D4 1969 CCM 190 HP 05/2014 - 08/2019
T5 1969 CCM 245 HP 05/2014 - 08/2019
T4 1596 CCM 200 HP 04/2014 - 12/2015
T2 1969 CCM 122 HP 02/2015 - 08/2019
T3 1969 CCM 152 HP 02/2015 - 08/2019
D2 1969 CCM 120 HP 02/2015 - 08/2019
V40 Cross Country (526)
Description Cylinder Capacity Horse Power Year
T4 AWD 1984 CCM 180 HP 07/2013 - 12/2015
T5 AWD 1984 CCM 214 HP 03/2013 - 12/2015
T5 AWD 2497 CCM 254 HP 10/2012 - 12/2016
T5 AWD 1969 CCM 245 HP 05/2014 - 08/2019
T4 AWD 1969 CCM 190 HP 05/2014 - 08/2019
T5 Polestar AWD 1969 CCM 253 HP 01/2015 - 08/2019
D4 1969 CCM 190 HP 05/2014 - 08/2019
T3 1969 CCM 152 HP 02/2015 - 08/2019
D2 1969 CCM 120 HP 02/2015 - 08/2019
T3 1498 CCM 152 HP 04/2015 - 08/2019
D3 1969 CCM 150 HP 04/2015 - 08/2019
T4 1984 CCM 180 HP 10/2013 - 12/2015
T4 GTDi 1596 CCM 180 HP 10/2012 - 12/2016
D2 1560 CCM 114 HP 10/2012 - 12/2016
D3 1984 CCM 150 HP 10/2012 - 03/2015

The Delphi TA3291 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 130 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 11.4
Paired article number : TA3290
Fitting Position : Front Axle Right
Length [mm] : 130
Width [mm] : 35
Height [mm] : 85
  • Vendor DELPHI
  • SKU TA3291
  • Barcode 5012759996508
  • VOLVO : 31317819
  • APEC : AST6527
  • BORG & BECK : BTR5884
  • BOSCH : 0 986 140 654
  • FEBI BILSTEIN : 106865
  • FIRST LINE : FTR5884
  • LEMFÖRDER : 44828 01
  • MEYLE : 516 020 0012/HD
  • MONROE : L27129
  • NAPA : NST6527
  • Schaeffler FAG : 840 1474 10
  • TRW : JTE1986
  • TRW : JTE1987
