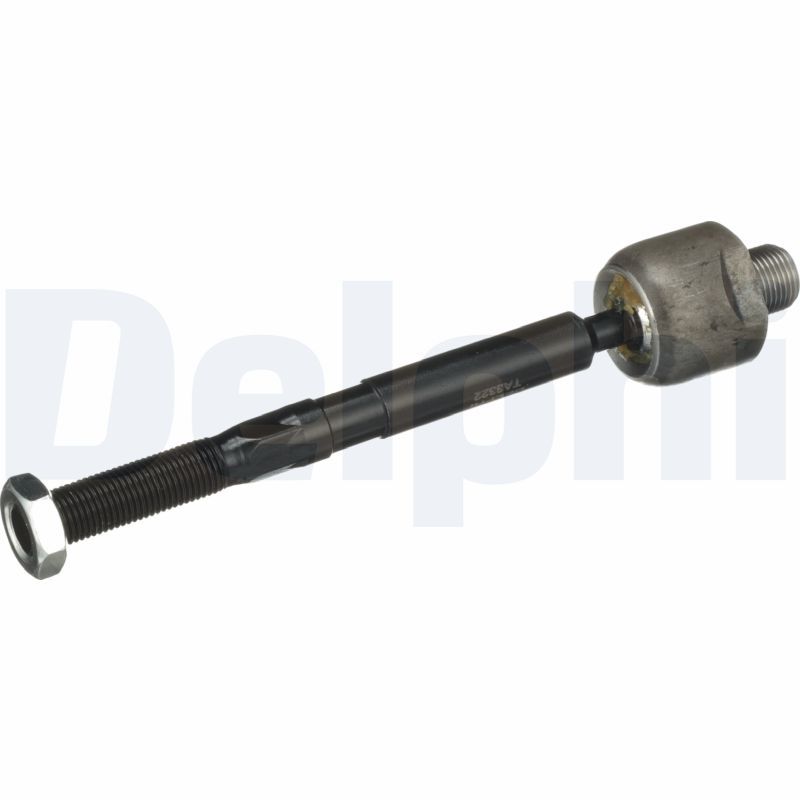

Delphi TA3322 Inner Tie Rod - 1

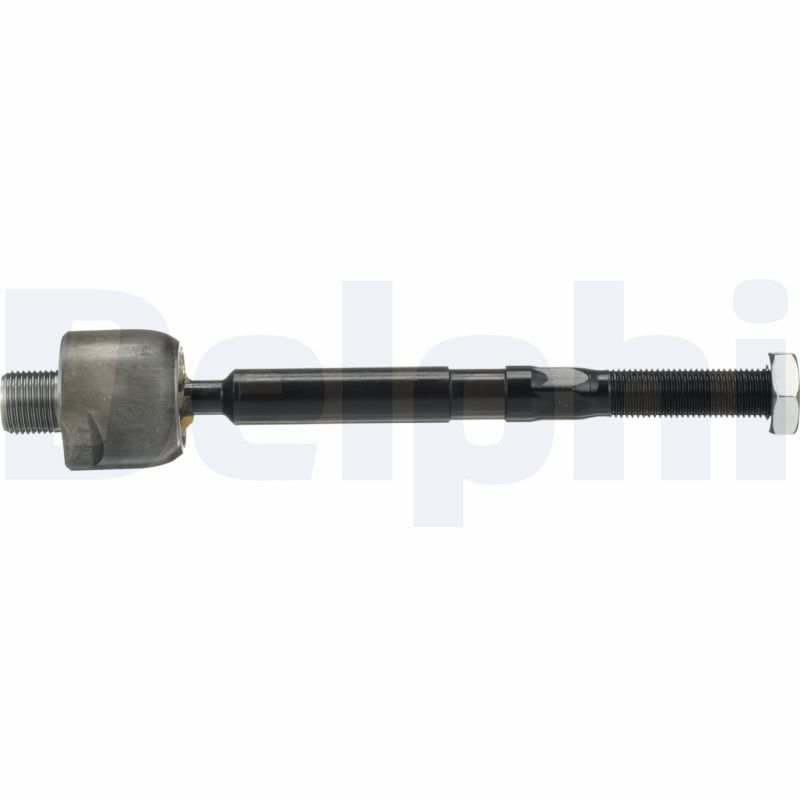

Delphi TA3322 Inner Tie Rod - 2

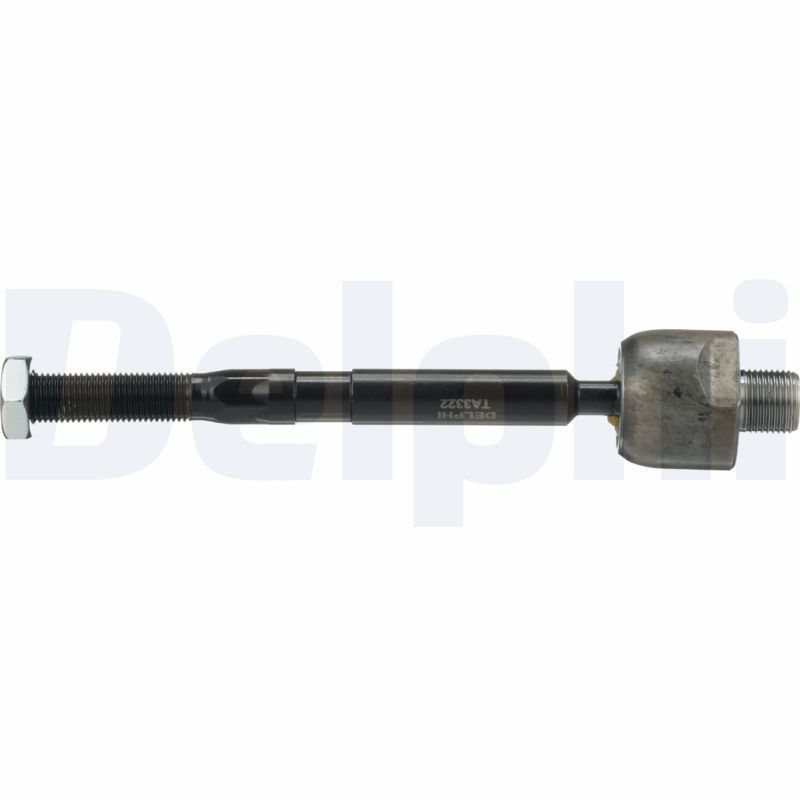

Delphi TA3322 Inner Tie Rod - 3

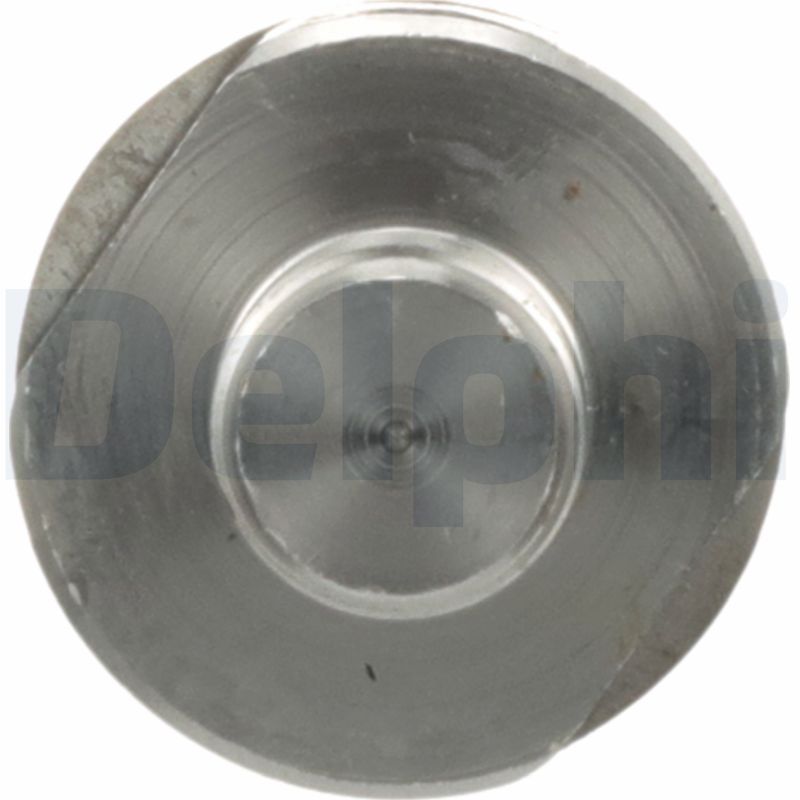

Delphi TA3322 Inner Tie Rod - 4

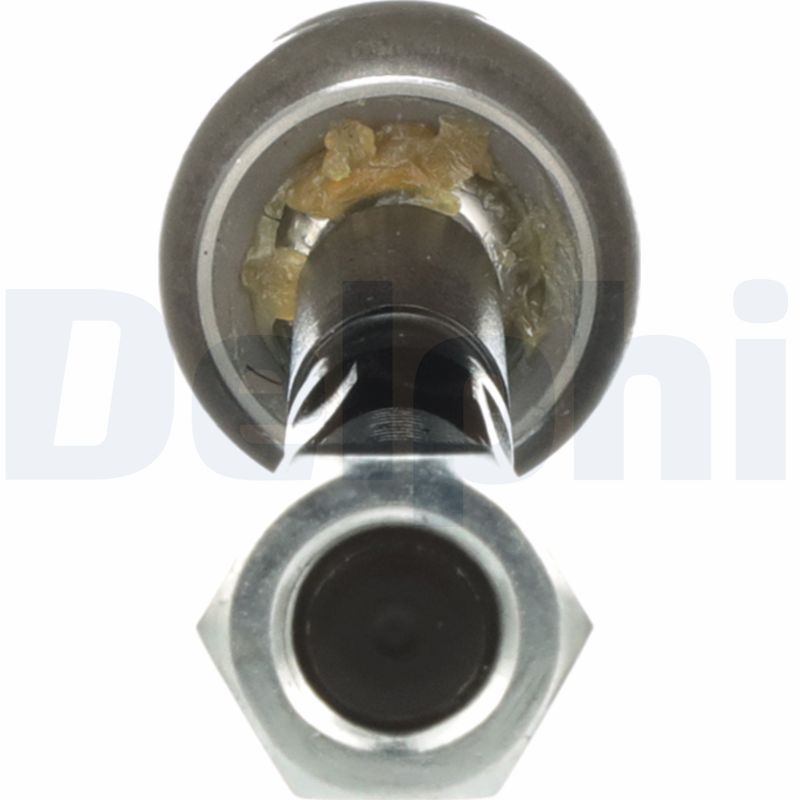

Delphi TA3322 Inner Tie Rod - 5

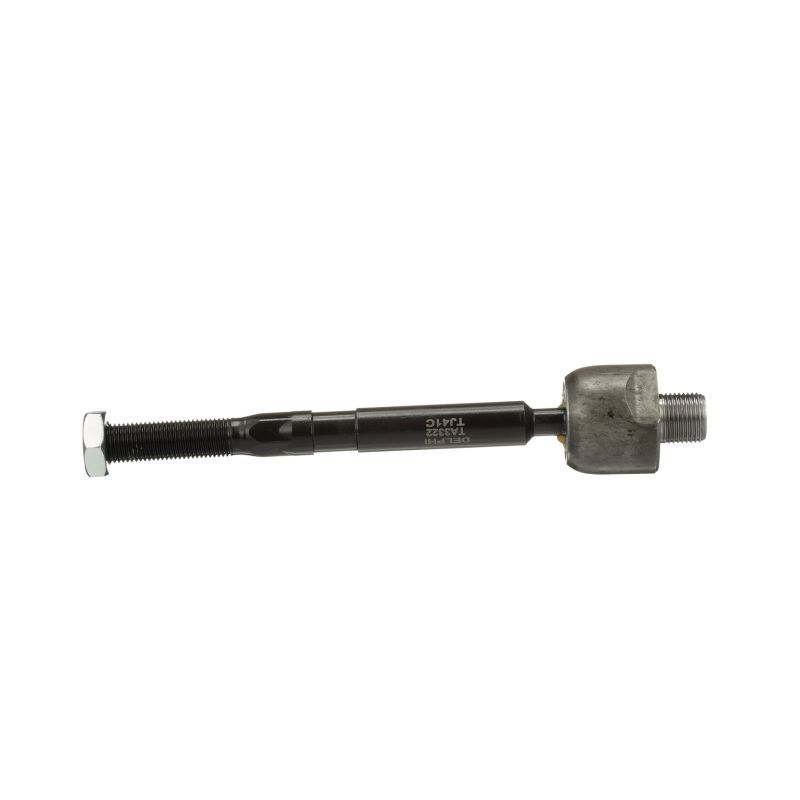

Delphi TA3322 Inner Tie Rod - 6
Delphi TA3322 Inner Tie Rod video
Delphi TA3322 Inner Tie Rod - 1
Delphi TA3322 Inner Tie Rod - 2
Delphi TA3322 Inner Tie Rod - 3
Delphi TA3322 Inner Tie Rod - 4
Delphi TA3322 Inner Tie Rod - 5
Delphi TA3322 Inner Tie Rod - 6
Delphi TA3322 Inner Tie Rod video
DELPHI

Delphi TA3322 Inner Tie Rod

SKU: TA3322
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£25.67 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HONDA
CIVIC X Saloon (FC_)
Description Cylinder Capacity Horse Power Year
1.5 VTEC (FC1) 1498 CCM 182 HP 08/2016 - 12/2022
1.6 i-VTEC (FC5) 1597 CCM 125 HP 09/2016 - 12/2022
1.6 i-DTEC (FC8) 1597 CCM 120 HP 05/2018 - 12/2022
1.0 iVTEC (FC9) 988 CCM 126 HP 07/2018 - 12/2022
1.6 i-VTEC LPG 1597 CCM 125 HP 01/2019 - 12/2022
CIVIC X Hatchback (FC_, FK_)
Description Cylinder Capacity Horse Power Year
1.5 VTEC (FK7) 1498 CCM 182 HP 02/2017 - 12/2022
1.0 VTEC (FK6) 988 CCM 129 HP 02/2017 - 12/2022
1.6 i-DTEC (FK9) 1597 CCM 120 HP 01/2018 - 12/2022
1.0 VTEC 988 CCM 126 HP 07/2018 - 12/2022
CIVIC XI Hatchback (FL)
Description Cylinder Capacity Horse Power Year
2.0 e:HEV 1993 CCM 184 HP From 07/2022
ZR-V
Description Cylinder Capacity Horse Power Year
e:HEV (RZ4) 1993 CCM 184 HP From 04/2023

The Delphi TA3322 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M18x1.5 thread size 1, M14x1.5 thread size 2, front axle fitting position, and 213 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M18x1.5
Thread Size 2 : M14x1.5
Fitting Position : Front Axle
Length [mm] : 213
Width [mm] : 36
Height [mm] : 36
Axle Joint Length [mm] : 195
  • Vendor DELPHI
  • SKU TA3322
  • Barcode 5012759547274
  • HONDA : 53521TBAA01 53521TEAA51
  • APEC : AST7087
  • BORG & BECK : BTR6015
  • FEBI BILSTEIN : 197842
  • FIRST LINE : FTR6015
  • MEYLE : 31-16 031 0036
  • MONROE : L40H02
  • NAPA : NST7087
  • SKF : VKDY 823021
