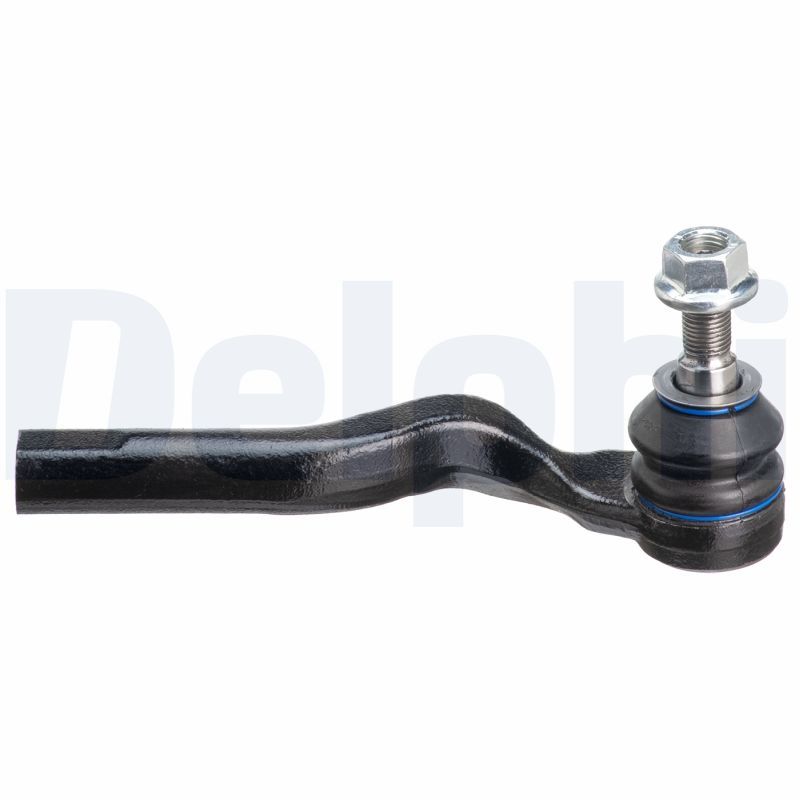

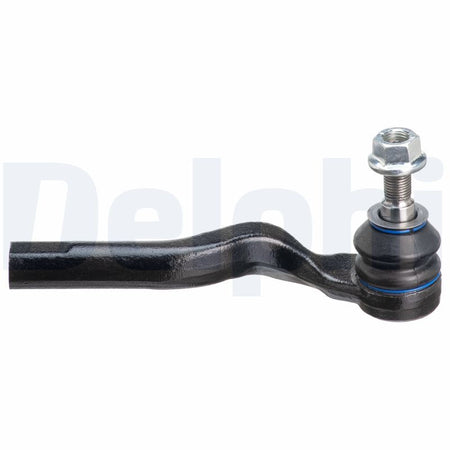

Delphi TA3336 Tie Rod End - 1
Delphi TA3336 Tie Rod End video
Delphi TA3336 Tie Rod End - 1
Delphi TA3336 Tie Rod End video
DELPHI

Delphi TA3336 Tie Rod End

SKU: TA3336
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£30.42 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
EQV (W447)
Description Cylinder Capacity Horse Power Year
EQV 300 (447.813, 447.815) 204 HP From 06/2020
MARCO POLO Camper (W447)
Description Cylinder Capacity Horse Power Year
200 CDI (447.703, 447.813) 1950 CCM 136 HP From 03/2019
200 CDI 4-matic (447.703, 447.813) 1950 CCM 136 HP From 03/2019
220 CDI (447.703, 447.813) 1950 CCM 163 HP From 03/2019
220 CDI 4-matic (447.703, 447.813) 1950 CCM 163 HP From 03/2019
250 CDI (447.703, 447.813) 1950 CCM 190 HP From 03/2019
250 CDI 4-matic (447.703, 447.813) 1950 CCM 190 HP From 03/2019
300 CDI (447.813, 447.703) 1950 CCM 239 HP 03/2019 - 12/2020
300 CDI 4-matic (447.813, 447.703) 1950 CCM 239 HP 03/2019 - 12/2020
220 CDI (447.703, 447.813) 2143 CCM 163 HP From 03/2015
220 CDI 4-matic (447.703, 447.813) 2143 CCM 163 HP From 03/2015
250 CDI (447.703, 447.813) 2143 CCM 190 HP From 03/2015
300 CDI (447.813, 447.703) 1950 CCM 237 HP From 01/2021
300 CDI 4-matic (447.813, 447.703) 1950 CCM 237 HP From 01/2021
V-CLASS (W447)
Description Cylinder Capacity Horse Power Year
V 200 CDI / d (447.811, 447.813, 447.815) 2143 CCM 136 HP From 03/2014
V 220 CDI / d (447.811, 447.813, 447.815) 2143 CCM 163 HP From 03/2014
V 250 BlueTEC / d (447.811, 447.813, 447.815) 2143 CCM 190 HP From 03/2014
V 250 BlueTEC / d 4-matic (447.811, 447.813, 447.815) 2143 CCM 190 HP From 12/2014
V 200 CDI / d 4-matic (447.811, 447.813, 447.815) 2143 CCM 136 HP From 04/2015
V 220 CDI / d 4-matic (447.811, 447.813, 447.815) 2143 CCM 163 HP From 03/2015
V 220 CDI / d (447.811, 447.813, 447.815) 1950 CCM 163 HP From 03/2019
V 220 CDI / d 4-matic (447.811, 447.813) 1950 CCM 163 HP From 03/2019
V 250 CDI / d (447.811, 447.813, 447.815) 1950 CCM 190 HP From 03/2019
V 250 CDI / d 4-matic (447.811, 447.813) 1950 CCM 190 HP From 03/2019
V 300 CDI / d (447.811, 447.813, 447.815) 1950 CCM 239 HP 03/2019 - 12/2020
V 300 CDI / d 4-matic (447.811, 447.813) 1950 CCM 239 HP 03/2019 - 12/2020
V 300 CDI / d (447.811, 447.813, 447.815) 1950 CCM 237 HP From 01/2021
V 300 CDI / d 4-matic (447.811, 447.813) 1950 CCM 237 HP From 01/2021
V 300 (447.813, 447.815) 1999 CCM 230 HP From 05/2024
VITO Dualiner (W447)
Description Cylinder Capacity Horse Power Year
114 CDI (447.701, 447.703, 447.705) 2143 CCM 136 HP From 10/2014
116 CDI (447.701, 447.703, 447.705) 2143 CCM 163 HP From 10/2014
119 BlueTEC (447.701, 447.703, 447.705) 2143 CCM 190 HP From 10/2014
119 BlueTEC 4-matic (447.701, 447.703, 447.705) 2143 CCM 190 HP From 07/2015
114 CDI 4-matic (447.701, 447.703, 447.705) 2143 CCM 136 HP From 07/2015
116 CDI 4-matic (447.701, 447.703, 447.705) 2143 CCM 163 HP From 07/2015
114 CDI (447.701, 447.703, 447.705) 1950 CCM 136 HP From 03/2019
116 CDI (447.701, 447.703, 447.705) 1950 CCM 163 HP From 03/2019
116 CDI 4-matic (447.701, 447.703, 447.705) 1950 CCM 163 HP From 03/2019
119 CDI (447.701, 447.703, 447.705) 1950 CCM 190 HP From 03/2019
119 CDI 4-matic (447.701, 447.703, 447.705) 1950 CCM 190 HP From 03/2019
VITO Tourer (W447)
Description Cylinder Capacity Horse Power Year
114 CDI / 114 BlueTEC (447.701, 447.703, 447.705) 2143 CCM 136 HP From 10/2014
116 CDI / 116 BlueTEC (447.701, 447.703, 447.705) 2143 CCM 163 HP From 10/2014
119 CDI / 119 BlueTEC (447.701, 447.703, 447.705) 2143 CCM 190 HP From 10/2014
119 CDI / 119 BlueTEC 4-matic (447.701, 447.703,... 2143 CCM 190 HP From 12/2014
114 CDI / 114 BlueTEC 4-matic (447.701, 447.703,... 2143 CCM 136 HP From 07/2015
116 CDI / 116 BlueTEC 4-matic (447.701, 447.703,... 2143 CCM 163 HP From 07/2015
114 CDI (447.701, 447.703, 447.705) 1950 CCM 136 HP From 03/2019
114 CDI 4-matic (447.701, 447.703, 447.705) 1950 CCM 136 HP From 03/2019
116 CDI (447.701, 447.703, 447.705) 1950 CCM 163 HP From 03/2019
116 CDI 4-matic (447.701, 447.703, 447.705) 1950 CCM 163 HP From 03/2019
119 CDI (447.701, 447.703, 447.705) 1950 CCM 190 HP From 03/2019
119 CDI 4-matic (447.701, 447.703, 447.705) 1950 CCM 190 HP From 03/2019
VITO Van (W447)
Description Cylinder Capacity Horse Power Year
114 CDI (447.601, 447.603, 447.605) 2143 CCM 136 HP From 10/2014
116 CDI (447.601, 447.603, 447.605) 2143 CCM 163 HP From 10/2014
119 CDI / BlueTEC (447.601, 447.603, 447.605) 2143 CCM 190 HP From 10/2014
114 CDI 4x4 (447.601, 447.603, 447.605) 2143 CCM 136 HP From 07/2015
116 CDI 4x4 (447.601, 447.603, 447.605) 2143 CCM 163 HP From 07/2015
119 CDI / BlueTEC 4x4 (447.601, 447.603, 447.605) 2143 CCM 190 HP From 07/2015
114 CDI 4x4 (447.601, 447.603, 447.605) 1950 CCM 136 HP From 04/2020
114 CDI (447.601, 447.603, 447.605) 1950 CCM 136 HP From 04/2020
116 CDI (447.601, 447.603, 447.605) 1950 CCM 163 HP From 04/2020
116 CDI 4x4 (447.601, 447.603, 447.605) 1950 CCM 163 HP From 04/2020

The Delphi TA3336 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 217 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 16.7
Paired article number : TA3335
Fitting Position : Front Axle Right
Length [mm] : 217
Width [mm] : 52
Height [mm] : 96
  • Vendor DELPHI
  • SKU TA3336
  • Barcode 5012759556146
  • MERCEDES-BENZ : 4474600148 A4474600148
  • APEC : AST6626
  • APEC : AST6627
  • BORG & BECK : BTR5959
  • BOSCH : 0 986 140 706
  • CORTECO : 49120346
  • FIRST LINE : FTR5959
  • LEMFÖRDER : 37668 01
  • MEYLE : 016 020 0058/HD
  • MONROE : L23155
  • NAPA : NST6626
  • NAPA : NST6627
  • TRW : JTE2241
