DELPHI

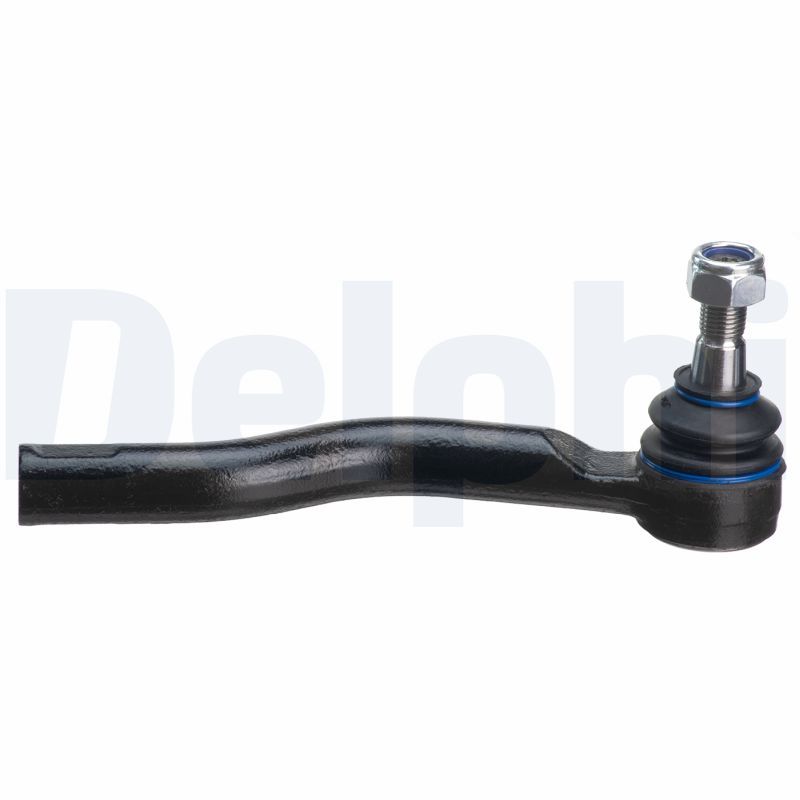

Delphi TA3343 Tie Rod End

SKU: TA3343
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£21.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LDV
MAXUS Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.5 D 2499 CCM 95 HP 02/2005 - 12/2008
2.5 D 2499 CCM 120 HP 10/2005 - 12/2009
2.5 D 2499 CCM 135 HP 02/2006 - 12/2009
MAXUS Bus
Description Cylinder Capacity Horse Power Year
2.5 D 2499 CCM 95 HP 02/2005 - 12/2008
2.5 D 2499 CCM 120 HP 02/2005 - 12/2009
2.5 D 2499 CCM 135 HP 02/2006 - 12/2009
MAXUS Van
Description Cylinder Capacity Horse Power Year
2.5 D 2499 CCM 95 HP 02/2005 - 12/2008
2.5 D 2499 CCM 120 HP 10/2005 - 12/2009
2.5 D 2499 CCM 135 HP 02/2006 - 12/2009

The Delphi TA3343 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 228 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 14.8
Paired article number : TA3342
Fitting Position : Front Axle Right
Length [mm] : 228
Width [mm] : 50
Height [mm] : 90
  • Vendor DELPHI
  • SKU TA3343
  • Barcode 5012759553121
  • LDV : 543990014
  • APEC : AST6293
  • BORG & BECK : BTR5754
  • FIRST LINE : FTR5754
  • MONROE : L17G03
  • NAPA : NST6293
