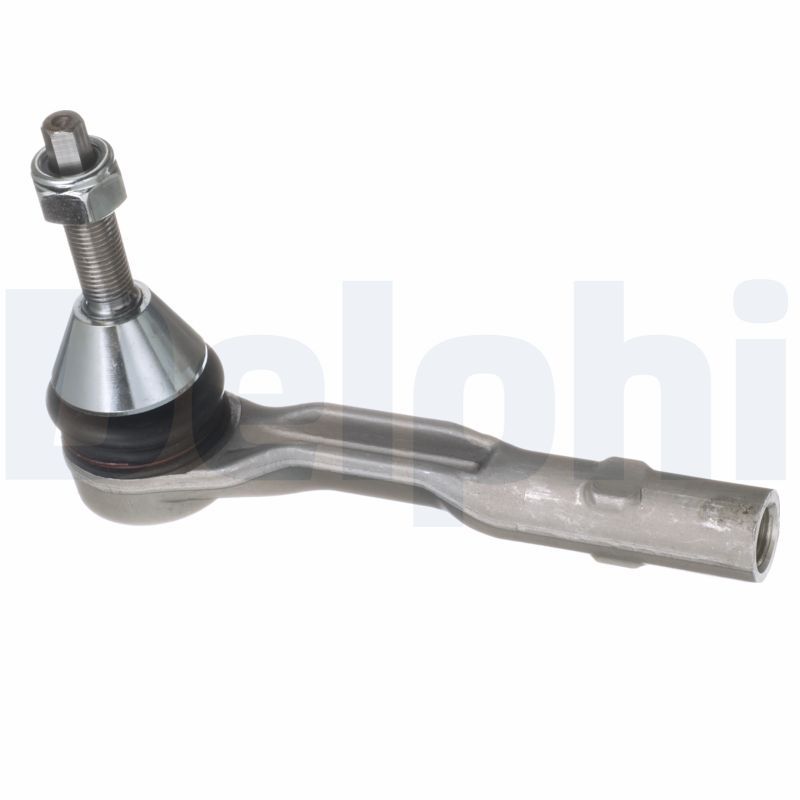

Delphi TA3383 Tie Rod End - 1

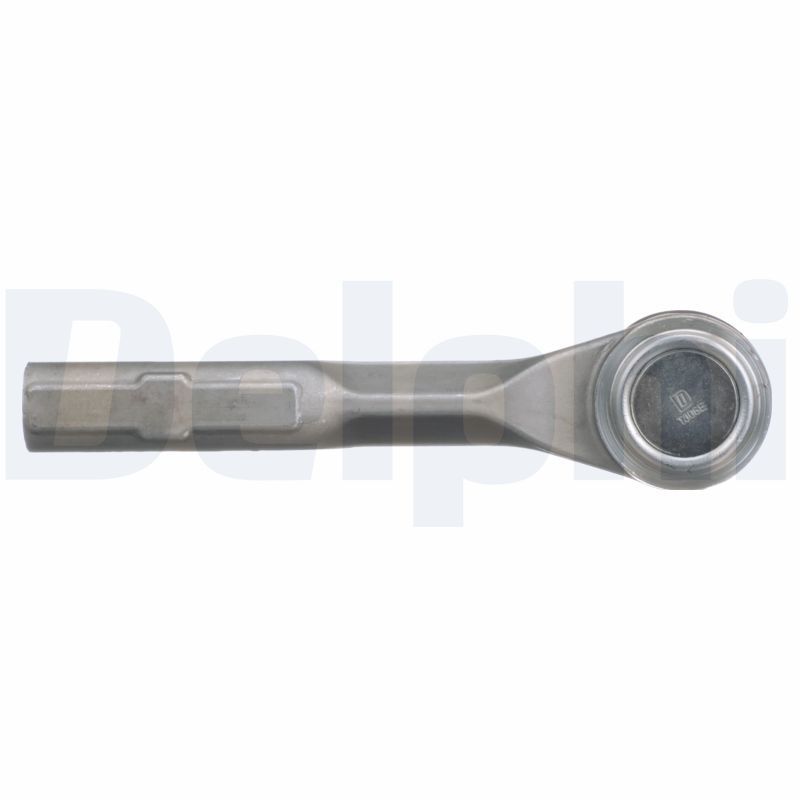

Delphi TA3383 Tie Rod End - 2

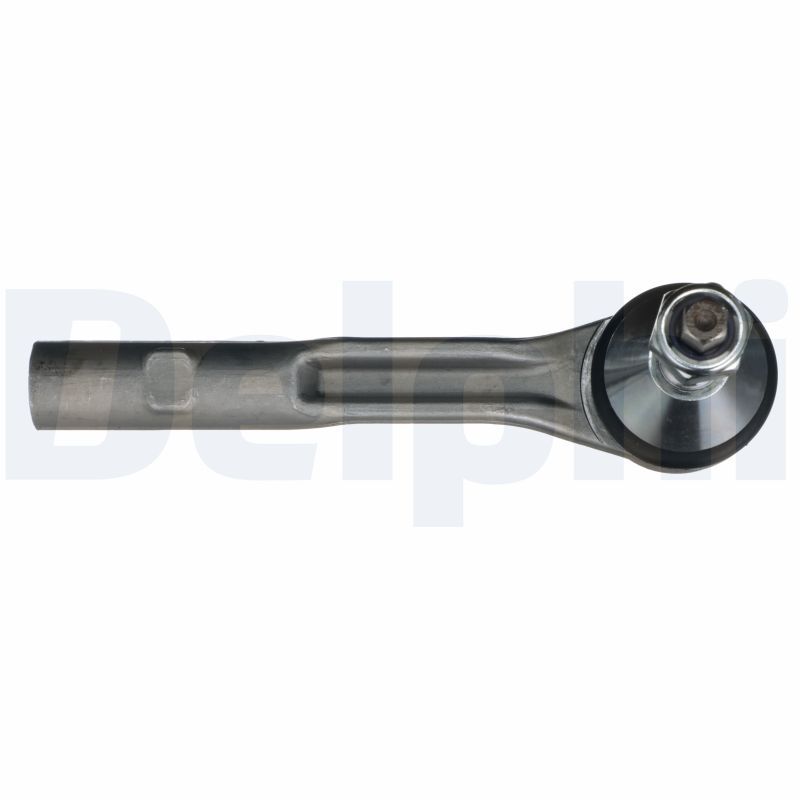

Delphi TA3383 Tie Rod End - 3

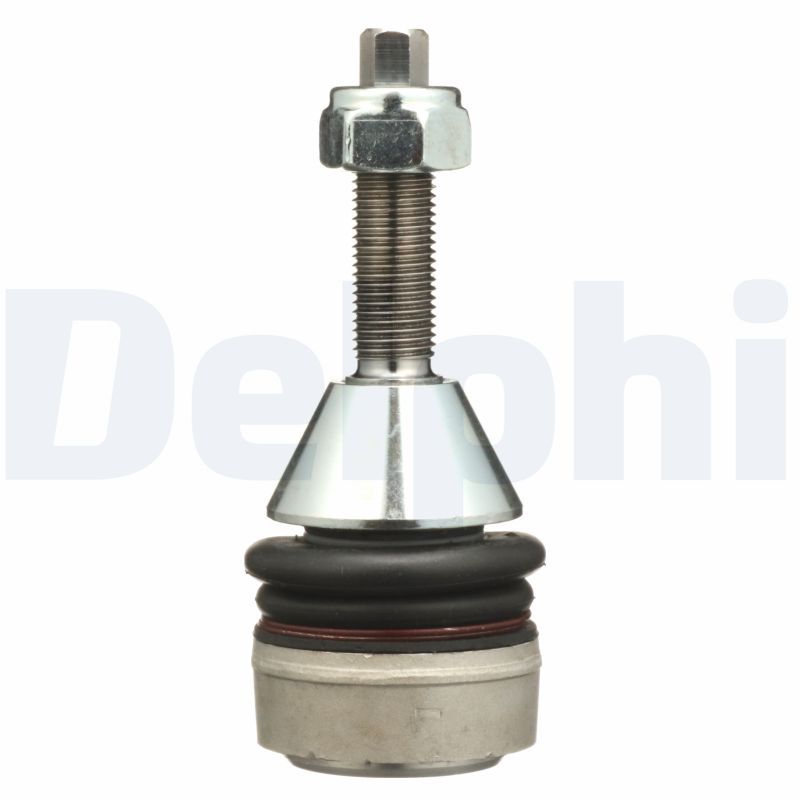

Delphi TA3383 Tie Rod End - 4

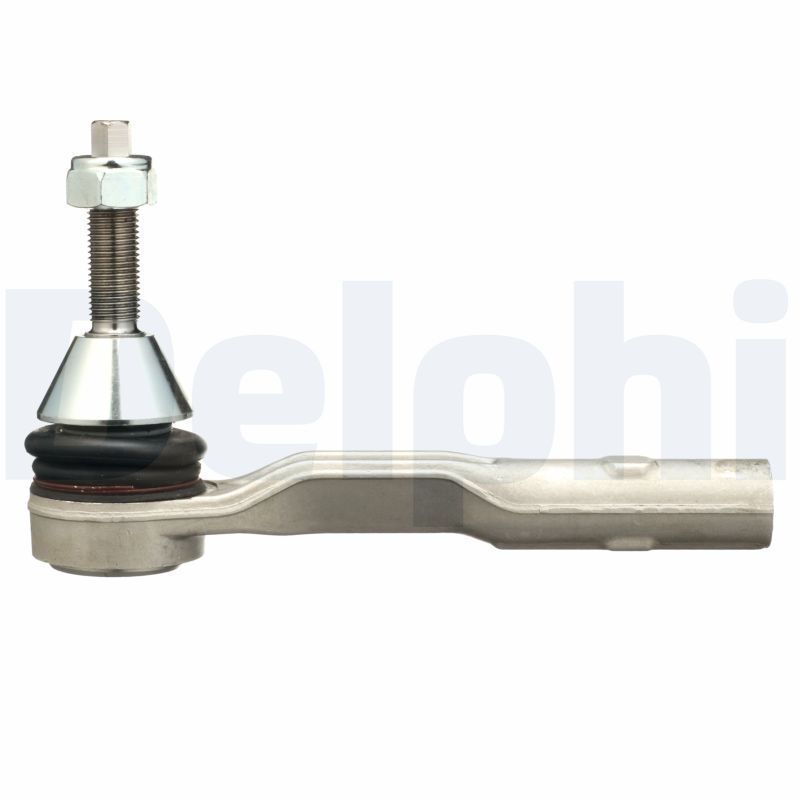

Delphi TA3383 Tie Rod End - 5

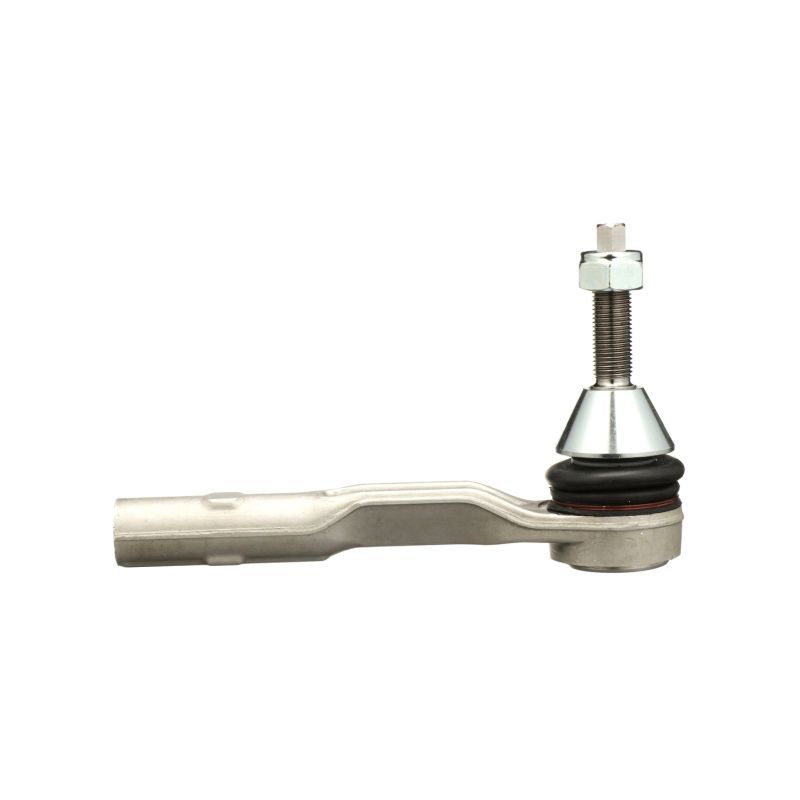

Delphi TA3383 Tie Rod End - 6
Delphi TA3383 Tie Rod End video
Delphi TA3383 Tie Rod End - 1
Delphi TA3383 Tie Rod End - 2
Delphi TA3383 Tie Rod End - 3
Delphi TA3383 Tie Rod End - 4
Delphi TA3383 Tie Rod End - 5
Delphi TA3383 Tie Rod End - 6
Delphi TA3383 Tie Rod End video
DELPHI

Delphi TA3383 Tie Rod End

5.0/5 65 reviews
SKU: TA3383

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£48.62 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

MERCEDES-BENZ
S-CLASS (W222, V222, X222)
Description Cylinder Capacity Horse Power Year
S 63 AMG (222.077, 222.177) 5461 CCM 585 HP 05/2013 - 05/2017
S 350 BlueTEC / d (222.132, 222.032, 222.123) 2987 CCM 258 HP 05/2013 - 05/2017
S 400 Hybrid / h (222.057, 222.157) 3498 CCM 306 HP 05/2013 - 05/2017
S 500 (222.082, 222.182) 4663 CCM 455 HP 05/2013 - 05/2017
S 500 (222.082, 222.182) 4663 CCM 435 HP 07/2013 - 05/2017
S 300 BlueTEC Hybrid / h (222.104, 222.004) 2143 CCM 231 HP 02/2014 - 05/2017
S 600 (222.176) 5980 CCM 530 HP 02/2014 - 07/2020
S 65 AMG (222.179) 5980 CCM 630 HP 02/2014 - 11/2019
S 320 (222.162) 2996 CCM 272 HP 05/2014 - 07/2020
S 500 Hybrid / e (222.163) 2996 CCM 442 HP 07/2014 - 05/2017
S-CLASS Coupe (C217)
Description Cylinder Capacity Horse Power Year
S 63 AMG (217.377) 5461 CCM 585 HP 07/2014 - 10/2017
S 65 AMG (217.379) 5980 CCM 630 HP 07/2014 - 05/2019
S 500 (217.382) 4663 CCM 455 HP 11/2014 - 10/2017
S 560 (217.383) 3982 CCM 469 HP 10/2017 - 07/2020
S 63 AMG (217.387) 3982 CCM 612 HP 12/2018 - 07/2020
S-CLASS Convertible (A217)
Description Cylinder Capacity Horse Power Year
S 500 (217.482) 4663 CCM 456 HP 12/2015 - 10/2017
AMG S 65 (217.479) 5980 CCM 630 HP 04/2016 - 05/2019
AMG S 63 (217.477) 5461 CCM 585 HP 02/2016 - 10/2017
S 650 Maybach (217.479) 5980 CCM 630 HP 08/2017 - 05/2019
S 560 (217.483) 3982 CCM 469 HP 10/2017 - 07/2020
AMG S 63 (217.487) 3982 CCM 612 HP 12/2018 - 07/2020

The Delphi TA3383 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1.5 thread size, with right-hand thread thread type, front axle fitting position, and 198 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16 x 1.5
Thread Type : with right-hand thread
Cone Size [mm] : 16
Fitting Position : Front Axle
Length [mm] : 198
Width [mm] : 48
Height [mm] : 119
  • Vendor DELPHI
  • SKU TA3383
  • Barcode 5012759636107
  • MERCEDES-BENZ : 2223307000
  • BORG & BECK : BTR6103
  • FIRST LINE : FTR6103
  • MEYLE : 016 020 0042/HD
