DELPHI

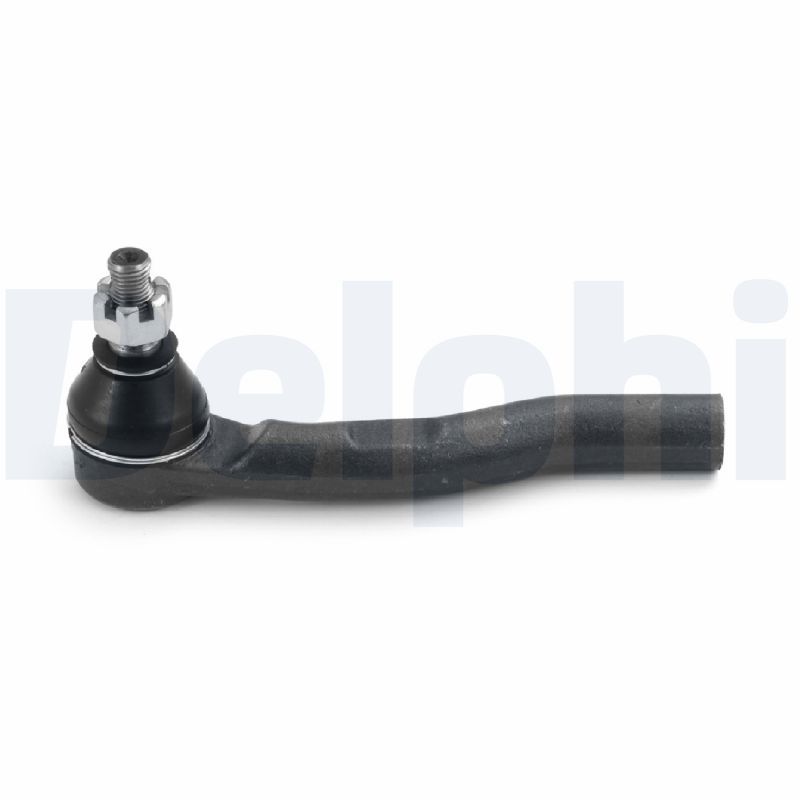

Delphi TA3403 Tie Rod End

SKU: TA3403

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£40.71 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HONDA

CR-V IV (RM_)

Description	Cylinder Capacity	Horse Power	Year
2.0 (RM1)	1997 CCM	150 HP	01/2012 - 12/2018
2.4 AWD (RM4)	2354 CCM	190 HP	01/2012 - 12/2014
1.6 i-DTEC (RE6)	1597 CCM	120 HP	10/2013 - 08/2018
2.0 iVtec (RE5, RM1)	1997 CCM	155 HP	10/2012 - 12/2018
2.0 AWD (RE5, RM2)	1997 CCM	155 HP	10/2012 - 12/2018
1.6 i-DTEC 4WD (RE6)	1597 CCM	160 HP	02/2015 - 08/2018
2.2 i-DTEC 4WD (RE6)	2199 CCM	150 HP	11/2012 - 05/2015

The Delphi TA3403 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 171 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End

Thread Size : M14 x 1.5

Thread Type : with right-hand thread

Cone Size [mm] : 13.7

Paired article number : TA3404

Fitting Position : Front Axle Left

Length [mm] : 171

Width [mm] : 40

Height [mm] : 69

Delphi TA3403 Tie Rod End
