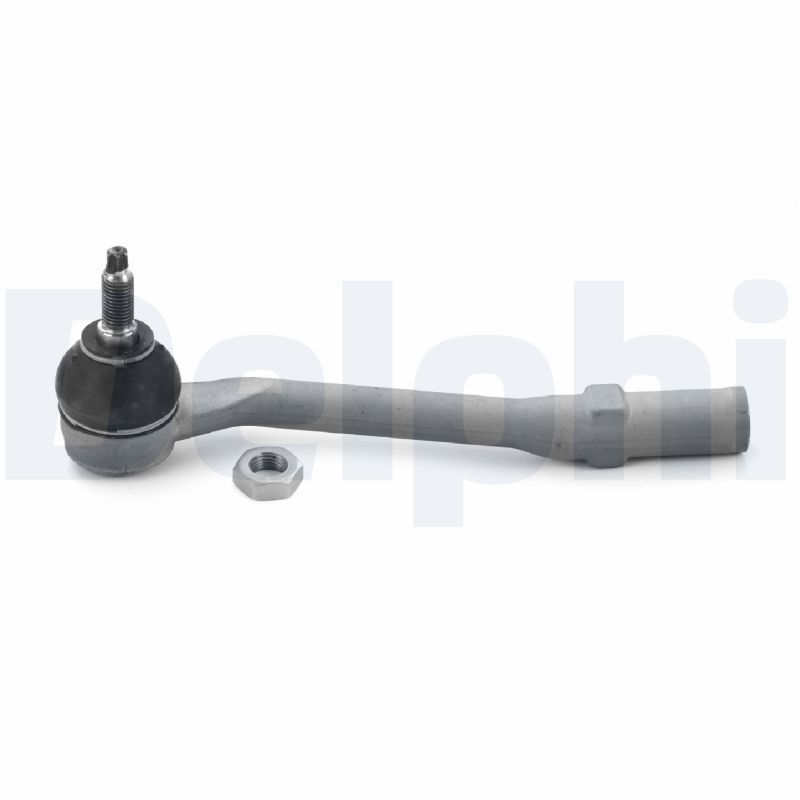

Delphi TA3426 Tie Rod End - 1
Delphi TA3426 Tie Rod End video
Delphi TA3426 Tie Rod End - 1
Delphi TA3426 Tie Rod End video
DELPHI

Delphi TA3426 Tie Rod End

SKU: TA3426
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£21.82 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

CITROËN
C3 III (SX)
Description Cylinder Capacity Horse Power Year
1.2 VTi 68 1199 CCM 68 HP From 09/2016
1.2 VTi 82 1199 CCM 82 HP From 09/2016
1.2 THP 110 (SXHNPS, SXHNZT, SXHNZ6) 1199 CCM 110 HP From 09/2016
1.6 BlueHDi 75 1560 CCM 75 HP 09/2016 - 05/2018
1.6 BlueHDi 100 1560 CCM 99 HP 09/2016 - 05/2018
1.6 VTi (SXNFPT) 1587 CCM 116 HP From 02/2017
1.5 BlueHDi 100 (SXYHYP, SXYHTU) 1499 CCM 102 HP From 05/2018
1.2 PureTech 82 1199 CCM 83 HP From 05/2018
1.2 PureTech 82 LPG 1199 CCM 83 HP From 05/2018
C3 III Van (SX_, SY_)
Description Cylinder Capacity Horse Power Year
PureTech 82 1199 CCM 83 HP From 03/2019
PureTech 110 1199 CCM 110 HP From 03/2019
BlueHDi 75 1560 CCM 75 HP From 03/2019
BlueHDi 100 1499 CCM 102 HP From 03/2019
BlueHDi 100 1560 CCM 99 HP From 03/2019
C3 ORIGIN III (SX)
Description Cylinder Capacity Horse Power Year
1.2 PURETECH 110 (SXHNPY, SXHNPZ) 1199 CCM 110 HP From 03/2024
1.2 PURETECH 82 (SXHMRV) 1199 CCM 83 HP From 03/2024
1.5 BlueHDi 100 (SXYHTU) 1499 CCM 102 HP From 03/2024

The Delphi TA3426 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1.5 thread size, front axle left fitting position, 213 mm length, and 40 mm width. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14 x 1.5
Cone Size [mm] : 12.1
Paired article number : TA3427
Fitting Position : Front Axle Left
Length [mm] : 213
Width [mm] : 40
Height [mm] : 75
  • Vendor DELPHI
  • SKU TA3426
  • Barcode 5012759246634
  • CITROËN : 1623141080
  • APEC : AST6637
  • BORG & BECK : BTR5929
  • BOSCH : 0 986 140 733
  • CORTECO : 49112931
  • FEBI BILSTEIN : 178509
  • FIRST LINE : FTR5929
  • MEYLE : 40-16 020 0005
  • MONROE : L38G06
  • NAPA : NST6637
  • SKF : VKDY 313046
  • TRW : JTE2235
