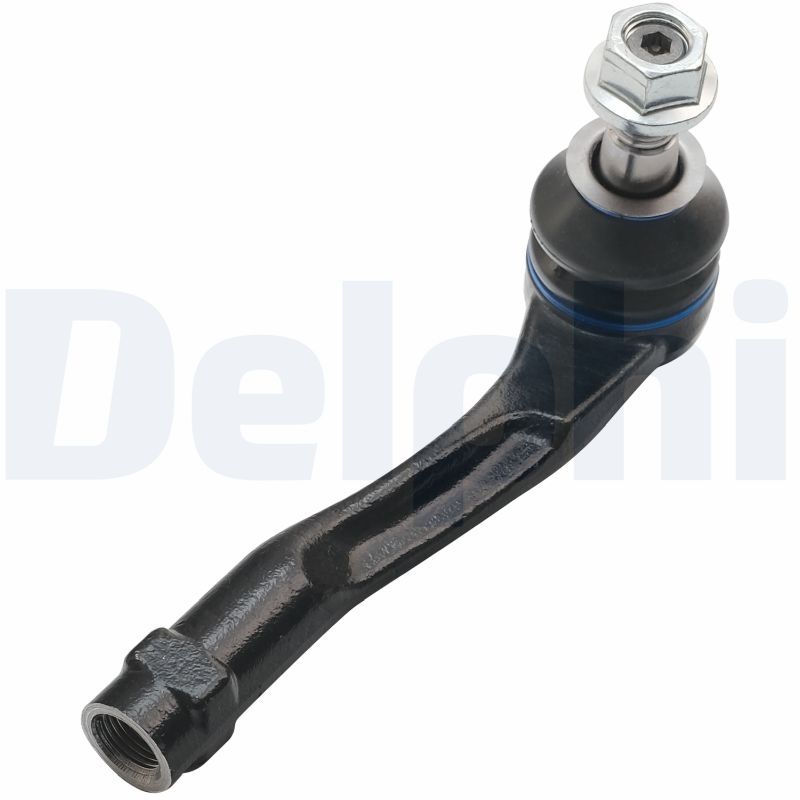

Delphi TA3435 Tie Rod End - 1

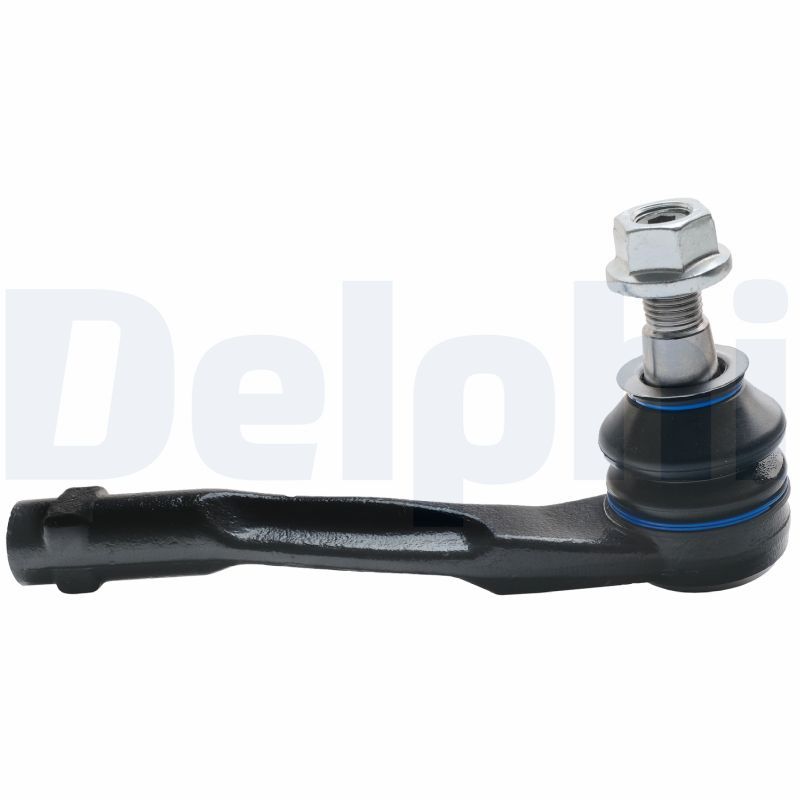

Delphi TA3435 Tie Rod End - 2

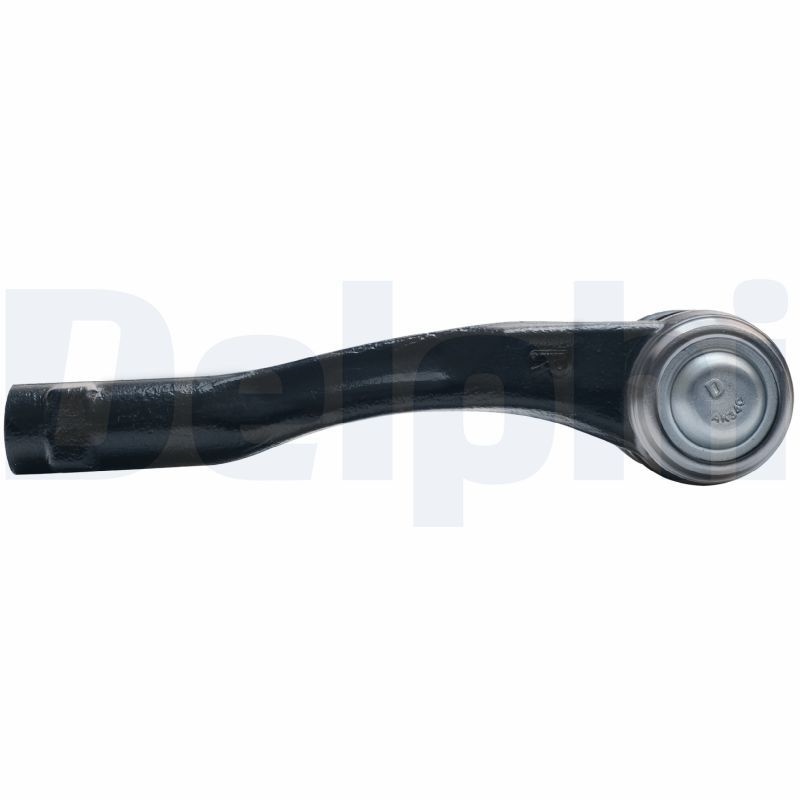

Delphi TA3435 Tie Rod End - 3

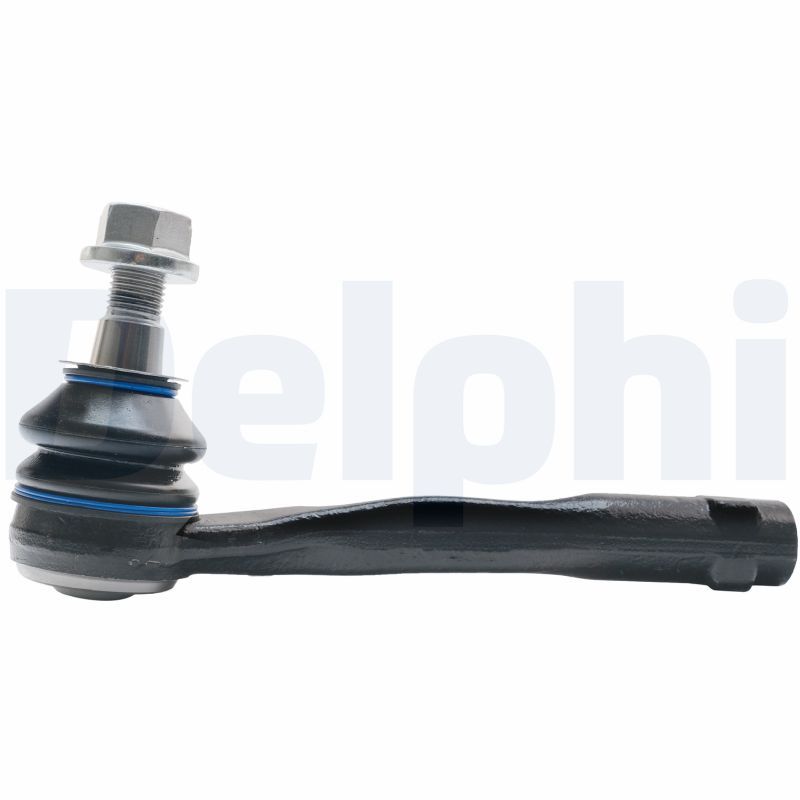

Delphi TA3435 Tie Rod End - 4

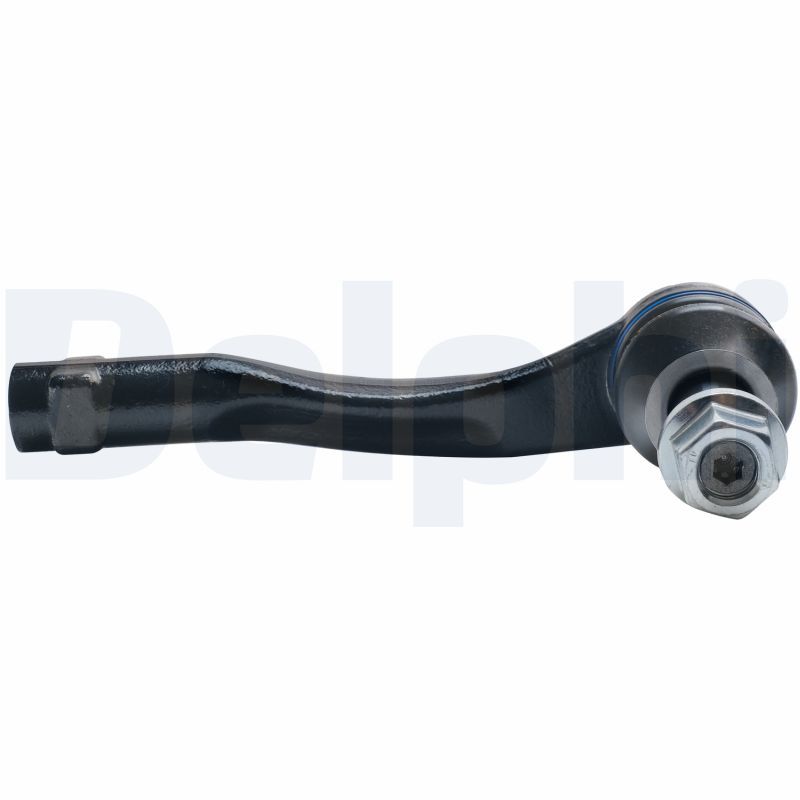

Delphi TA3435 Tie Rod End - 5

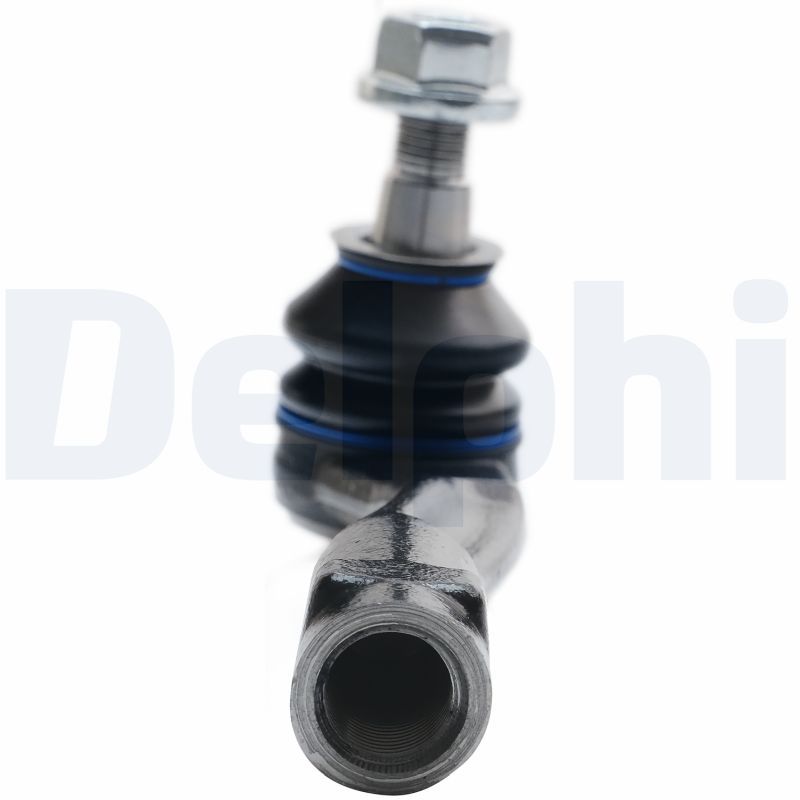

Delphi TA3435 Tie Rod End - 6
Delphi TA3435 Tie Rod End video
Delphi TA3435 Tie Rod End - 1
Delphi TA3435 Tie Rod End - 2
Delphi TA3435 Tie Rod End - 3
Delphi TA3435 Tie Rod End - 4
Delphi TA3435 Tie Rod End - 5
Delphi TA3435 Tie Rod End - 6
Delphi TA3435 Tie Rod End video
DELPHI

Delphi TA3435 Tie Rod End

SKU: TA3435
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£25.01 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
SPRINTER 3-t Platform/Chassis (B910, B907)
Description Cylinder Capacity Horse Power Year
211 CDI RWD (907.221, 907.223) 2143 CCM 114 HP 02/2018 - 12/2021
214 CDI RWD (907.221, 907.223) 2143 CCM 143 HP 02/2018 - 12/2021
216 CDI RWD (907.221, 907.223) 2143 CCM 163 HP 02/2018 - 12/2021
211 CDI RWD (907.221, 907.223, 907.123) 1950 CCM 114 HP From 06/2020
215 CDI RWD (907.221, 907.223) 1950 CCM 150 HP From 06/2020
217 CDI RWD (907.221, 907.223) 1950 CCM 170 HP From 06/2020
SPRINTER 3,5-t Platform/Chassis (B907, B910)
Description Cylinder Capacity Horse Power Year
311 CDI RWD (907.131, 907.133, 907.135, 907.231, 907.233... 2143 CCM 114 HP 02/2018 - 12/2021
314 CDI RWD (907.131, 907.133, 907.135, 907.231, 907.233... 2143 CCM 143 HP 02/2018 - 12/2021
316 CDI RWD (907.131, 907.133, 907.135, 907.231, 907.233... 2143 CCM 163 HP 02/2018 - 12/2021
319 CDI RWD (907.133, 907.135, 907.233, 907.235) 2987 CCM 190 HP 02/2018 - 12/2021
311 CDI RWD (907.131, 907.133, 907.135, 907.231, 907.233... 1950 CCM 114 HP From 06/2020
315 CDI RWD (907.131, 907.133, 907.135, 907.231, 907.233... 1950 CCM 150 HP From 06/2020
317 CDI RWD (907.131, 907.133, 907.135, 907.231, 907.233... 1950 CCM 170 HP From 06/2020
SPRINTER 4-t Platform/Chassis (B907, B910)
Description Cylinder Capacity Horse Power Year
411 CDI RWD (907.141, 907.143, 907.145, 907.241, 907.243... 2143 CCM 114 HP 02/2018 - 12/2021
414 CDI RWD (907.143, 907.145, 907.243, 907.245, 907.141... 2143 CCM 143 HP 02/2018 - 12/2021
416 CDI RWD (907.143, 907.145, 907.243, 907.141, 907.241... 2143 CCM 163 HP 02/2018 - 12/2021
419 CDI RWD (907.143, 907.145, 907.243, 907.245) 2987 CCM 190 HP 02/2018 - 12/2021
411 CDI RWD (907.141, 907.143, 907.145, 907.241, 907.243... 1950 CCM 114 HP From 10/2021
415 CDI RWD (907.141, 907.143, 907.145, 907.241, 907.243... 1950 CCM 150 HP From 10/2021
SPRINTER 5-t Platform/Chassis (B907)
Description Cylinder Capacity Horse Power Year
511 CDI (907.153, 907.155, 907.253, 907.255) 2143 CCM 114 HP 02/2018 - 12/2021
514 CDI (907.153, 907.155, 907.253, 907.255) 2143 CCM 143 HP 02/2018 - 12/2021
516 CDI (907.153, 907.155, 907.253, 907.255) 2143 CCM 163 HP 02/2018 - 12/2021
519 CDI (907.153, 907.155, 907.253, 907.255) 2987 CCM 190 HP 02/2018 - 12/2021
515 CDI RWD (907.153, 907.155, 907.253, 907.255) 1950 CCM 150 HP From 10/2021
519 CDI RWD (907.153, 907.155, 907.253, 907.255) 1950 CCM 190 HP From 10/2021
517 CDI RWD (907.153, 907.155, 907.253, 907.255) 1950 CCM 170 HP From 01/2022
SPRINTER 3-t Tourer Bus (B907)
Description Cylinder Capacity Horse Power Year
211 CDI (907.721, 907.723) 2143 CCM 114 HP 02/2018 - 12/2021
214 CDi (907.721, 907.723) 2143 CCM 143 HP 02/2018 - 12/2021
211 CDI (907.721, 907.723) 1950 CCM 114 HP From 10/2021
215 CDI (907.721, 907.723) 1950 CCM 150 HP From 10/2021
217 CDI (907.721, 907.723) 1950 CCM 170 HP From 10/2021
216 CDi (907.721, 907.723) 2143 CCM 163 HP 02/2018 - 12/2021
SPRINTER 3,5-t Tourer Bus (B907)
Description Cylinder Capacity Horse Power Year
311 CDI (907.731, 907.733, 907.735) 2143 CCM 114 HP 02/2018 - 12/2021
314 CDI (907.731, 907.733, 907.735) 2143 CCM 143 HP 02/2018 - 12/2021
316 CDI (907.731, 907.733, 907.735) 2143 CCM 163 HP 02/2018 - 12/2021
319 CDI (907.733, 907.735) 2987 CCM 190 HP 02/2018 - 12/2021
319 CDI All-wheel Drive (907.733) 2987 CCM 190 HP 01/2019 - 12/2021
314 CDI All-wheel Drive (907.733) 2143 CCM 143 HP 01/2019 - 12/2021
316 CDI All-wheel Drive (907.733) 2143 CCM 163 HP 01/2019 - 12/2021
311 CDI (907.731, 907.733, 907.735) 1950 CCM 114 HP From 10/2021
315 CDI (907.731, 907.733, 907.735) 1950 CCM 150 HP From 10/2021
317 CDI (907.731, 907.733, 907.735) 1950 CCM 170 HP From 10/2021
319 CDI (907.733, 907.735) 1950 CCM 190 HP From 10/2021
319 CDI All-wheel Drive (907.733) 1950 CCM 190 HP From 10/2021
SPRINTER 3,5-t Van (B907, B910)
Description Cylinder Capacity Horse Power Year
311 CDI RWD (907.633, 907.635, 907.631, 907.637) 2143 CCM 114 HP 02/2018 - 12/2021
314 CDI RWD (907.631, 907.633, 907.635, 907.637) 2143 CCM 143 HP 02/2018 - 12/2021
316 CDI RWD (907.631, 907.633, 907.635, 907.637) 2143 CCM 163 HP 02/2018 - 12/2021
319 CDI RWD (907.633, 907.635, 907.637) 2987 CCM 190 HP 02/2018 - 12/2021
319 CDI All-wheel Drive (907.633, 907.635, 907.637) 2987 CCM 190 HP 01/2019 - 12/2021
311 CDI RWD (907.631, 907.633, 907.635, 907.637) 1950 CCM 114 HP From 06/2020
315 CDI RWD (907.631, 907.633, 907.635, 907.637) 1950 CCM 150 HP From 06/2020
317 CDI RWD (907.631, 907.633, 907.635, 907.637) 1950 CCM 170 HP From 06/2020
SPRINTER 4-t Tourer Bus (B907)
Description Cylinder Capacity Horse Power Year
414 CDI (907.741, 907.743, 907.745) 2143 CCM 143 HP 09/2019 - 12/2021
411 CDI (907.741, 907.743, 907.745) 2143 CCM 114 HP 02/2018 - 12/2021
419 CDI (907.743, 907.745) 2987 CCM 190 HP 02/2018 - 12/2021
417 CDI (907.743, 907.745, 907.843, 907.741) 1950 CCM 170 HP From 01/2022
SPRINTER 4-t Van (B907, B910)
Description Cylinder Capacity Horse Power Year
414 CDI RWD (907.643, 907.645, 907.647) 2143 CCM 143 HP 02/2018 - 12/2021
416 CDI RWD (907.643, 907.645, 907.647) 2143 CCM 163 HP 02/2018 - 12/2021
419 CDI RWD (907.643, 907.645, 907.647) 2987 CCM 190 HP 02/2018 - 12/2021
411 CDI RWD (907.643, 907.645) 2143 CCM 114 HP 02/2018 - 12/2021
417 CDI RWD (907.641, 907.643, 907.645, 907.647) 1950 CCM 170 HP From 06/2020
411 CDI RWD (907.641, 907.643, 907.645, 907.647) 1950 CCM 114 HP From 10/2021
415 CDI RWD (907.641, 907.643, 907.645, 907.647) 1950 CCM 150 HP From 10/2021
419 CDI RWD (907.643, 907.645, 907.647) 1950 CCM 190 HP From 10/2021
SPRINTER 5-t Van (B907)
Description Cylinder Capacity Horse Power Year
511 CDI (907.653, 907.655, 907.657) 2143 CCM 114 HP 02/2018 - 12/2021
514 CDI (907.653, 907.655, 907.657) 2143 CCM 143 HP 02/2018 - 12/2021
516 CDI (907.653, 907.655, 907.657) 2143 CCM 163 HP 02/2018 - 12/2021
519 CDI (907.653, 907.655, 907.657) 2987 CCM 190 HP 02/2018 - 12/2021
519 CDI All-wheel Drive (907.653, 907.655, 907.657) 2987 CCM 190 HP 01/2019 - 12/2021
515 CDI (907.653, 907.655, 907.657) 1950 CCM 150 HP From 10/2021
517 CDI (907.653, 907.655, 907.657) 1950 CCM 170 HP From 06/2020
519 CDI (907.653, 907.655, 907.657) 1950 CCM 190 HP From 10/2021

The Delphi TA3435 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1.5 thread size, front axle right fitting position, 197 mm length, and 46 mm width. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16 x 1.5
Cone Size [mm] : 16
Paired article number : TA3434
Fitting Position : Front Axle Right
Length [mm] : 197
Width [mm] : 46
Height [mm] : 92
  • Vendor DELPHI
  • SKU TA3435
  • Barcode 5012759246948
  • MERCEDES-BENZ : 9074606400 A9074606400
  • APEC : AST6800
  • BORG & BECK : BTR6153
  • BOSCH : 0 986 140 744
  • FEBI BILSTEIN : 180989
  • FIRST LINE : FTR6153
  • LEMFÖRDER : 43025 01
  • MEYLE : 016 020 0068/HD
  • MONROE : L23G03
  • NAPA : NST6800
  • Schaeffler FAG : 840 1604 10
