DELPHI

Delphi TA3471 Tie Rod End

SKU: TA3471

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£21.91 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA

CX-5 (KF)

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	165 HP	From 05/2017
2.0 AWD	1998 CCM	160 HP	From 05/2017
2.5 AWD	2488 CCM	194 HP	From 05/2017
2.2 D (KF6W)	2191 CCM	150 HP	05/2017 - 12/2024
2.2 D AWD (KFGW)	2191 CCM	150 HP	05/2017 - 12/2024
2.2 D AWD (KF4W2)	2191 CCM	175 HP	05/2017 - 02/2018
2.2 D AWD	2191 CCM	188 HP	From 03/2018
2.2 D AWD	2191 CCM	184 HP	From 06/2018
2.0 AWD	1998 CCM	165 HP	From 06/2018
2.0	1998 CCM	150 HP	From 03/2018
2.0 AWD	1998 CCM	150 HP	From 03/2018
2.5	2488 CCM	194 HP	03/2019 - 11/2022
2.0 SKYACTIV-G	1998 CCM	163 HP	From 03/2018
2.0 SKYACTIV-G AWD	1998 CCM	163 HP	From 03/2018
2.2 SKYACTIV-D	2191 CCM	184 HP	From 02/2021

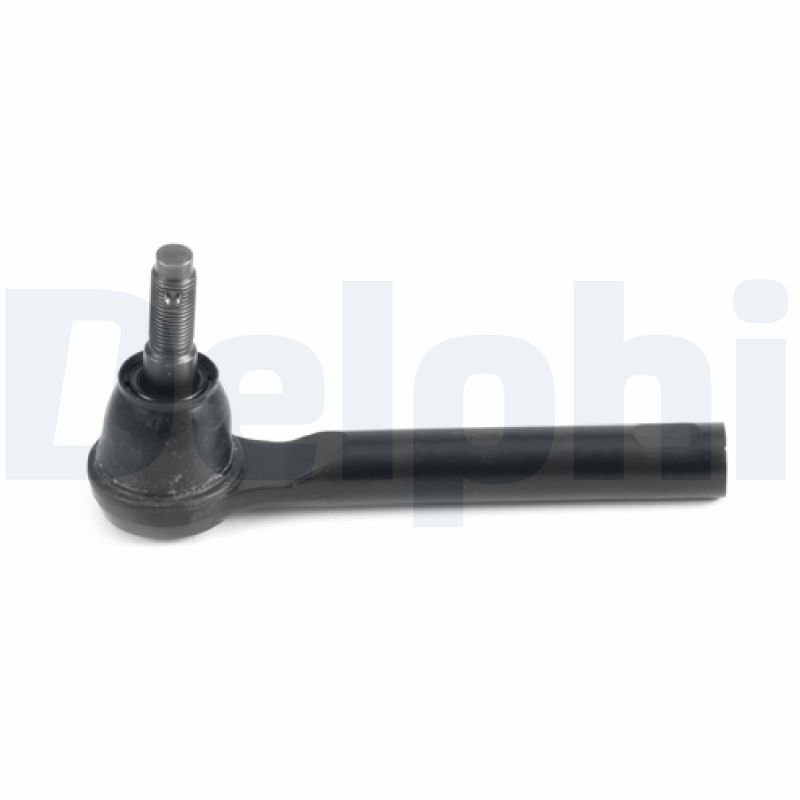

The Delphi TA3471 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1.5 thread size, with right-hand thread thread type, front axle fitting position, and 167 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End

Thread Size : M14 x 1.5

Thread Type : with right-hand thread

Cone Size [mm] : 13.7

Fitting Position : Front Axle

Length [mm] : 167

Width [mm] : 39

Height [mm] : 87

Delphi TA3471 Tie Rod End
