Delphi TA3476 Tie Rod End - 1
Delphi TA3476 Tie Rod End video
Delphi TA3476 Tie Rod End - 1
Delphi TA3476 Tie Rod End video
DELPHI

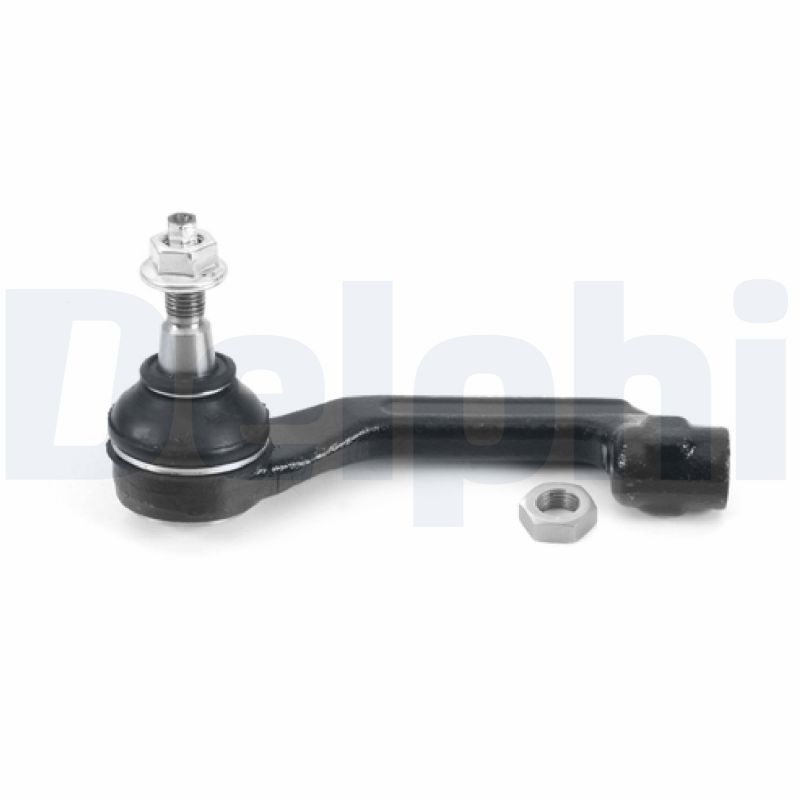

Delphi TA3476 Tie Rod End

SKU: TA3476
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£25.59 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

OPEL
CORSA F (P2JO)
Description Cylinder Capacity Horse Power Year
Corsa-e (68) 136 HP From 07/2019
1.2 (68) 1199 CCM 75 HP From 07/2019
1.2 (68) 1199 CCM 101 HP From 07/2019
1.2 (68) 1199 CCM 131 HP From 07/2019
1.5 (68) 1499 CCM 102 HP From 07/2019
Corsa-e 156 HP From 03/2023
1.2 MHEV 1199 CCM 101 HP From 08/2023
CORSA F Hatchback Van
Description Cylinder Capacity Horse Power Year
1.2 (68) 1199 CCM 75 HP From 07/2019
1.5 (68) 1499 CCM 102 HP From 07/2019
PEUGEOT
208 II (UB_, UP_, UW_, UJ_)
Description Cylinder Capacity Horse Power Year
1.2 PureTech 100 1199 CCM 101 HP From 06/2019
1.2 PureTech 130 1199 CCM 131 HP From 06/2019
1.5 BlueHDI 100 1499 CCM 102 HP From 06/2019
e-208 136 HP From 06/2019
1.2 PureTech 75 1199 CCM 75 HP From 06/2019
1.5 BlueHDI 130 1499 CCM 131 HP From 09/2019
1.6 HDI 90 (UB9HPA) 1560 CCM 92 HP From 10/2019
e-208 156 HP From 01/2023
1.2 Hybrid 100 1199 CCM 101 HP From 08/2023
1.2 Hybrid 136 (UPHPYK) 1199 CCM 136 HP From 09/2023
Hybrid 110 1199 CCM 110 HP From 03/2025
1.2 Hybrid 145 1199 CCM 145 HP From 03/2025
e-208 GTi 280 HP From 10/2025
VAUXHALL
CORSA Mk V (F)
Description Cylinder Capacity Horse Power Year
CORSA-e 136 HP From 07/2019
1.2 1199 CCM 75 HP From 07/2019
1.2 1199 CCM 101 HP From 07/2019
1.5 1499 CCM 102 HP From 07/2019
1.2 1199 CCM 131 HP From 11/2020
CORSA-e 156 HP From 03/2023
1.2 Turbo Hybrid (68) 1199 CCM 136 HP From 01/2024
1.2 Turbo Hybrid 1199 CCM 101 HP From 10/2024
1.2 Turbo Hybrid (68) 1199 CCM 110 HP From 06/2025
1.2 Turbo Hybrid (68) 1199 CCM 145 HP From 06/2025

The Delphi TA3476 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 148 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14 x 1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12
Paired article number : TA3477
Fitting Position : Front Axle Right
Length [mm] : 148
Width [mm] : 50
Height [mm] : 78
  • Vendor DELPHI
  • SKU TA3476
  • Barcode 5012759654897
  • OPEL : 1669648480
  • PEUGEOT : 1669648480
  • VAUXHALL : 1669648480
  • APEC : AST6707
  • BORG & BECK : BTR6189
  • BOSCH : 0 986 140 754
  • FIRST LINE : FTR6189
  • LEMFÖRDER : 44972 01
  • MEYLE : 11-16 020 0046/HD
  • MONROE : L28G00
  • NAPA : NST6707
  • NAPA : NST6755
  • Schaeffler FAG : 840 1672 10
  • TRW : JTE2305
