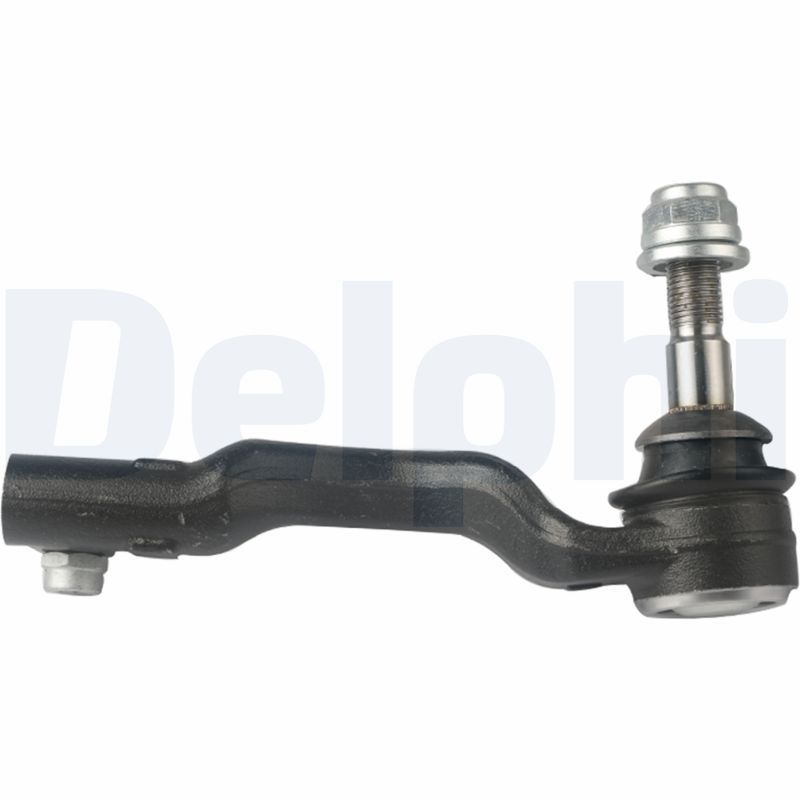

Delphi TA3503 Tie Rod End

SKU: TA3503
Your selected vehicle
Out of stock
Out of Stock
£50.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
X5 (G05, F95)
Description Cylinder Capacity Horse Power Year
xDrive 40 i 2998 CCM 340 HP 08/2018 - 03/2023
xDrive 50 i 4395 CCM 462 HP 08/2018 - 07/2019
xDrive 30 d 2993 CCM 265 HP 08/2018 - 07/2020
xDrive M 50 d 2993 CCM 400 HP 08/2018 - 03/2023
xDrive 30 d 2993 CCM 249 HP 08/2018 - 07/2020
xDrive 45 e Plug-in Hybrid 2998 CCM 394 HP 06/2019 - 03/2023
xDrive 25 d 1995 CCM 231 HP 08/2019 - 03/2023
xDrive M50 i 4395 CCM 530 HP 08/2019 - 03/2023
xDrive 25 d 1995 CCM 211 HP 08/2019 - 03/2023
M 4395 CCM 600 HP 12/2019 - 03/2023
M Competition 4395 CCM 625 HP From 12/2019
xDrive 45 e Plug-in-Hybrid 2998 CCM 320 HP 06/2019 - 03/2023
xDrive 40 d Mild-Hybrid 2993 CCM 340 HP From 05/2020
xDrive 30 d Mild-Hybrid 2993 CCM 249 HP From 08/2020
xDrive 30 d Mild-Hybrid 2993 CCM 286 HP From 08/2020
X5 Van (G05)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 265 HP 11/2019 - 03/2023
xDrive 40 i 2998 CCM 340 HP 11/2019 - 03/2023
X6 (G06, F96)
Description Cylinder Capacity Horse Power Year
xDrive 40 i 2998 CCM 340 HP 08/2019 - 03/2023
xDrive M50 i 4395 CCM 530 HP 08/2019 - 03/2023
xDrive 30 d 2993 CCM 265 HP 08/2019 - 07/2020
xDrive M 50 d 2993 CCM 400 HP 08/2019 - 03/2023
xDrive 30 d 2993 CCM 249 HP 08/2019 - 07/2020
xDrive 30 d 2993 CCM 211 HP 08/2019 - 07/2020
M 4395 CCM 600 HP 12/2019 - 03/2023
M Competition 4395 CCM 625 HP 12/2019 - 03/2023
xDrive 40 d Mild-Hybrid 2993 CCM 340 HP 05/2020 - 03/2023
xDrive 30 d Mild-Hybrid 2993 CCM 249 HP From 08/2020
xDrive 30 d Mild-Hybrid 2993 CCM 286 HP 08/2020 - 03/2023
xDrive 30 d Mild-Hybrid 2993 CCM 211 HP From 08/2020
xDrive 40 i Mild-Hybrid 2998 CCM 333 HP 12/2020 - 03/2023
X7 (G07)
Description Cylinder Capacity Horse Power Year
xDrive 40 i 2998 CCM 340 HP From 03/2019
xDrive 30 d 2993 CCM 265 HP From 03/2019
xDrive M 50 d 2993 CCM 400 HP From 03/2019
xDrive 30 d 2993 CCM 211 HP 03/2019 - 08/2020
xDrive 30 d 2993 CCM 249 HP From 03/2019
xDrive M 50 i 4395 CCM 530 HP From 07/2019
xDrive 40 d Mild-Hybrid 2993 CCM 340 HP From 08/2020
xDrive 40 d Mild-Hybrid 2993 CCM 211 HP From 08/2020
xDrive 40 i Mild-Hybrid 2998 CCM 333 HP From 12/2020

The Delphi TA3503 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 203 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16 x 1.5
Thread Type : with right-hand thread
Cone Size [mm] : 16.2
Paired article number : TA3502
Fitting Position : Front Axle Right
Length [mm] : 203
Width [mm] : 51
Height [mm] : 106
  • Vendor DELPHI
  • SKU TA3503
  • Barcode 5012759655078
  • BMW : 32106887406
  • BORG & BECK : BTR6196
  • FEBI BILSTEIN : 183724
  • FIRST LINE : FTR6196
  • MEYLE : 316 020 0050/HD
  • TRW : JTE2288
