DELPHI

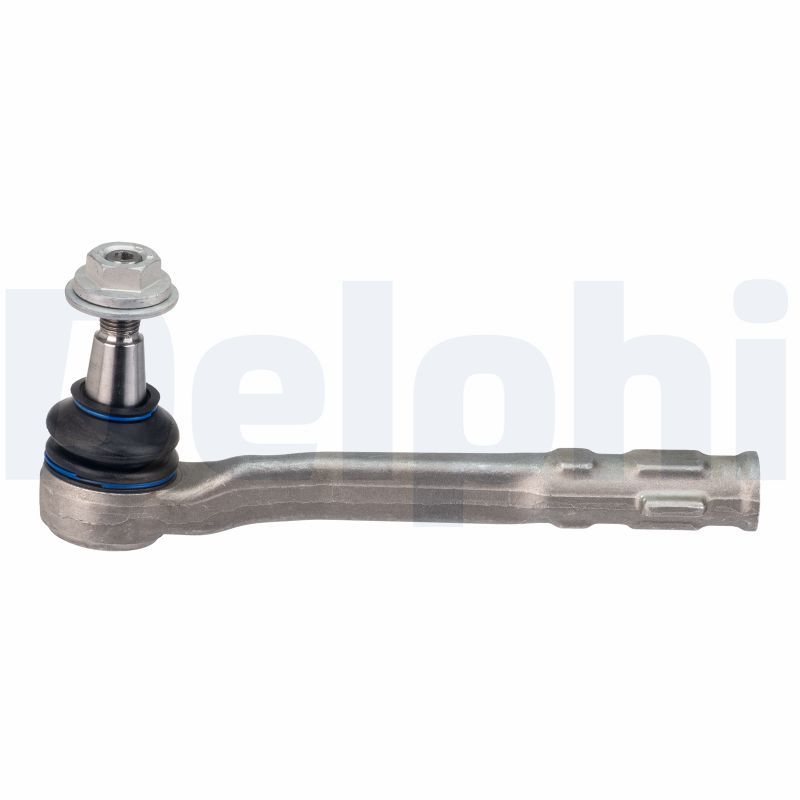

Delphi TA3511 Tie Rod End

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: TA3511

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£61.14 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

PORSCHE

CAYENNE (9YA)

Description	Cylinder Capacity	Horse Power	Year
3.0 AWD (9YAAA1)	2995 CCM	340 HP	05/2017 - 05/2023
2.9 S AWD (9YABB1)	2894 CCM	441 HP	05/2017 - 05/2023
4.0 Turbo AWD (9YACF1)	3996 CCM	550 HP	05/2017 - 05/2023
3.0 E-Hybrid AWD (9YAAE1)	2995 CCM	462 HP	05/2017 - 05/2023
4.0 GTS (9YABG1)	3996 CCM	460 HP	05/2017 - 05/2023
4.0 Turbo S E-Hybrid AWD (9YACH1)	3996 CCM	680 HP	05/2017 - 05/2023
3.0 AWD (9YAAI1)	2995 CCM	354 HP	From 04/2023
4.0 S AWD (9YABJ1)	3996 CCM	475 HP	From 06/2023
3.0 E-Hybrid AWD (9YAAV1)	2995 CCM	470 HP	From 06/2023
Turbo E-Hybrid AWD (9YACT1)	3996 CCM	740 HP	From 08/2023
S E-Hybrid AWD (9YABN1)	2995 CCM	519 HP	From 10/2023
4.0 GTS (9YABS1)	3996 CCM	500 HP	From 05/2024

CAYENNE Coupe (9YB)

Description	Cylinder Capacity	Horse Power	Year
3.0 AWD (9YBAA1)	2995 CCM	340 HP	From 01/2019
2.9 S AWD (9YBBB1)	2894 CCM	440 HP	From 01/2019
4.0 Turbo AWD (9YBCF1)	3996 CCM	550 HP	From 01/2019
4.0 Turbo S E-Hybrid AWD (9YBCH1)	3996 CCM	680 HP	01/2019 - 05/2023
3.0 E-Hybrid AWD (9YBDE1)	2995 CCM	461 HP	01/2019 - 05/2023
4.0 GTS AWD (9YBBG1)	3996 CCM	460 HP	05/2017 - 05/2023
4.0 Turbo GT AWD (9YBCQ1)	3996 CCM	640 HP	10/2020 - 05/2023
4.0 S AWD (9YBBJ1)	3996 CCM	475 HP	From 06/2023
3.0 E-Hybrid AWD (9YBAV1)	2995 CCM	470 HP	From 06/2023
Turbo E-Hybrid AWD (9YBCT1, 9YBCZ1)	3996 CCM	740 HP	From 08/2023
S E-Hybrid AWD (9YBBN1)	2995 CCM	519 HP	From 10/2023
4.0 GTS	3996 CCM	500 HP	From 05/2024

The Delphi TA3511 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1.5 thread size, with right-hand thread thread type, front axle fitting position, and 246 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End

Thread Size : M16 x 1.5

Thread Type : with right-hand thread

Cone Size [mm] : 17

Fitting Position : Front Axle

Length [mm] : 246

Width [mm] : 48

Height [mm] : 106
