DELPHI

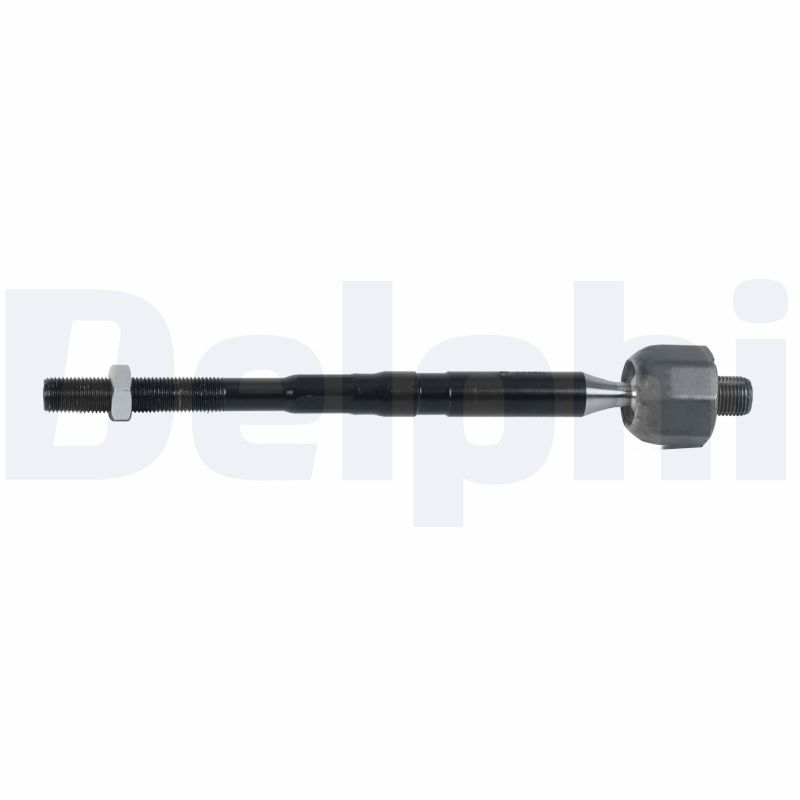

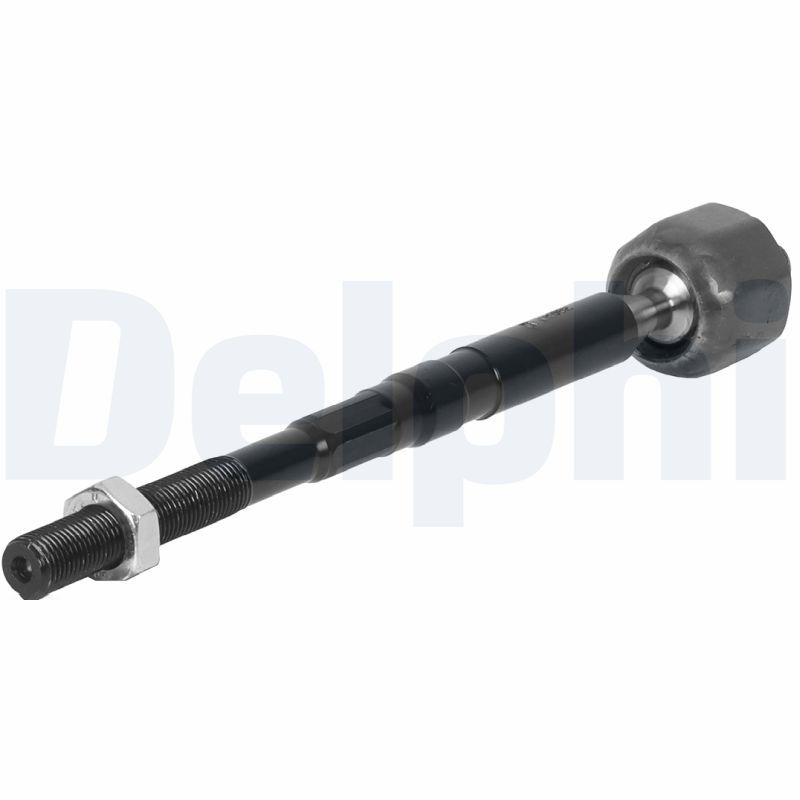

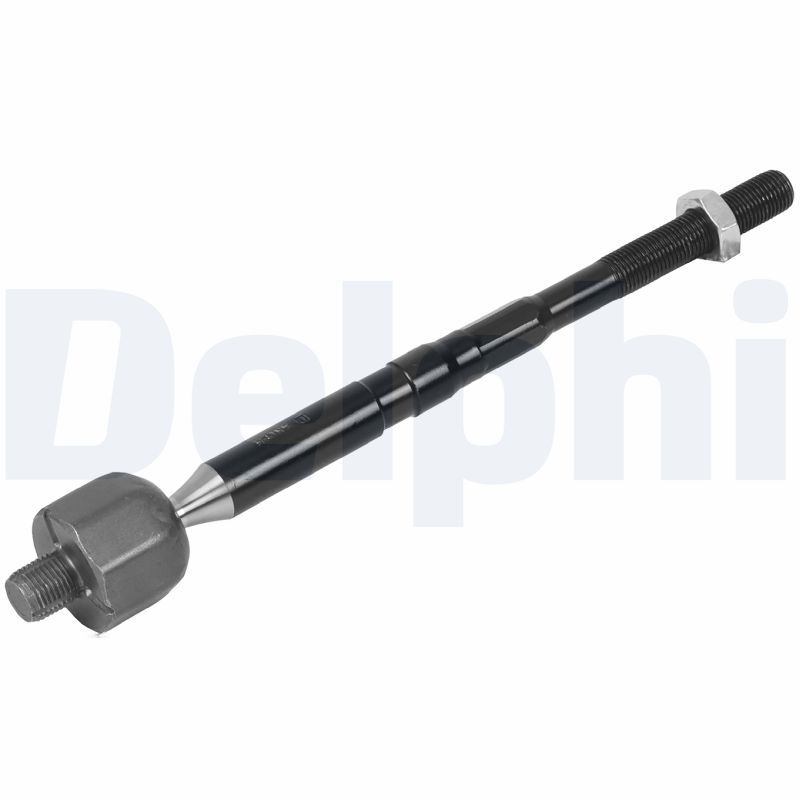

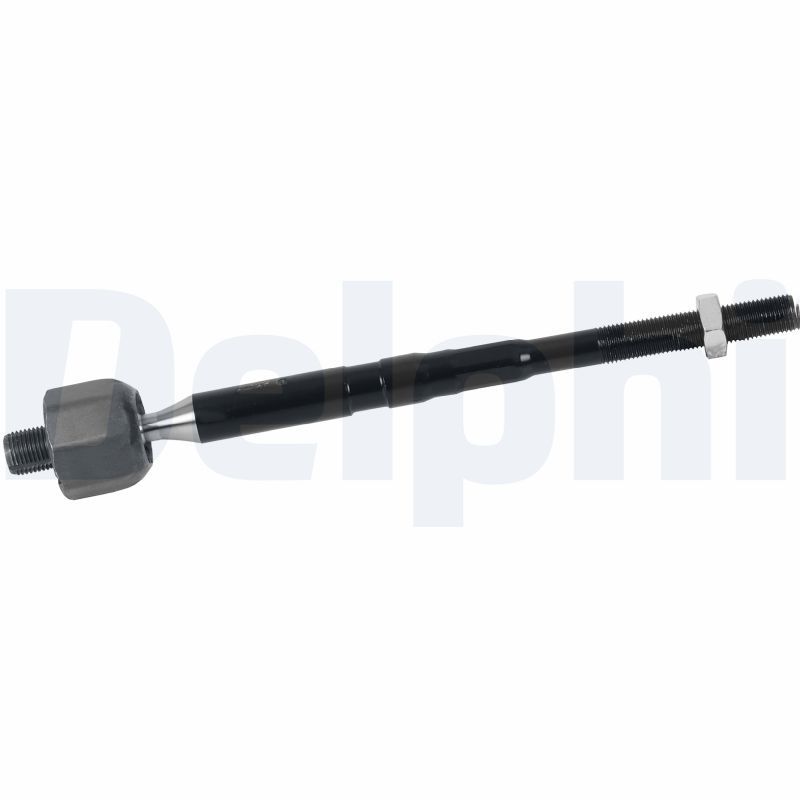

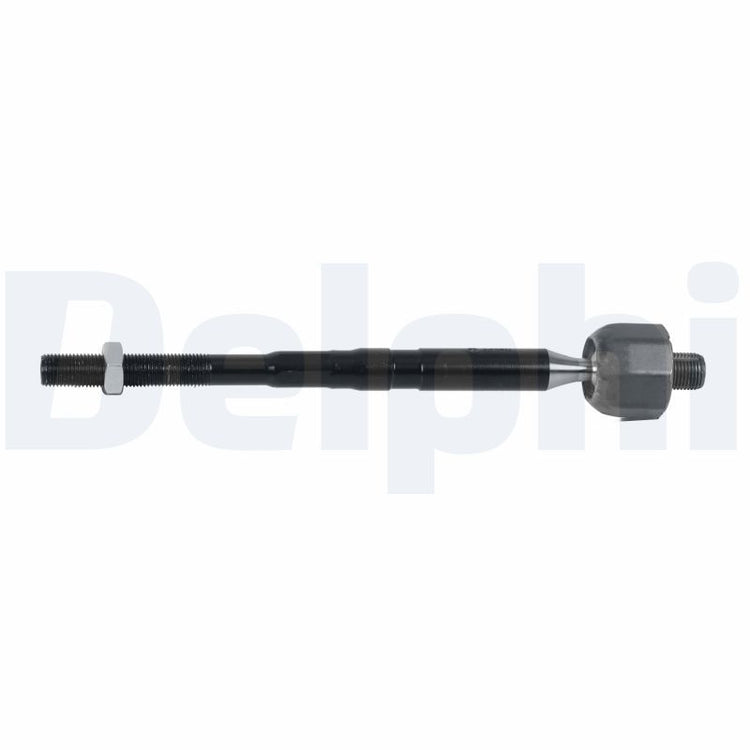

Delphi TA3620 Inner Tie Rod

SKU: TA3620

Your selected vehicle

Out of stock

Out of Stock

£23.27 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA

CX-3 (DK)

Description	Cylinder Capacity	Horse Power	Year
1.5 SKYACTIV-D (DK2WS, DK5FW)	1499 CCM	105 HP	02/2015 - 01/2018
1.5 SKYACTIV-D AWD (DK4WS, DK5AW)	1499 CCM	105 HP	02/2015 - 01/2018
2.0 SKYACTIV-G (DK5W, DK6W)	1998 CCM	120 HP	From 05/2015
2.0 SKYACTIV-G AWD (DK4W7, DKEAW)	1998 CCM	150 HP	From 05/2015
1.8 SKYACTIV-D AWD (DK2WS)	1759 CCM	116 HP	From 02/2018
1.8 SKYACTIV-D (DK4WS)	1759 CCM	116 HP	From 02/2018
2.0 SKYACTIV-G	1998 CCM	121 HP	From 02/2018
2.0 SKYACTIV-G (DK2W7, DKEFW)	1998 CCM	150 HP	From 05/2018

The Delphi TA3620 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1,5 thread size 1, M14 x 1.5 thread size 2, front axle fitting position, and 279.5 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod

Thread Size 1 : M16 x 1,5

Thread Size 2 : M14 x 1.5

Fitting Position : Front Axle

Length [mm] : 279.5

Width [mm] : 40

Height [mm] : 40

Axle Joint Length [mm] : 263

Delphi TA3620 Inner Tie Rod
