DELPHI

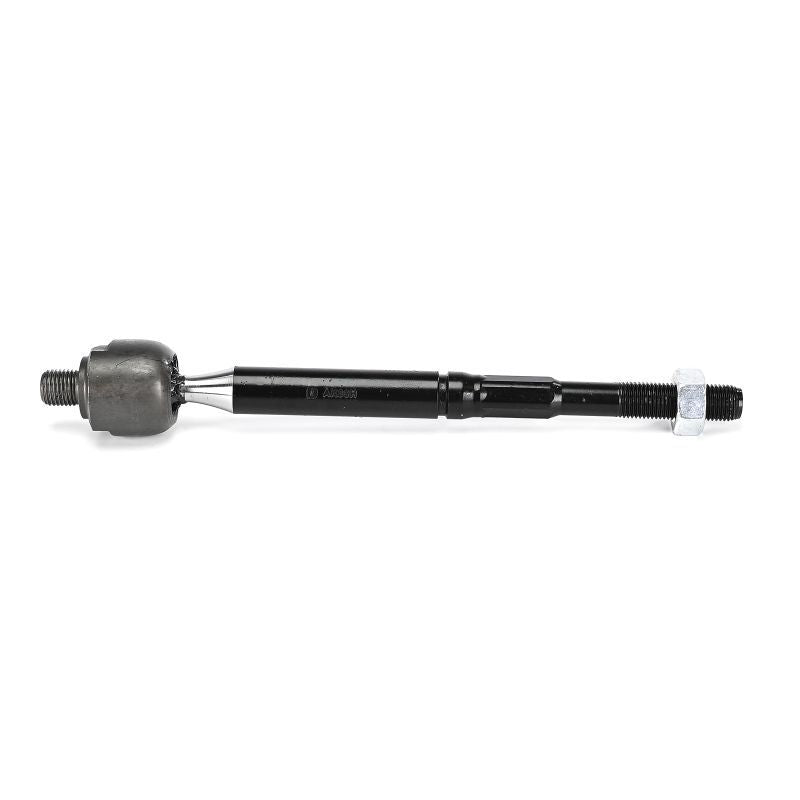

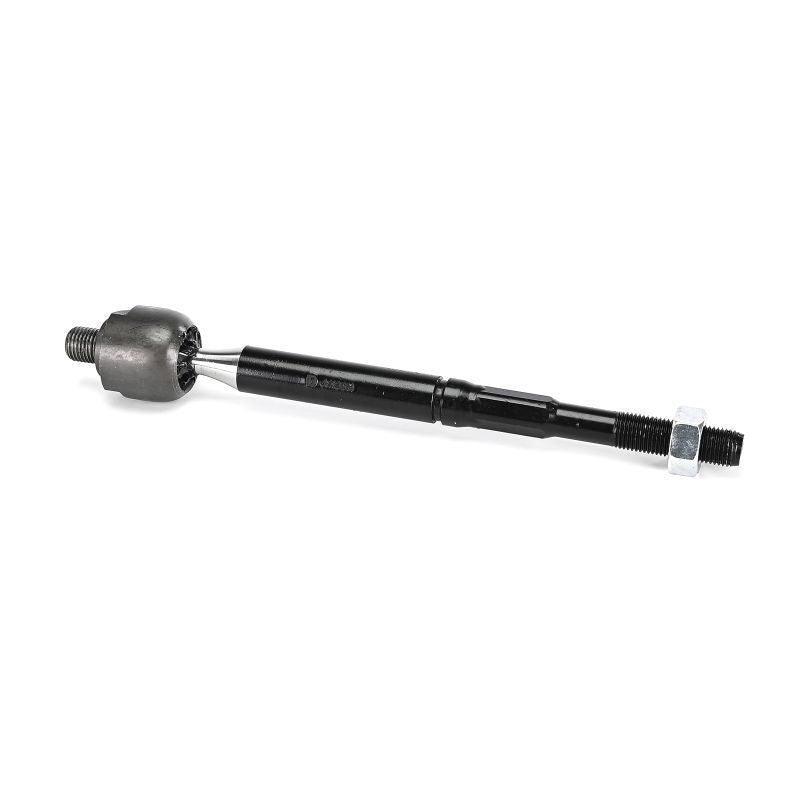

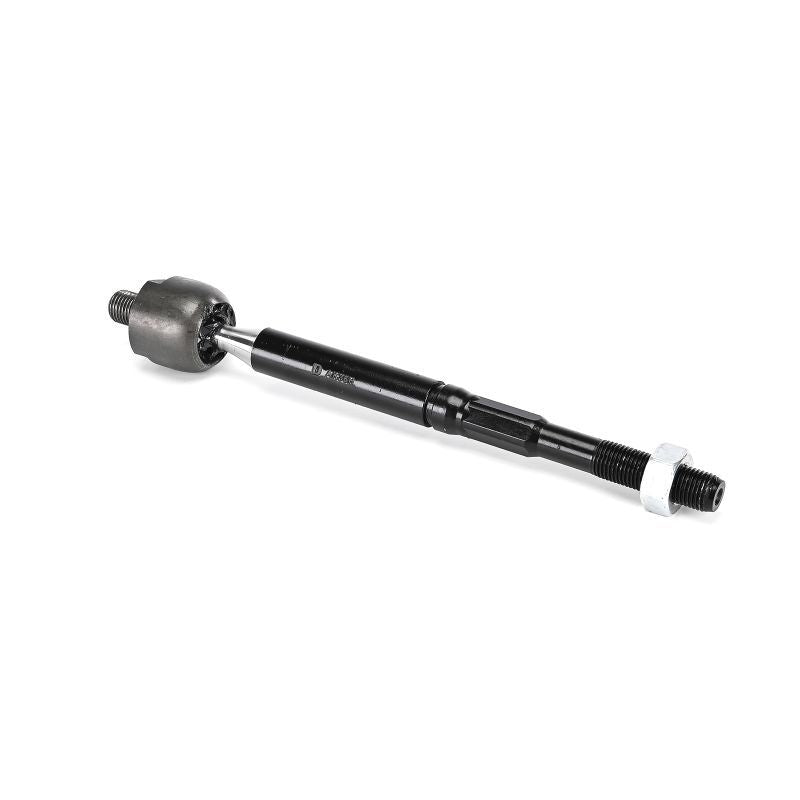

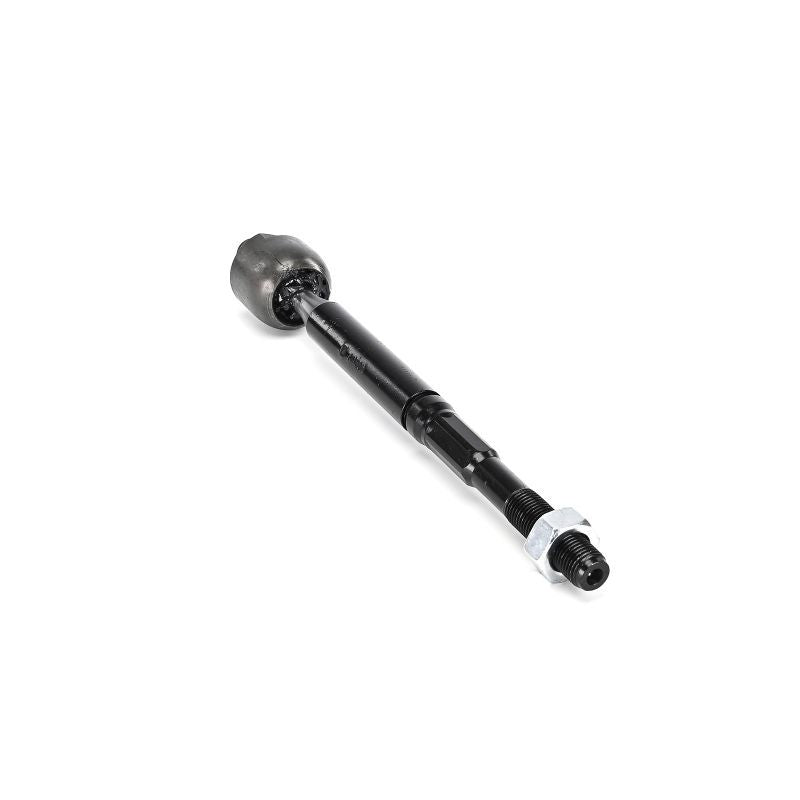

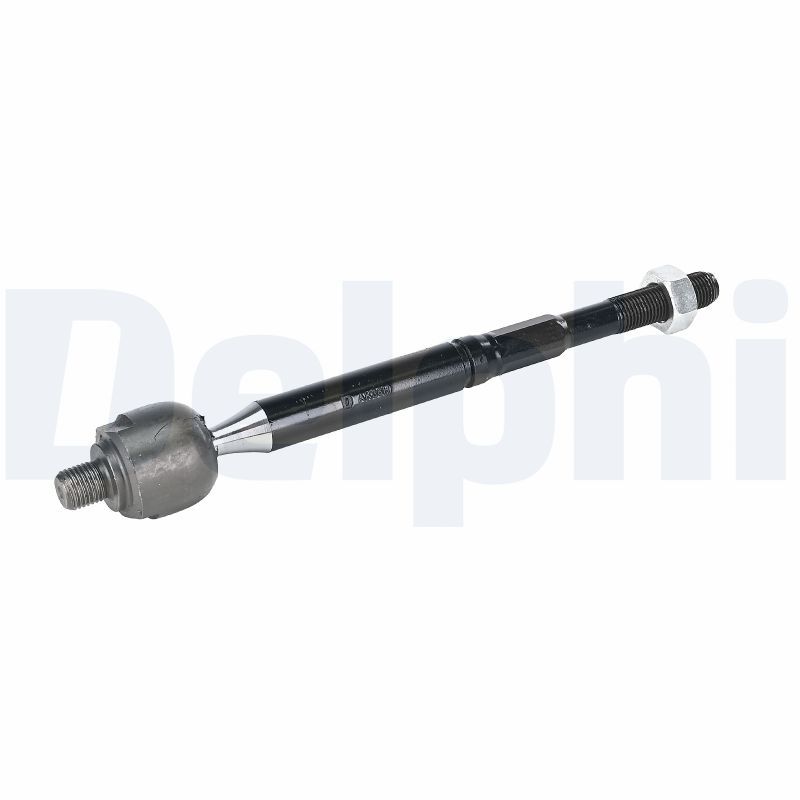

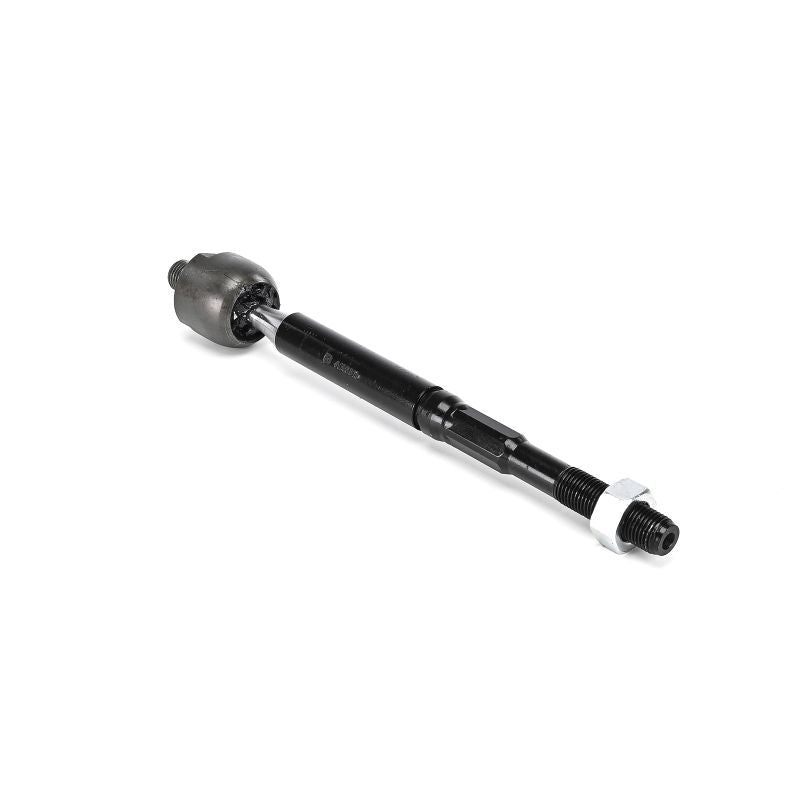

Delphi TA3651 Inner Tie Rod

SKU: TA3651
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£21.99 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HONDA
JAZZ V (GR_, GS_)
Description Cylinder Capacity Horse Power Year
1.5 eHEV (GR3, GR6) 1498 CCM 109 HP From 02/2020
1.5 eHEV (GR3, GR6) 1498 CCM 122 HP From 03/2023

The Delphi TA3651 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,5 thread size 1, M14 x 1.5 thread size 2, front axle fitting position, and 259 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M14 x 1,5
Thread Size 2 : M14 x 1.5
Fitting Position : Front Axle
Length [mm] : 259
Width [mm] : 36
Height [mm] : 36
Axle Joint Length [mm] : 244
  • Vendor DELPHI
  • SKU TA3651
  • Barcode 5012759616970
  • HONDA : 53410TZAJ01
