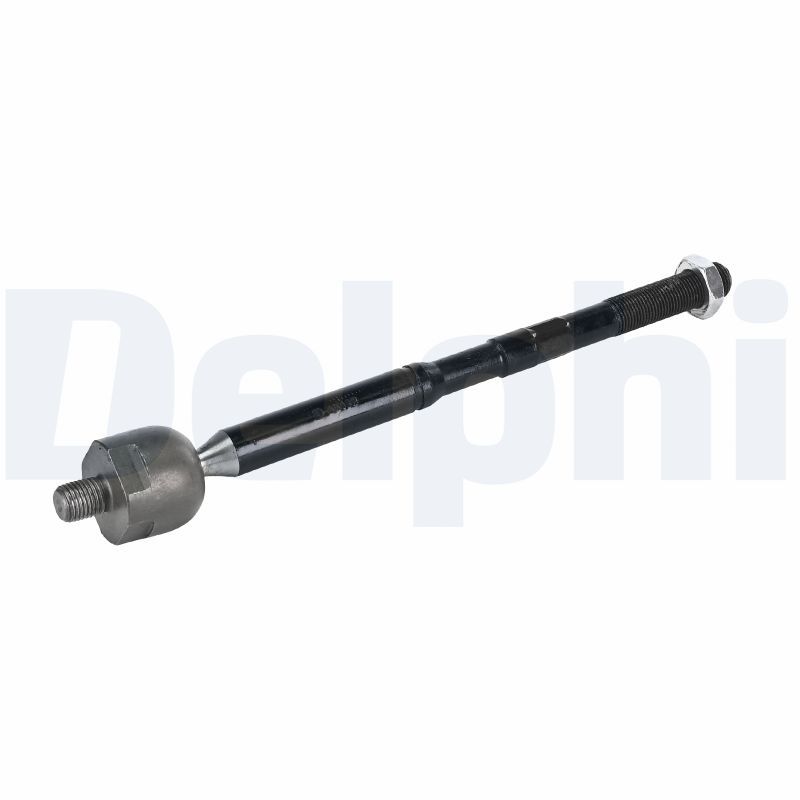

Delphi TA3653 Inner Tie Rod - 1

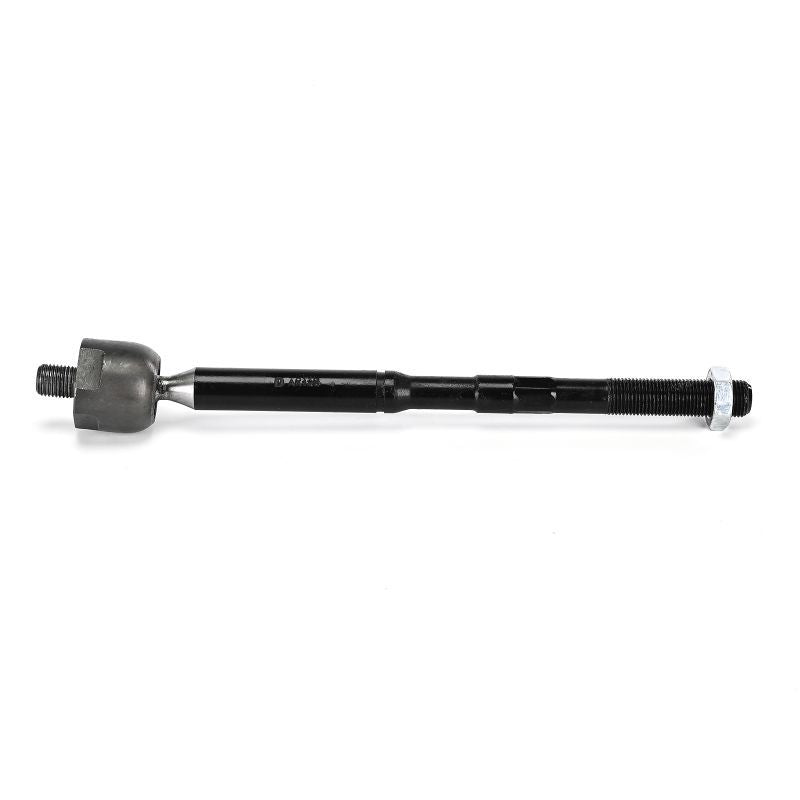

Delphi TA3653 Inner Tie Rod - 2

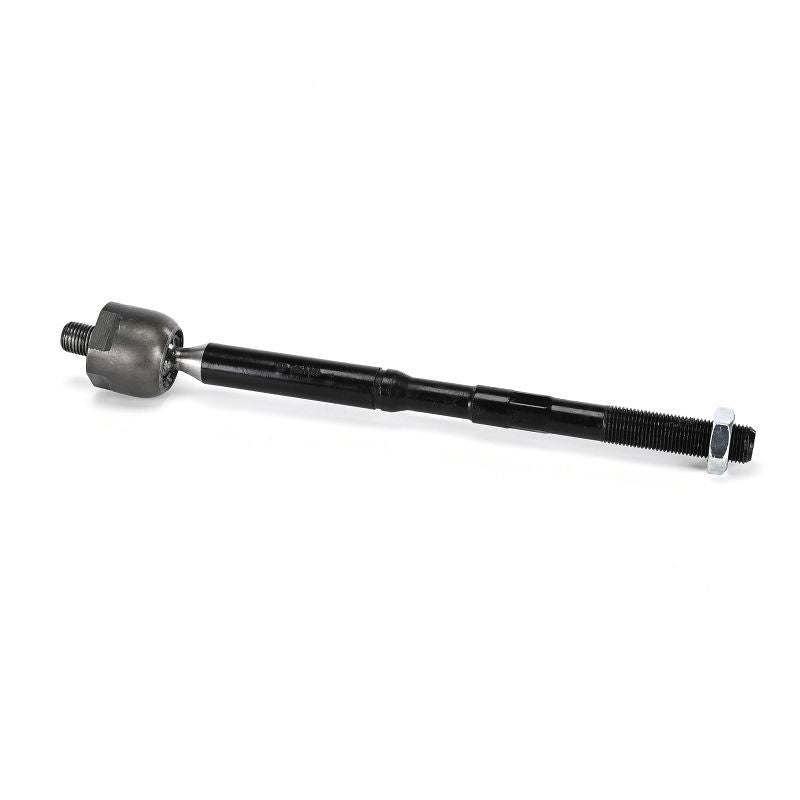

Delphi TA3653 Inner Tie Rod - 3

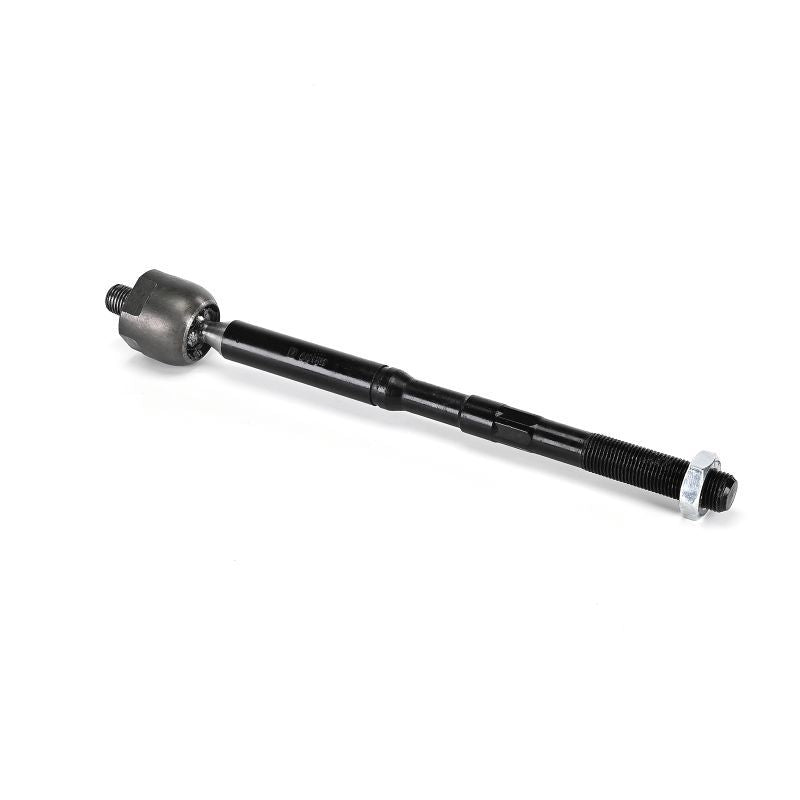

Delphi TA3653 Inner Tie Rod - 4

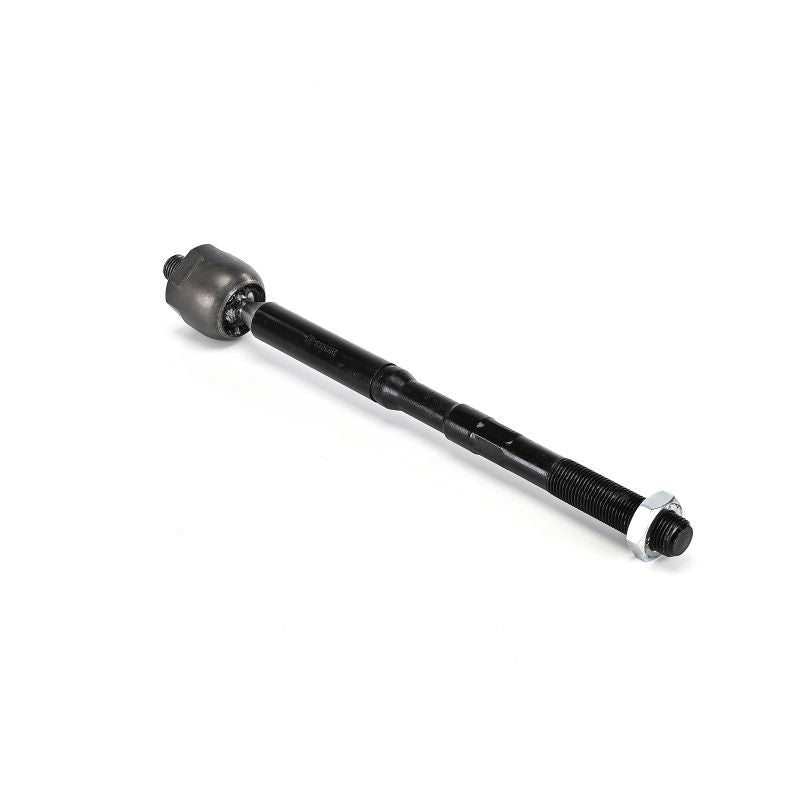

Delphi TA3653 Inner Tie Rod - 5

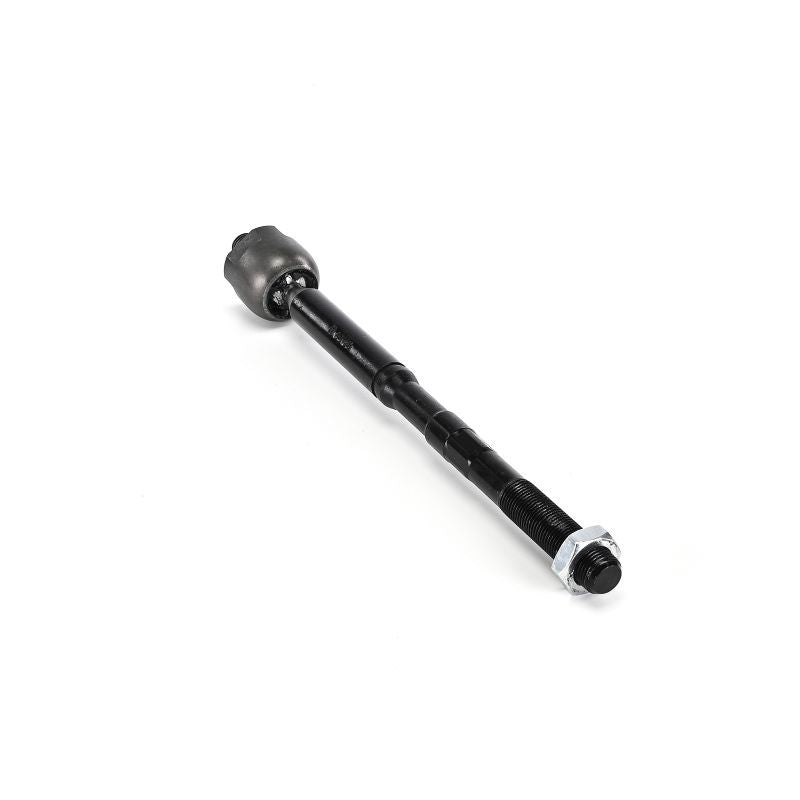

Delphi TA3653 Inner Tie Rod - 6
Delphi TA3653 Inner Tie Rod video
Delphi TA3653 Inner Tie Rod - 1
Delphi TA3653 Inner Tie Rod - 2
Delphi TA3653 Inner Tie Rod - 3
Delphi TA3653 Inner Tie Rod - 4
Delphi TA3653 Inner Tie Rod - 5
Delphi TA3653 Inner Tie Rod - 6
Delphi TA3653 Inner Tie Rod video
DELPHI

Delphi TA3653 Inner Tie Rod

SKU: TA3653
Your selected vehicle
Out of stock
Out of Stock
£23.11 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
C-HR (_X1_)
Description Cylinder Capacity Horse Power Year
1.2 (NGX10_, NGX10R) 1197 CCM 116 HP From 10/2016
1.2 4WD (NGX50_, NGX50R) 1197 CCM 116 HP From 10/2016
1.8 Hybrid (ZYX10_, ZYX11_, ZYX10R, ZYX11R) 1798 CCM 122 HP From 10/2016
1.2 4WD (NGX50) 1197 CCM 131 HP From 10/2016
2.0 Hybrid (MAXH10) 1987 CCM 184 HP From 10/2019
C-HR VAN (_X1_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZYX10, ZYX11) 1798 CCM 122 HP From 10/2016
PRIUS (_W5_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZVW50, ZVW50_, ZVW51_, ZVW50R, ZVW51) 1798 CCM 122 HP 09/2015 - 12/2022
Hybrid (ZVW55_) 1798 CCM 122 HP 09/2015 - 12/2022
PRIUS PHV (_W52_)
Description Cylinder Capacity Horse Power Year
1.8 Plug-in Hybrid (ZVW52) 1798 CCM 122 HP 01/2016 - 12/2022

The Delphi TA3653 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,5 thread size 1, M16 x 1.5 thread size 2, front axle fitting position, and 296 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M14 x 1,5
Thread Size 2 : M16 x 1.5
Fitting Position : Front Axle
Length [mm] : 296
Width [mm] : 38
Height [mm] : 38
Axle Joint Length [mm] : 279
  • Vendor DELPHI
  • SKU TA3653
  • Barcode 5012759616994
  • TOYOTA : 45510F4010
  • BOSCH : 0 986 141 280
  • LEMFÖRDER : 44359 01
  • MONROE : L13H00
  • TRW : JAR1618
