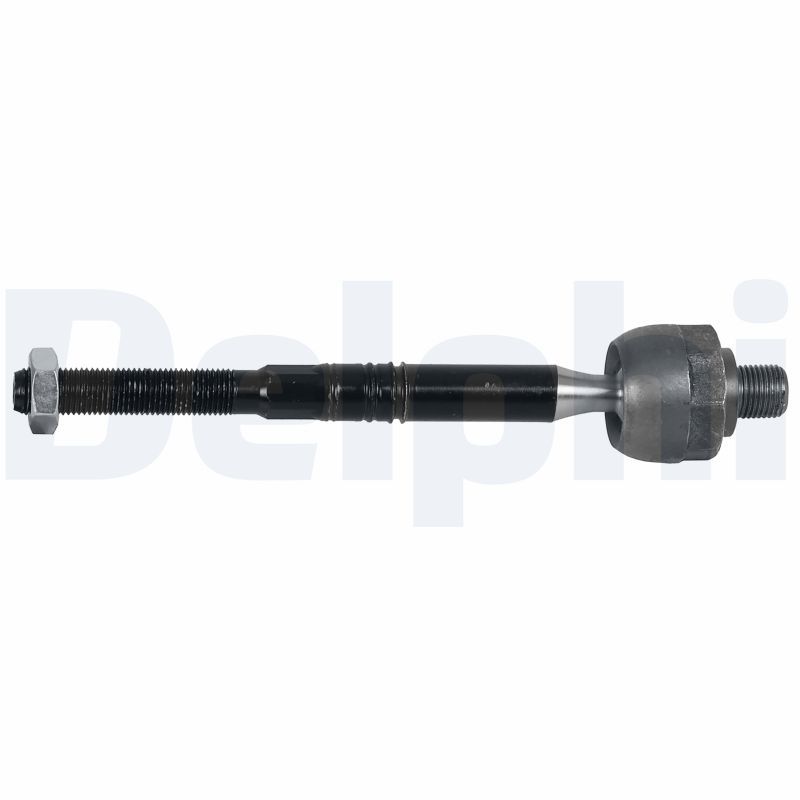

Delphi TA3660 Inner Tie Rod - 1

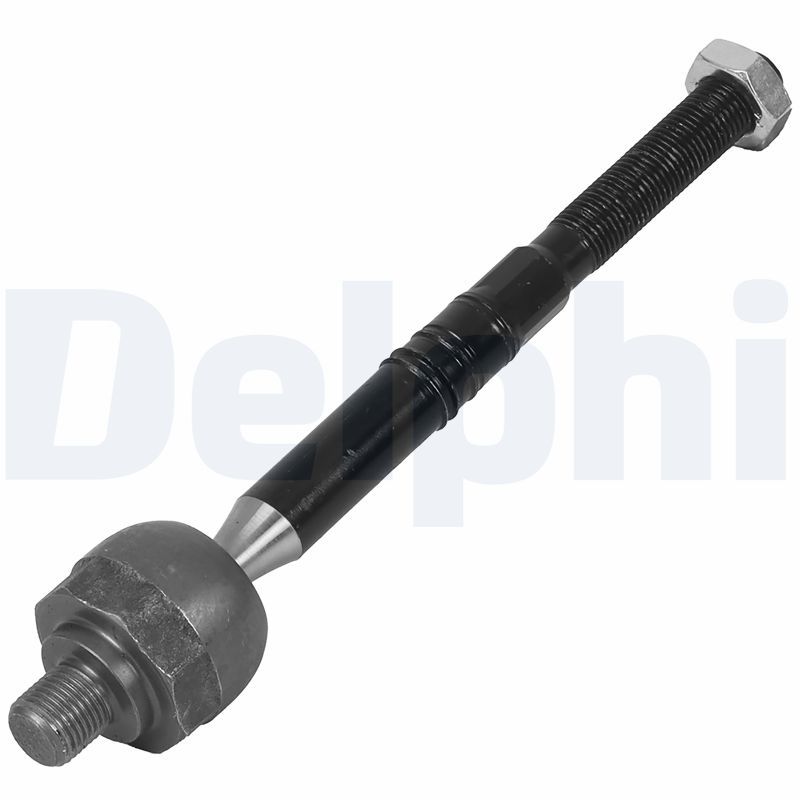

Delphi TA3660 Inner Tie Rod - 2

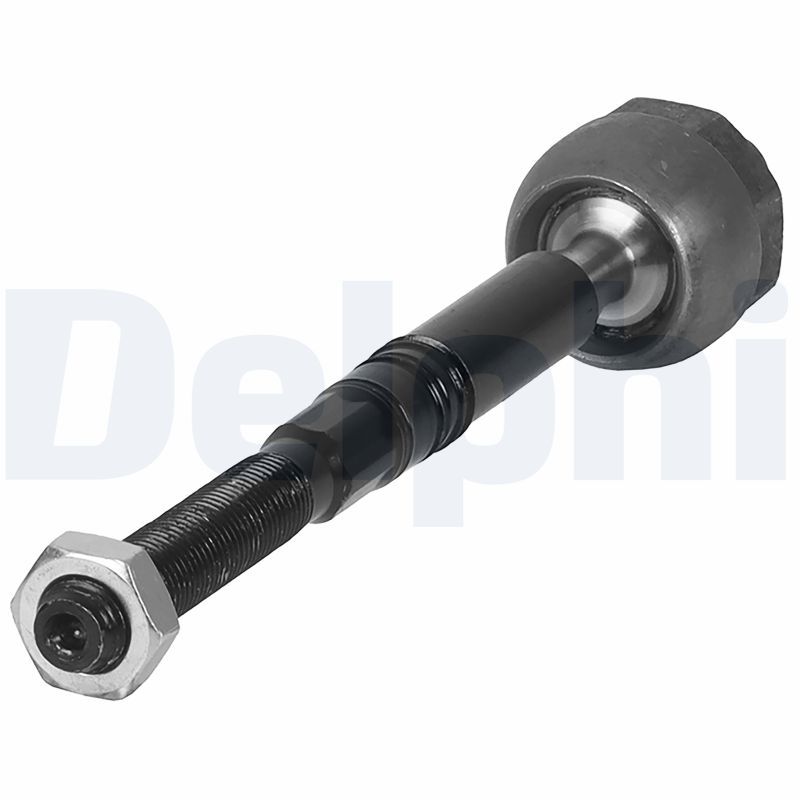

Delphi TA3660 Inner Tie Rod - 3

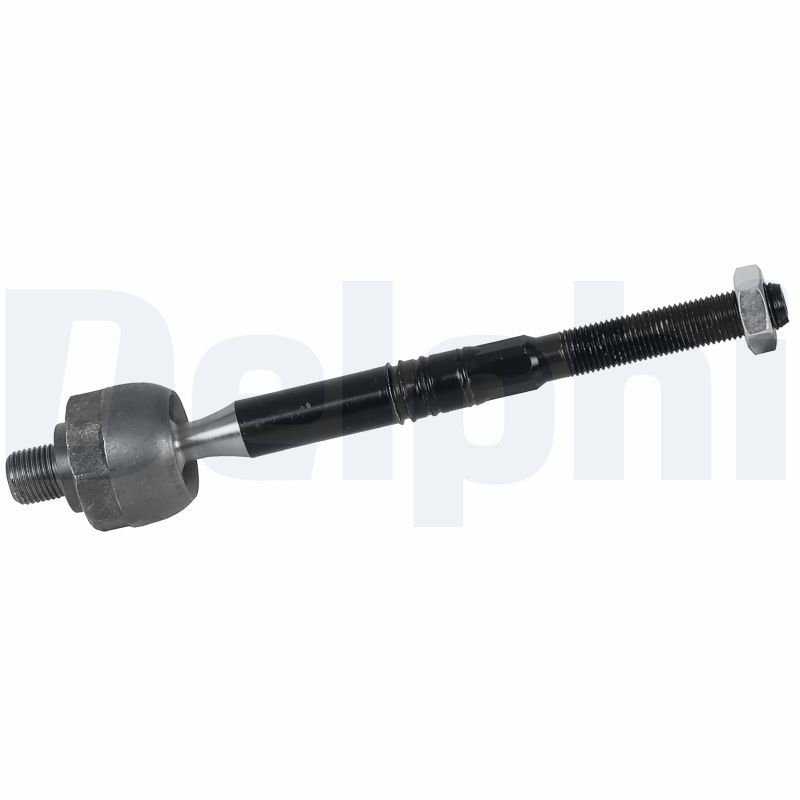

Delphi TA3660 Inner Tie Rod - 4
Delphi TA3660 Inner Tie Rod - 5
Delphi TA3660 Inner Tie Rod - 6
Delphi TA3660 Inner Tie Rod video
Delphi TA3660 Inner Tie Rod - 1
Delphi TA3660 Inner Tie Rod - 2
Delphi TA3660 Inner Tie Rod - 3
Delphi TA3660 Inner Tie Rod - 4
Delphi TA3660 Inner Tie Rod - 5
Delphi TA3660 Inner Tie Rod - 6
Delphi TA3660 Inner Tie Rod video
DELPHI

Delphi TA3660 Inner Tie Rod

SKU: TA3660
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£22.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JAGUAR
XE (X760)
Description Cylinder Capacity Horse Power Year
2.0 D 1999 CCM 163 HP From 03/2015
2.0 D 1999 CCM 180 HP From 03/2015
2.0 1999 CCM 200 HP From 03/2015
2.0 1999 CCM 241 HP From 03/2015
3.0 S 2995 CCM 340 HP From 03/2015
2.0 D AWD 1999 CCM 180 HP From 10/2015
2.0 D AWD 1999 CCM 241 HP From 02/2017
2.0 1997 CCM 250 HP From 02/2017
2.0 AWD 1997 CCM 250 HP From 02/2017
3.0 S 2995 CCM 381 HP From 02/2017
2.0 AWD 1997 CCM 300 HP From 06/2017
5.0 SVO PROJECT 8 5000 CCM 600 HP From 03/2018
2.0 1997 CCM 300 HP From 06/2017
2.0 1997 CCM 200 HP From 02/2017
2.0 D200 MHEV 1997 CCM 204 HP From 11/2020
XF II (X260)
Description Cylinder Capacity Horse Power Year
3.0 2995 CCM 340 HP From 05/2015
3.0 2995 CCM 380 HP From 05/2015
2.0 1999 CCM 241 HP From 05/2015
3.0 D 2993 CCM 300 HP From 05/2015
2.0 D 1999 CCM 163 HP From 05/2015
2.0 D 1999 CCM 180 HP From 05/2015
3.0 AWD 2995 CCM 340 HP From 07/2015
3.0 AWD 2995 CCM 380 HP From 07/2015
2.0 D AWD 1999 CCM 180 HP From 03/2016
2.0 D 1999 CCM 241 HP From 03/2017
2.0 D AWD 1999 CCM 241 HP From 03/2017
2.0 1997 CCM 200 HP From 03/2017
2.0 1997 CCM 250 HP From 03/2017
2.0 AWD 1997 CCM 250 HP From 03/2017
2.0 AWD 1997 CCM 300 HP From 09/2017
XF SPORTBRAKE (X260)
Description Cylinder Capacity Horse Power Year
2.0 D 1999 CCM 163 HP From 07/2017
2.0 D 1999 CCM 180 HP From 07/2017
2.0 D AWD 1999 CCM 180 HP From 07/2017
2.0 D AWD 1999 CCM 241 HP From 07/2017
3.0 D 2993 CCM 300 HP From 07/2017
2.0 1997 CCM 250 HP From 07/2017
3.0 AWD 2995 CCM 380 HP From 07/2017
3.0 2995 CCM 380 HP From 07/2017
2.0 1997 CCM 200 HP From 07/2017
2.0 AWD 1997 CCM 300 HP From 08/2018
2.0 D200 MHEV 1997 CCM 204 HP From 11/2020
2.0 D200 MHEV AWD 1997 CCM 204 HP From 11/2020

The Delphi TA3660 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1,5 thread size 1, M14 x 1.5 thread size 2, front axle fitting position, and 221 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M16 x 1,5
Thread Size 2 : M14 x 1.5
Fitting Position : Front Axle
Length [mm] : 221
Width [mm] : 40
Height [mm] : 40
Axle Joint Length [mm] : 205
  • Vendor DELPHI
  • SKU TA3660
  • Barcode 5012759617069
  • JAGUAR : T2H32619 T2H4205 T2H5049 T2H21418
  • BORG & BECK : BTR6114
  • FIRST LINE : FTR6114
