DELPHI

Delphi TA3681 Inner Tie Rod

SKU: TA3681

Your selected vehicle

Out of stock

Out of Stock

£23.38 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER

DEFENDER Station Wagon (L663)

Description	Cylinder Capacity	Horse Power	Year
P300 Si4 4x4	1997 CCM	300 HP	From 09/2019
P400 I6 MHEV 4x4	2996 CCM	400 HP	From 09/2019
D200 SD4 4x4	1999 CCM	200 HP	From 09/2019
D240 SD4 4x4	1999 CCM	241 HP	From 09/2019
D250 MHEV 4x4	2997 CCM	249 HP	From 09/2020
D300 MHEV 4x4	2997 CCM	300 HP	From 09/2020
P400e Hybrid 4x4	1997 CCM	404 HP	From 09/2020
D200 MHEV 4x4	2997 CCM	200 HP	From 09/2020
P525 4x4	5000 CCM	525 HP	From 05/2021
P300 MHEV 4x4	2996 CCM	300 HP	From 05/2022
P500 4x4	5000 CCM	500 HP	From 04/2023
P300 MHEV 4x4	1997 CCM	300 HP	From 07/2023
P425 4x4	5000 CCM	426 HP	From 05/2024
D350 MHEV 4x4	2997 CCM	350 HP	From 05/2024
P635 OCTA MHEV 4x4	4395 CCM	635 HP	From 05/2024

DEFENDER Van (L663)

Description	Cylinder Capacity	Horse Power	Year
2.0 P300 Si4 4x4	1997 CCM	300 HP	From 02/2020
3.0 P400 I6 MHEV 4x4	2996 CCM	400 HP	From 02/2020
2.0 D200 SD4 4x4	1999 CCM	200 HP	From 02/2020
2.0 D240 SD4 4x4	1999 CCM	241 HP	From 02/2020
3.0 D250 MHEV 4x4	2997 CCM	249 HP	From 09/2020
3.0 D300 MHEV 4x4	2997 CCM	300 HP	From 09/2020
3.0 D200 MHEV 4x4	2997 CCM	200 HP	From 09/2020
2.0 P400e Hybrid 4x4	1997 CCM	404 HP	From 09/2020
3.0 D350 MHEV 4x4	2997 CCM	351 HP	From 05/2024

DISCOVERY V (L462)

Description	Cylinder Capacity	Horse Power	Year
D250 MHEV 4x4	2997 CCM	249 HP	From 12/2020
D300 MHEV 4x4	2997 CCM	300 HP	From 12/2020
P360 MHEV 4x4	2996 CCM	360 HP	From 12/2020
D350 MHEV 4x4	2997 CCM	349 HP	From 05/2024

DISCOVERY V VAN (L462)

Description	Cylinder Capacity	Horse Power	Year
3.0 D300 MHEV 4x4	2997 CCM	300 HP	From 12/2020

RANGE ROVER V (L460)

Description	Cylinder Capacity	Horse Power	Year
P400 MHEV AWD	2996 CCM	400 HP	From 10/2021
P530 AWD	4395 CCM	530 HP	From 10/2021
D300 MHEV AWD	2997 CCM	300 HP	From 10/2021
D350 MHEV AWD	2997 CCM	351 HP	From 10/2021
D250 MHEV AWD	2997 CCM	249 HP	From 10/2021
P440e PHEV AWD	2996 CCM	441 HP	From 02/2022
P510e PHEV AWD	2996 CCM	510 HP	From 02/2022
P460e PHEV AWD	2996 CCM	460 HP	From 05/2023
P550e PHEV AWD	2996 CCM	551 HP	From 05/2023
P615 MHEV AWD	4395 CCM	615 HP	From 05/2023
P530 MHEV AWD	4395 CCM	530 HP	From 05/2023

RANGE ROVER SPORT III (L461)

Description	Cylinder Capacity	Horse Power	Year
3.0 D250 MHEV AWD	2997 CCM	249 HP	From 04/2022
3.0 D300 MHEV AWD	2997 CCM	300 HP	From 04/2022
P400 MHEV AWD	2996 CCM	400 HP	From 04/2022
P440e PHEV AWD	2996 CCM	441 HP	From 04/2022
P510e PHEV AWD	2996 CCM	510 HP	From 04/2022
P530 AWD	4395 CCM	530 HP	From 04/2022
3.0 D350 MHEV AWD	2997 CCM	351 HP	From 04/2022
P460e PHEV AWD	2996 CCM	460 HP	From 05/2023
P550e PHEV AWD	2996 CCM	551 HP	From 05/2023
P635 MHEV AWD	4395 CCM	635 HP	From 05/2023
P530 MHEV AWD	4395 CCM	530 HP	From 05/2023

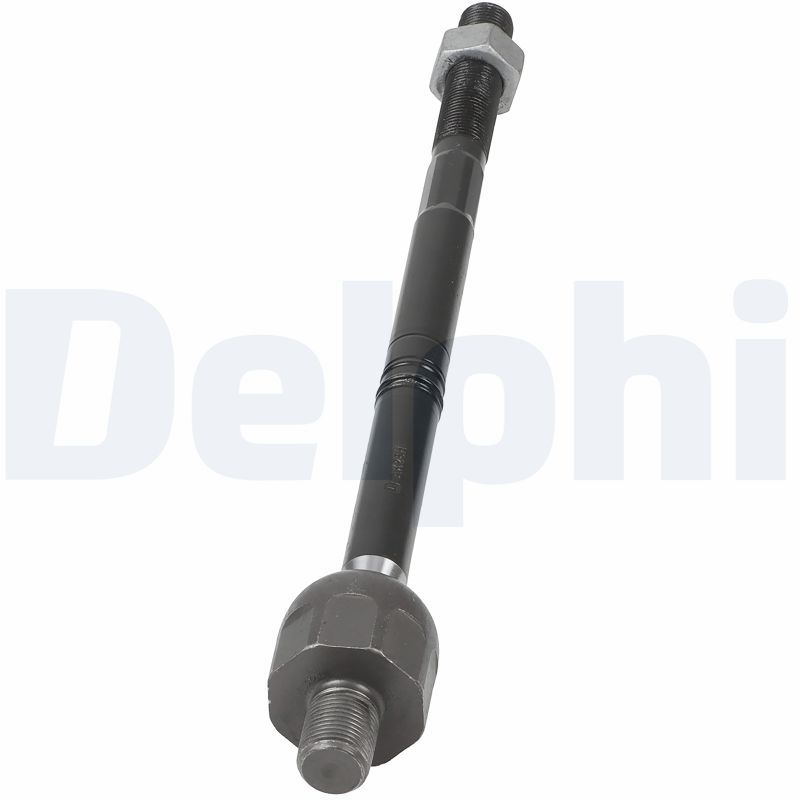

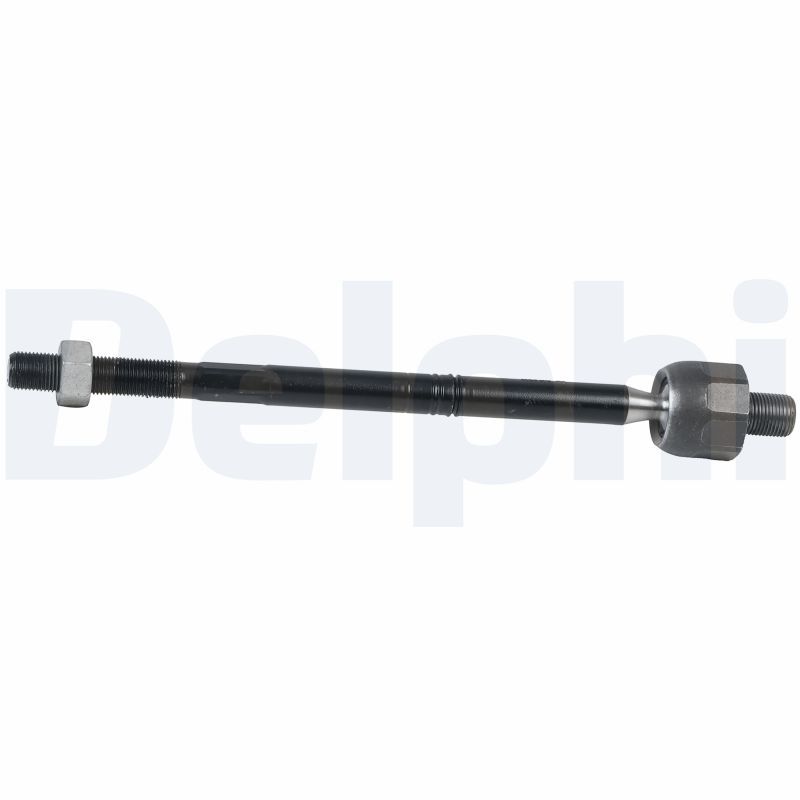

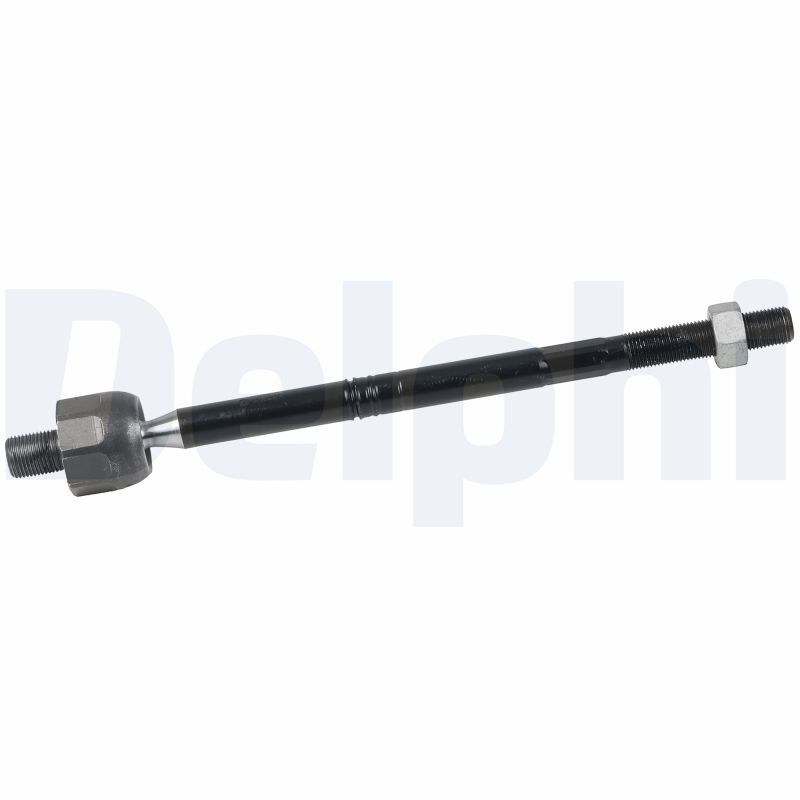

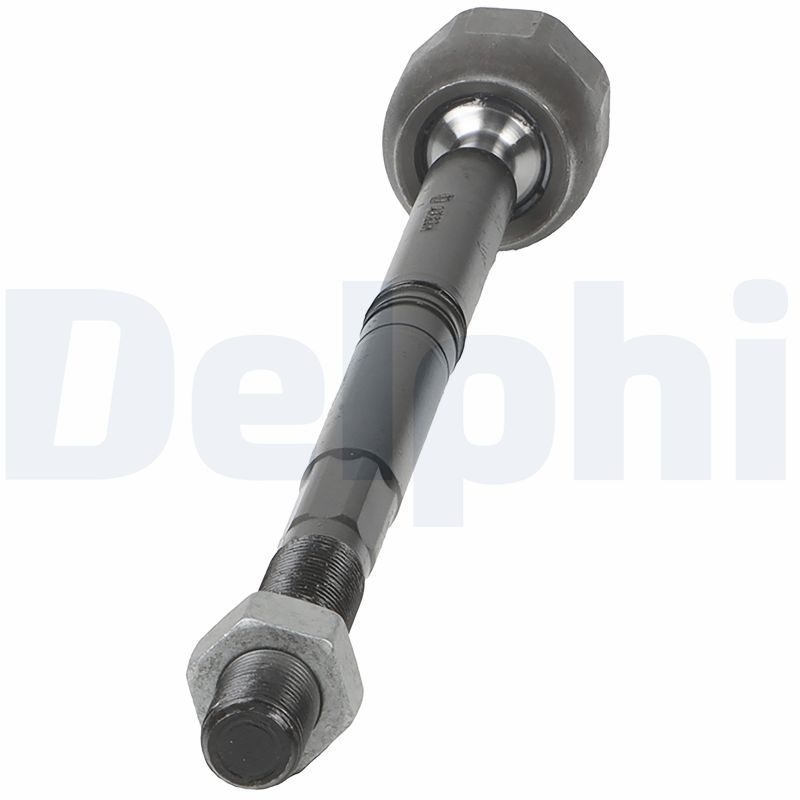

The Delphi TA3681 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M18 x 1,5 thread size 1, M16 x 1.5 thread size 2, front axle fitting position, and 322.1 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod

Thread Size 1 : M18 x 1,5

Thread Size 2 : M16 x 1.5

Fitting Position : Front Axle

Length [mm] : 322.1

Width [mm] : 40

Height [mm] : 40

Axle Joint Length [mm] : 299

Delphi TA3681 Inner Tie Rod
