DELPHI

Delphi TA3685 Inner Tie Rod

SKU: TA3685

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£22.54 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ

A-CLASS (W177)

Description	Cylinder Capacity	Horse Power	Year
A 180 d (177.003)	1461 CCM	116 HP	From 03/2018
A 200 (177.087)	1332 CCM	163 HP	From 03/2018
A 250 (177.046)	1991 CCM	224 HP	From 03/2018
A 180 (177.084)	1332 CCM	136 HP	From 06/2018
A 160 (177.082)	1332 CCM	109 HP	From 06/2018
A 200 (177.087)	1332 CCM	150 HP	From 06/2018
A 220 4-matic (177.045)	1991 CCM	190 HP	07/2018 - 10/2019
A 250 4-matic (177.047)	1991 CCM	224 HP	From 07/2018
A 220 (177.044)	1991 CCM	190 HP	From 07/2018
AMG A 35 4-matic (177.051)	1991 CCM	306 HP	From 09/2018
A 200 d (177.012)	1950 CCM	150 HP	From 11/2018
A 220 d (177.014)	1950 CCM	190 HP	From 11/2018
A 160 d (177.002)	1461 CCM	95 HP	From 05/2019

A-CLASS Saloon (V177)

Description	Cylinder Capacity	Horse Power	Year
A 180 d (177.103)	1461 CCM	116 HP	From 09/2018
A 200 (177.187)	1332 CCM	163 HP	From 09/2018
A 220 4-matic (177.145)	1991 CCM	190 HP	From 09/2018
A 250 (177.146)	1991 CCM	224 HP	From 09/2018
A 250 4-matic (177.147)	1991 CCM	224 HP	From 09/2018
AMG A 35 4-matic (177.151)	1991 CCM	306 HP	From 03/2019
A 220 (177.144)	1991 CCM	190 HP	From 01/2019
A 180 (177.184)	1332 CCM	136 HP	From 04/2019
A 200 d (177.112)	1950 CCM	150 HP	From 08/2019
A 220 d (177.114)	1950 CCM	190 HP	From 08/2019
A 200 (177.187)	1332 CCM	150 HP	From 09/2018
A 160 d (177.102)	1461 CCM	95 HP	From 10/2019
A 200 d 4-matic (177.113)	1950 CCM	150 HP	From 10/2019
A 220 d 4-matic (177.115)	1950 CCM	190 HP	From 10/2019
A 250 e (177.186)	1332 CCM	218 HP	From 08/2019

B-CLASS Sports Tourer (W247)

Description	Cylinder Capacity	Horse Power	Year
B 200 d (247.012)	1950 CCM	150 HP	From 12/2018
B 220 d (247.014)	1950 CCM	190 HP	From 12/2018
B 180 (247.084)	1332 CCM	136 HP	From 12/2018
B 200 (247.087)	1332 CCM	163 HP	From 12/2018
B 180 d (247.003)	1461 CCM	116 HP	From 12/2018
B 220 4-matic (247.045)	1991 CCM	190 HP	From 01/2019
B 250 (247.046)	1991 CCM	224 HP	From 01/2019
B 250 4-matic (247.047)	1991 CCM	224 HP	From 01/2019
B 220 (247.044)	1991 CCM	190 HP	From 04/2019
B 160 (247.082)	1332 CCM	109 HP	From 04/2019
B 200 (247.087)	1332 CCM	150 HP	From 01/2019
B 160 d (247.002)	1461 CCM	95 HP	From 05/2019
B 200 d 4-matic (247.013)	1950 CCM	150 HP	10/2019 - 09/2021
B 220 d 4-matic (247.015)	1950 CCM	190 HP	From 10/2019
B 250 e (247.086)	1332 CCM	218 HP	From 06/2020

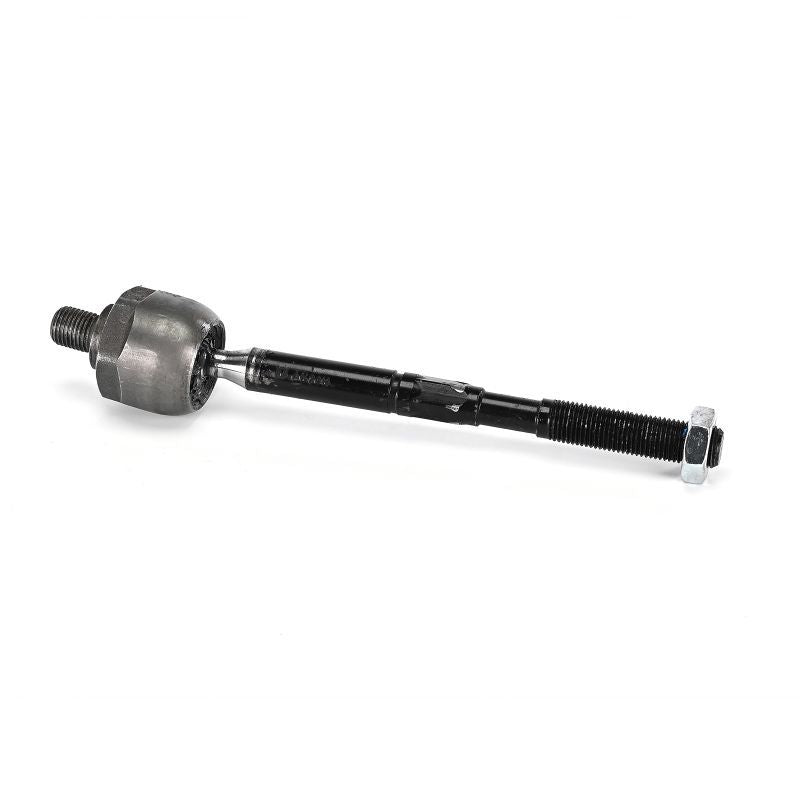

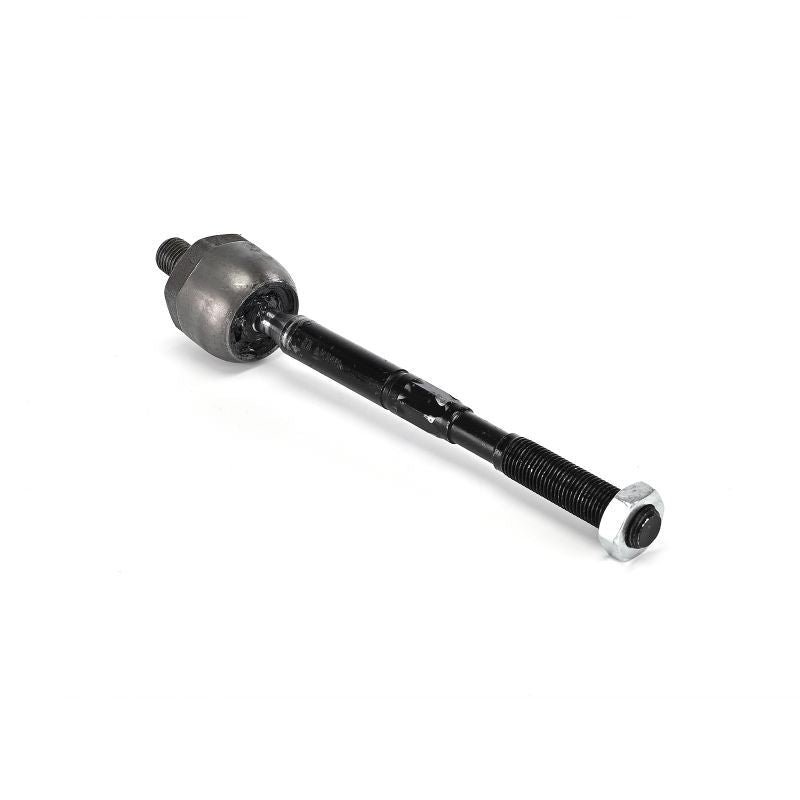

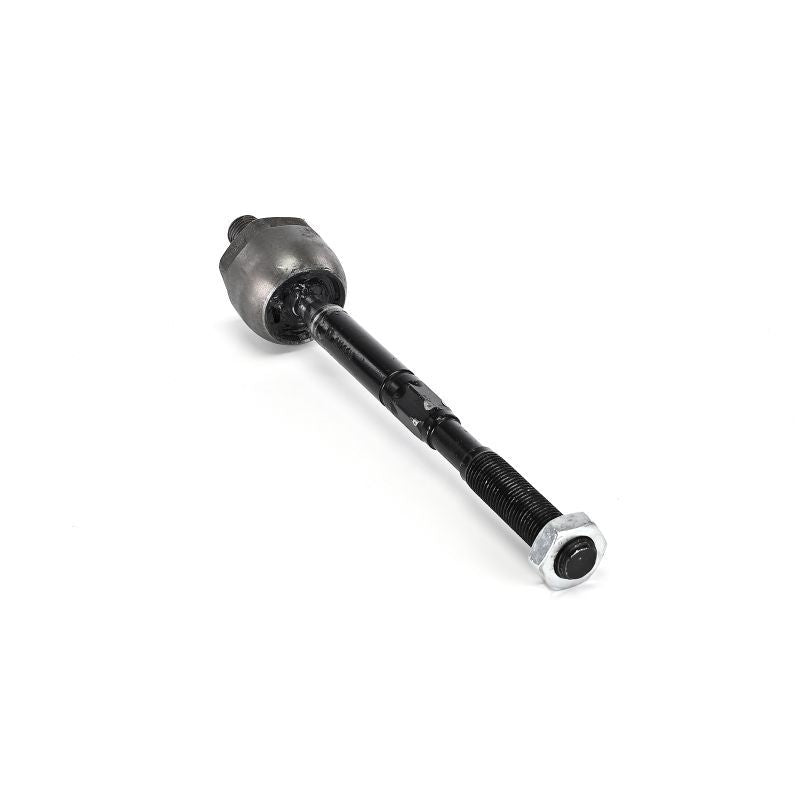

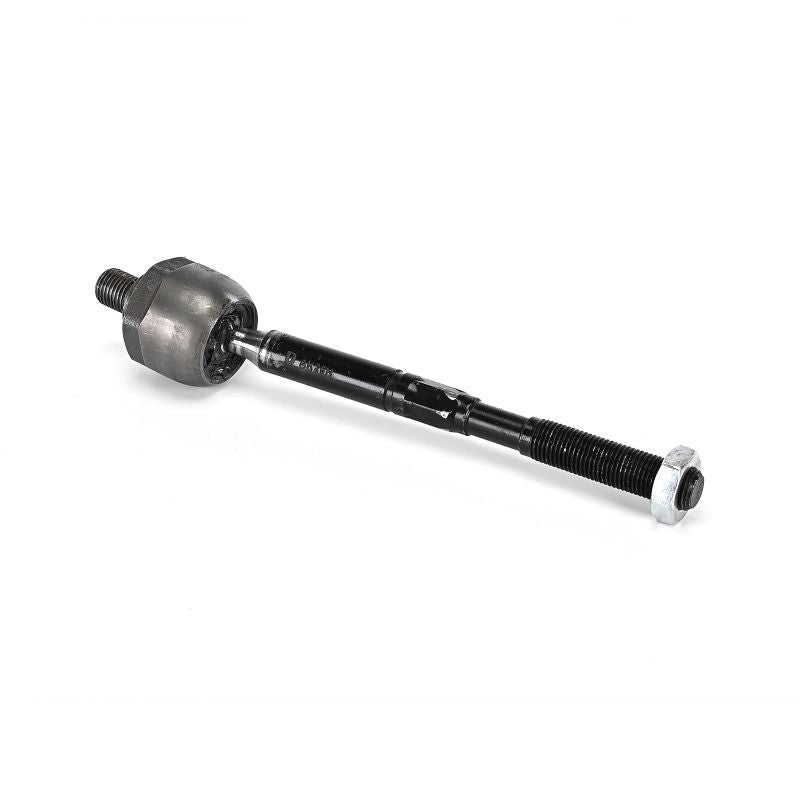

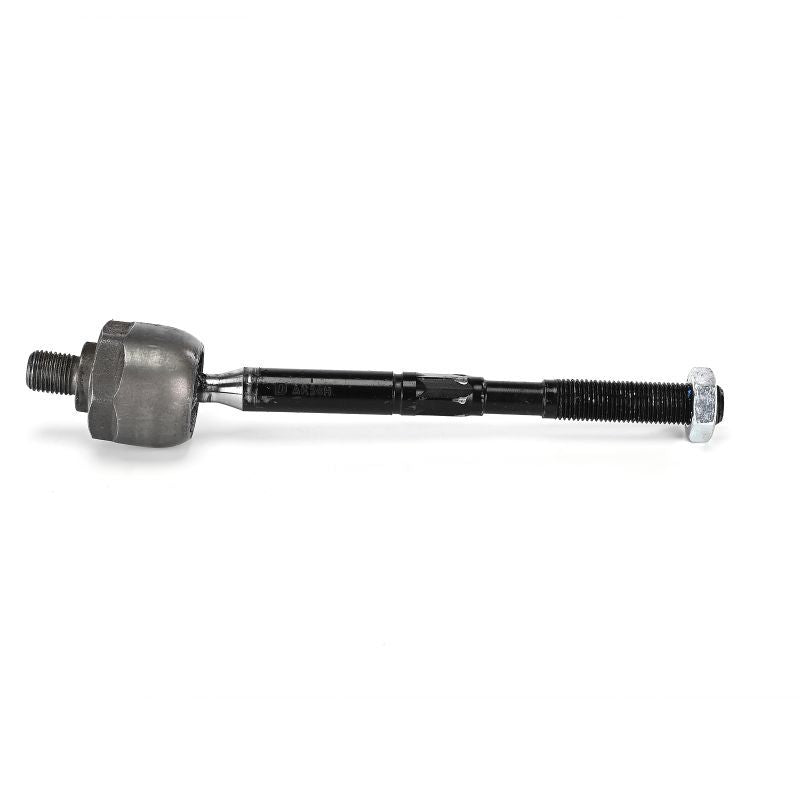

The Delphi TA3685 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,5 thread size 1, M14 x 1.5 thread size 2, front axle fitting position, and 226 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod

Thread Size 1 : M14 x 1,5

Thread Size 2 : M14 x 1.5

Fitting Position : Front Axle

Length [mm] : 226

Width [mm] : 40

Height [mm] : 40

Axle Joint Length [mm] : 209

Delphi TA3685 Inner Tie Rod
