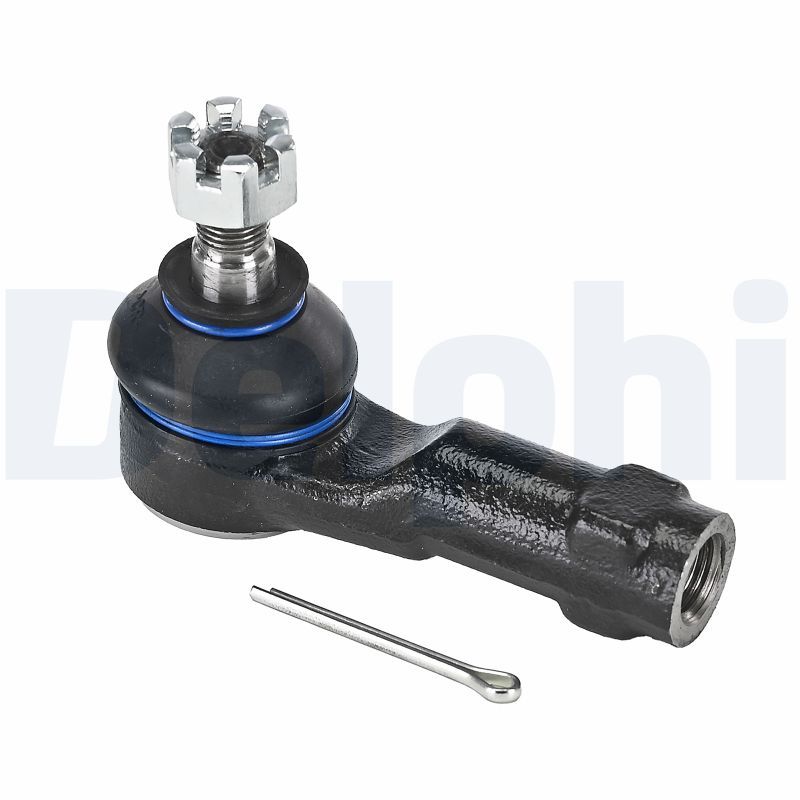

Delphi TA3686 Tie Rod End - 1

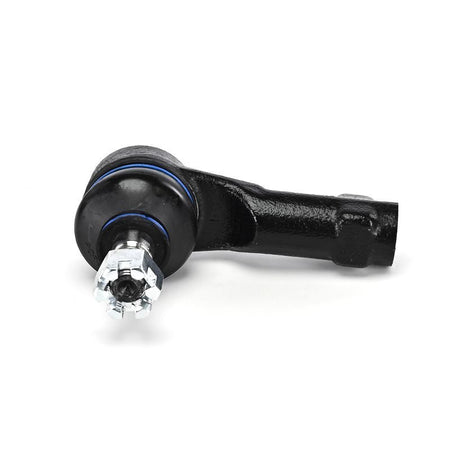

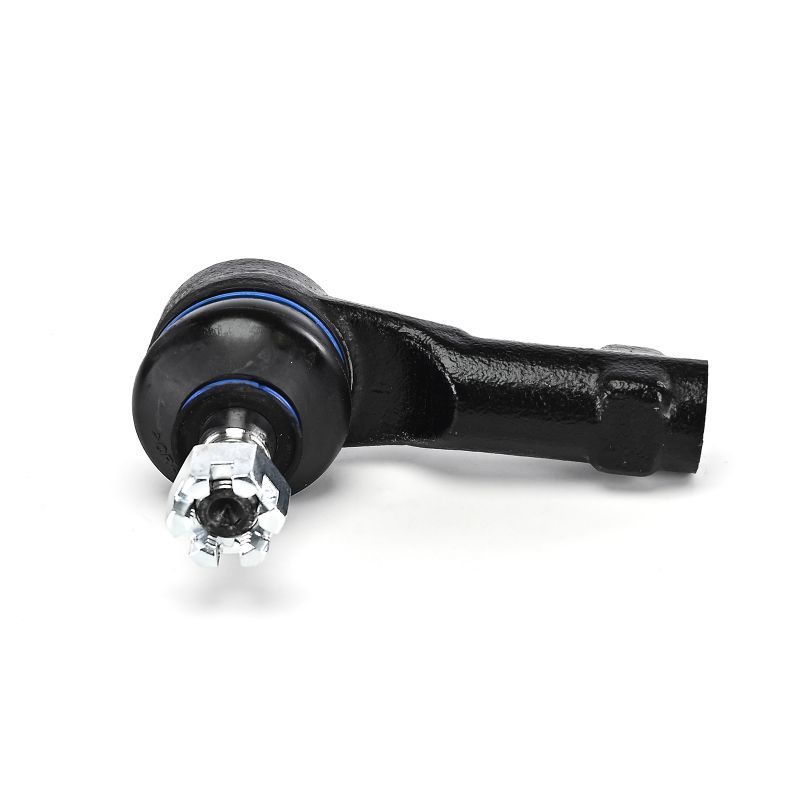

Delphi TA3686 Tie Rod End - 2

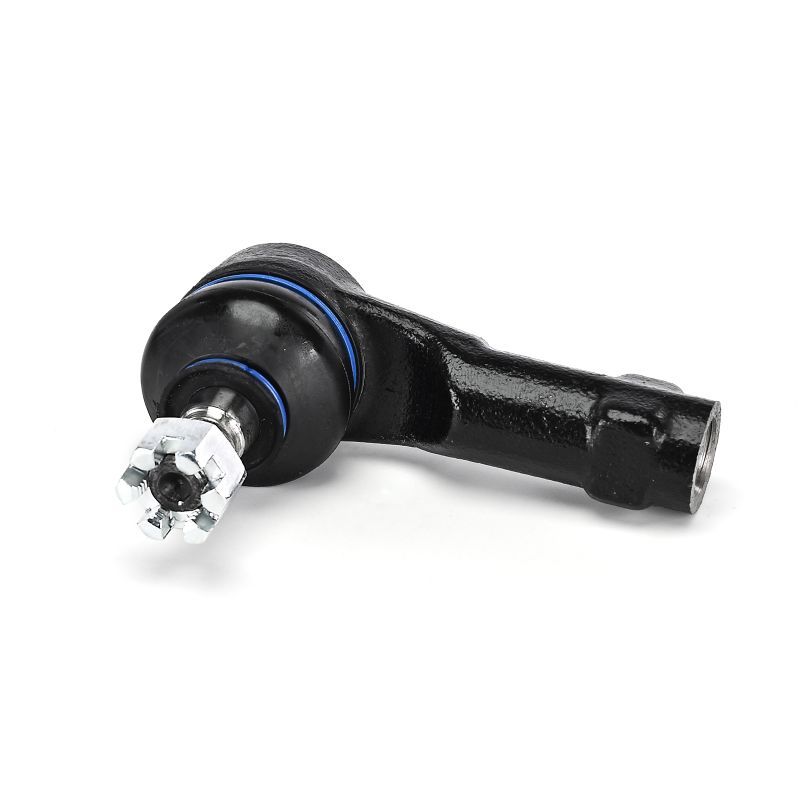

Delphi TA3686 Tie Rod End - 3

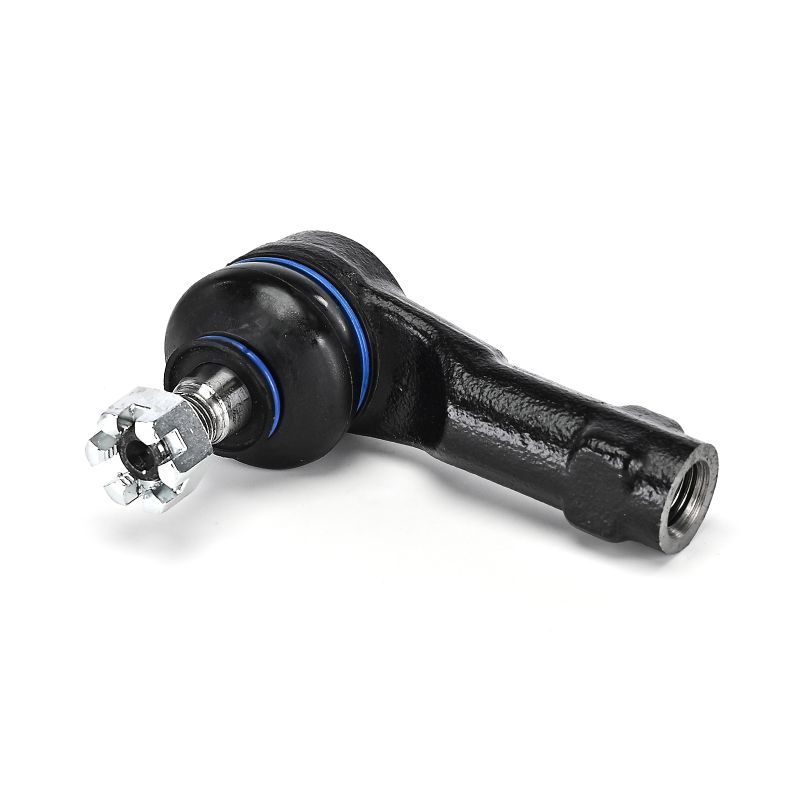

Delphi TA3686 Tie Rod End - 4

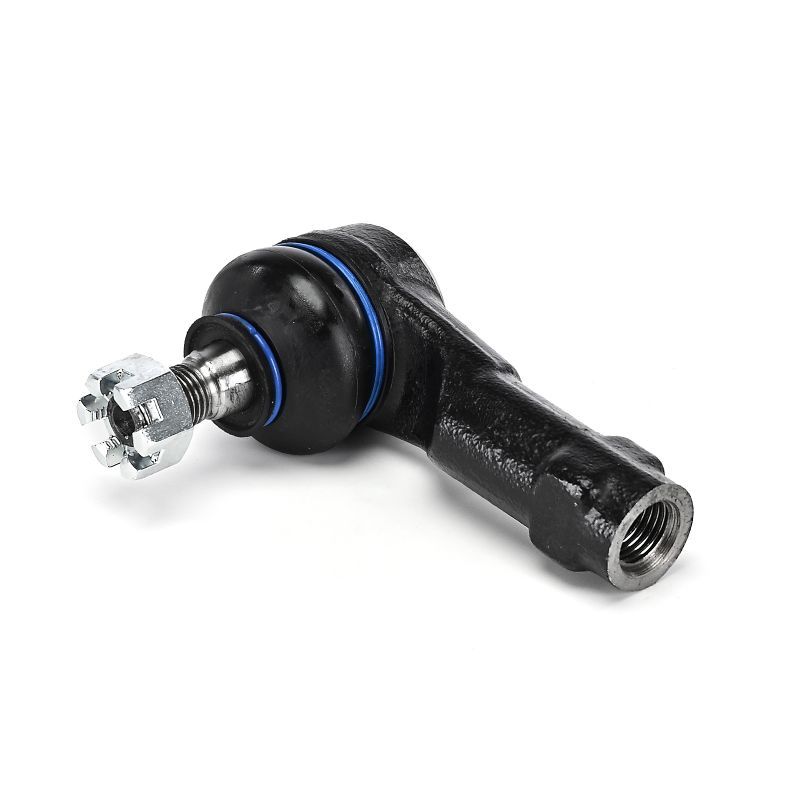

Delphi TA3686 Tie Rod End - 5

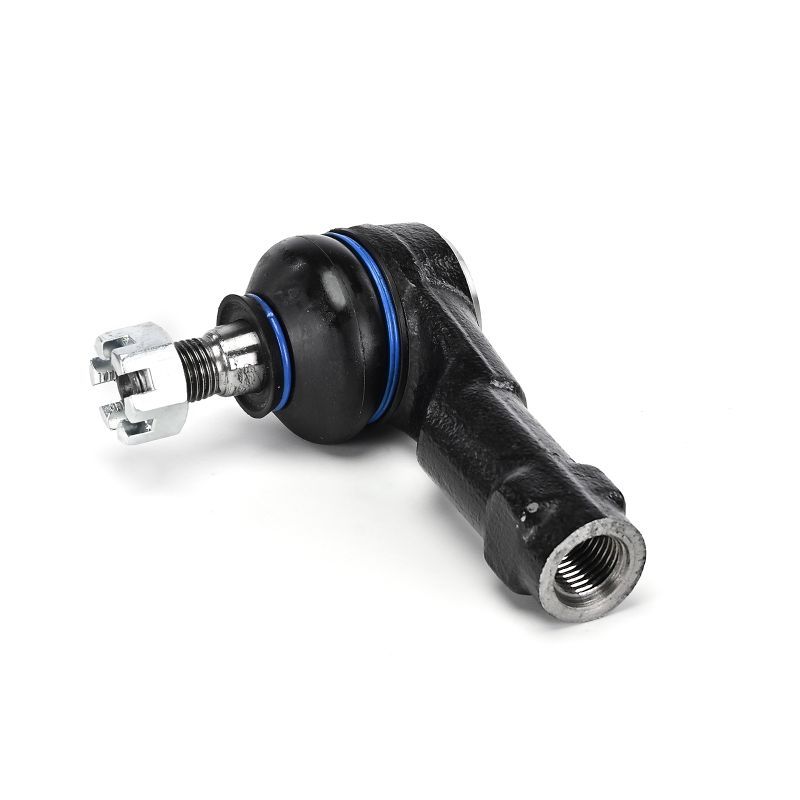

Delphi TA3686 Tie Rod End - 6
Delphi TA3686 Tie Rod End video
Delphi TA3686 Tie Rod End - 1
Delphi TA3686 Tie Rod End - 2
Delphi TA3686 Tie Rod End - 3
Delphi TA3686 Tie Rod End - 4
Delphi TA3686 Tie Rod End - 5
Delphi TA3686 Tie Rod End - 6
Delphi TA3686 Tie Rod End video
DELPHI

Delphi TA3686 Tie Rod End

SKU: TA3686
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£19.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
BALENO (FW, EW)
Description Cylinder Capacity Horse Power Year
1.0 (A1K310) 998 CCM 111 HP From 02/2016
1.2 (A1K412) 1242 CCM 90 HP From 02/2016
1.2 Hybrid (A1K412) 1242 CCM 90 HP From 02/2016

The Delphi TA3686 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1.5 thread size, with right-hand thread thread type, front axle fitting position, and 103 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14 x 1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13
Fitting Position : Front Axle
Length [mm] : 103
Width [mm] : 38
Height [mm] : 70
  • Vendor DELPHI
  • SKU TA3686
  • Barcode 5012759617328
  • SUZUKI : 48810M68P00
  • FEBI BILSTEIN : 196245
  • MEYLE : 33-16 020 0028
  • User manual
