DELPHI

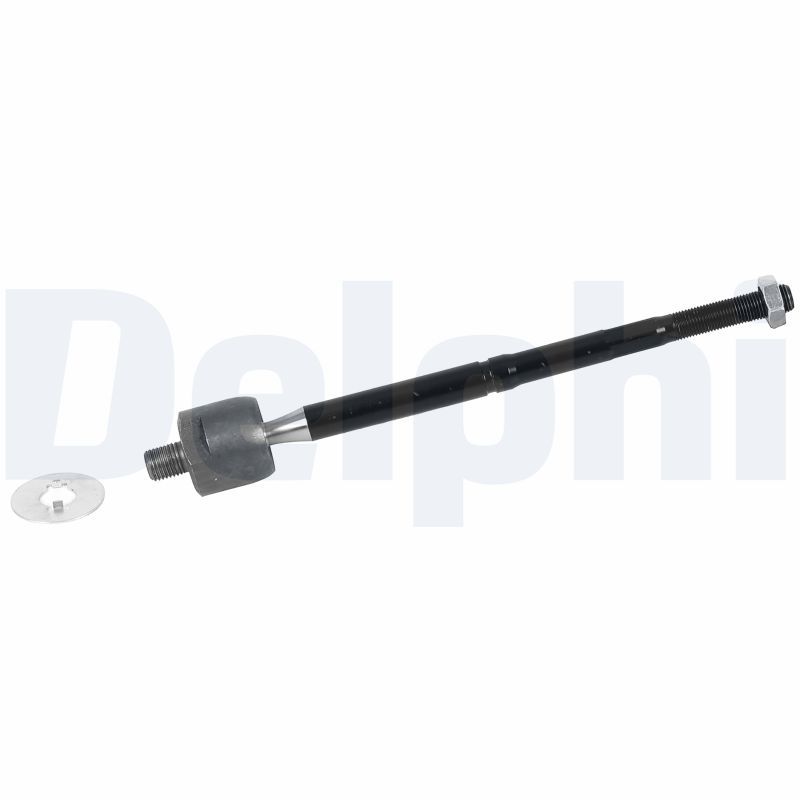

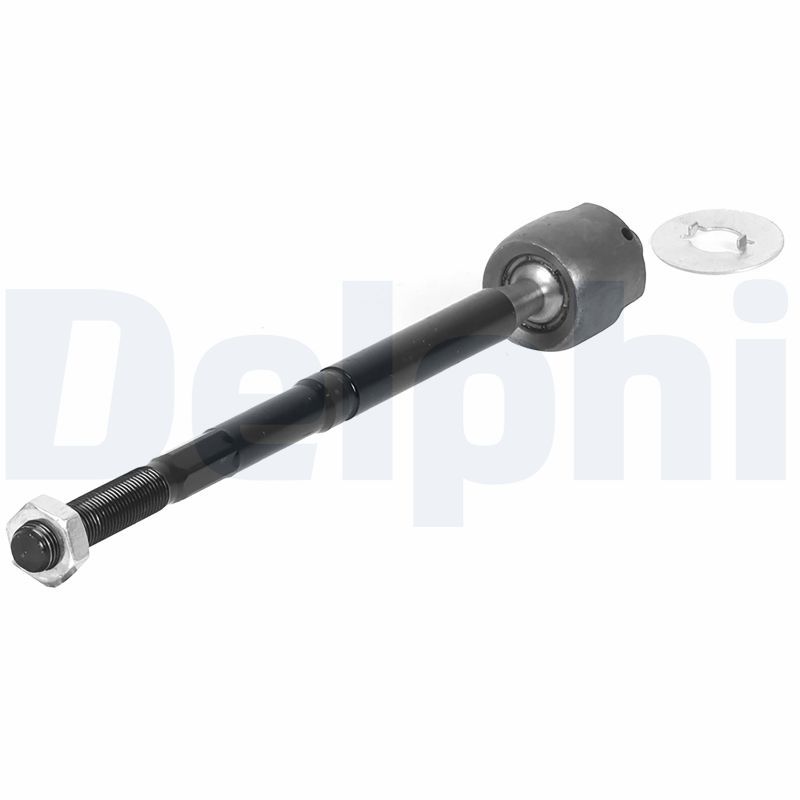

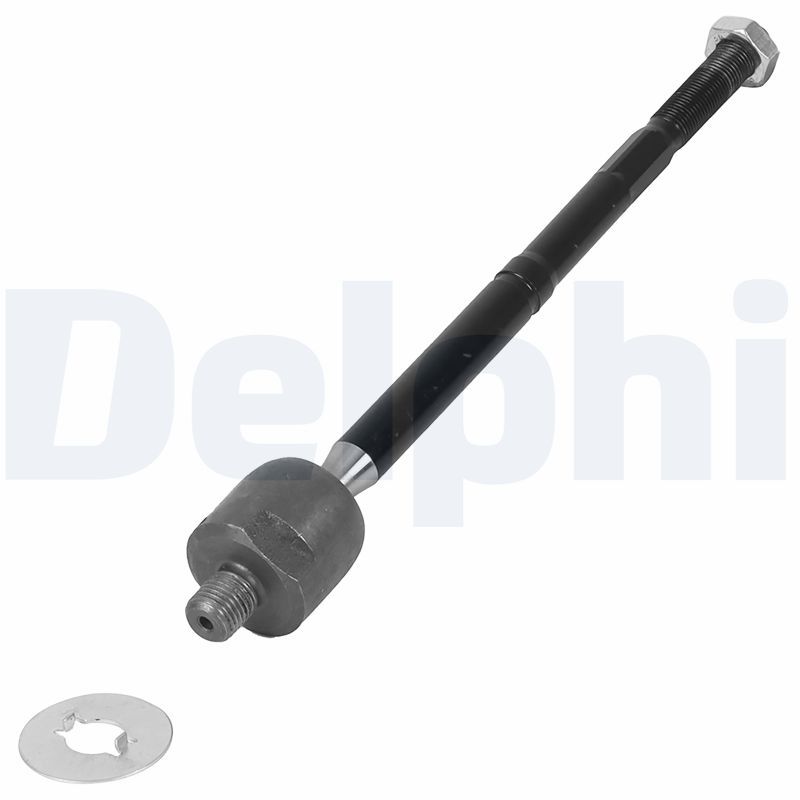

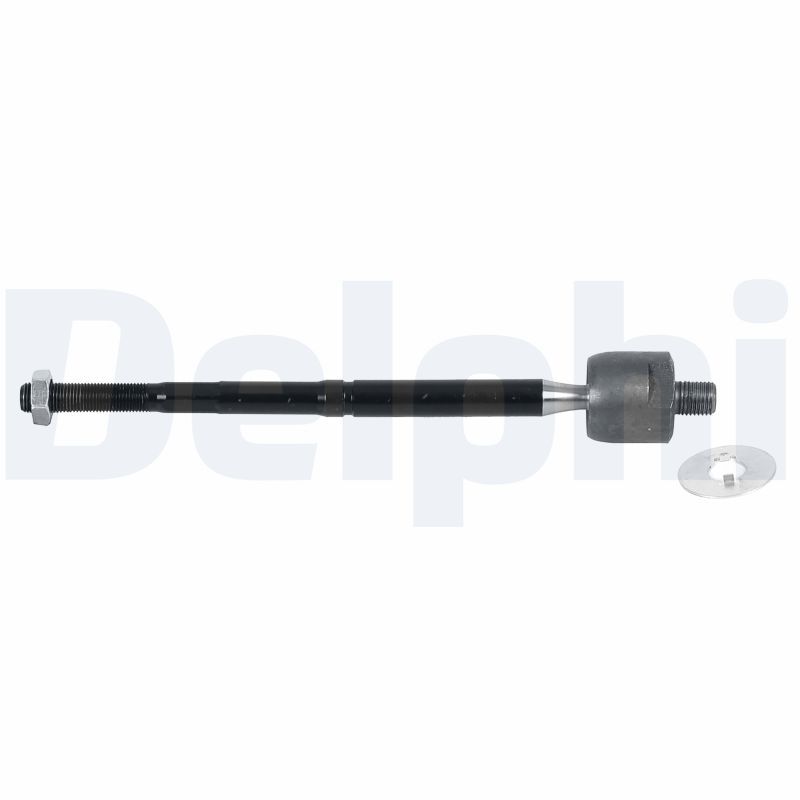

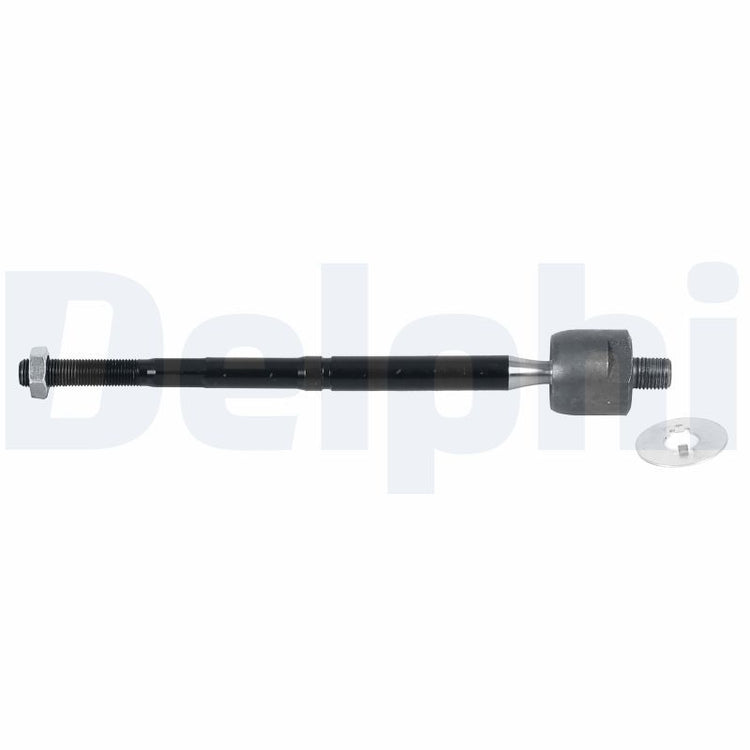

Delphi TA3694 Inner Tie Rod

SKU: TA3694
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£21.79 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
YARIS/VITZ (_P1_)
Description Cylinder Capacity Horse Power Year
1.0 (SCP10_, SCP10R) 998 CCM 68 HP 04/1999 - 09/2005
1.4 D-4D (NLP10_, NLP10R) 1364 CCM 75 HP 10/2001 - 09/2005
1.3 (SCP12_, SCP13_, SCP12R, SCP13R) 1298 CCM 87 HP 04/2002 - 09/2005
1.0 (SCP10_, SCP10R) 998 CCM 65 HP 03/2003 - 09/2005

The Delphi TA3694 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,5 thread size 1, M12 x 1,25 thread size 2, front axle fitting position, and 263 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M14 x 1,5
Thread Size 2 : M12 x 1,25
Fitting Position : Front Axle
Length [mm] : 263
Width [mm] : 35
Height [mm] : 35
Axle Joint Length [mm] : 247
  • Vendor DELPHI
  • SKU TA3694
  • Barcode 5012759617403
  • TOYOTA : 455030D030
  • BLUE PRINT : ADT387214
  • BORG & BECK : BTR4850
  • BOSCH : 0 986 141 247
  • FEBI BILSTEIN : 31747
  • FIRST LINE : FTR4850
  • LEMFÖRDER : 38424 01
  • TRW : JAR1262
