DELPHI

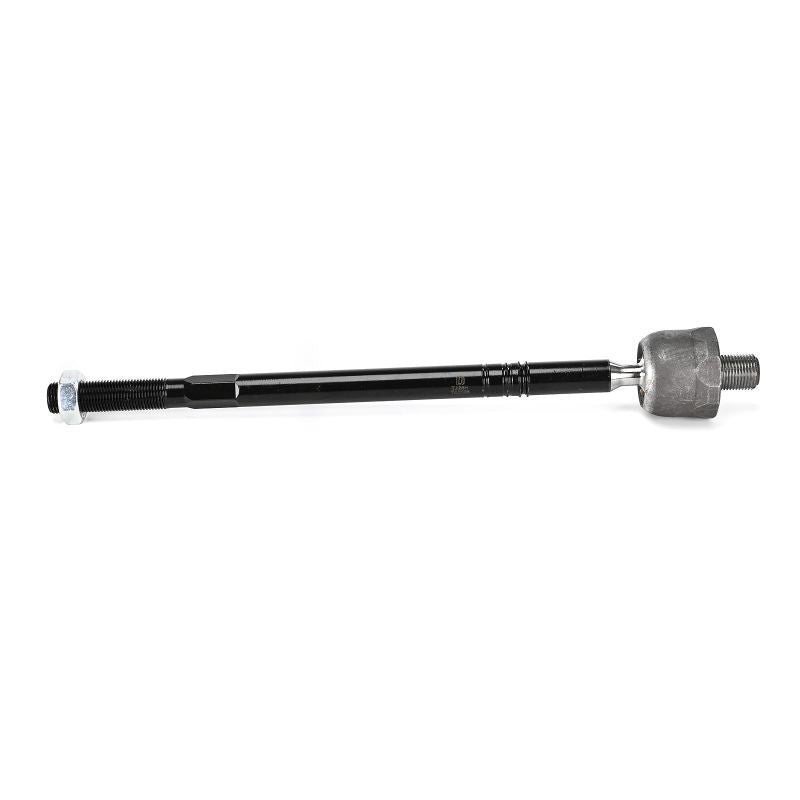

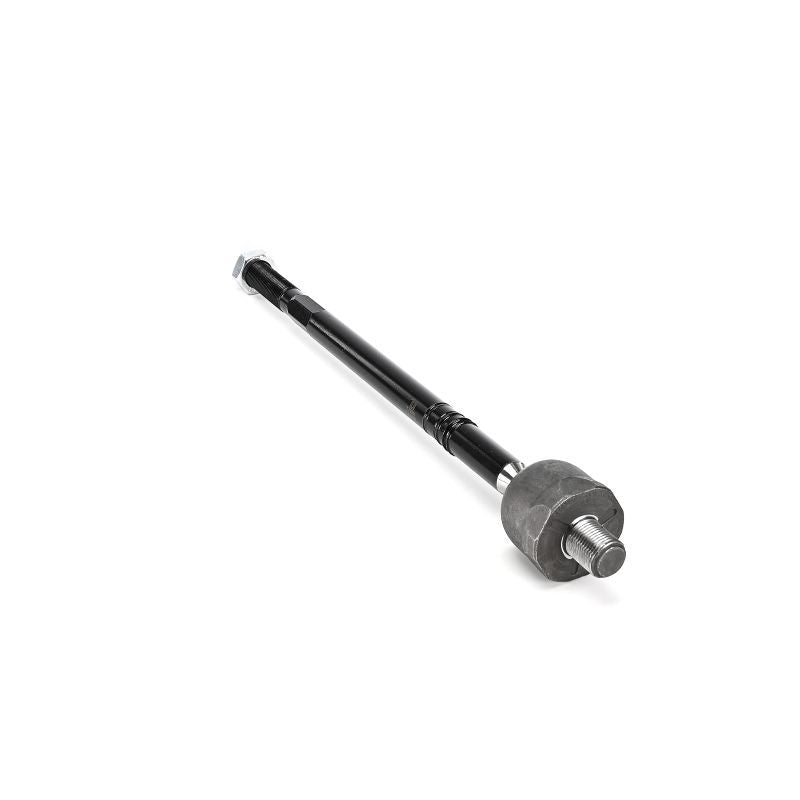

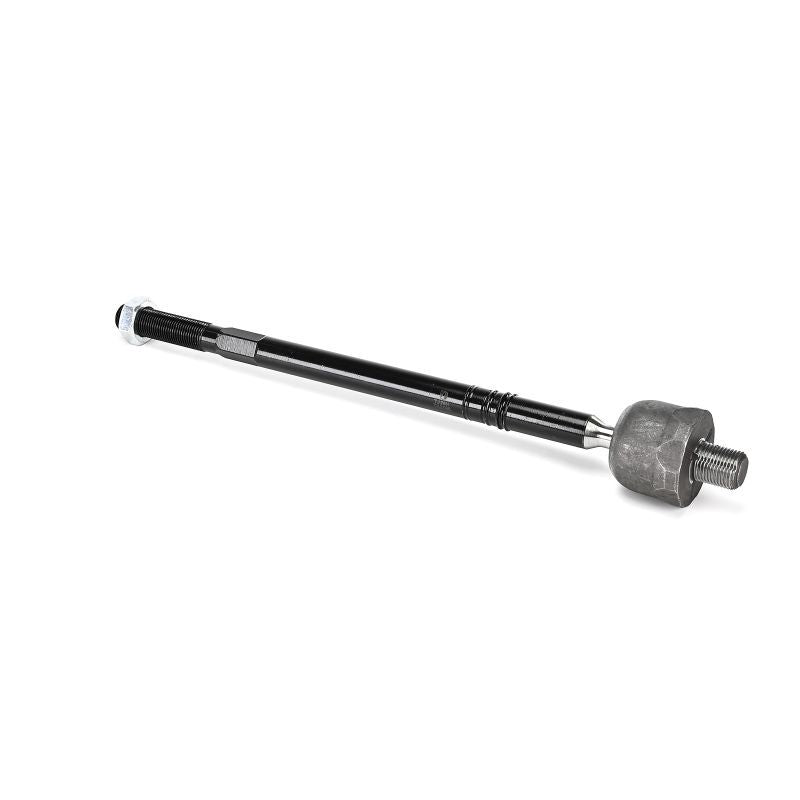

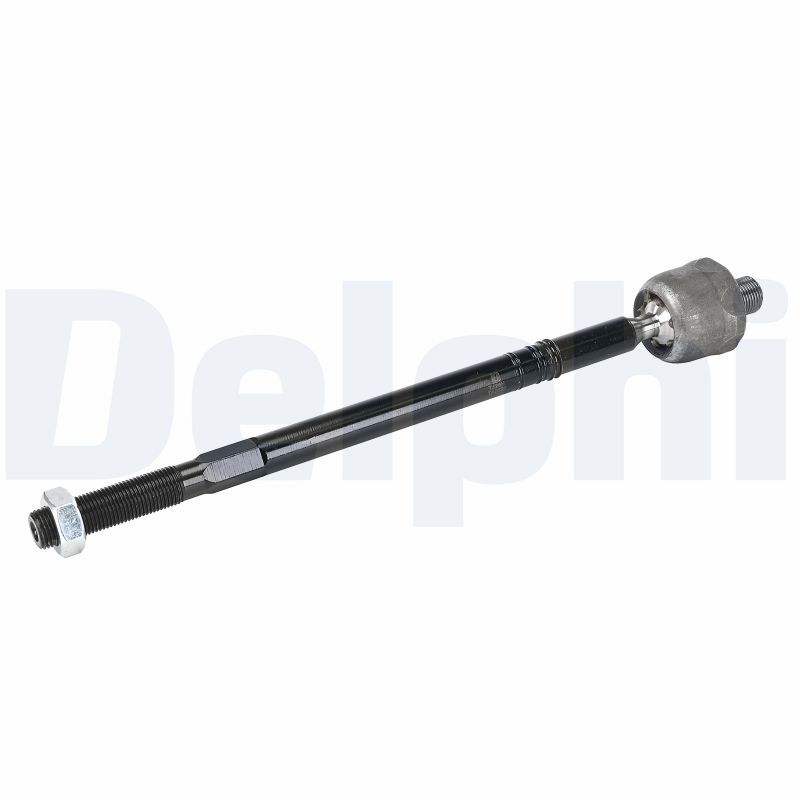

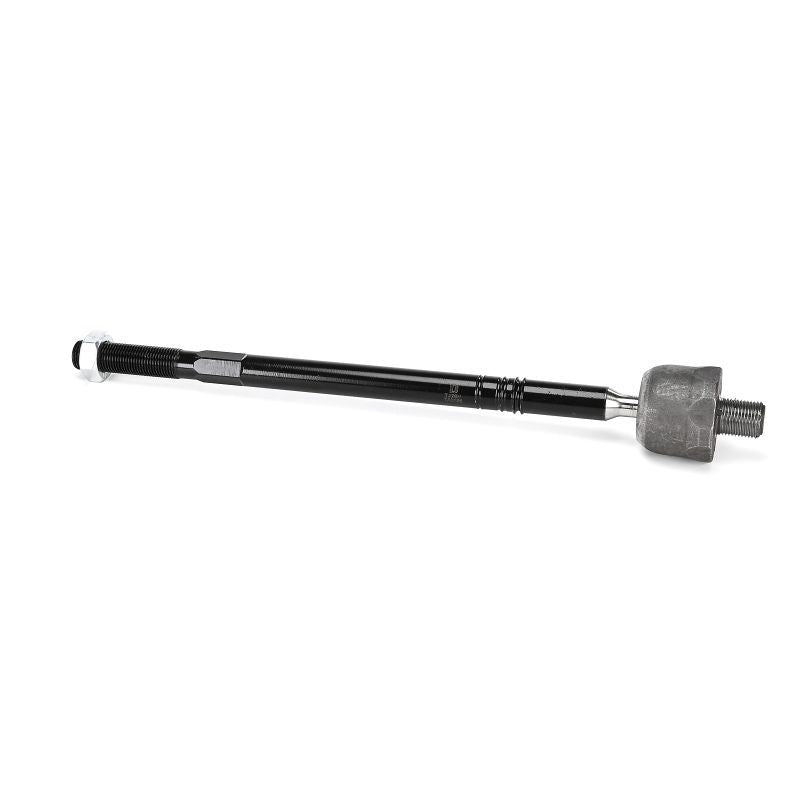

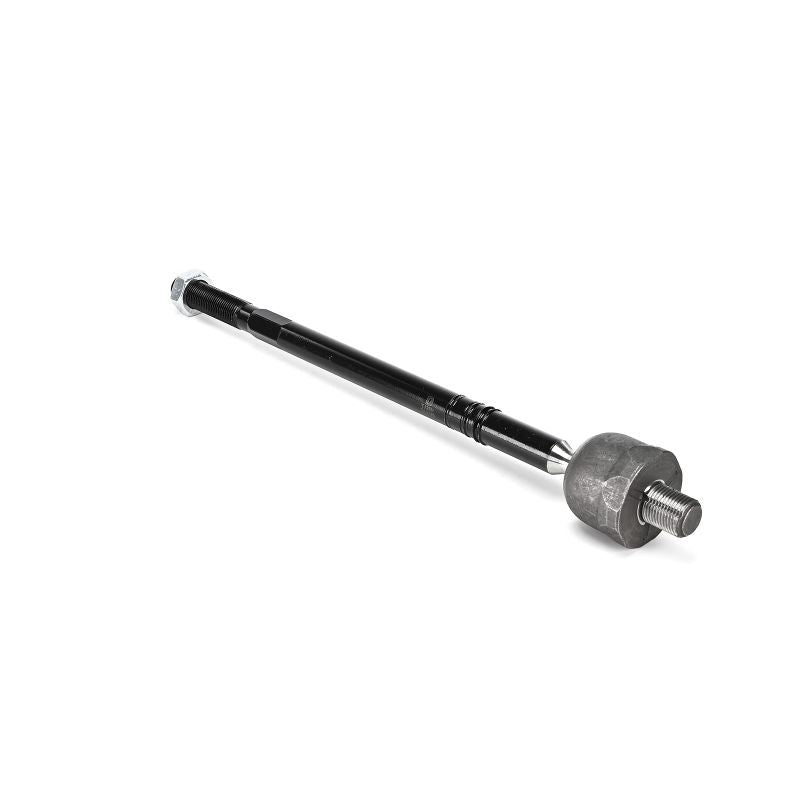

Delphi TA3696 Inner Tie Rod

SKU: TA3696
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£26.18 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

IVECO
DAILY VI Platform/Chassis
Description Cylinder Capacity Horse Power Year
33S11, 35S11, 35C11 2287 CCM 106 HP 03/2014 - 07/2021
33S13, 35S13, 35C13 2287 CCM 126 HP From 03/2014
35S14, 35S15, 35C15, 40S14, 40C15, 50C15, 60C5, 65C15,... 2998 CCM 146 HP From 03/2014
35S17, 35C17, 40C17, 45S17,45C17, 50C17, 60C17, 65C17,... 2998 CCM 170 HP From 03/2014
35S21, 35C21, 40C21, 45C21, 50C21, 60C21, 65C21, 70C21 2998 CCM 204 HP From 03/2014
NaturalPower 35S14, 35C, 38S, 40C, 50C, 60C, 65C, 70C 2998 CCM 136 HP From 03/2014
33S15, 35S15, 35C15 2287 CCM 146 HP From 03/2014
35S17, 55S17 4x4 2998 CCM 170 HP From 03/2014
33S12, 35S12, 35C12 2287 CCM 116 HP From 04/2016
33S14, 35S14, 35C14, 38S14 2287 CCM 136 HP From 04/2016
33S16, 35S16, 35C16, 40C16, 42S16, 50C16 2287 CCM 156 HP From 04/2016
35S15, 35C15, 40C15, 50C15, 60C15, 65C15, 70C15 2998 CCM 150 HP From 04/2016
35S18, 35C18, 40C18, 45C18, 50C18, 60C18, 65C18, 70C18 2998 CCM 180 HP From 04/2016
35S18, 55S18, 55C18, 70S18, 70C18 4x4 2998 CCM 180 HP From 04/2016
35S60E, 35C60E 82 HP From 10/2015
DAILY VI Bus
Description Cylinder Capacity Horse Power Year
40C15, 50C15, 60C15 2998 CCM 146 HP From 03/2014
40C17, 50C17, 60C17 2998 CCM 170 HP From 03/2014
NaturalPower 40C14, 50C14, 60C14 2998 CCM 136 HP From 03/2014
50C80E 109 HP From 04/2016
40C15, 50C15, 60C15 2998 CCM 150 HP From 04/2016
40C18, 50C18, 60C18 2998 CCM 180 HP From 04/2016
50C21, 60C21 2998 CCM 207 HP From 07/2021
50C18, 60C18 2998 CCM 175 HP From 07/2021
eDAILY 72C14E 190 HP From 12/2022
DAILY VI Van
Description Cylinder Capacity Horse Power Year
33S11, 35S11, 35C11 2287 CCM 106 HP 03/2014 - 07/2021
33S13, 35S13, 35C13 2287 CCM 126 HP From 03/2014
33S15, 35S15, 35C15 2287 CCM 146 HP From 03/2014
35S15, 35C15, 40C15, 45C15, 50C15, 65C15, 70C15 2998 CCM 146 HP From 03/2014
35S17, 35C17, 40C17, 50C17, 55C17, 60C17, 65C17, 70C17 2998 CCM 170 HP From 03/2014
35S21, 35C21, 40C21, 50C21 2998 CCM 204 HP From 03/2014
NaturalPower 35S14, 35C, 38S, 40C, 50C, 60C, 65C, 70C 2998 CCM 136 HP From 03/2014
33S12, 35S12, 35C12 2287 CCM 116 HP From 04/2016
33S14, 35S14, 35C14, 42S14 2287 CCM 136 HP From 04/2016
33S16, 35S16, 35C16, 38S16, 40C16, 42S16, 50C16 2287 CCM 156 HP From 04/2016
35S15, 35C15, 40C15, 50C15, 60C15, 65C15, 70C15 2998 CCM 150 HP From 04/2016
35S18, 35C18, 40C18, 50C18, 60C18, 65C18, 70C18 2998 CCM 180 HP From 04/2016
35S60E 82 HP From 10/2015
50C80E 109 HP From 10/2015
55S18, 55C18, 70S18, 70C18 2998 CCM 179 HP From 01/2018

The Delphi TA3696 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M18 x 1,5 thread size 1, M16 x 1.5 thread size 2, front axle fitting position, and 352.5 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M18 x 1,5
Thread Size 2 : M16 x 1.5
Fitting Position : Front Axle
Length [mm] : 352.5
Width [mm] : 46
Height [mm] : 46
Axle Joint Length [mm] : 332
  • Vendor DELPHI
  • SKU TA3696
  • Barcode 5012759617427
  • IVECO : 42569566
  • BORG & BECK : BTR6145
  • FIRST LINE : FTR6145
  • LEMFÖRDER : 38200 01
  • MONROE : L15H03
  • TRW : JAR712
