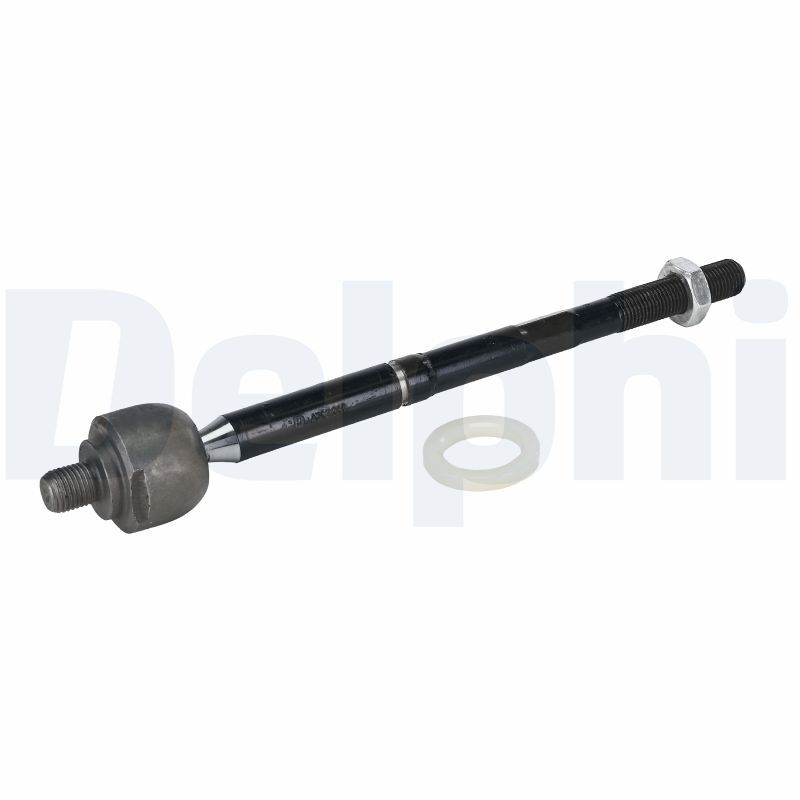

Delphi TA3717 Inner Tie Rod - 1

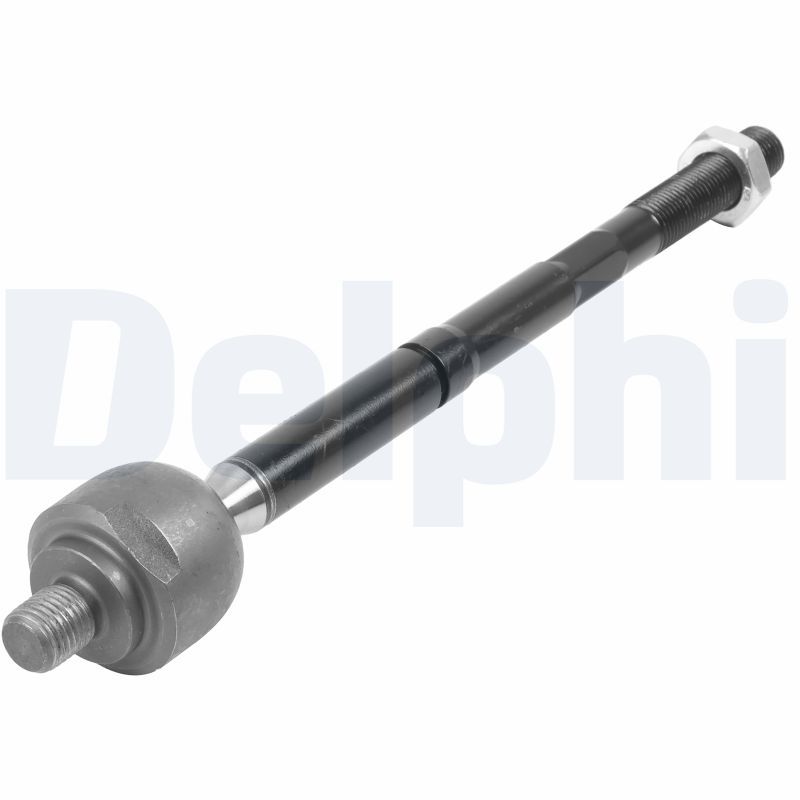

Delphi TA3717 Inner Tie Rod - 2

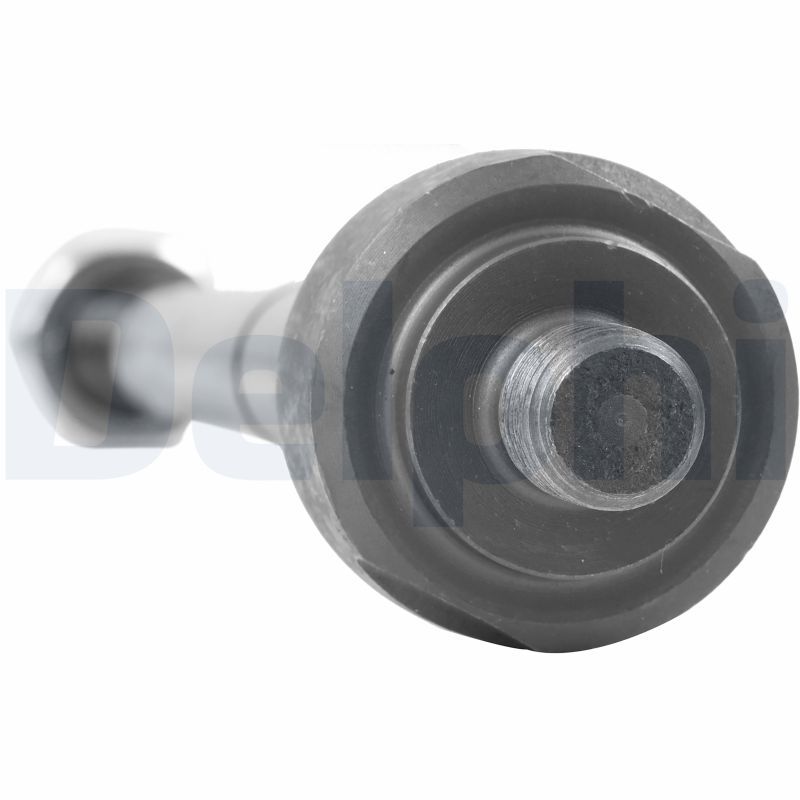

Delphi TA3717 Inner Tie Rod - 3

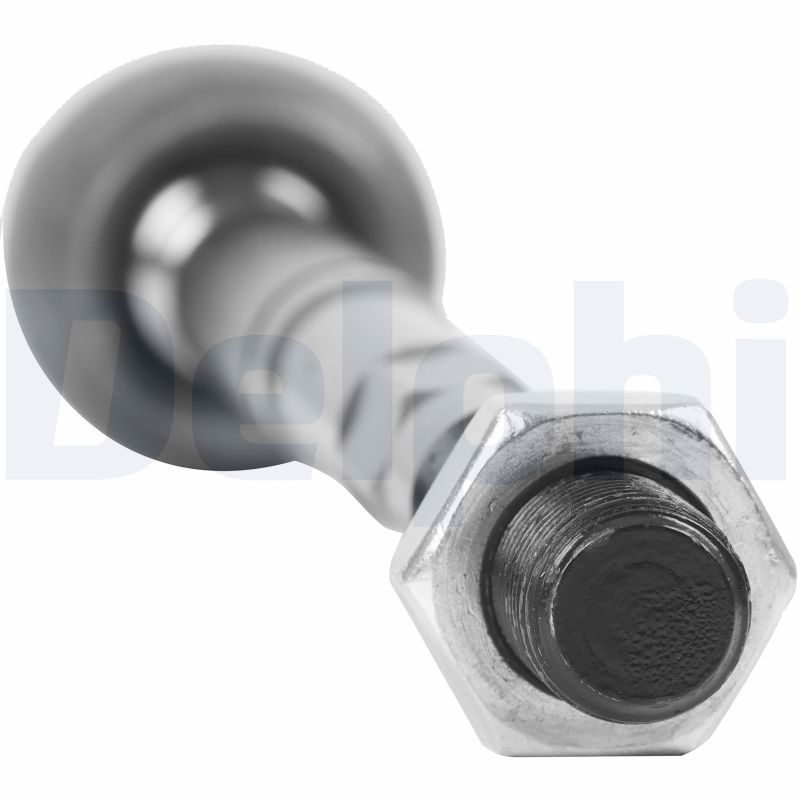

Delphi TA3717 Inner Tie Rod - 4

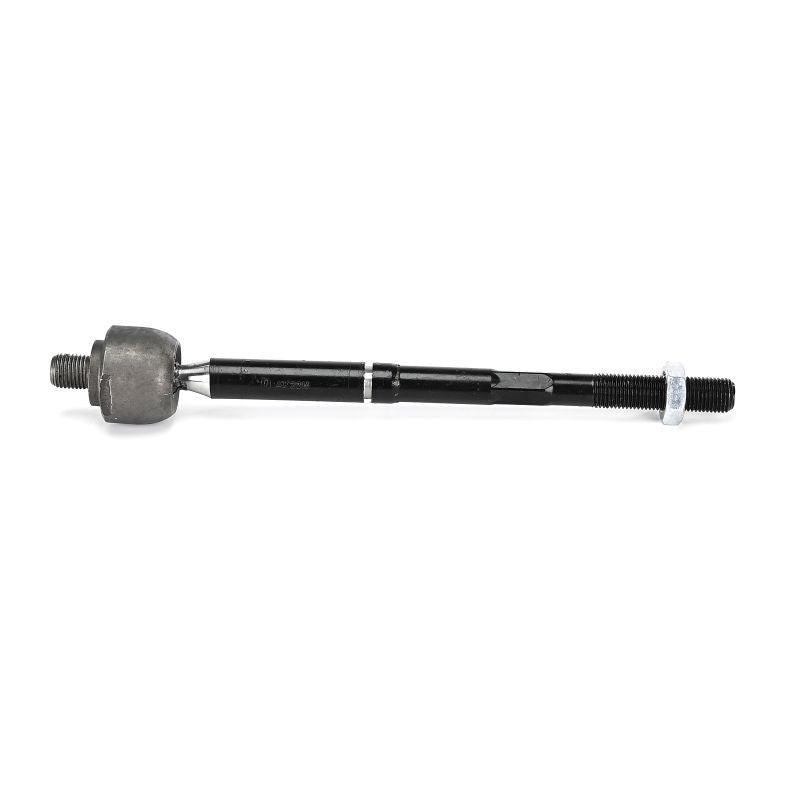

Delphi TA3717 Inner Tie Rod - 5

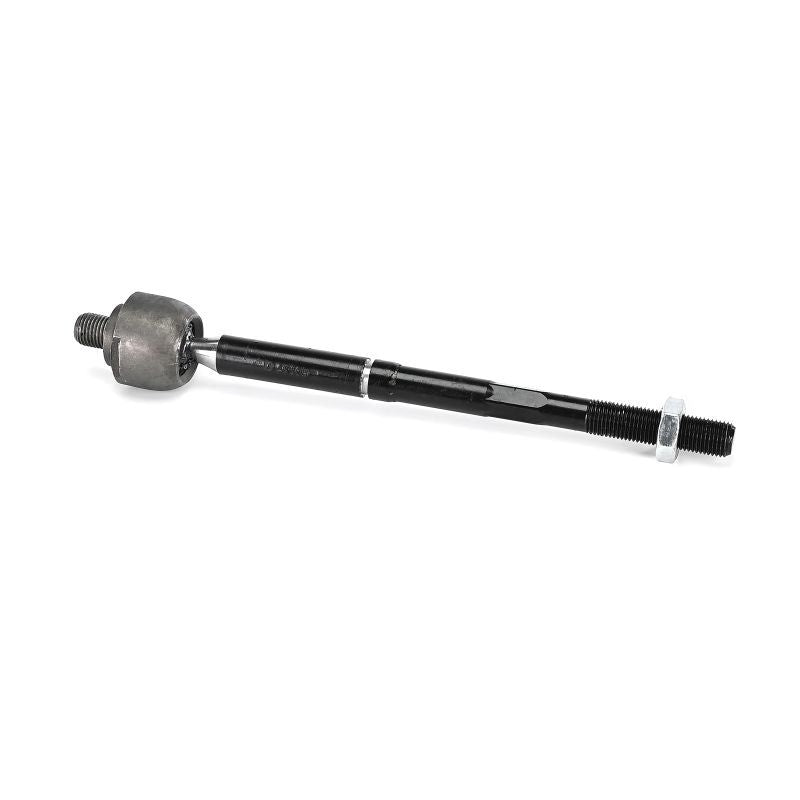

Delphi TA3717 Inner Tie Rod - 6
Delphi TA3717 Inner Tie Rod video
Delphi TA3717 Inner Tie Rod - 1
Delphi TA3717 Inner Tie Rod - 2
Delphi TA3717 Inner Tie Rod - 3
Delphi TA3717 Inner Tie Rod - 4
Delphi TA3717 Inner Tie Rod - 5
Delphi TA3717 Inner Tie Rod - 6
Delphi TA3717 Inner Tie Rod video
DELPHI

Delphi TA3717 Inner Tie Rod

SKU: TA3717
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£20.62 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
3 Saloon (BP_)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G M Hybrid 1998 CCM 122 HP From 11/2018
1.8 SKYACTIV-D (BP8P) 1759 CCM 116 HP From 01/2019
1.5 SKYACTIV-G (BP5S, BP6S) 1496 CCM 120 HP From 11/2018
2.0 SKYACTIV-X M Hybrid (BP2S) 1998 CCM 179 HP From 06/2019
2.0 SKYACTIV-G M Hybrid (BP5S, BP6S) 1998 CCM 150 HP From 07/2020
2.0 SKYACTIV-X M Hybrid 1998 CCM 186 HP From 02/2021
2.5 e-SKYACTIV-G (BP5S) 2488 CCM 140 HP From 06/2024
3 Hatchback (BP)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G M Hybrid 1998 CCM 122 HP From 11/2018
1.8 SKYACTIV-D (BP8P) 1759 CCM 116 HP From 01/2019
1.5 SKYACTIV-G (BP5H, BP6H) 1496 CCM 120 HP From 06/2019
SKYACTIV-X M Hybrid (BP2H) 1998 CCM 179 HP From 06/2019
SKYACTIV-X M Hybrid AWD (BP2H) 1998 CCM 179 HP From 06/2019
2.0 SKYACTIV-G (BP5H, BP6H) 1998 CCM 150 HP From 11/2018
2.0 SKYACTIV-G M Hybrid 1998 CCM 150 HP From 01/2020
SKYACTIV-X M Hybrid 1998 CCM 186 HP From 02/2021
SKYACTIV-X M Hybrid AWD 1998 CCM 186 HP From 02/2021
2.5 e-SKYACTIV-G (BP5H) 2488 CCM 140 HP From 06/2024

The Delphi TA3717 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,5 thread size 1, M14 x 1.5 thread size 2, front axle fitting position, and 266.5 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M14 x 1,5
Thread Size 2 : M14 x 1.5
Fitting Position : Front Axle
Length [mm] : 266.5
Width [mm] : 38
Height [mm] : 38
Axle Joint Length [mm] : 250
  • Vendor DELPHI
  • SKU TA3717
  • Barcode 5012759617632
  • MAZDA : BCKA32240
  • MONROE : L50H03
