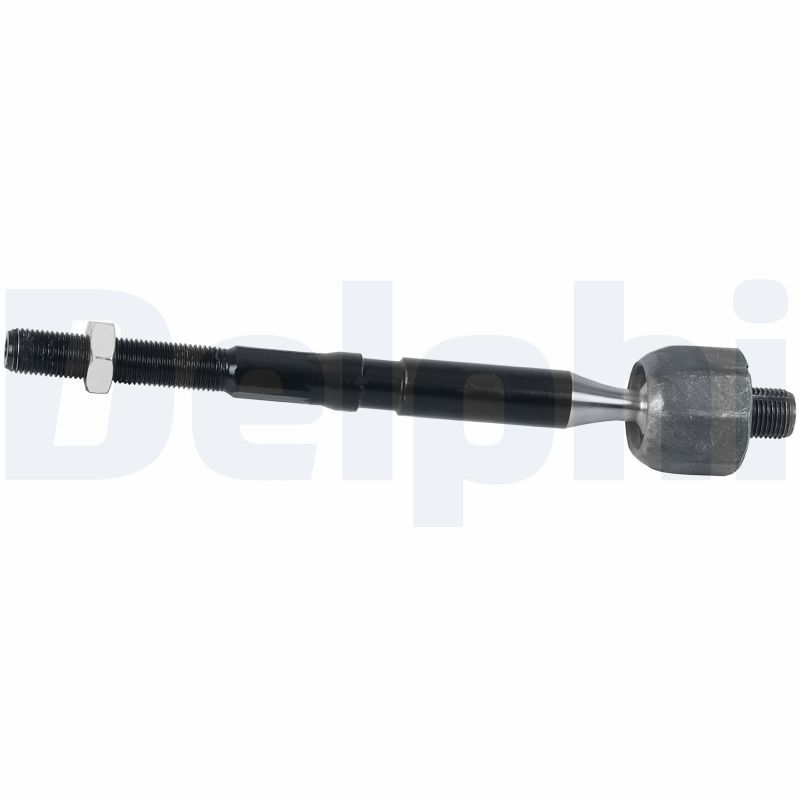

Delphi TA3733 Inner Tie Rod - 1

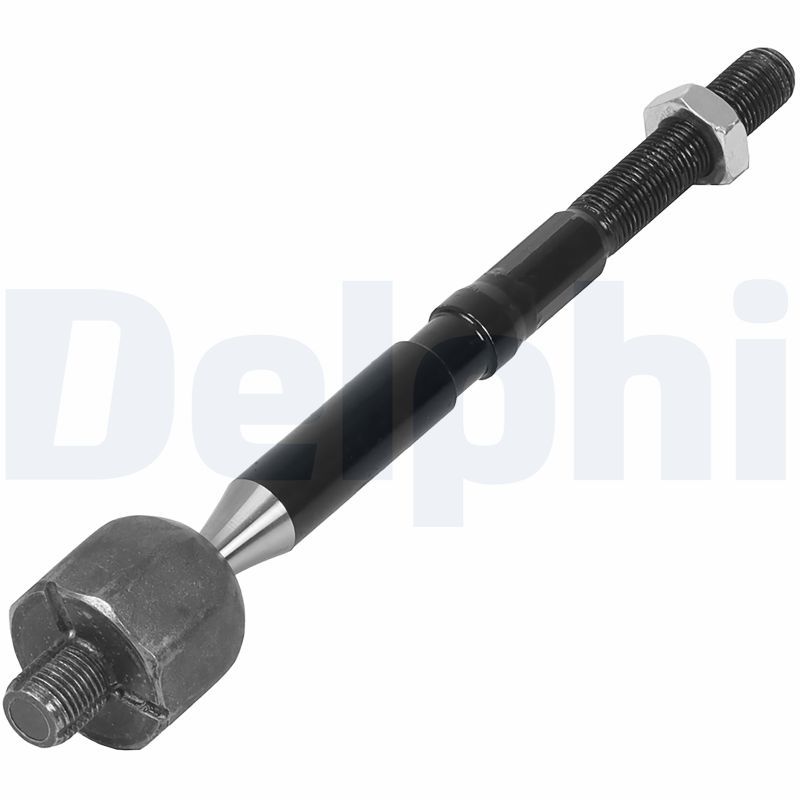

Delphi TA3733 Inner Tie Rod - 2

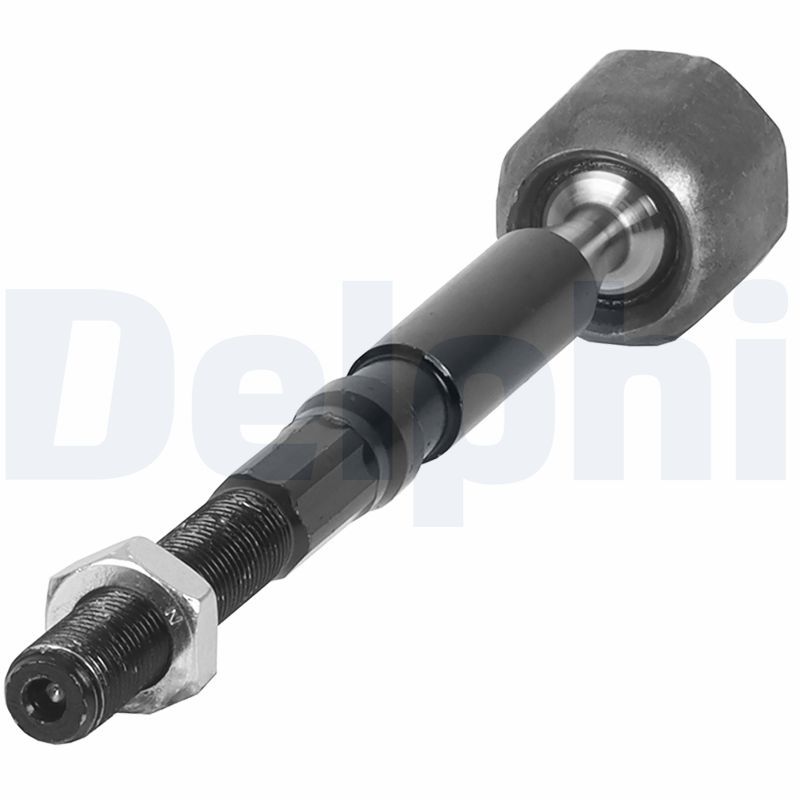

Delphi TA3733 Inner Tie Rod - 3

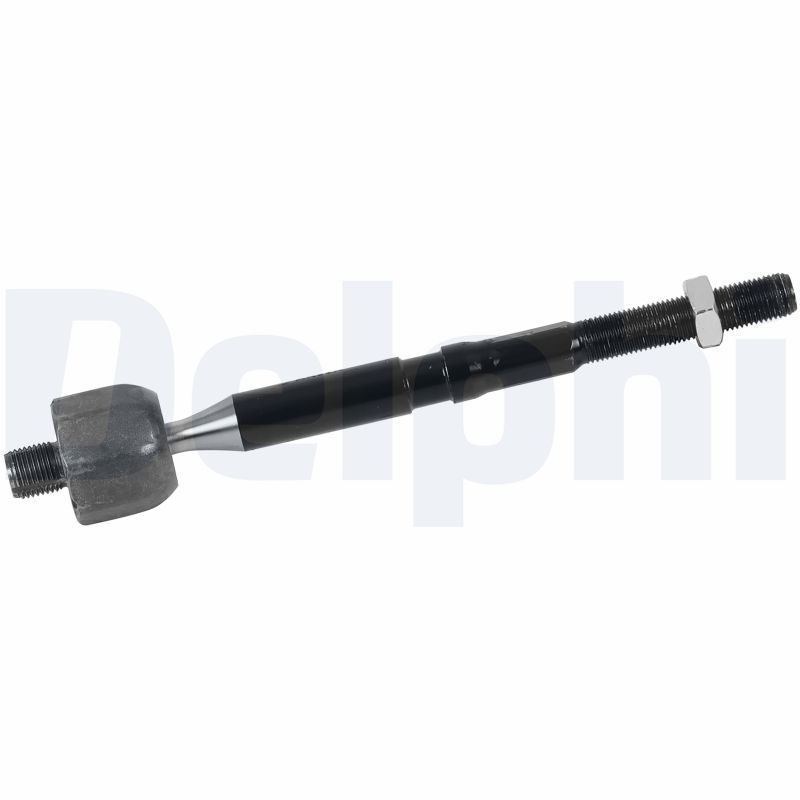

Delphi TA3733 Inner Tie Rod - 4
Delphi TA3733 Inner Tie Rod - 5
Delphi TA3733 Inner Tie Rod - 6
Delphi TA3733 Inner Tie Rod video
Delphi TA3733 Inner Tie Rod - 1
Delphi TA3733 Inner Tie Rod - 2
Delphi TA3733 Inner Tie Rod - 3
Delphi TA3733 Inner Tie Rod - 4
Delphi TA3733 Inner Tie Rod - 5
Delphi TA3733 Inner Tie Rod - 6
Delphi TA3733 Inner Tie Rod video
DELPHI

Delphi TA3733 Inner Tie Rod

SKU: TA3733
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£23.27 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
2 Hatchback (DL, DJ)
Description Cylinder Capacity Horse Power Year
1.5 D (DJ5FS) 1499 CCM 105 HP From 08/2014
1.5 SKYACTIV-G (DJLFS) 1496 CCM 115 HP From 08/2014
1.5 1496 CCM 75 HP From 08/2014
1.5 SKYACTIV-G 1496 CCM 90 HP From 08/2014
1.5 (DJ2HA) 1496 CCM 107 HP From 11/2014
1.5 SKYACTIV-G M Hybrid 1496 CCM 90 HP From 08/2019
1.5 SKYACTIV-G M Hybrid 1496 CCM 75 HP From 08/2019
1.5 E-SKYACTIV G 1496 CCM 116 HP From 10/2021

The Delphi TA3733 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1,5 thread size 1, M14 x 1.5 thread size 2, front axle fitting position, and 244 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M16 x 1,5
Thread Size 2 : M14 x 1.5
Fitting Position : Front Axle
Length [mm] : 244
Width [mm] : 40
Height [mm] : 40
Axle Joint Length [mm] : 227
  • Vendor DELPHI
  • SKU TA3733
  • Barcode 5012759617793
  • MAZDA : D09H32240
  • BORG & BECK : BTR6067
  • FIRST LINE : FTR6067
