DELPHI

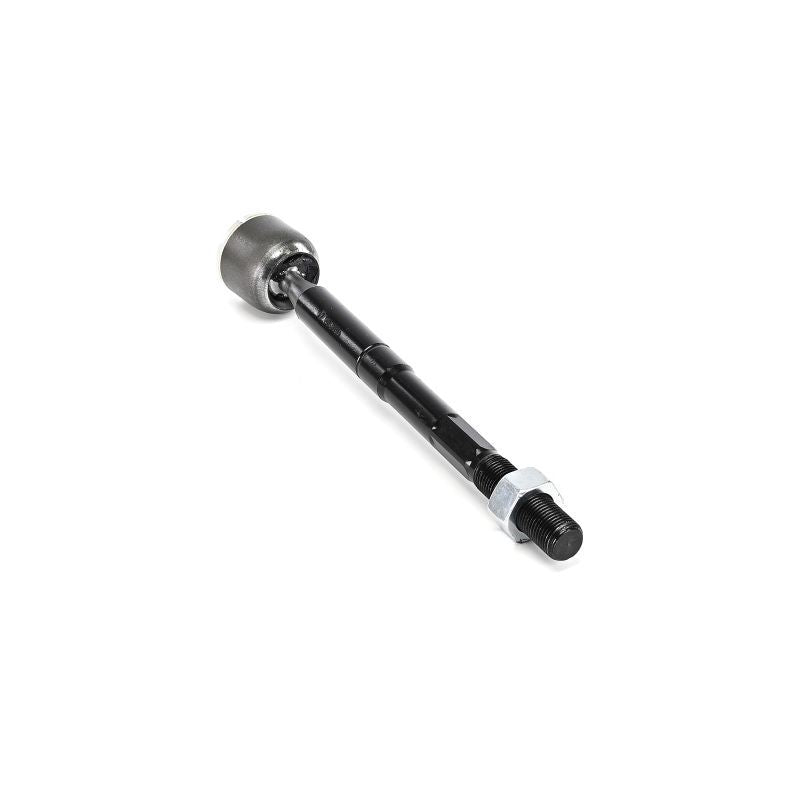

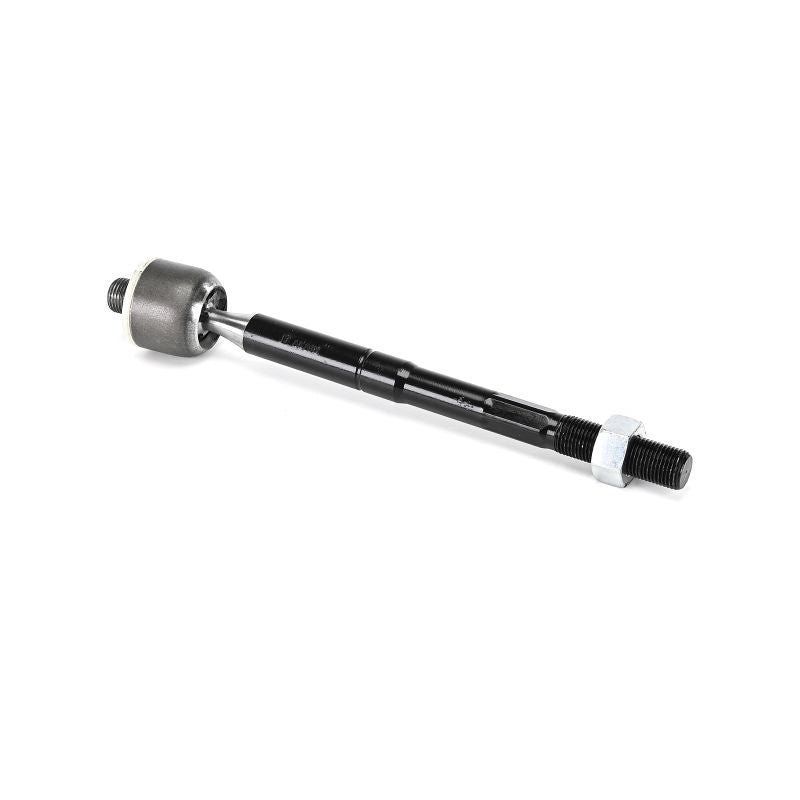

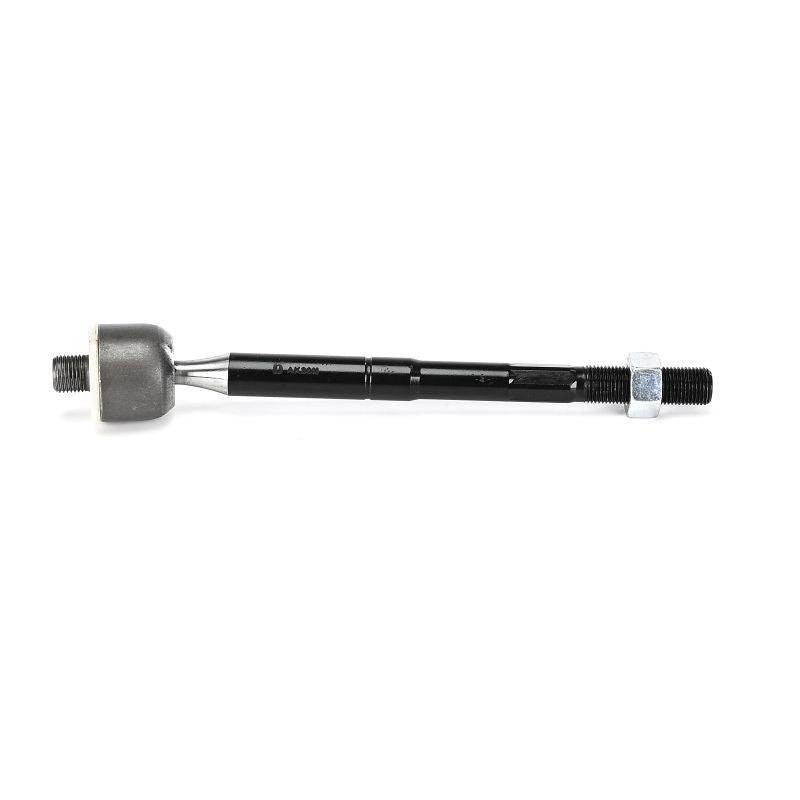

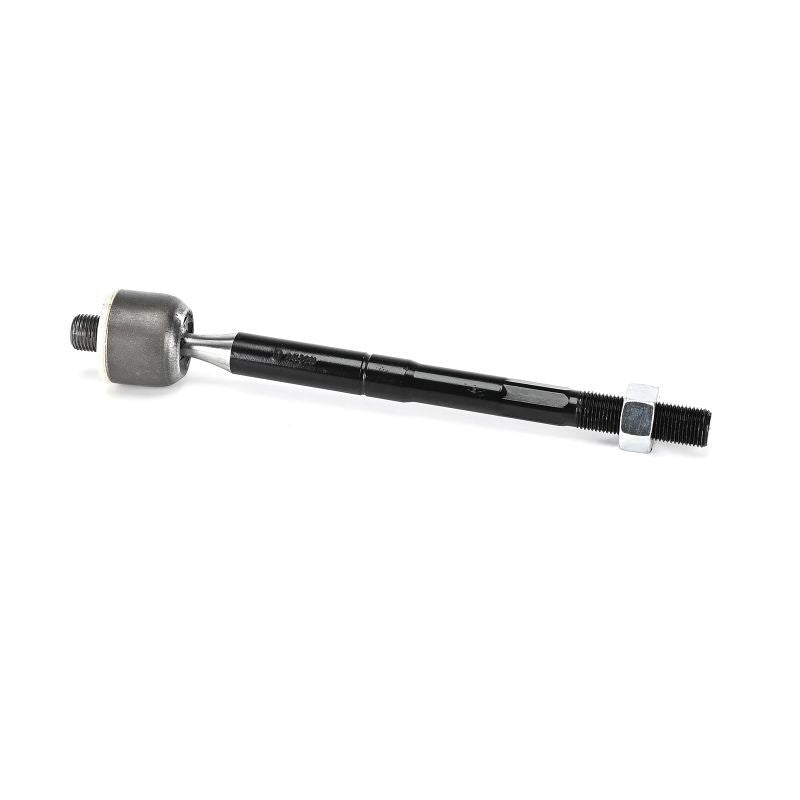

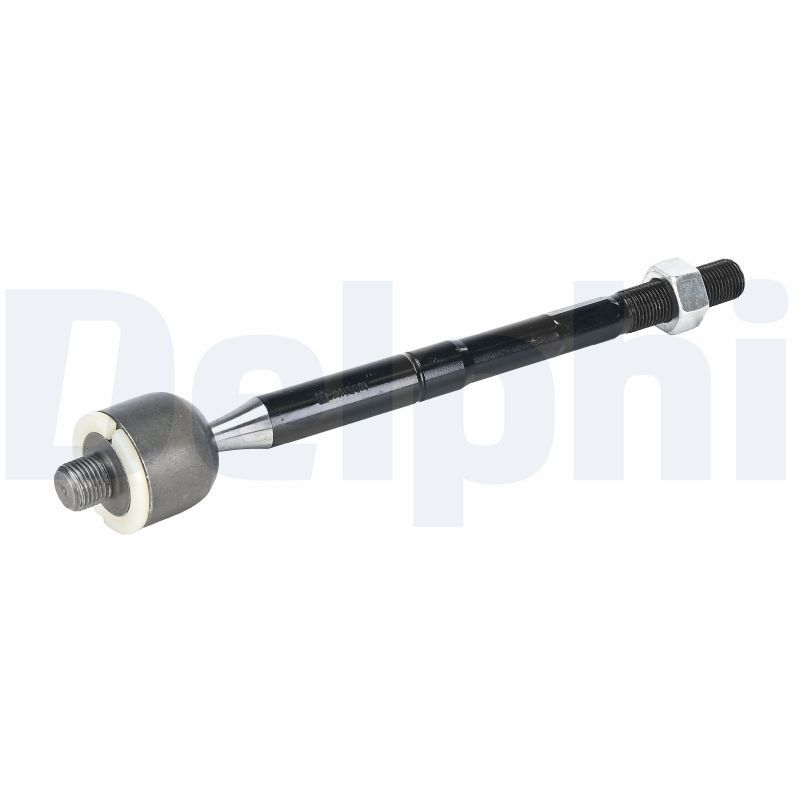

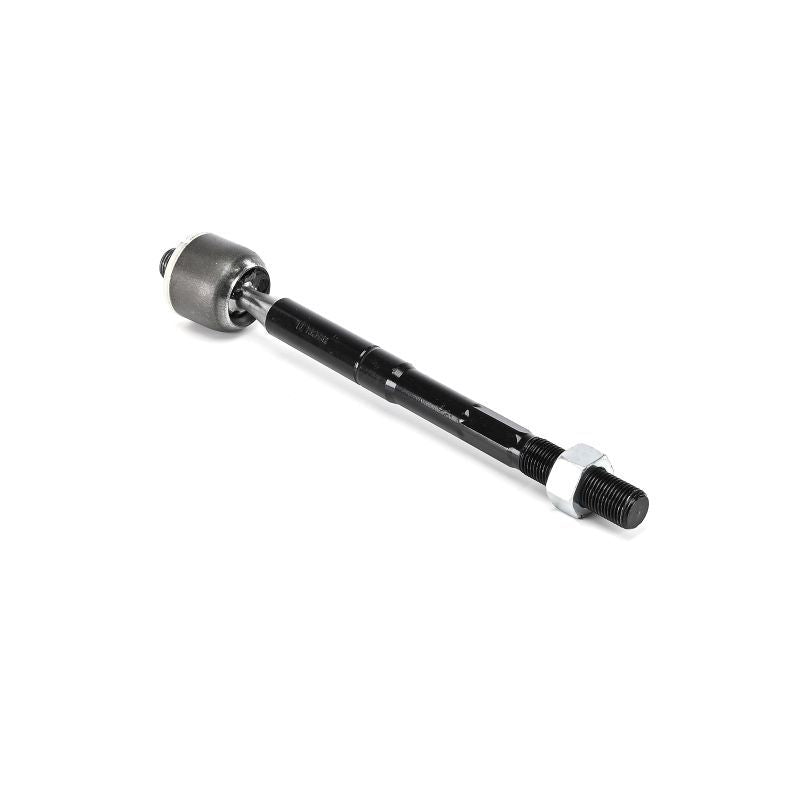

Delphi TA3740 Inner Tie Rod

SKU: TA3740
Your selected vehicle
Out of stock
Out of Stock
£24.54 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
SANTA FE IV (TM, TMA)
Description Cylinder Capacity Horse Power Year
2.0 CRDi AWD 1995 CCM 186 HP 02/2018 - 07/2020
2.2 CRDi AWD 2199 CCM 200 HP 07/2018 - 11/2020
2.4 AWD 2359 CCM 173 HP 07/2018 - 07/2020
2.4 GDI AWD 2359 CCM 185 HP 07/2018 - 07/2020
2.0 CRDi AWD 1995 CCM 150 HP 07/2018 - 07/2020
2.4 GDI AWD 2359 CCM 188 HP 07/2018 - 07/2020
3.5 MPI AWD 3470 CCM 249 HP 07/2019 - 07/2020
KIA
SORENTO III (UM)
Description Cylinder Capacity Horse Power Year
2.2 CRDi 4WD 2199 CCM 200 HP 01/2015 - 08/2020
3.5 D-CVVT 4WD 3470 CCM 249 HP 12/2018 - 12/2020

The Delphi TA3740 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1,5 thread size 1, M16 x 1.5 thread size 2, front axle fitting position, and 267.5 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M16 x 1,5
Thread Size 2 : M16 x 1.5
Fitting Position : Front Axle
Length [mm] : 267.5
Width [mm] : 40
Height [mm] : 40
Axle Joint Length [mm] : 253
  • Vendor DELPHI
  • SKU TA3740
  • Barcode 5012759617861
  • HYUNDAI : 57724C5400
  • KIA : 57724C5400
  • BLUE PRINT : ADBP870098
  • BOSCH : 0 986 141 279
  • FEBI BILSTEIN : 193638
