DELPHI

Delphi TA3756 Inner Tie Rod

SKU: TA3756

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£21.17 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD

ECOSPORT

Description	Cylinder Capacity	Horse Power	Year
1.0 EcoBoost	998 CCM	125 HP	From 10/2013
1.5 Ti	1498 CCM	112 HP	From 10/2013
1.5 TDCi	1499 CCM	90 HP	From 10/2013
1.6 Ti-VCT	1596 CCM	122 HP	From 08/2012
1.5 EcoBlue TDCi	1499 CCM	95 HP	From 05/2015
1.0 EcoBoost	998 CCM	140 HP	From 03/2016
1.5 Ti-VCT	1498 CCM	110 HP	10/2013 - 06/2022
2.0 Ti-VCT 4x4	1999 CCM	150 HP	From 10/2018
1.5 TDCi EcoBlue	1499 CCM	120 HP	From 11/2019
1.5 EcoBlue TDCi	1499 CCM	100 HP	From 11/2017
1.0 EcoBoost	998 CCM	95 HP	From 04/2020

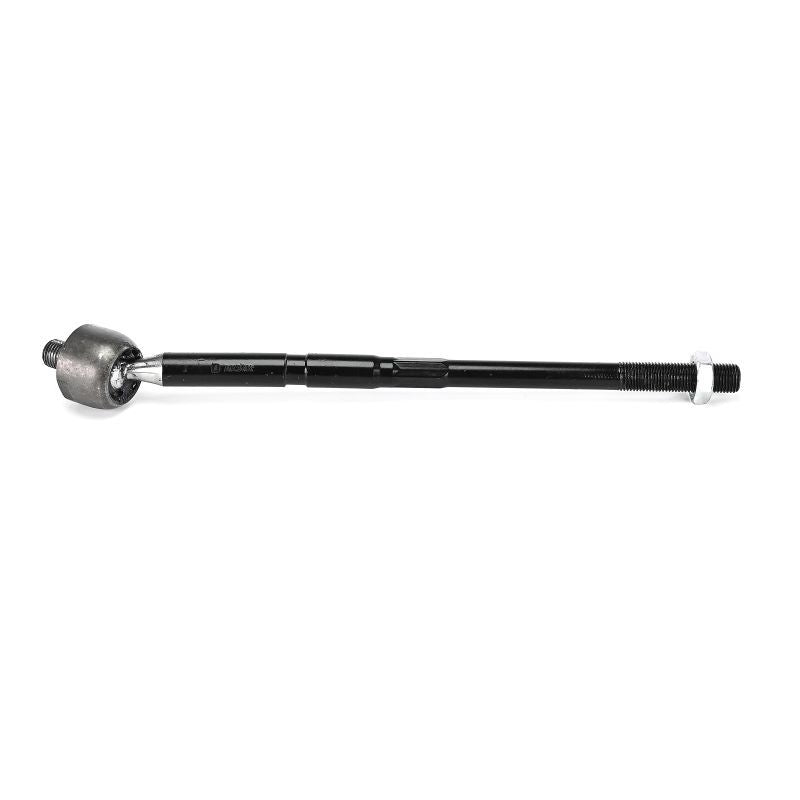

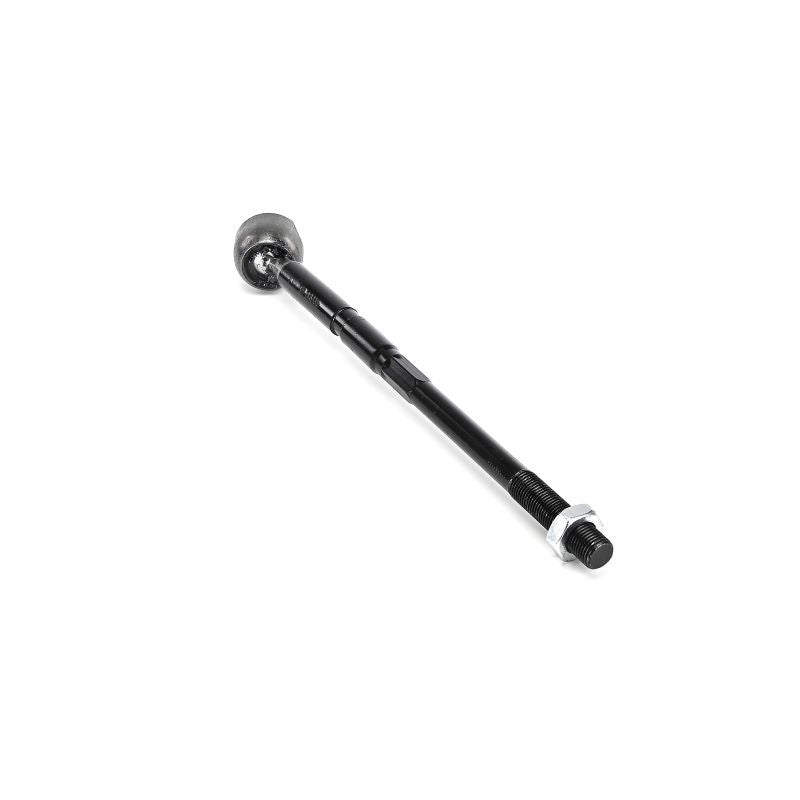

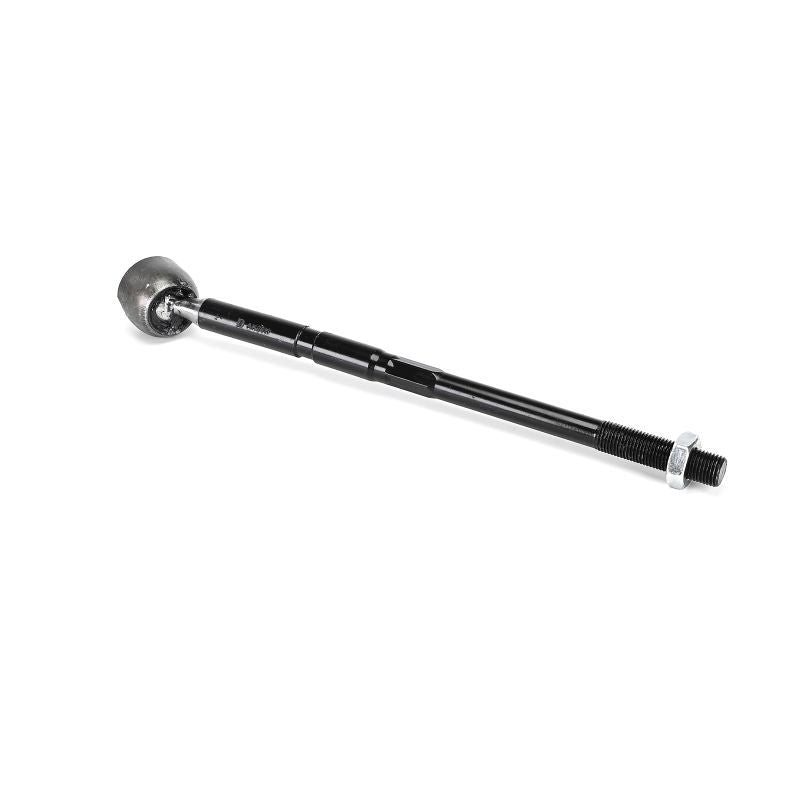

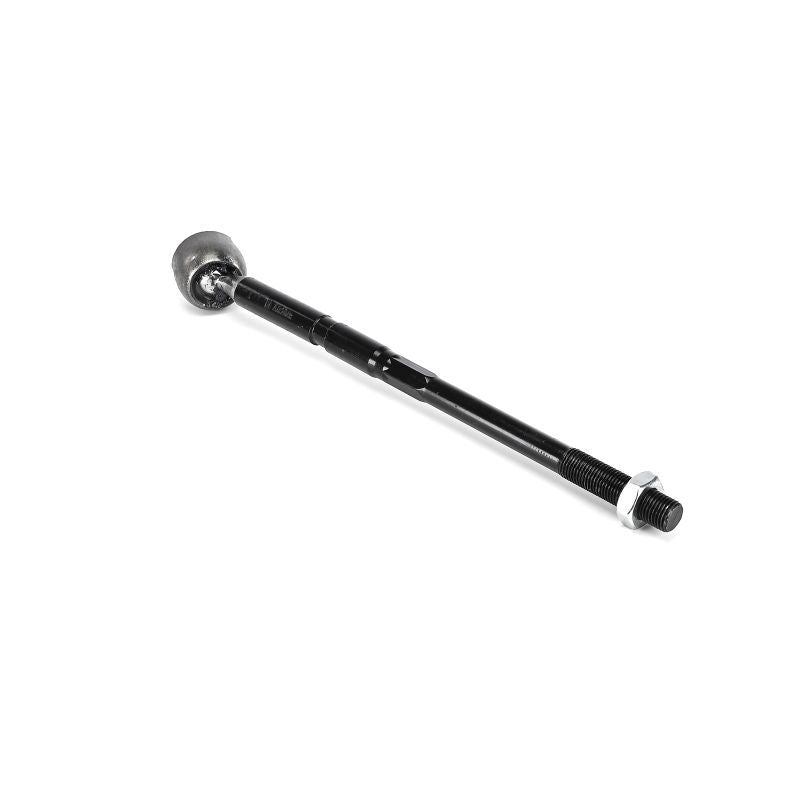

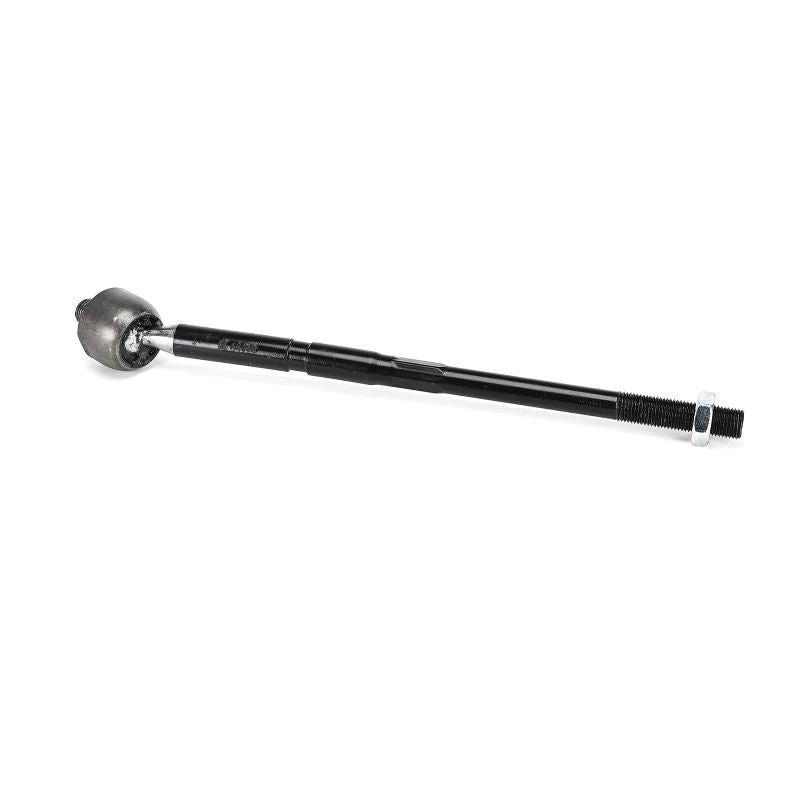

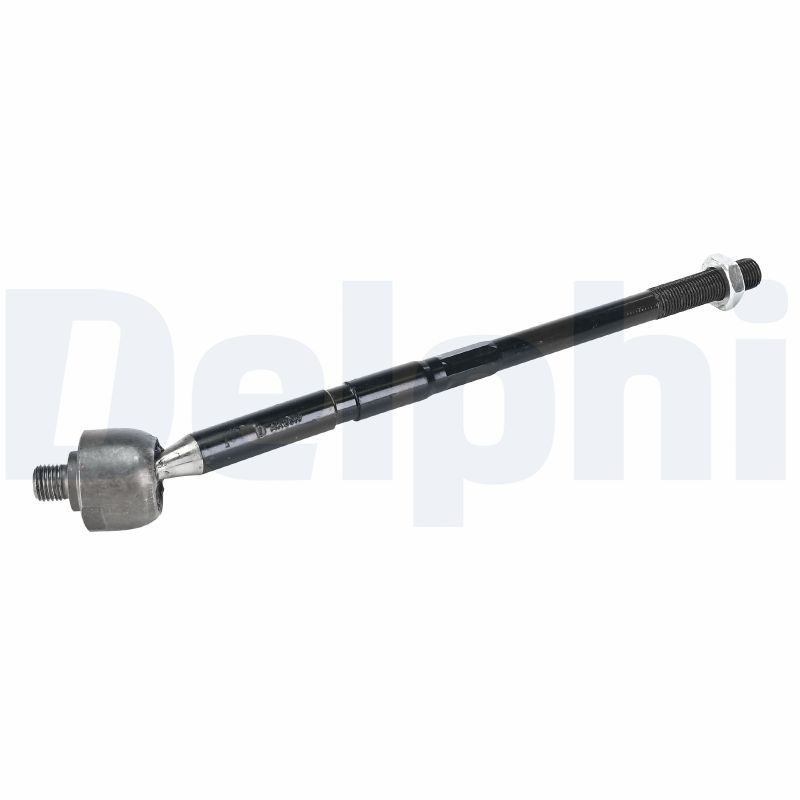

The Delphi TA3756 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,5 thread size 1, M14 x 1.5 thread size 2, front axle fitting position, and 325.5 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod

Thread Size 1 : M14 x 1,5

Thread Size 2 : M14 x 1.5

Fitting Position : Front Axle

Length [mm] : 325.5

Width [mm] : 37

Height [mm] : 37

Axle Joint Length [mm] : 312

Delphi TA3756 Inner Tie Rod
