DELPHI

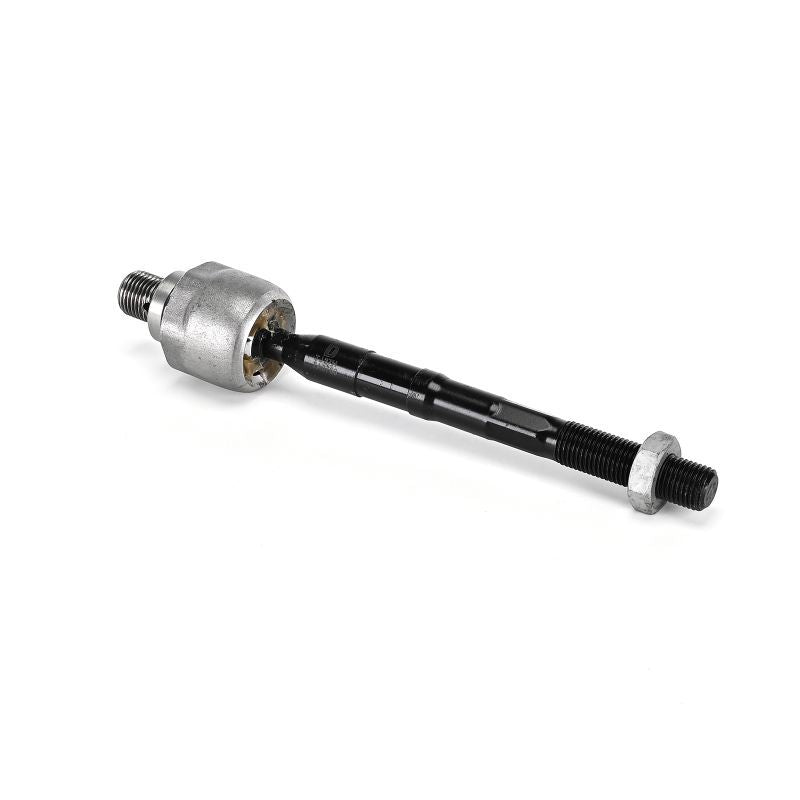

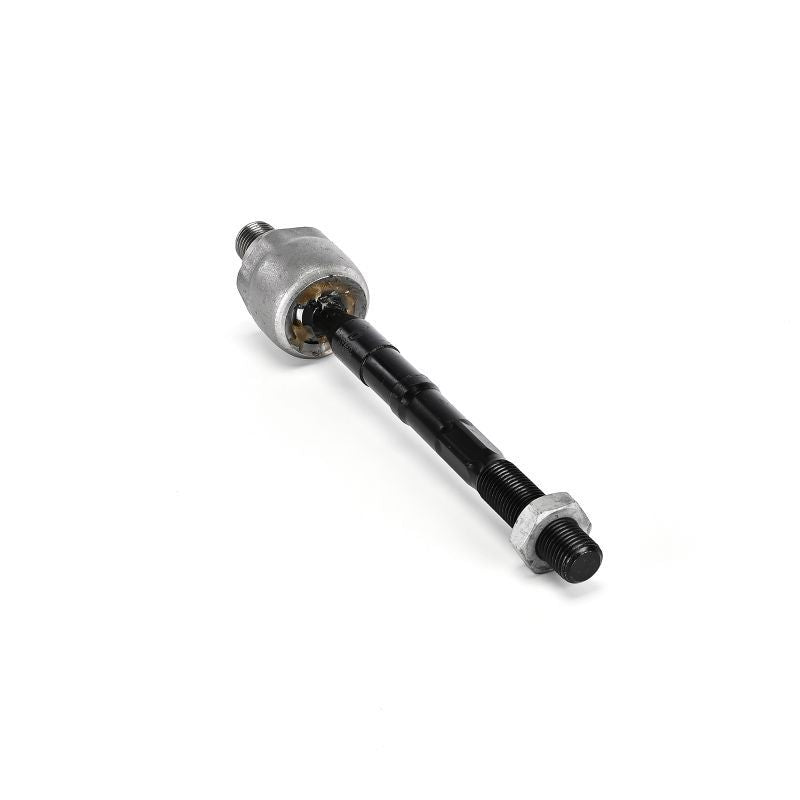

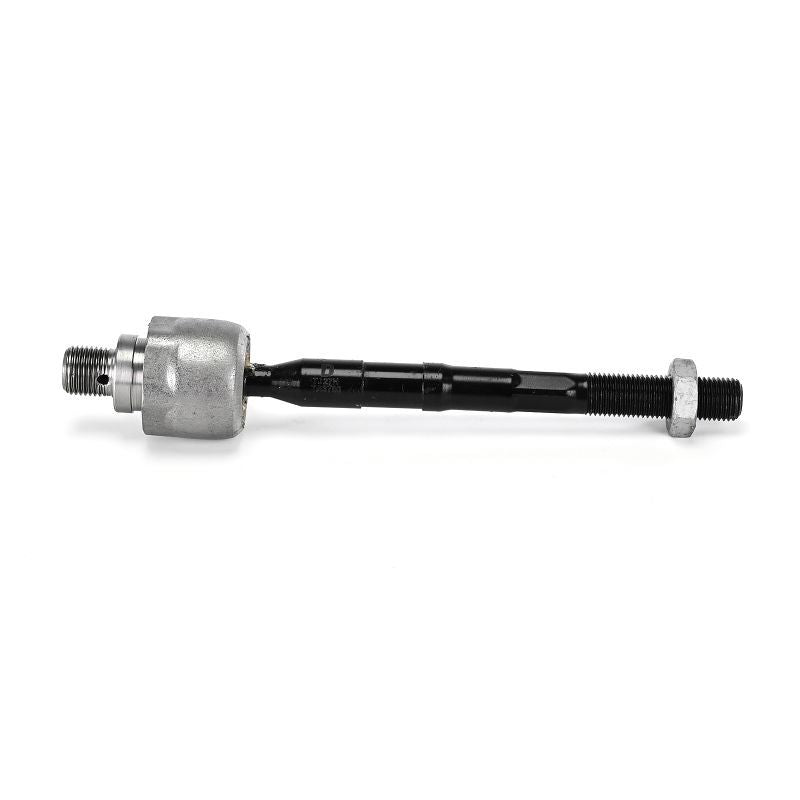

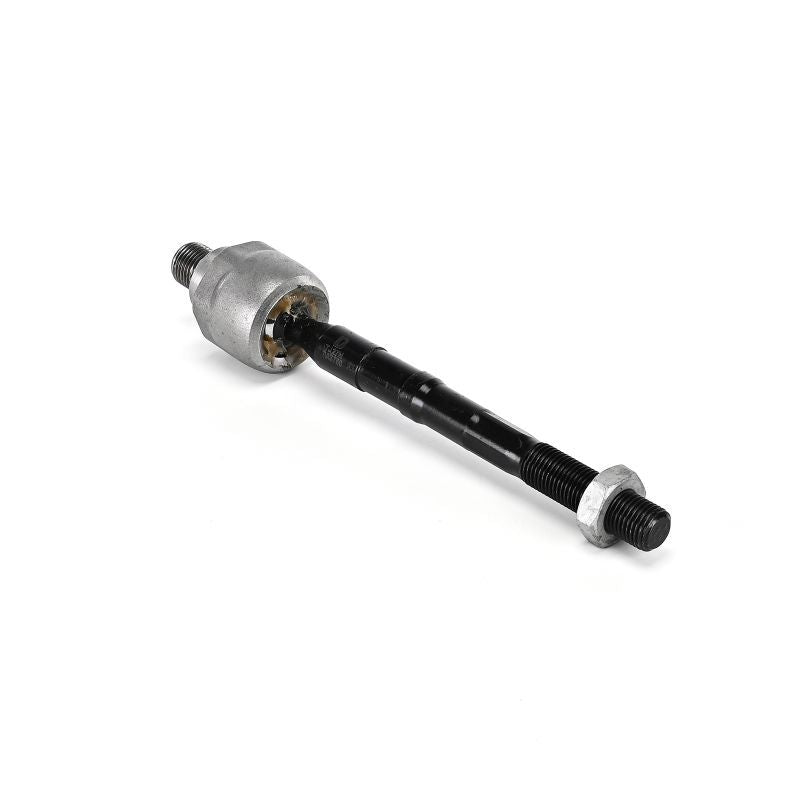

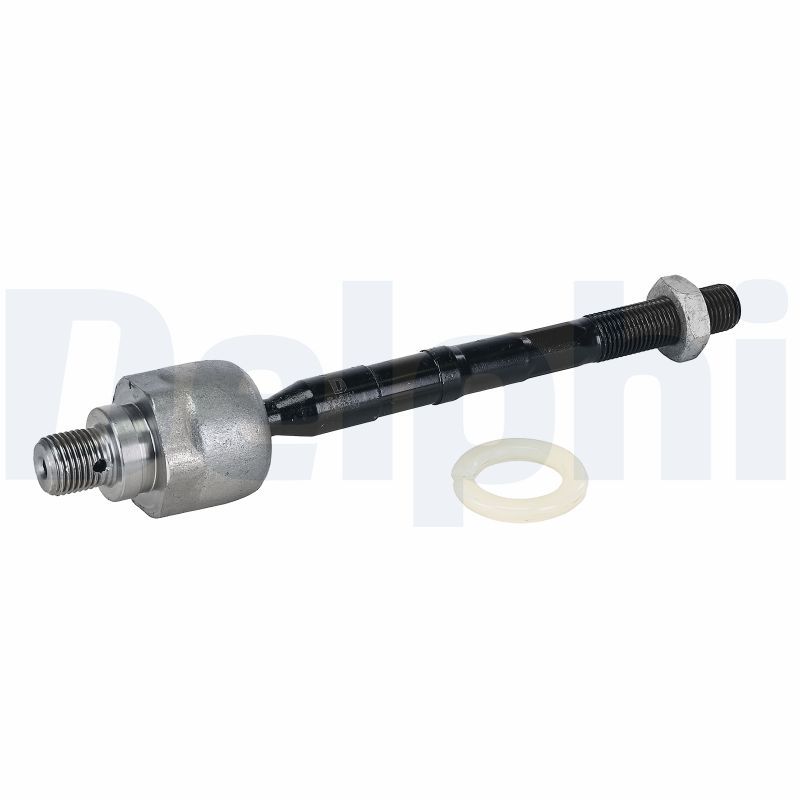

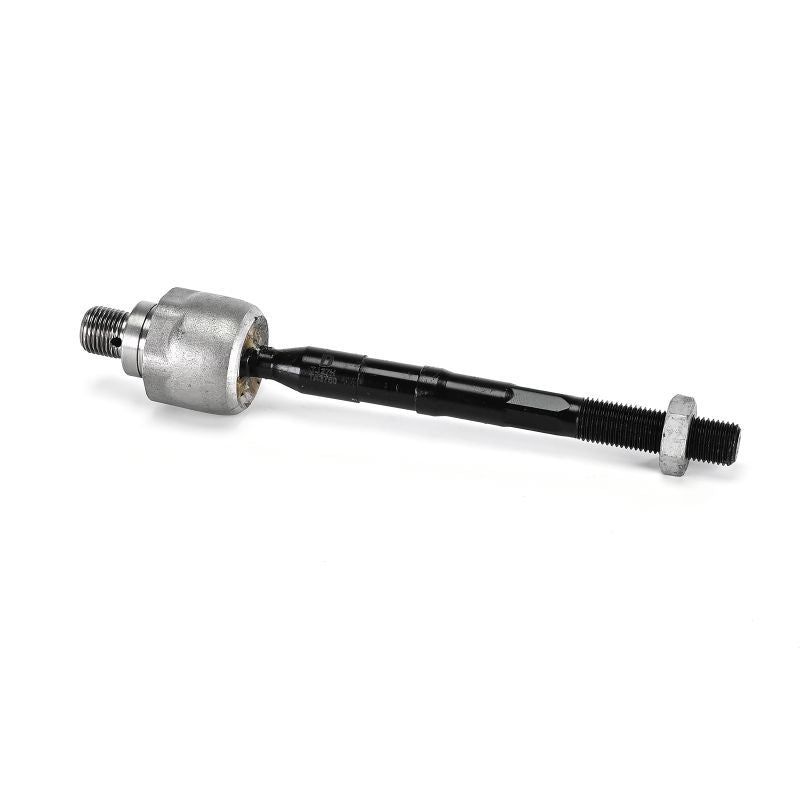

Delphi TA3760 Inner Tie Rod

SKU: TA3760
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£20.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

KIA
PICANTO II (TA)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 69 HP 05/2011 - 03/2017
1.0 Bi-Fuel 998 CCM 82 HP 05/2011 - 10/2014
1.2 1248 CCM 85 HP 05/2011 - 12/2016
1.0 998 CCM 67 HP 05/2011 - 03/2017
1.2 1248 CCM 87 HP 09/2011 - 02/2017

The Delphi TA3760 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1,5 thread size 1, M14 x 1.5 thread size 2, front axle fitting position, and 211.5 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M16 x 1,5
Thread Size 2 : M14 x 1.5
Fitting Position : Front Axle
Length [mm] : 211.5
Width [mm] : 38
Height [mm] : 38
Axle Joint Length [mm] : 196
  • Vendor DELPHI
  • SKU TA3760
  • Barcode 5012759618066
  • KIA : 577241Y600
  • BORG & BECK : BTR5973
  • FIRST LINE : FTR5973
