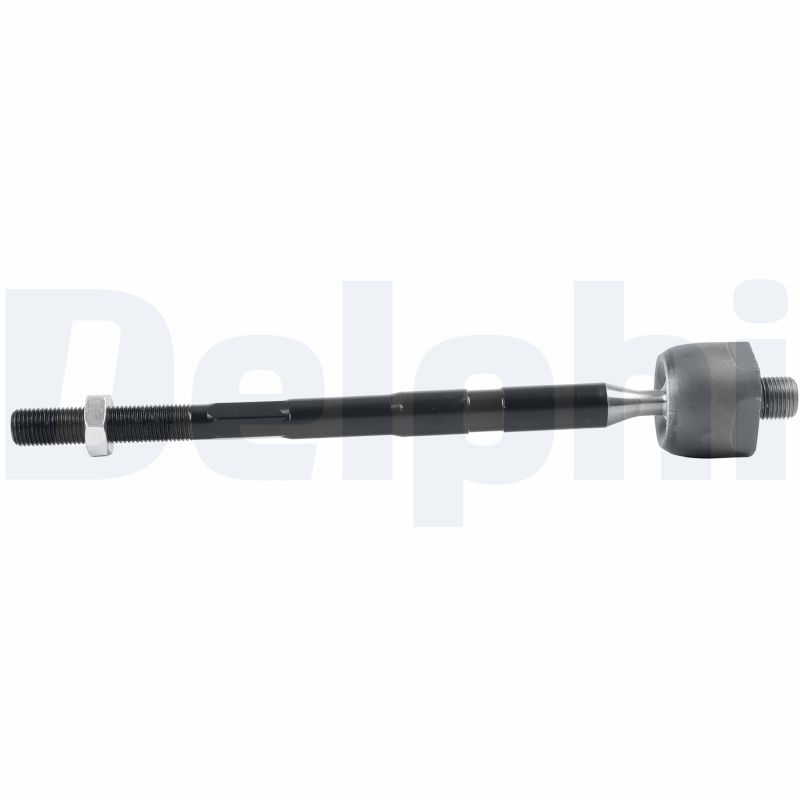

Delphi TA3780 Inner Tie Rod - 1

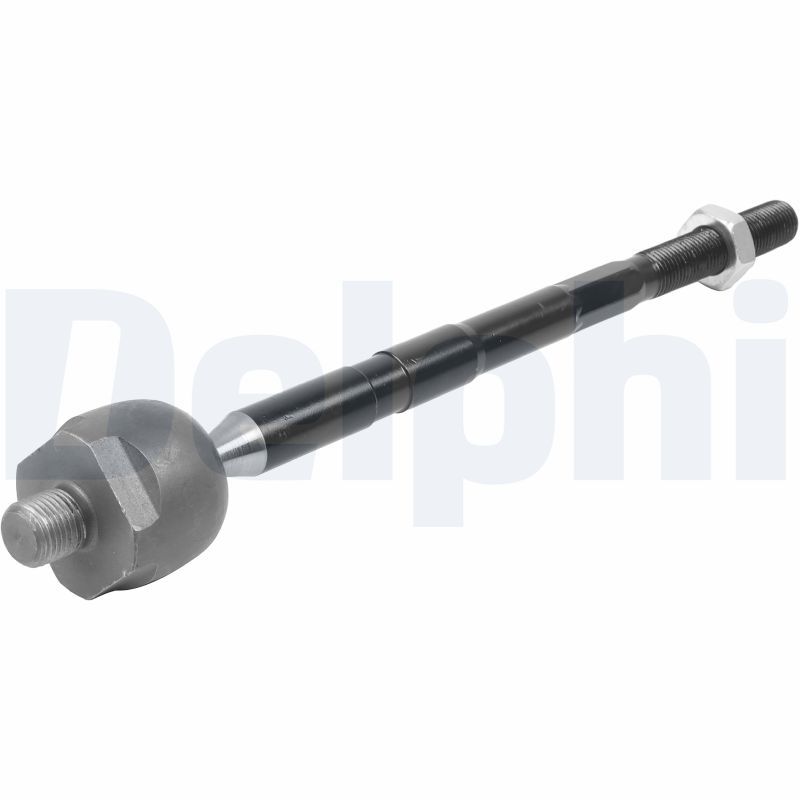

Delphi TA3780 Inner Tie Rod - 2

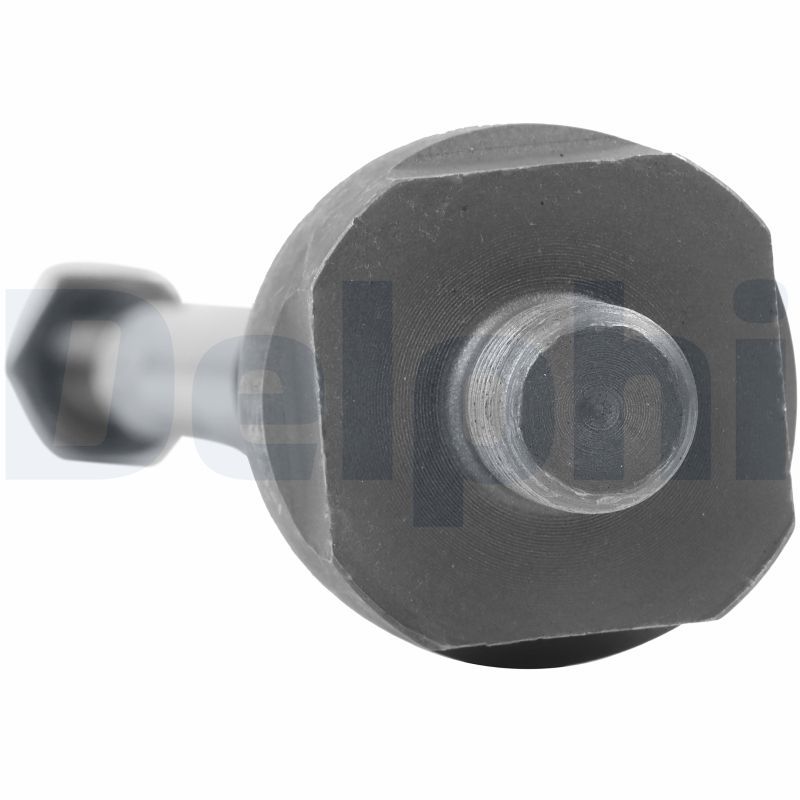

Delphi TA3780 Inner Tie Rod - 3

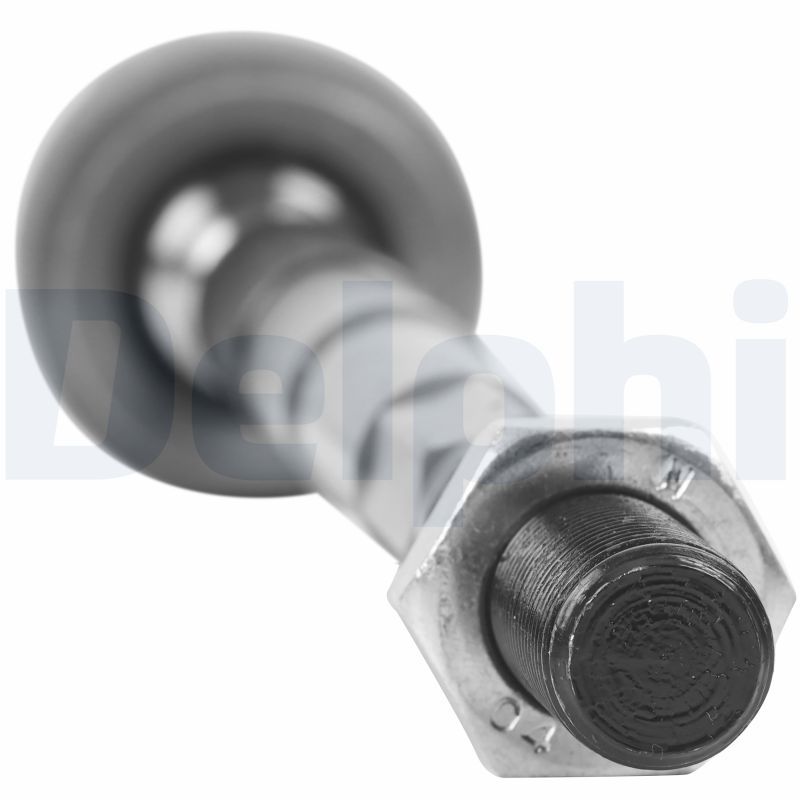

Delphi TA3780 Inner Tie Rod - 4
Delphi TA3780 Inner Tie Rod - 5
Delphi TA3780 Inner Tie Rod - 6
Delphi TA3780 Inner Tie Rod video
Delphi TA3780 Inner Tie Rod - 1
Delphi TA3780 Inner Tie Rod - 2
Delphi TA3780 Inner Tie Rod - 3
Delphi TA3780 Inner Tie Rod - 4
Delphi TA3780 Inner Tie Rod - 5
Delphi TA3780 Inner Tie Rod - 6
Delphi TA3780 Inner Tie Rod video
DELPHI

Delphi TA3780 Inner Tie Rod

SKU: TA3780
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£22.85 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

The Delphi TA3780 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1,5 thread size 1, M14 x 1.5 thread size 2, front axle fitting position, and 282.8 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M16 x 1,5
Thread Size 2 : M14 x 1.5
Fitting Position : Front Axle
Length [mm] : 282.8
Width [mm] : 42
Height [mm] : 42
Axle Joint Length [mm] : 267
  • Vendor DELPHI
  • SKU TA3780
  • Barcode 5012759618264
  • MAZDA : TK4832240
  • User manual
