Delphi TA3807 Inner Tie Rod - 1
Delphi TA3807 Inner Tie Rod video
Delphi TA3807 Inner Tie Rod - 1
Delphi TA3807 Inner Tie Rod video
DELPHI

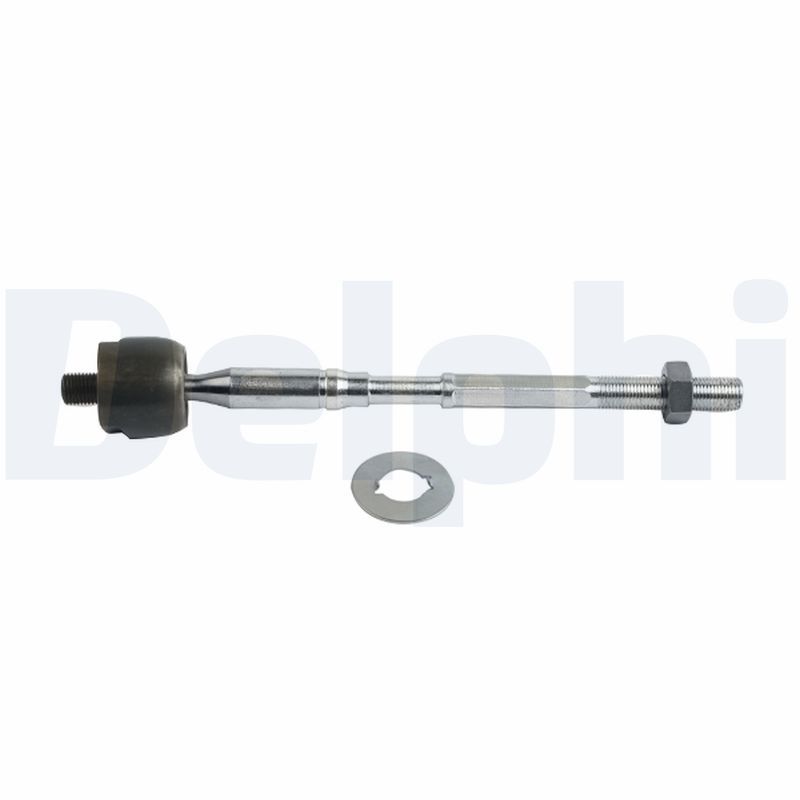

Delphi TA3807 Inner Tie Rod

SKU: TA3807
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£25.68 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
HIACE IV Bus (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.7 (TRH203, TRH213, TRH214, TRH224) 2694 CCM 151 HP 01/2005 - 05/2019
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
3.0 D (KDH221, KDH201) 2982 CCM 136 HP From 05/2010
2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220) 2494 CCM 102 HP From 06/2004
3.0 D (KDH201, KDH203, KDH221) 2982 CCM 144 HP From 11/2008
2.5 D-4D 2494 CCM 95 HP From 09/2006
2.5 D-4D (KDH200, KDH202, KDH212, KDH222) 2494 CCM 117 HP From 09/2006
HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
3.0 D (KDH223) 2982 CCM 136 HP From 05/2010
2.5 D-4D (KDH202) 2494 CCM 102 HP From 09/2006
2.7 (TRH223) 2694 CCM 151 HP From 01/2005

The Delphi TA3807 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,5 thread size 1, M15 x 1,5 thread size 2, front axle fitting position, and 291 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M14 x 1,5
Thread Size 2 : M15 x 1,5
Fitting Position : Front Axle
Length [mm] : 291
Width [mm] : 43
Height [mm] : 43
Axle Joint Length [mm] : 175
  • Vendor DELPHI
  • SKU TA3807
  • Barcode 5012759818244
  • TOYOTA : 4550329836
  • BLUE PRINT : ADBP870009
  • FEBI BILSTEIN : 108830
  • TRW : JAR7553
