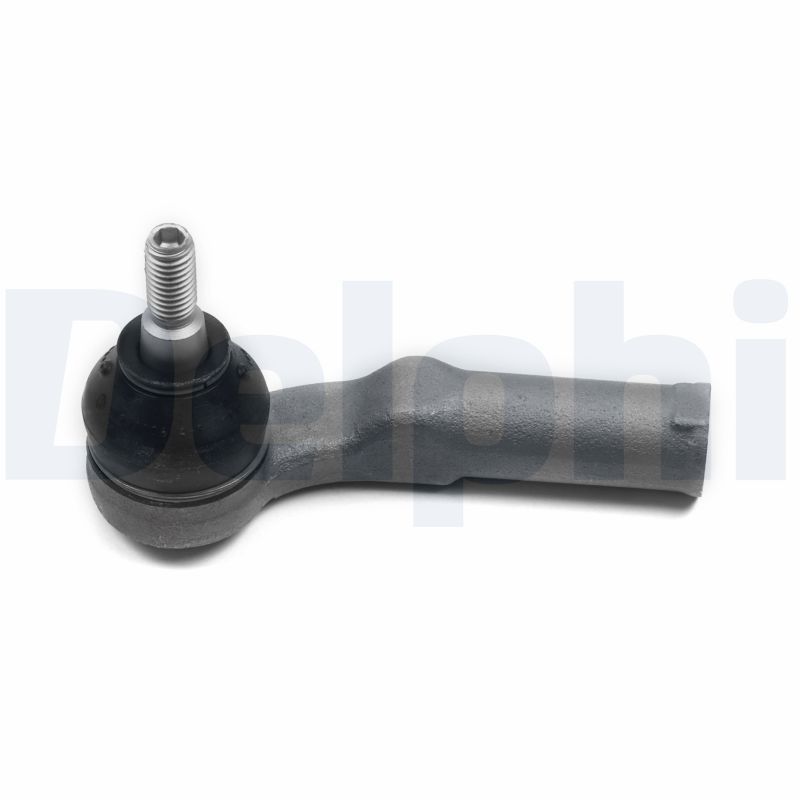

Delphi TA3831 Tie Rod End - 1
Delphi TA3831 Tie Rod End video
Delphi TA3831 Tie Rod End - 1
Delphi TA3831 Tie Rod End video
DELPHI

Delphi TA3831 Tie Rod End

SKU: TA3831
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£21.01 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV
Description Cylinder Capacity Horse Power Year
1.6 EcoBoost 1596 CCM 150 HP 11/2013 - 12/2022
1.6 TDCi 1560 CCM 95 HP 09/2013 - 12/2022
1.0 EcoBoost 998 CCM 100 HP 11/2013 - 12/2022
1.6 TDCi 1560 CCM 115 HP 09/2013 - 12/2022
1.6 TDCi 1560 CCM 75 HP 09/2013 - 12/2022
1.5 TDCi 1499 CCM 101 HP 05/2015 - 12/2022
1.5 TDCi 1499 CCM 75 HP 05/2015 - 12/2022
1.5 TDCi 1499 CCM 120 HP 05/2015 - 12/2022
1.5 EcoBlue 1499 CCM 120 HP 05/2018 - 12/2022
1.5 EcoBlue 1499 CCM 101 HP 05/2018 - 12/2022
1.5 EcoBlue 1499 CCM 75 HP 05/2018 - 12/2022
1.5 TDCi 1499 CCM 95 HP 08/2016 - 12/2022
TRANSIT CONNECT MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 75 HP From 09/2013
1.6 TDCi 1560 CCM 95 HP From 09/2013
1.6 TDCi 1560 CCM 115 HP From 09/2013
1.5 TDCi 1499 CCM 101 HP From 05/2015
1.5 TDCi 1499 CCM 120 HP From 05/2015
1.5 TDCi 1499 CCM 75 HP From 08/2015
1.5 EcoBlue 1499 CCM 101 HP From 05/2018
1.5 EcoBlue 1499 CCM 120 HP From 05/2018
1.5 EcoBlue 1499 CCM 75 HP From 05/2018
TRANSIT CONNECT V408 Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 115 HP From 09/2013
1.6 TDCi 1560 CCM 95 HP From 09/2013
1.6 TDCi 1560 CCM 75 HP From 09/2013
1.6 EcoBoost 1596 CCM 150 HP From 11/2013
1.0 EcoBoost 998 CCM 100 HP From 09/2013
1.5 TDCi 1499 CCM 101 HP From 05/2015
1.5 TDCi 1499 CCM 120 HP From 05/2015
1.5 TDCi 1499 CCM 75 HP From 08/2015
1.5 EcoBlue 1499 CCM 101 HP From 05/2018
1.5 EcoBlue 1499 CCM 120 HP From 05/2018
1.5 EcoBlue 1499 CCM 75 HP From 05/2018
1.0 Flexifuel 998 CCM 100 HP From 05/2021
1.5 TDCi 1499 CCM 95 HP From 03/2016

The Delphi TA3831 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 129 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16 x 1.5
Thread Type : with right-hand thread
Paired article number : TA3832
Fitting Position : Front Axle Left
Length [mm] : 129
Width [mm] : 49
Height [mm] : 78
  • Vendor DELPHI
  • SKU TA3831
  • Barcode 5012759636473
  • FORD : 2252870 KV6C3C437AA
  • FEBI BILSTEIN : 1001842
  • MONROE : L16G12
