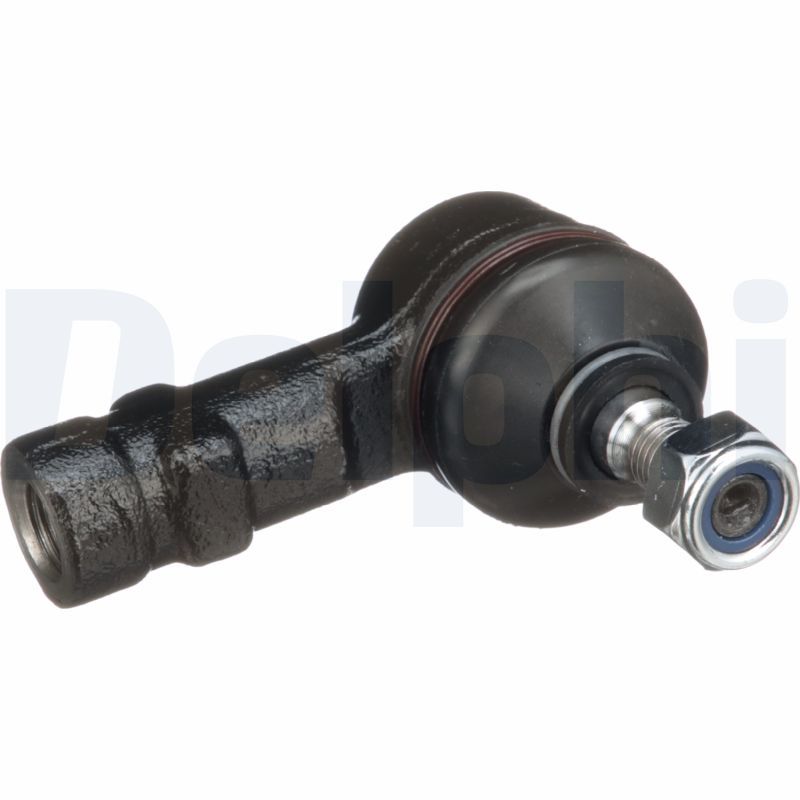

Delphi TA470 Tie Rod End - 1

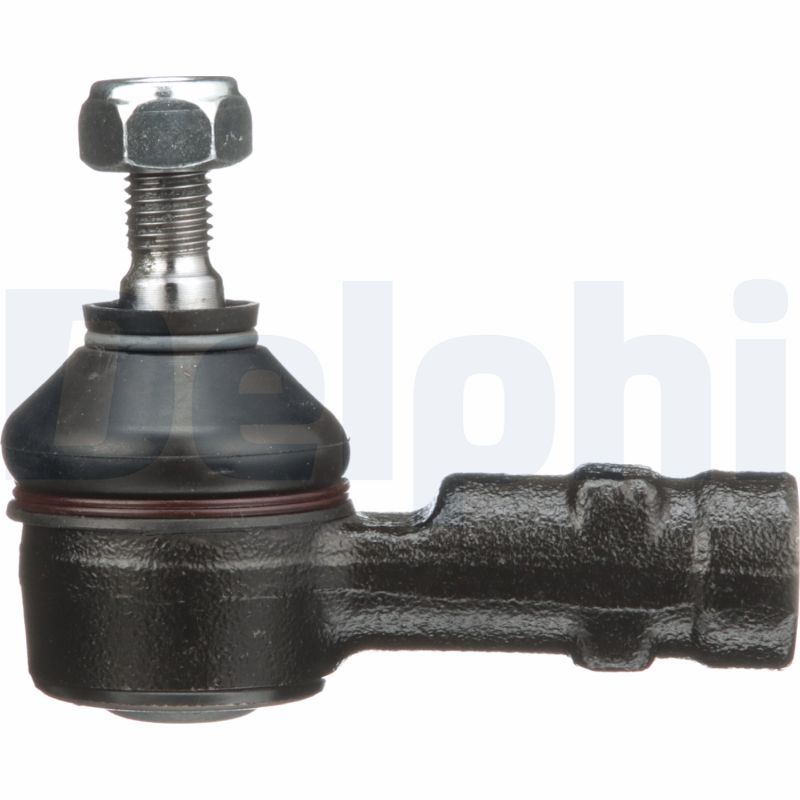

Delphi TA470 Tie Rod End - 2

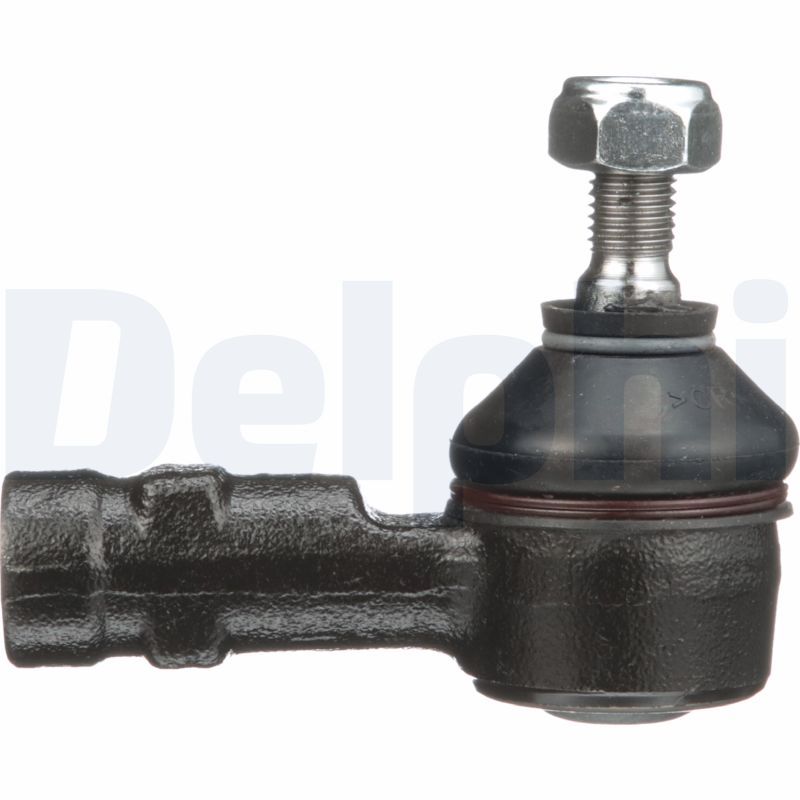

Delphi TA470 Tie Rod End - 3

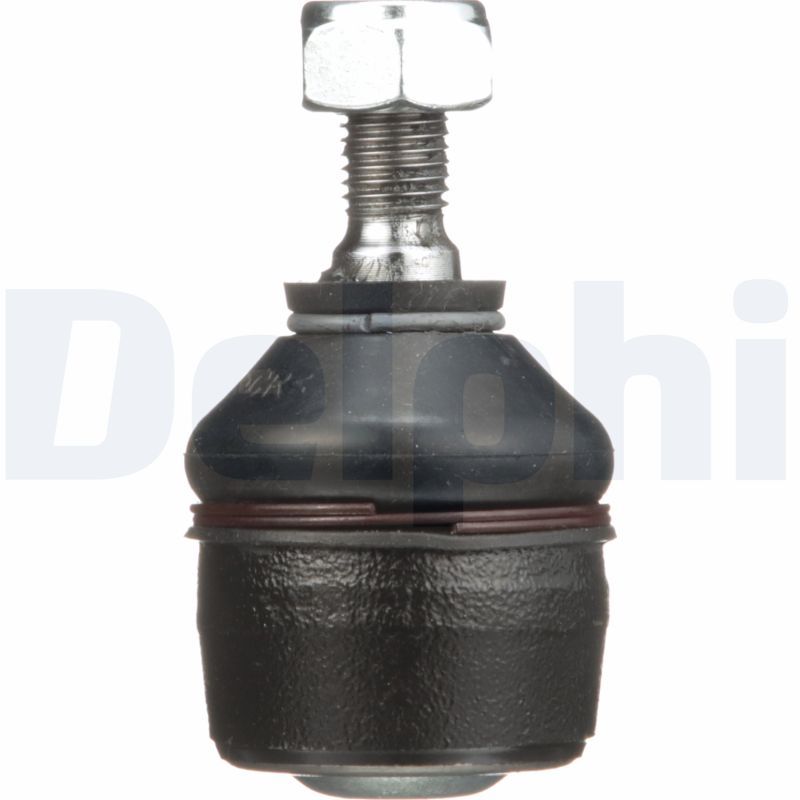

Delphi TA470 Tie Rod End - 4

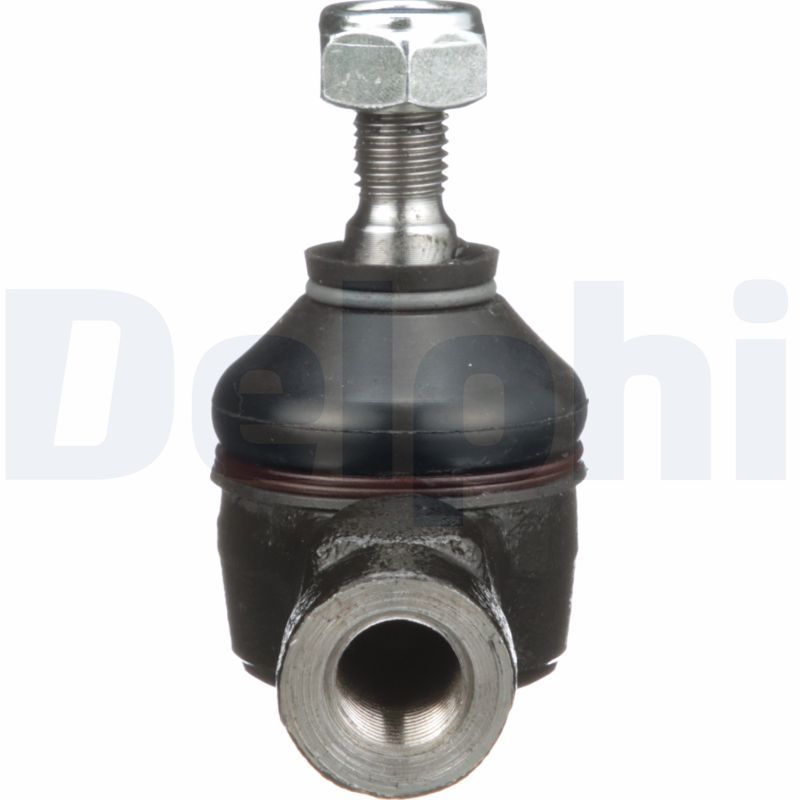

Delphi TA470 Tie Rod End - 5

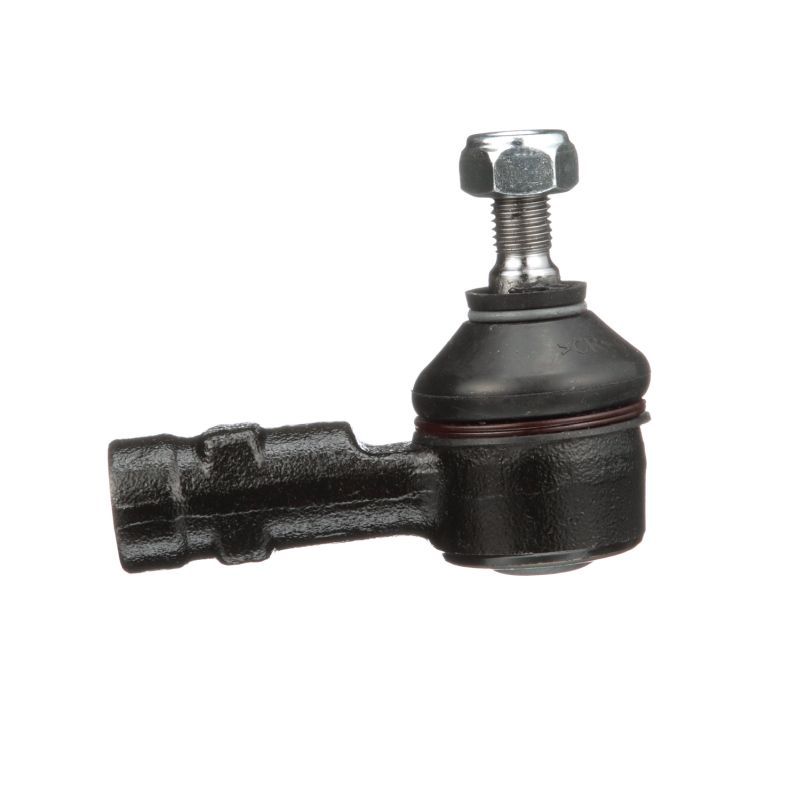

Delphi TA470 Tie Rod End - 6
Delphi TA470 Tie Rod End video
Delphi TA470 Tie Rod End - 1
Delphi TA470 Tie Rod End - 2
Delphi TA470 Tie Rod End - 3
Delphi TA470 Tie Rod End - 4
Delphi TA470 Tie Rod End - 5
Delphi TA470 Tie Rod End - 6
Delphi TA470 Tie Rod End video
DELPHI

Delphi TA470 Tie Rod End

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: TA470

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£13.60 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD
CAPRI I (ECJ)
Description Cylinder Capacity Horse Power Year
1700 1699 CCM 75 HP 12/1968 - 08/1972
1300 1305 CCM 50 HP 12/1968 - 12/1972
1500 1498 CCM 60 HP 12/1968 - 02/1974
1500 1488 CCM 65 HP 12/1968 - 02/1974
2000 1985 CCM 86 HP 02/1969 - 06/1971
2000 1998 CCM 90 HP 02/1969 - 02/1974
2300 2293 CCM 108 HP 02/1969 - 02/1974
2300 2294 CCM 125 HP 08/1969 - 02/1974
2600 2550 CCM 125 HP 08/1970 - 02/1974
2600 RS 2638 CCM 150 HP 08/1970 - 02/1974
1600 1593 CCM 88 HP 08/1972 - 02/1974
3000 2945 CCM 140 HP 08/1972 - 02/1974
1600 1593 CCM 72 HP 08/1972 - 02/1974
3000 2994 CCM 128 HP 01/1970 - 12/1971
3000 2945 CCM 140 HP 01/1973 - 12/1973
CAPRI Mk II (GECP)
Description Cylinder Capacity Horse Power Year
1.6 1593 CCM 68 HP 09/1974 - 12/1977
1.6 1593 CCM 72 HP 02/1974 - 12/1977
2.0 1999 CCM 90 HP 04/1976 - 12/1977
2.3 2294 CCM 108 HP 02/1974 - 12/1977
3.0 2993 CCM 138 HP 02/1974 - 12/1977
1.6 1593 CCM 88 HP 02/1974 - 12/1977
1.3 1298 CCM 54 HP 02/1974 - 08/1977
3.0 2994 CCM 138 HP 02/1974 - 12/1977
1.3 1298 CCM 57 HP 02/1974 - 08/1977
2.0 1993 CCM 98 HP 04/1974 - 12/1977
CAPRI Mk III (GECP)
Description Cylinder Capacity Horse Power Year
1.6 1593 CCM 73 HP 01/1978 - 04/1987
2.0 1993 CCM 101 HP 01/1978 - 12/1985
2.3 Super 2294 CCM 114 HP 06/1979 - 12/1985
2.8 Super Injection 2792 CCM 160 HP 01/1981 - 04/1987
1.3 1298 CCM 54 HP 01/1978 - 06/1985
3.0 2994 CCM 138 HP 01/1978 - 12/1981
2.0 1994 CCM 87 HP 01/1978 - 12/1985
2.0 1999 CCM 90 HP 01/1978 - 12/1982
2.8 i Turbo 2792 CCM 188 HP 01/1982 - 04/1987
COURIER Box Body/MPV (F3L, F5L)
Description Cylinder Capacity Horse Power Year
1.8 D 1753 CCM 60 HP 09/1991 - 02/1996
1.3 1299 CCM 60 HP 09/1991 - 02/1996
ESCORT   (AFH, ATH)
Description Cylinder Capacity Horse Power Year
1100 1098 CCM 45 HP 01/1968 - 12/1974
1100 1098 CCM 48 HP 06/1970 - 02/1976
1100 1098 CCM 40 HP 06/1968 - 06/1971
1100 1098 CCM 45 HP 06/1968 - 06/1971
1300 1298 CCM 48 HP 06/1968 - 06/1971
1300 1298 CCM 52 HP 06/1968 - 06/1971
1300 1298 CCM 54 HP 09/1973 - 02/1976
1300 1298 CCM 57 HP 06/1970 - 02/1976
1300 GT 1298 CCM 64 HP 06/1968 - 06/1971
1300 1298 CCM 72 HP 06/1970 - 02/1976
Twin Cam 1558 CCM 109 HP 03/1968 - 08/1971
Mexico 1601 CCM 86 HP 01/1970 - 10/1975
RS 1600 1601 CCM 115 HP 01/1970 - 10/1974
ESCORT   Turnier (ADH, AF)
Description Cylinder Capacity Horse Power Year
1100 1098 CCM 40 HP 06/1968 - 06/1971
1100 1098 CCM 48 HP 06/1970 - 02/1976
1100 1098 CCM 44 HP 06/1970 - 02/1976
1300 1298 CCM 57 HP 06/1970 - 02/1976
ESCORT III (GAA)
Description Cylinder Capacity Horse Power Year
1.1 1117 CCM 50 HP 08/1983 - 12/1985
1.1 1117 CCM 55 HP 09/1980 - 08/1983
1.1 1117 CCM 59 HP 09/1980 - 08/1983
1.3 1296 CCM 69 HP 09/1980 - 12/1985
1.6 1597 CCM 79 HP 09/1980 - 12/1985
1.6 1597 CCM 97 HP 09/1980 - 10/1982
1.6 XR3i 1597 CCM 105 HP 10/1982 - 12/1985
1.6 RS Turbo 1597 CCM 132 HP 11/1984 - 12/1985
1.6 D 1608 CCM 54 HP 02/1984 - 12/1985
1.6 i (GAA) 1597 CCM 90 HP 07/1985 - 12/1985
RS 1600i 1597 CCM 115 HP 05/1982 - 12/1985
ESCORT Mk III Turnier (AWA)
Description Cylinder Capacity Horse Power Year
1.1 1117 CCM 50 HP 08/1983 - 12/1985
1.1 1117 CCM 54 HP 09/1980 - 08/1983
1.3 1296 CCM 69 HP 03/1981 - 12/1985
1.6 1597 CCM 79 HP 09/1980 - 12/1985
1.6 D 1608 CCM 54 HP 02/1984 - 12/1985
ESCORT III Express (AVA)
Description Cylinder Capacity Horse Power Year
1.1 1117 CCM 50 HP 03/1981 - 02/1986
1.3 1296 CCM 69 HP 03/1981 - 02/1986
1.6 D 1608 CCM 54 HP 02/1984 - 02/1986
1.6 1597 CCM 84 HP 03/1981 - 02/1986
ESCORT Mk IV (GAF, AWF, ABFT)
Description Cylinder Capacity Horse Power Year
1.1 1117 CCM 50 HP 12/1985 - 07/1990
1.3 1297 CCM 60 HP 01/1986 - 07/1990
1.4 1392 CCM 73 HP 01/1986 - 07/1990
1.4 1392 CCM 75 HP 01/1986 - 07/1990
1.6 i 1598 CCM 90 HP 01/1986 - 05/1990
1.6 XR3i 1597 CCM 105 HP 01/1986 - 08/1989
1.6 Turbo RS 1597 CCM 132 HP 01/1986 - 07/1990
1.6 D 1608 CCM 54 HP 01/1986 - 01/1989
1.8 D 1753 CCM 60 HP 01/1989 - 07/1990
1.6 i 1597 CCM 102 HP 08/1989 - 07/1990
1.6 1598 CCM 88 HP 04/1989 - 07/1990
1.3 1296 CCM 69 HP 11/1986 - 07/1988
1.3 (GAF) 1297 CCM 63 HP 07/1988 - 10/1990
1.6 1597 CCM 79 HP 01/1986 - 12/1988
1.4 1392 CCM 70 HP 10/1985 - 10/1990
ESCORT Mk III Convertible (ALD)
Description Cylinder Capacity Horse Power Year
1.3 1296 CCM 69 HP 09/1983 - 12/1985
1.6 1597 CCM 79 HP 09/1983 - 12/1985
1.6 i 1597 CCM 105 HP 09/1983 - 12/1985
ESCORT Mk IV Turnier (AWF, AVF)
Description Cylinder Capacity Horse Power Year
1.3 1297 CCM 60 HP 01/1986 - 07/1990
1.4 1392 CCM 73 HP 01/1986 - 07/1990
1.4 1392 CCM 75 HP 01/1986 - 07/1990
1.6 D 1608 CCM 54 HP 01/1986 - 01/1989
1.8 D 1753 CCM 60 HP 01/1989 - 07/1990
1.6 i 1598 CCM 90 HP 01/1986 - 07/1990
1.3 1296 CCM 69 HP 11/1986 - 07/1988
1.6 1597 CCM 79 HP 01/1986 - 07/1990
1.4 1392 CCM 70 HP 10/1985 - 10/1990
1.1 1117 CCM 50 HP 10/1985 - 09/1990
ESCORT Mk IV Convertible (ALF)
Description Cylinder Capacity Horse Power Year
1.4 1392 CCM 73 HP 02/1987 - 07/1990
1.4 1392 CCM 75 HP 01/1986 - 07/1990
1.6 i 1598 CCM 90 HP 01/1986 - 07/1990
1.6 XR3i 1597 CCM 105 HP 01/1986 - 07/1990
1.6 i 1597 CCM 102 HP 08/1989 - 07/1990
1.6 1597 CCM 79 HP 01/1986 - 12/1987
ESCORT IV Express (AVF)
Description Cylinder Capacity Horse Power Year
1.1 1117 CCM 50 HP 05/1986 - 07/1990
1.6 1597 CCM 81 HP 02/1986 - 07/1990
1.3 1297 CCM 63 HP 07/1988 - 07/1990
1.8 D 1753 CCM 60 HP 07/1988 - 07/1990
1.3 1297 CCM 60 HP 02/1986 - 07/1990
1.6 D 1608 CCM 54 HP 02/1986 - 07/1990
1.4 i 1392 CCM 73 HP 02/1986 - 07/1990
FIESTA   (GFBT)
Description Cylinder Capacity Horse Power Year
0.9 957 CCM 40 HP 05/1976 - 08/1983
0.9 957 CCM 45 HP 05/1976 - 08/1983
1.1 1117 CCM 53 HP 05/1976 - 08/1983
1.3 1297 CCM 66 HP 08/1977 - 08/1983
1.6 XR2 1598 CCM 84 HP 08/1981 - 08/1983
1.1 (WFBT) 1117 CCM 55 HP 02/1981 - 08/1983
1.6 XR2 1598 CCM 97 HP 09/1981 - 08/1983
FIESTA Hatchback Van (WFVT)
Description Cylinder Capacity Horse Power Year
1.0 (WFVT) 957 CCM 40 HP 10/1977 - 11/1986
1.1 (WFVT) 1117 CCM 53 HP 10/1977 - 11/1986
FIESTA Hatchback Van (FVD)
Description Cylinder Capacity Horse Power Year
1.0 957 CCM 45 HP 08/1983 - 11/1989
1.8 D (FVJ) 1753 CCM 60 HP 03/1989 - 12/1995
1.8 TD 1753 CCM 75 HP 07/1993 - 08/1995
1.4 1392 CCM 71 HP 09/1986 - 09/1989
1.6 D 1608 CCM 54 HP 09/1983 - 09/1989
1.1 1119 CCM 50 HP 12/1991 - 08/1995
1.0 999 CCM 45 HP 04/1989 - 12/1991
FIESTA Mk II (FBD)
Description Cylinder Capacity Horse Power Year
1.1 (FBD) 1117 CCM 49 HP 05/1986 - 02/1989
1.0 (FBD) 957 CCM 45 HP 09/1983 - 02/1989
1.1 (FBD) 1117 CCM 50 HP 09/1983 - 02/1989
1.3 (FBD) 1298 CCM 69 HP 09/1983 - 01/1987
1.4 (FBD) 1392 CCM 71 HP 10/1986 - 02/1989
1.4 (FBD) 1392 CCM 73 HP 02/1987 - 02/1989
1.4 (FBD) 1392 CCM 75 HP 10/1985 - 11/1989
1.6 XR2 (FBD) 1597 CCM 95 HP 03/1984 - 02/1989
1.6 D (FBD) 1608 CCM 54 HP 04/1984 - 02/1989
1.6 XR2 (FBD) 1597 CCM 97 HP 04/1984 - 02/1989
1.4 1392 CCM 69 HP 09/1983 - 01/1987
1.3 1297 CCM 69 HP 09/1983 - 09/1989
1.6 1597 CCM 79 HP 01/1985 - 11/1989
FIESTA Mk III (GFJ)
Description Cylinder Capacity Horse Power Year
1.1 1119 CCM 55 HP 03/1989 - 12/1995
1.4 1392 CCM 73 HP 03/1989 - 12/1995
1.8 D 1753 CCM 60 HP 03/1989 - 12/1995
1.1 1119 CCM 50 HP 03/1989 - 12/1995
1.3 Cat 1299 CCM 60 HP 05/1991 - 01/1997
1.4 1391 CCM 71 HP 03/1989 - 12/1995
1.6 XR2i 1598 CCM 103 HP 03/1989 - 03/1993
1.8 16V 1796 CCM 105 HP 02/1992 - 12/1995
1.8 XR2i 16V 1796 CCM 130 HP 02/1992 - 12/1995
1.6 1597 CCM 88 HP 01/1989 - 01/1994
1.6 Turbo (FBJT) 1598 CCM 131 HP 03/1990 - 10/1992
1.0 1001 CCM 45 HP 03/1989 - 12/1995
1.6 XR2i 1597 CCM 110 HP 03/1989 - 01/1994
1.3 1299 CCM 60 HP 03/1989 - 12/1992
ORION   (AFD)
Description Cylinder Capacity Horse Power Year
1.3 1296 CCM 69 HP 07/1983 - 03/1986
1.6 1597 CCM 79 HP 07/1983 - 03/1986
1.6 i 1597 CCM 105 HP 07/1983 - 03/1986
1.6 D 1608 CCM 54 HP 02/1984 - 03/1986
ORION Mk II (AFF)
Description Cylinder Capacity Horse Power Year
1.4 Cat 1392 CCM 73 HP 02/1987 - 07/1990
1.4 1392 CCM 75 HP 12/1985 - 07/1990
1.4 1392 CCM 72 HP 03/1986 - 07/1990
1.6 i Cat 1597 CCM 90 HP 03/1986 - 07/1990
1.6 D 1608 CCM 54 HP 12/1985 - 01/1989
1.8 D 1753 CCM 60 HP 01/1989 - 07/1990
1.6 i 1597 CCM 105 HP 03/1986 - 07/1990
1.3 1296 CCM 69 HP 11/1986 - 07/1988
1.3 1297 CCM 60 HP 12/1985 - 07/1990
1.4 1392 CCM 73 HP 01/1986 - 07/1990
1.6 1597 CCM 90 HP 12/1985 - 07/1990
1.6 i 1597 CCM 102 HP 02/1986 - 07/1990
1.6 1597 CCM 88 HP 03/1986 - 07/1990

The Delphi TA470 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records 1/2"x20 thread size, with right-hand thread thread type, front axle fitting position, and 90 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : 1/2"x20
Thread Type : with right-hand thread
Cone Size [mm] : 11.4
Fitting Position : Front Axle
Length [mm] : 90
Width [mm] : 38
Height [mm] : 62
  • Vendor DELPHI
  • SKU TA470
  • Barcode 5012759851531
  • FORD : 69AB3289AA 84AB3289AA 880X3270AA 81AB3289AA 6081391 5021410 1447222 1571221 6128814
  • APEC : AST6027
  • BORG & BECK : BTR4208
  • CORTECO : 49400600
  • FEBI BILSTEIN : 02959
  • FIRST LINE : FTR4208
  • LEMFÖRDER : 11646 03
  • MEYLE : 716 020 0331
  • MONROE : L0003
  • NAPA : NST6027
  • Schaeffler FAG : 840 0738 10
  • SKF : VKDY 314033
  • TRW : JTE207
