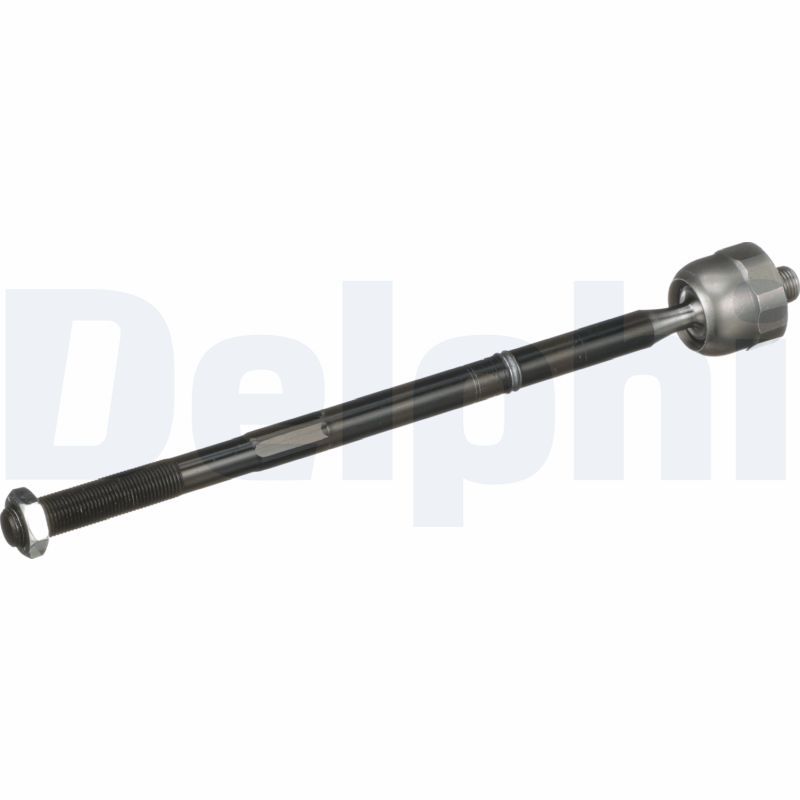

Delphi TA5600 Inner Tie Rod - 1

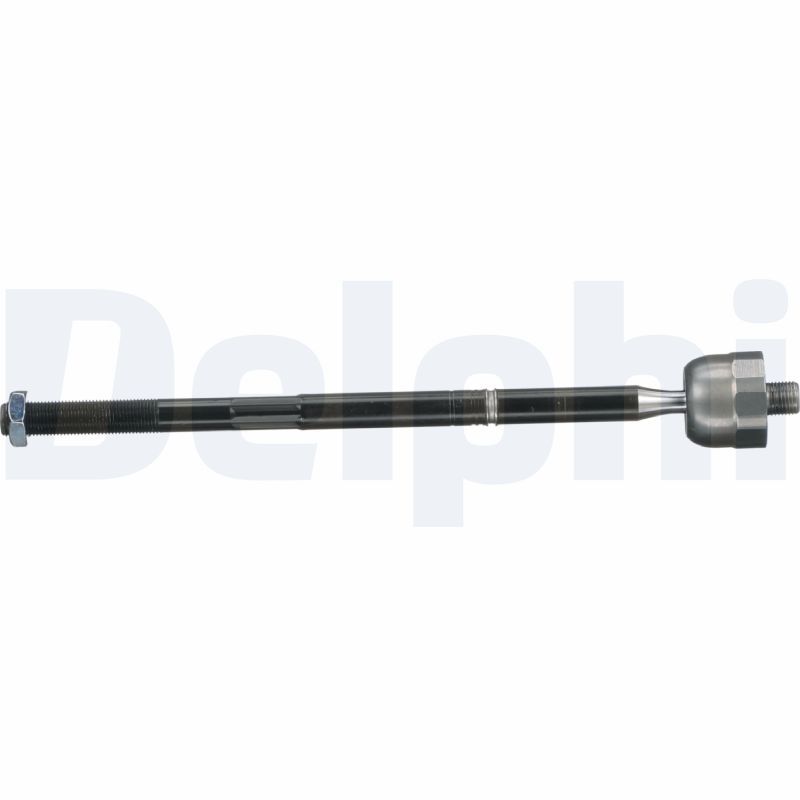

Delphi TA5600 Inner Tie Rod - 2
Delphi TA5600 Inner Tie Rod - 3
Delphi TA5600 Inner Tie Rod - 4
Delphi TA5600 Inner Tie Rod - 5
Delphi TA5600 Inner Tie Rod - 6
Delphi TA5600 Inner Tie Rod video
Delphi TA5600 Inner Tie Rod - 1
Delphi TA5600 Inner Tie Rod - 2
Delphi TA5600 Inner Tie Rod - 3
Delphi TA5600 Inner Tie Rod - 4
Delphi TA5600 Inner Tie Rod - 5
Delphi TA5600 Inner Tie Rod - 6
Delphi TA5600 Inner Tie Rod video
DELPHI

Delphi TA5600 Inner Tie Rod

SKU: TA5600
Your selected vehicle
Out of stock
Out of Stock
£25.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JEEP
CHEROKEE (KL)
Description Cylinder Capacity Horse Power Year
2.4 4x4 2360 CCM 177 HP From 11/2013
3.2 V6 4x4 3239 CCM 272 HP From 11/2013
2.0 CRD 4x4 1956 CCM 170 HP 04/2014 - 08/2018
2.0 CRD 1956 CCM 140 HP 04/2014 - 08/2018
2.0 CRD 4x4 1956 CCM 140 HP 04/2014 - 08/2018
2.4 2360 CCM 177 HP From 11/2013
3.2 V6 3239 CCM 272 HP From 11/2013
2.4 4x4 2360 CCM 186 HP From 11/2013
2.2 CRD 4x4 2184 CCM 185 HP 08/2015 - 08/2018
2.2 CRD 4x4 2184 CCM 200 HP 08/2015 - 08/2018
3.2 4x4 3239 CCM 275 HP From 01/2014
CHEROKEE VAN (KL)
Description Cylinder Capacity Horse Power Year
3.2 4x4 3239 CCM 272 HP From 08/2015
2.2 CRD 2184 CCM 185 HP 08/2015 - 08/2018
2.2 CRD 2184 CCM 200 HP 08/2015 - 08/2018

The Delphi TA5600 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1,5 thread size 1, M16 x 1,50 thread size 2, front axle fitting position, and 350.5 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M16 x 1,5
Thread Size 2 : M16 x 1,50
Fitting Position : Front Axle
Length [mm] : 350.5
Width [mm] : 43
Height [mm] : 43
Axle Joint Length [mm] : 336
  • Vendor DELPHI
  • SKU TA5600
  • Barcode 5012759678053
  • CHRYSLER : 68224935AB 68224935AA
  • JEEP : K68224935AB K68224935AA 68224935AA 68224935AB
