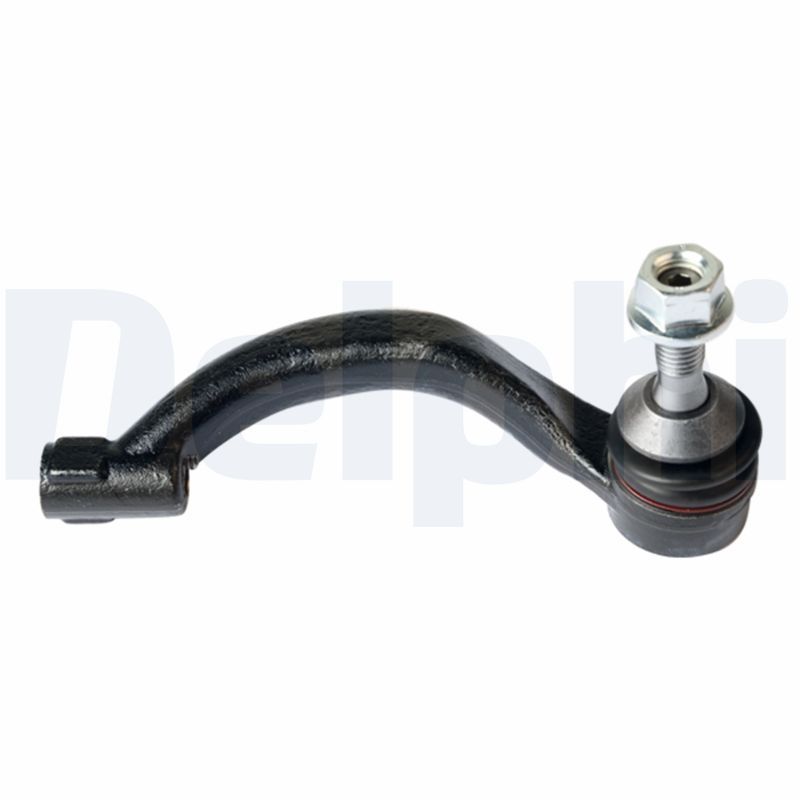

Delphi TA5990 Tie Rod End - 1
Delphi TA5990 Tie Rod End - 2

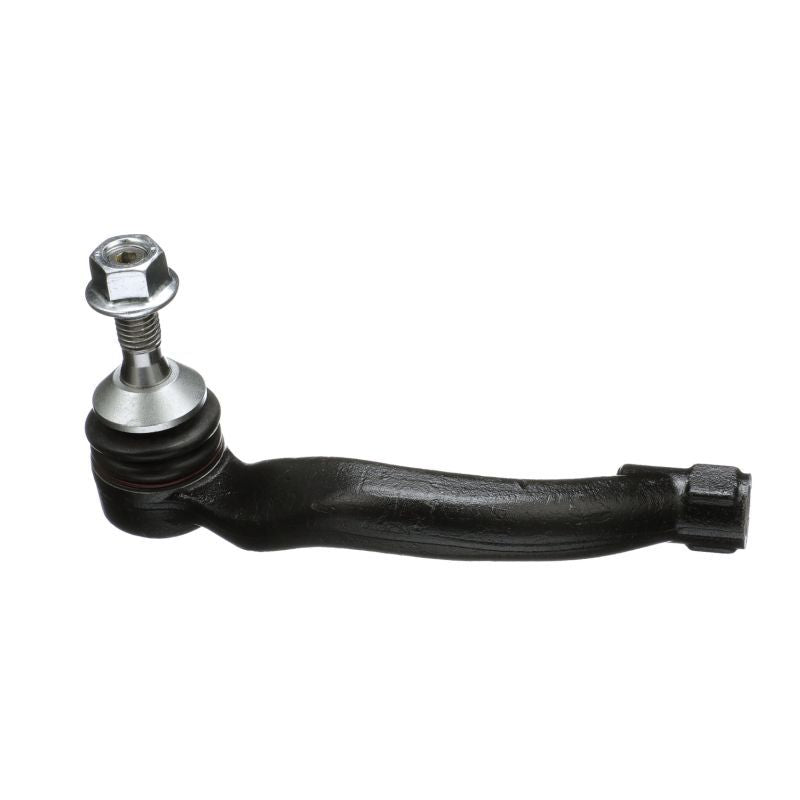

Delphi TA5990 Tie Rod End - 3

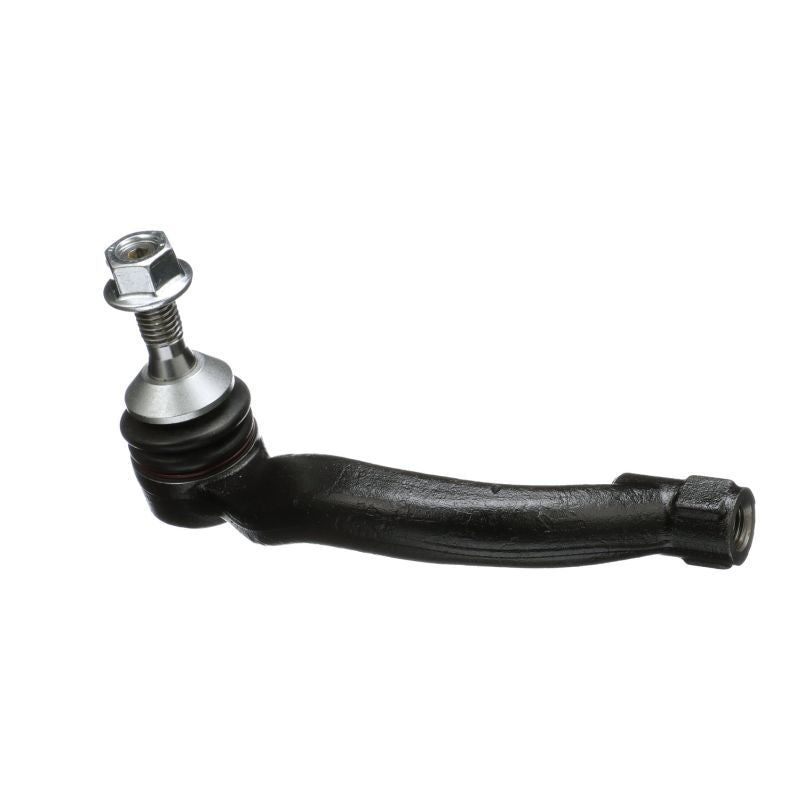

Delphi TA5990 Tie Rod End - 4

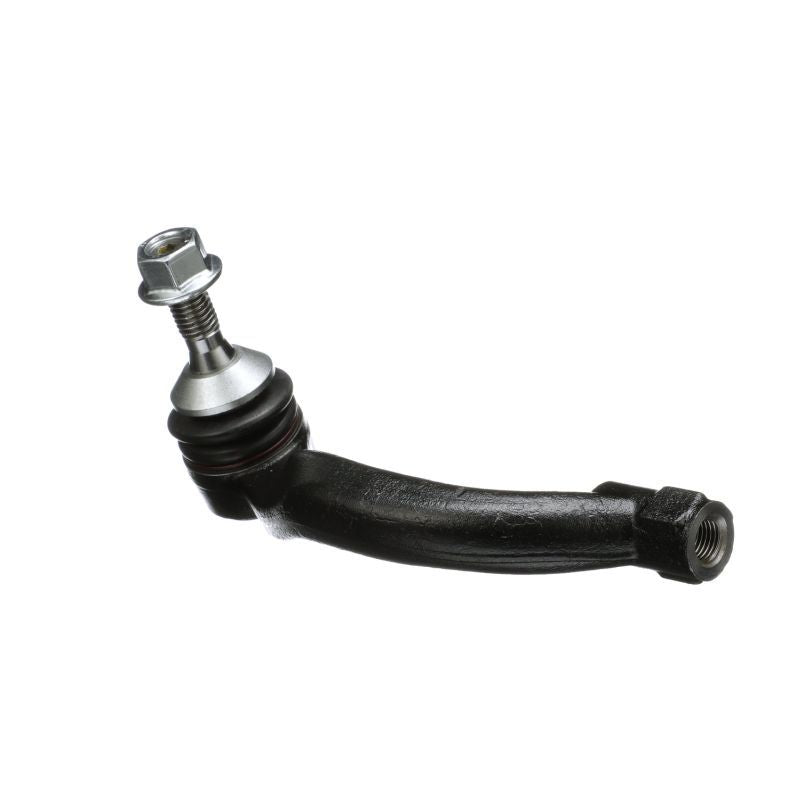

Delphi TA5990 Tie Rod End - 5

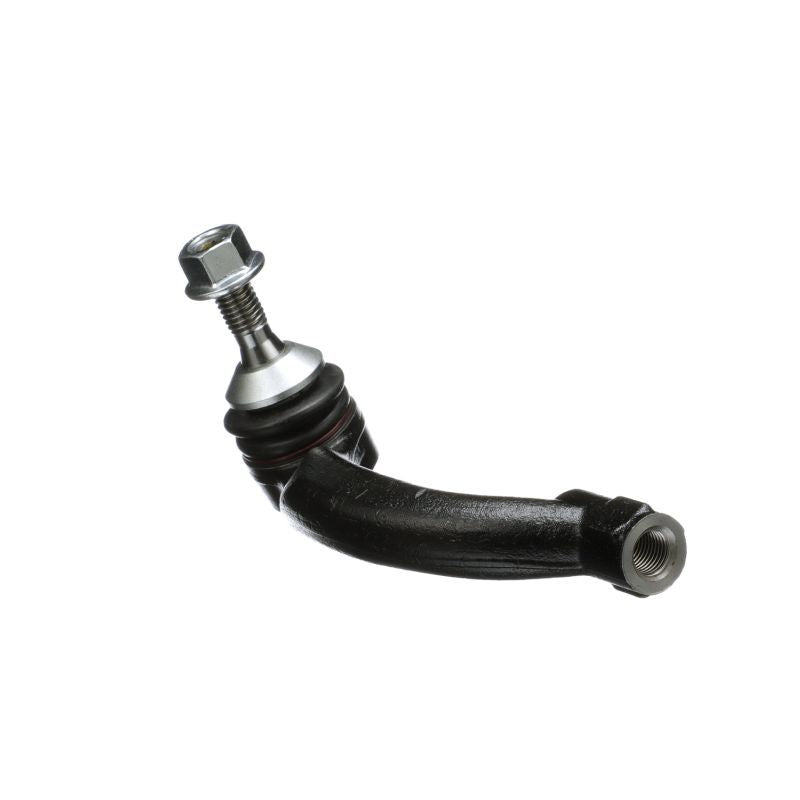

Delphi TA5990 Tie Rod End - 6
Delphi TA5990 Tie Rod End video
Delphi TA5990 Tie Rod End - 1
Delphi TA5990 Tie Rod End - 2
Delphi TA5990 Tie Rod End - 3
Delphi TA5990 Tie Rod End - 4
Delphi TA5990 Tie Rod End - 5
Delphi TA5990 Tie Rod End - 6
Delphi TA5990 Tie Rod End video
DELPHI

Delphi TA5990 Tie Rod End

SKU: TA5990
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£36.57 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JAGUAR
XF I (X250)
Description Cylinder Capacity Horse Power Year
3.0 D 2993 CCM 211 HP 03/2009 - 04/2015
5.0 Kompressor 5000 CCM 471 HP 01/2009 - 04/2015
2.2 D 2179 CCM 190 HP 05/2011 - 04/2015
2.2 D 2179 CCM 163 HP 04/2011 - 04/2015
3.0 2967 CCM 238 HP 03/2008 - 04/2015
4.2 4196 CCM 298 HP 03/2008 - 04/2015
4.2 Kompressor 4196 CCM 416 HP 03/2008 - 04/2015
2.7 D 2720 CCM 207 HP 03/2008 - 04/2015
3.0 D 2993 CCM 241 HP 03/2009 - 04/2015
3.0 D 2993 CCM 275 HP 03/2009 - 04/2015
5.0 5000 CCM 385 HP 03/2009 - 04/2015
5.0 Kompressor 5000 CCM 510 HP 03/2009 - 04/2015
2.2 D 2179 CCM 200 HP 03/2012 - 04/2015
3.0 2995 CCM 340 HP 03/2012 - 04/2015
2.0 1999 CCM 241 HP 06/2012 - 04/2015
XF SPORTBRAKE (X250)
Description Cylinder Capacity Horse Power Year
2.2 D 2179 CCM 200 HP 09/2012 - 04/2014
3.0 D 2993 CCM 241 HP 09/2012 - 04/2014
3.0 D 2993 CCM 275 HP 09/2012 - 04/2014
2.2 D 2179 CCM 163 HP 09/2012 - 04/2014
5.0 XFR-S 5000 CCM 550 HP 02/2013 - 04/2014
XK II Coupe (X150)
Description Cylinder Capacity Horse Power Year
5.0 XKR-S 5000 CCM 550 HP 01/2011 - 07/2014
5.0 XKR 5000 CCM 530 HP 09/2010 - 07/2014
4.2 XKR 4196 CCM 426 HP 08/2006 - 07/2014
4.2 XK8 4196 CCM 298 HP 03/2006 - 07/2014
4.2 XKR 4196 CCM 396 HP 03/2006 - 07/2014
4.2 XKR 4196 CCM 416 HP 03/2006 - 07/2014
5.0 XKR 5000 CCM 510 HP 01/2009 - 07/2014
5.0 V8 5000 CCM 385 HP 01/2009 - 07/2014
4.2 XK 4196 CCM 305 HP 02/2008 - 07/2014
XK II Convertible (X150)
Description Cylinder Capacity Horse Power Year
5.0 XKR-S 5000 CCM 550 HP 01/2011 - 07/2014
4.2 XKR 4196 CCM 426 HP 08/2006 - 07/2014
4.2 XK8 4196 CCM 298 HP 03/2006 - 07/2014
4.2 XKR 4196 CCM 416 HP 03/2006 - 07/2014
3.6 3555 CCM 258 HP 10/2007 - 07/2014
5.0 XKR 5000 CCM 510 HP 01/2009 - 07/2014
5.0 V8 5000 CCM 385 HP 01/2009 - 07/2014
4.2 4196 CCM 396 HP 09/2007 - 12/2009
4.2 XK 4196 CCM 305 HP 02/2008 - 07/2014

The Delphi TA5990 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,50 thread size, with right-hand thread thread type, front axle right fitting position, and 211 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14 x 1,50
Thread Type : with right-hand thread
Paired article number : TA5991
Fitting Position : Front Axle Right
Length [mm] : 211
Width [mm] : 70
Height [mm] : 97
  • Vendor DELPHI
  • SKU TA5990
  • Barcode 5012759728543
  • JAGUAR : C2D47152 C2Z5517
  • BLUE PRINT : ADJ138720
  • BORG & BECK : BTR5757
  • FEBI BILSTEIN : 48112
  • FIRST LINE : FTR5757
  • MEYLE : 18-16 020 0003/HD
  • MONROE : L16169
