DELPHI

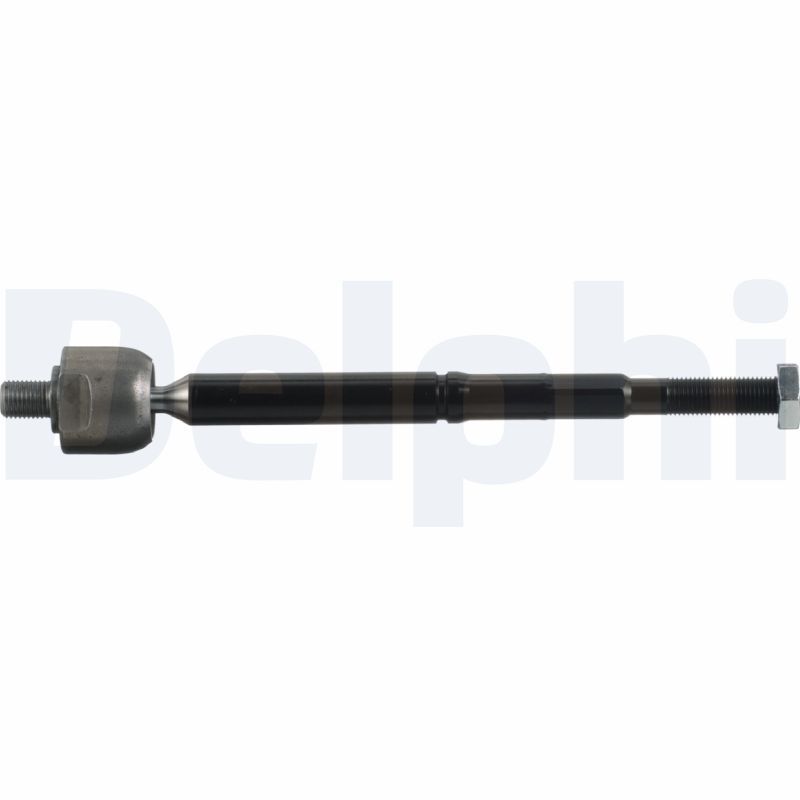

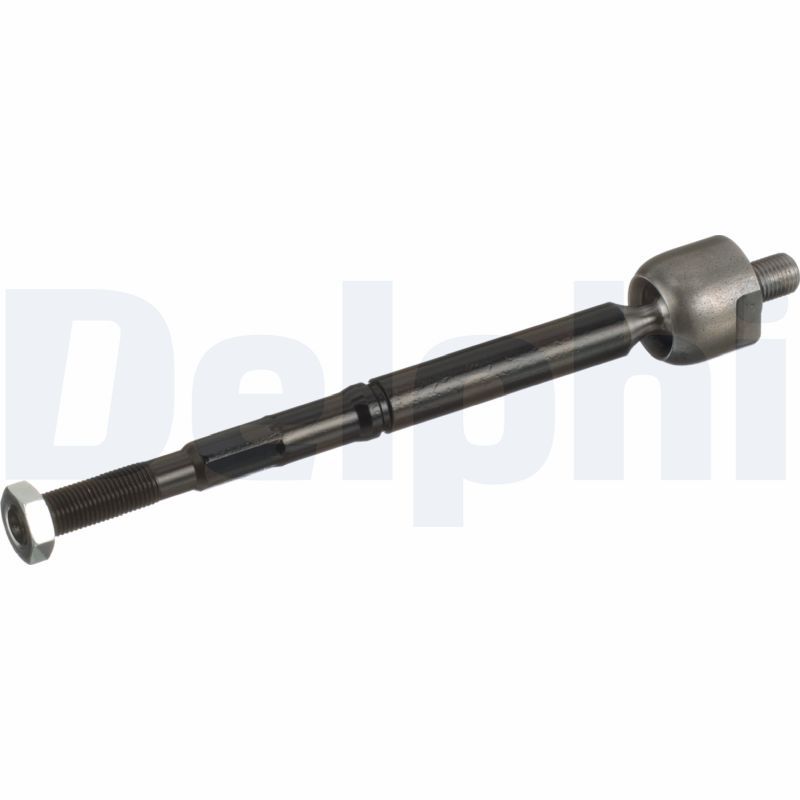

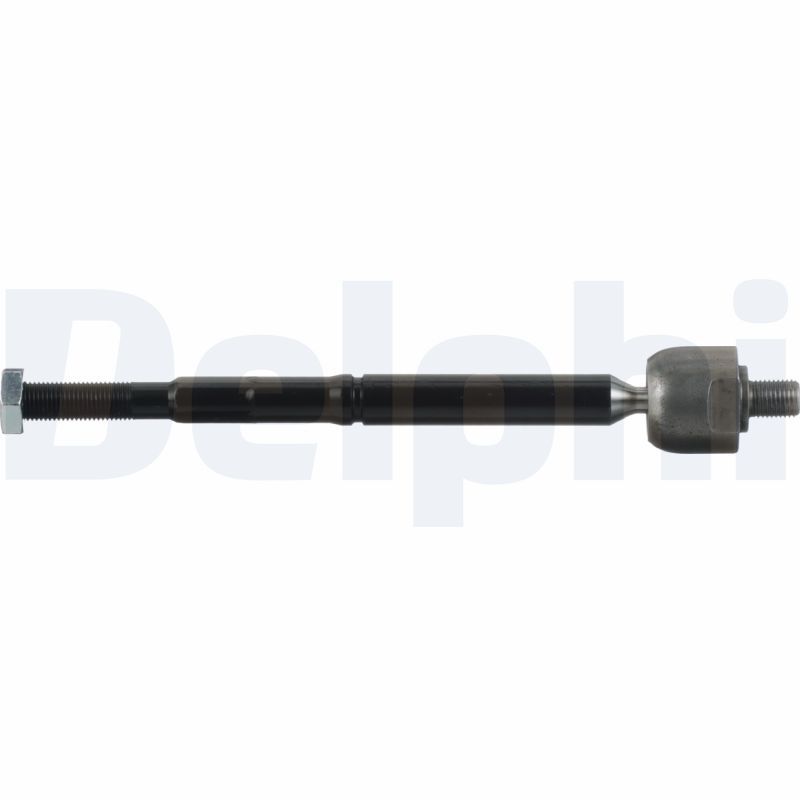

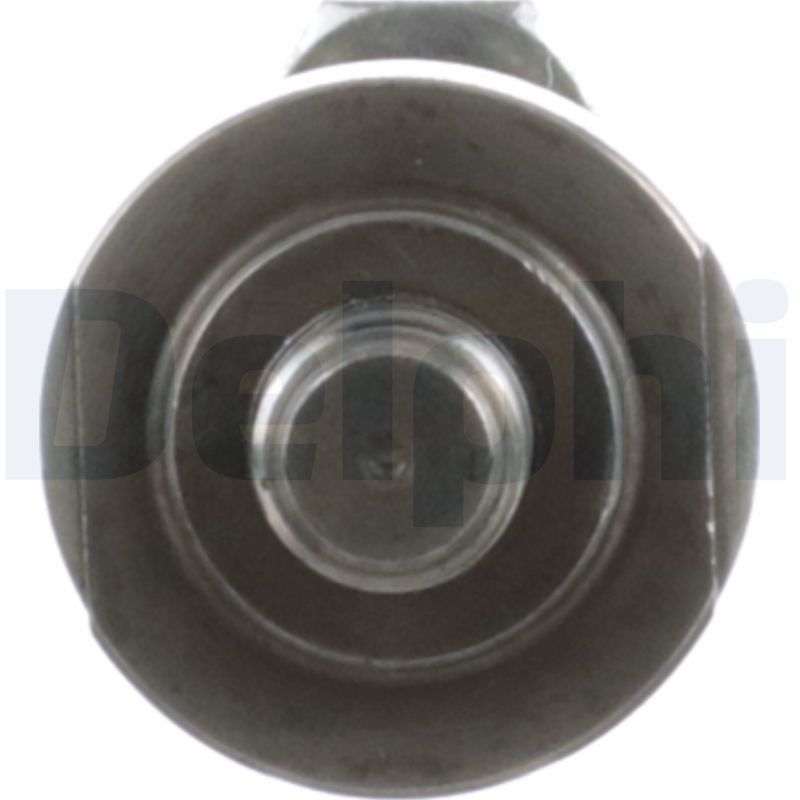

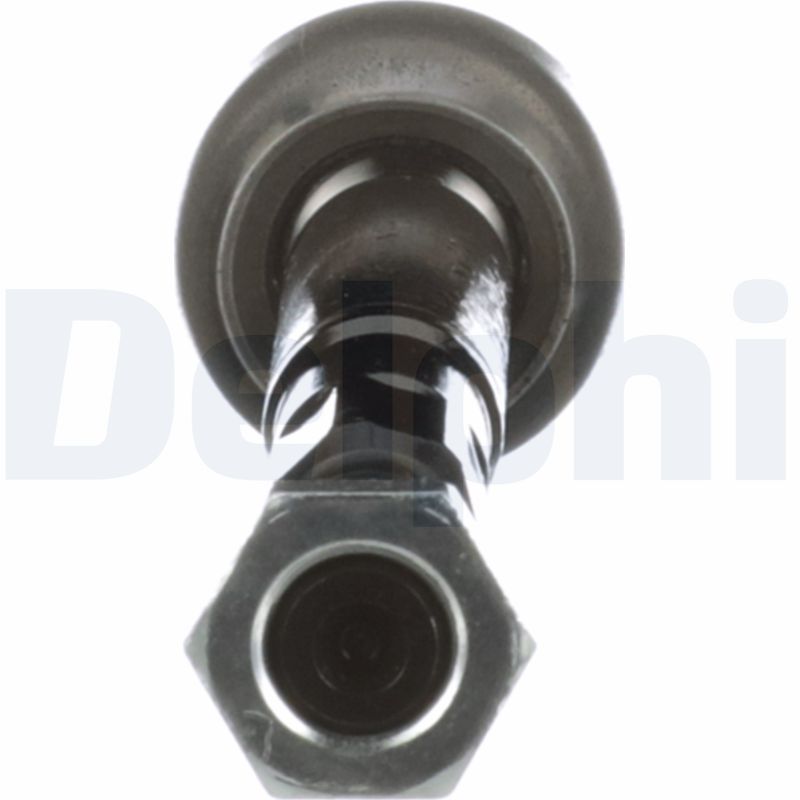

Delphi TA6402 Inner Tie Rod

SKU: TA6402
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£21.79 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HONDA
JAZZ IV (GK_)
Description Cylinder Capacity Horse Power Year
1.3 1318 CCM 102 HP From 09/2015
1.5 1498 CCM 130 HP From 09/2017
JAZZ V (GR_, GS_)
Description Cylinder Capacity Horse Power Year
1.5 eHEV (GR3, GR6) 1498 CCM 109 HP From 02/2020

The Delphi TA6402 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,5 thread size 1, M14 x 1,50 thread size 2, front axle fitting position, and 269 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M14 x 1,5
Thread Size 2 : M14 x 1,50
Fitting Position : Front Axle
Length [mm] : 269
Width [mm] : 37
Height [mm] : 37
Axle Joint Length [mm] : 253
  • Vendor DELPHI
  • SKU TA6402
  • Barcode 5012759678039
  • HONDA : 53410T00003 53410T5B003 53010T5R003
  • BLUE PRINT : ADBP870039
  • FEBI BILSTEIN : 180275
  • MONROE : L40H01
  • TRW : JAR1619
