DELPHI

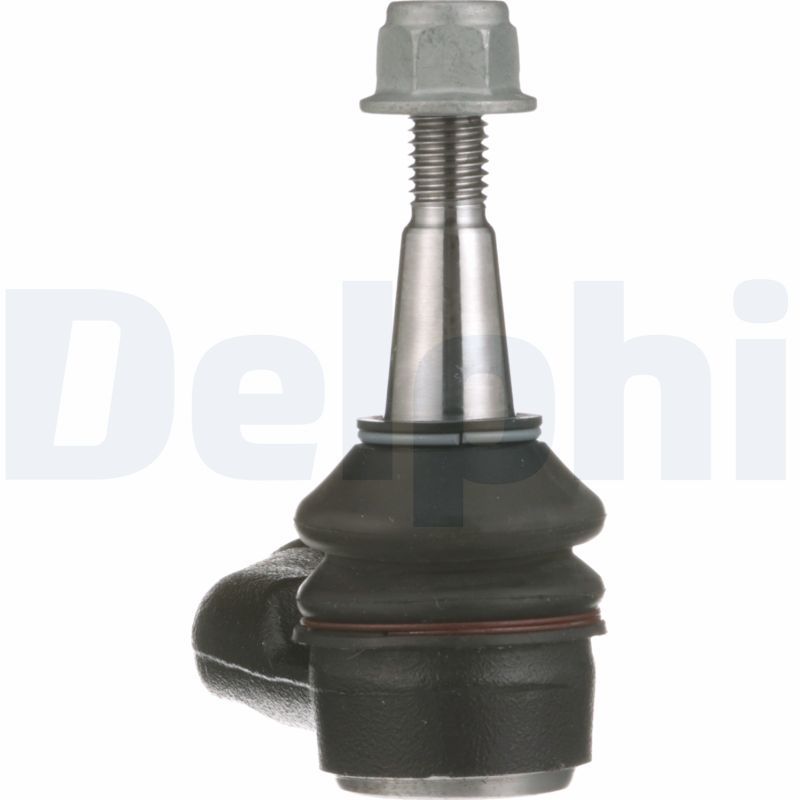

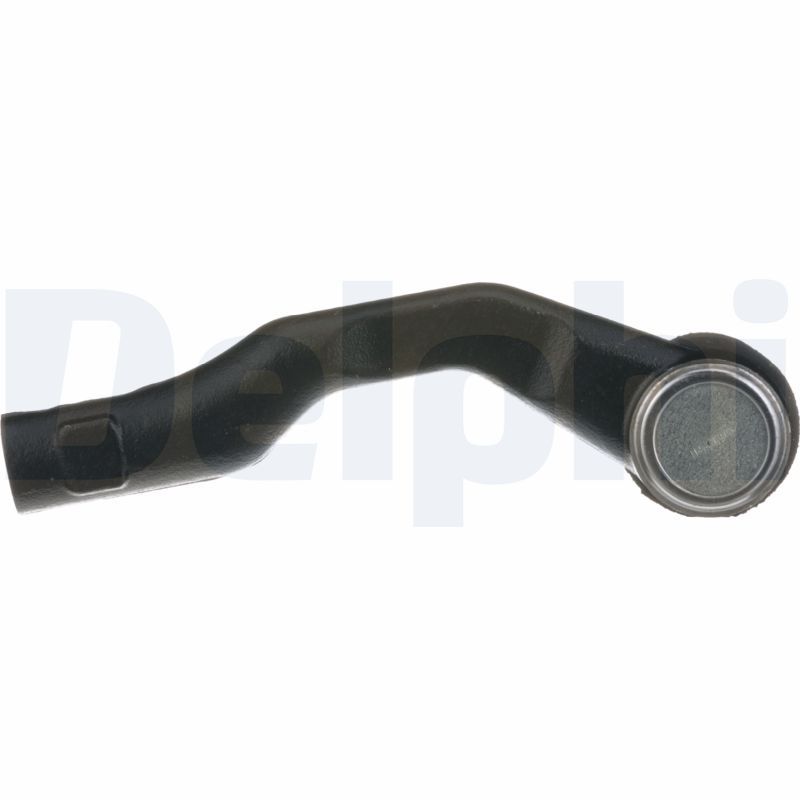

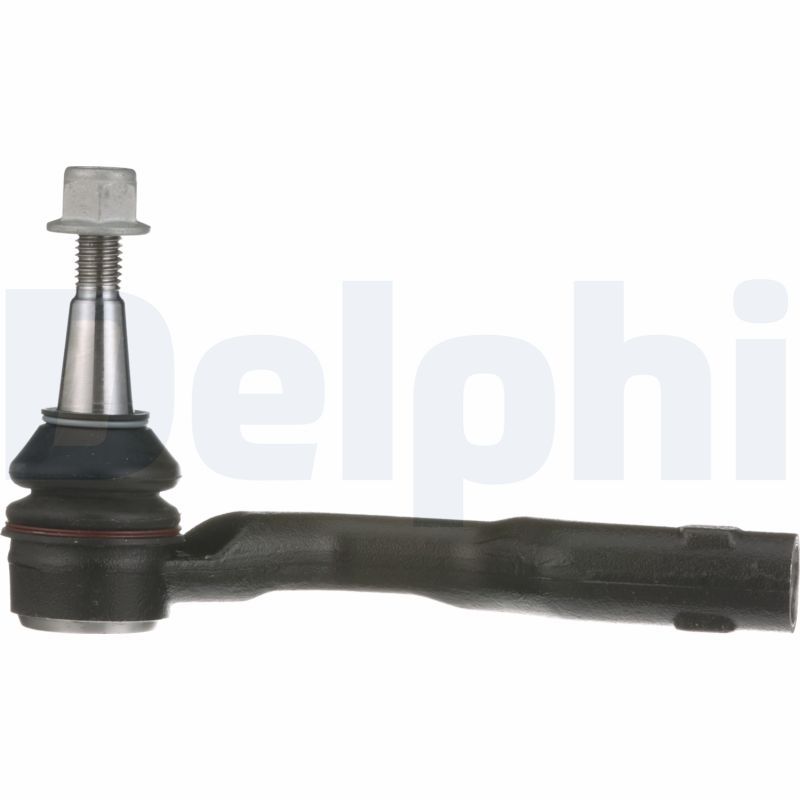

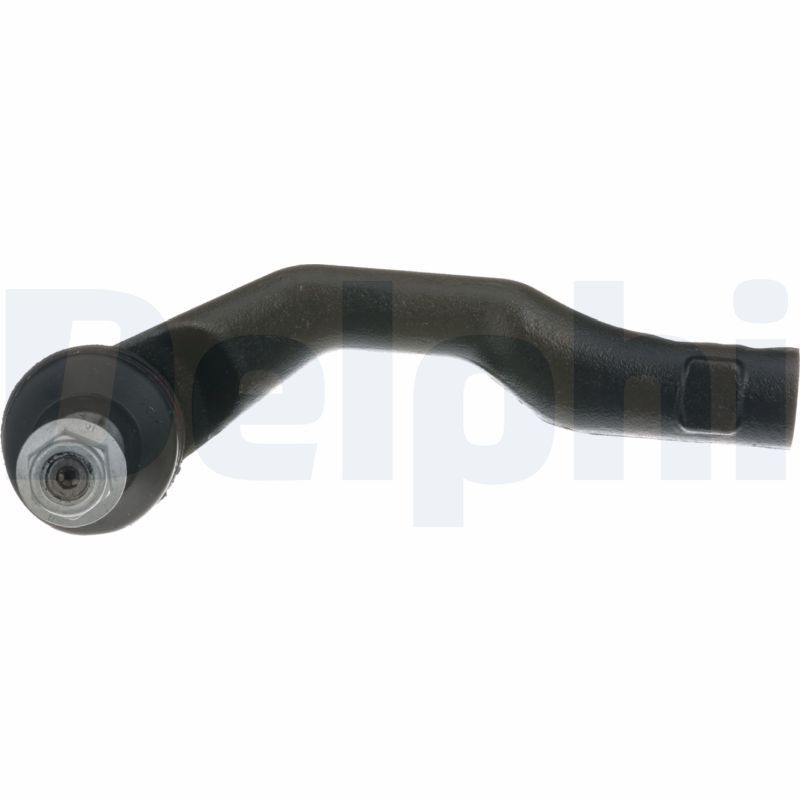

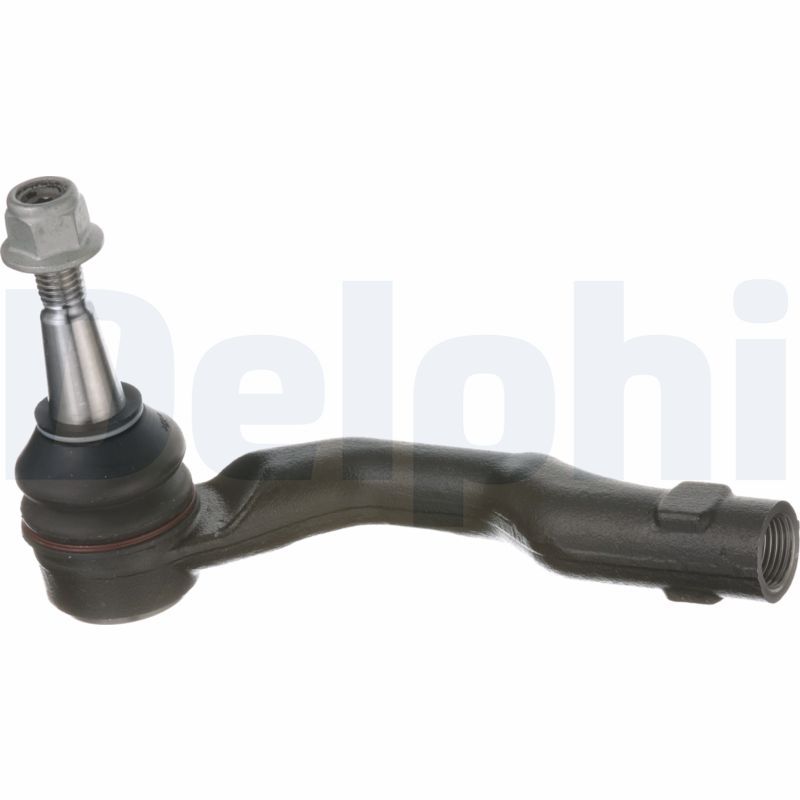

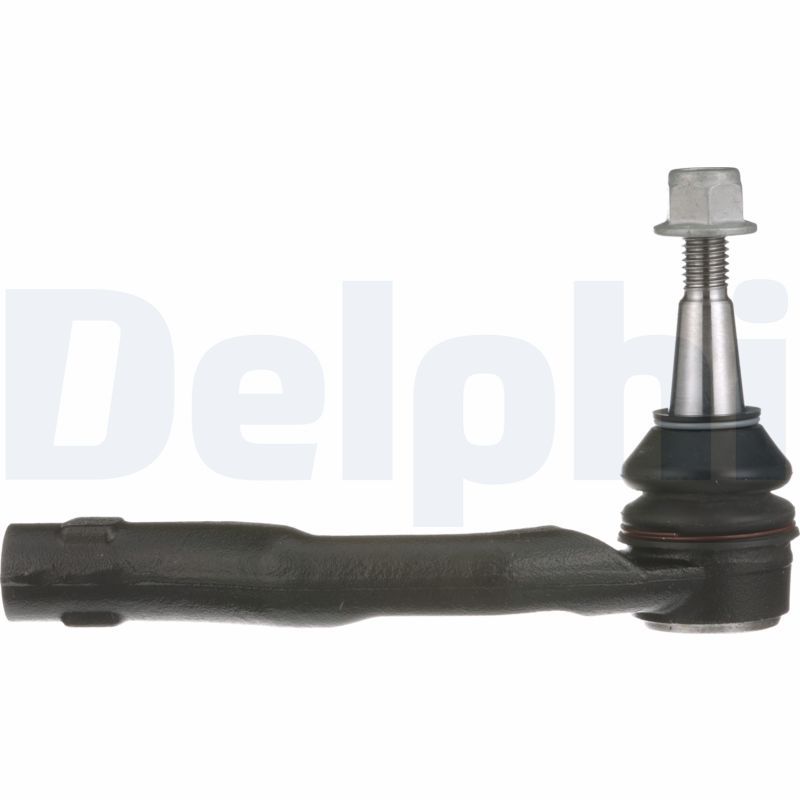

Delphi TA6414 Tie Rod End

SKU: TA6414

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£36.38 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO

V60 II (225)

Description	Cylinder Capacity	Horse Power	Year
D4 AWD	1969 CCM	190 HP	09/2018 - 12/2021
T5 AWD	1969 CCM	250 HP	09/2018 - 12/2021

V60 II Cross Country (227)

Description	Cylinder Capacity	Horse Power	Year
B4 Mild-Hybrid AWD	1969 CCM	197 HP	From 10/2020
B5 Mild-Hybrid AWD	1969 CCM	249 HP	From 03/2022
D4 AWD	1969 CCM	190 HP	12/2018 - 12/2021
T5 AWD	1969 CCM	250 HP	12/2018 - 12/2021
B5 Mild-Hybrid AWD	1969 CCM	250 HP	From 01/2020

V90 II Cross Country (236)

Description	Cylinder Capacity	Horse Power	Year
T5 AWD	1969 CCM	254 HP	10/2016 - 12/2018
T5 AWD	1969 CCM	249 HP	03/2016 - 12/2021
T5 AWD	1969 CCM	250 HP	From 10/2017
D4 AWD	1969 CCM	163 HP	From 09/2018
T5 Polestar AWD	1969 CCM	253 HP	From 10/2017
B5 Mild Hybrid AWD	1969 CCM	250 HP	From 03/2020
B5 Mild-Hybrid	1969 CCM	249 HP	From 03/2022
T6 AWD	1969 CCM	320 HP	From 10/2016
D5 AWD	1969 CCM	235 HP	From 10/2016
D4 AWD	1969 CCM	190 HP	From 10/2016
T6 AWD	1969 CCM	310 HP	From 10/2017
B6 Mild-Hybrid AWD	1969 CCM	299 HP	From 03/2020
B5 Mild Hybrid AWD	1969 CCM	235 HP	From 12/2020
B4 Mild-Hybrid AWD	1969 CCM	197 HP	From 10/2020
B5 Mild Hybrid Polestar AWD	1969 CCM	245 HP	From 11/2021

XC60 II (246)

Description	Cylinder Capacity	Horse Power	Year
D4 AWD	1969 CCM	190 HP	03/2017 - 12/2021
D5 AWD	1969 CCM	235 HP	03/2017 - 12/2022
T5 AWD	1969 CCM	254 HP	03/2017 - 12/2021
T6 AWD	1969 CCM	320 HP	03/2017 - 12/2021
T8 Hybrid AWD	1969 CCM	407 HP	03/2017 - 12/2022
T5	1969 CCM	254 HP	From 03/2017
T5	1969 CCM	250 HP	10/2017 - 12/2020
T5 AWD	1969 CCM	250 HP	10/2017 - 12/2020
T6 AWD	1969 CCM	310 HP	10/2017 - 12/2021
T5 AWD	1969 CCM	249 HP	10/2017 - 12/2021
T8 Hybrid AWD	1969 CCM	390 HP	02/2018 - 12/2022
D4	1969 CCM	190 HP	03/2017 - 12/2021
D3	1969 CCM	150 HP	03/2017 - 12/2021
T4	1969 CCM	190 HP	09/2018 - 12/2021
D4	1969 CCM	163 HP	12/2018 - 12/2021

XC90 II (256)

Description	Cylinder Capacity	Horse Power	Year
T6 AWD	1969 CCM	320 HP	09/2014 - 12/2018
D5 AWD	1969 CCM	224 HP	09/2014 - 12/2016
T8 Hybrid AWD	1969 CCM	407 HP	06/2015 - 12/2018
D4	1969 CCM	190 HP	06/2015 - 12/2018
D4 AWD	1969 CCM	190 HP	10/2015 - 12/2018
T5 AWD	1969 CCM	254 HP	06/2015 - 12/2021
T8 Hybrid AWD	1969 CCM	405 HP	06/2015 - 12/2022
D5 AWD	1969 CCM	235 HP	03/2016 - 12/2019
T5 AWD	1969 CCM	249 HP	02/2016 - 12/2018
T6 AWD	1969 CCM	310 HP	10/2017 - 12/2021
T5 AWD	1969 CCM	250 HP	10/2017 - 12/2020
T6 Polestar AWD	1969 CCM	334 HP	01/2017 - 12/2021
B5 Mild-Hybrid AWD	1969 CCM	235 HP	From 04/2019
T6 Polestar AWD	1969 CCM	326 HP	10/2017 - 12/2021
T5 Polestar AWD	1969 CCM	253 HP	07/2019 - 12/2020

The Delphi TA6414 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M18 x 1,50 thread size, with right-hand thread thread type, front axle left fitting position, and 192 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End

Thread Size : M18 x 1,50

Thread Type : with right-hand thread

Cone Size [mm] : 13.7

Paired article number : TA6413

Fitting Position : Front Axle Left

Length [mm] : 192

Width [mm] : 70

Height [mm] : 110

Delphi TA6414 Tie Rod End
